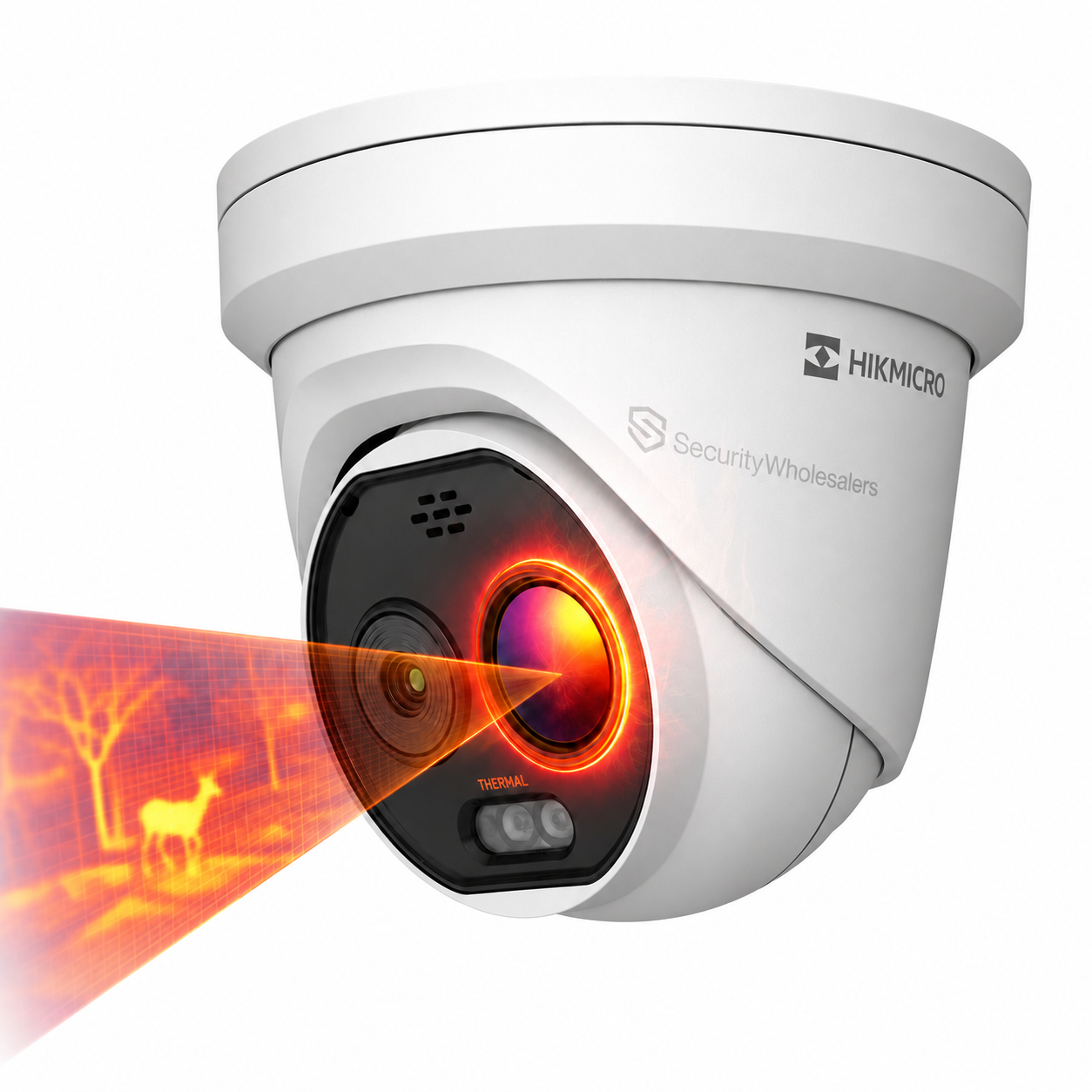

Product Overview
Standard CCTV falls silent in complete darkness, smoke and low-visibility conditions, which is precisely where the Hikvision HM-TD1218-2/G0/T1A HeatPro steps in. This compact bi-spectrum turret camera pairs a 160 x 120 thermal imaging sensor with a 5MP optical module in a single IP67-rated outdoor housing, delivering simultaneous heat-based detection and full-colour visual verification from one installation point. Featuring built-in fire point detection, smoke detection and temperature exception alarms, the HM-TD1218-2/G0/T1A is engineered for environments where early-warning capability matters most, including warehouses, waste and recycling facilities, industrial yards, construction site perimeters and manufacturing areas. It supports bi-spectrum image fusion and picture-in-picture display so operators can read thermal data and visual context side by side. Powered by PoE, it draws everything it needs through a single Ethernet cable with no separate power run required.
Key Capabilities
Bi-Spectrum Thermal and Optical Fusion
A 160 x 120 thermal sensor and a 5MP optical camera operate simultaneously, with bi-spectrum image fusion and picture-in-picture display combining both feeds on screen. Operators can read surface heat data and view colour detail from a single device, reducing the need to switch between separate camera channels during an event.
Early Fire Point Detection
The thermal channel can detect a 0.5 x 0.5 m fire source at distances up to 13.2 m, alerting operators before an ignition event becomes a visible flame. For high-risk sites such as timber yards, waste stockpiles and industrial storage areas, this early-warning window can be the difference between a minor incident and a major loss.
Smoke Detection via Optical Analysis
The optical channel analyses scene images for smoke presence and triggers an alarm before fire becomes apparent on a conventional camera. Effective to 3.15 m, this capability adds a second detection layer that complements the thermal channel, particularly useful in enclosed sheds, workshops and storage buildings.
Human and Vehicle VCA on the Thermal Channel
Thermal-based video content analysis detects humans at up to 20 m and vehicles at up to 60 m, operating independently of ambient light. After-hours perimeter monitoring triggers alerts only for genuine human or vehicle intrusions, which helps reduce nuisance alarms caused by animals, foliage movement or lighting changes.
Temperature Exception Alarm
Operators can configure threshold-based temperature alarms that fire when surfaces exceed a defined limit. This is valuable for monitoring electrical switchboards, plant machinery and stored goods that may develop an overheating fault or smouldering condition well before any visual sign is evident to a standard camera.
PoE Power and IP67 Weather Rating
A single Ethernet cable delivers both network connectivity and PoE power, simplifying cable routing on industrial sites where running a separate power circuit would add cost and complexity. The IP67 rating ensures full dust protection and resistance to water ingress, keeping the camera operational in exposed outdoor locations through Australian rain, heat and humidity.
Best For
- Waste and Recycling Facilities: Thermal imaging detects heat building within compacted waste stockpiles where smouldering can develop beneath the surface, well before any flame or visible smoke appears to a standard optical camera.
- Industrial Manufacturing and Plant Areas: Monitors machinery surfaces, electrical equipment and production lines for temperature anomalies that may indicate overheating faults, enabling maintenance teams to act before a thermal event escalates.
- Construction Site Perimeters: Provides after-hours human and vehicle detection across large, poorly lit perimeters where conventional cameras cannot deliver consistent coverage, supporting theft prevention and site liability management.
- Warehouses and Logistics Facilities: Combines thermal fire detection at storage and entry zones with 5MP optical footage for post-event identification and review, covering both safety and security requirements from a single camera position.
- Car Parks and Outdoor Storage Yards: Smart hybrid lighting supports usable colour imagery at night through the optical channel, while the thermal channel ensures persons and vehicles are not missed in shadowed or unlit zones.
Why Choose the HM-TD1218-2/G0/T1A
A conventional camera, regardless of resolution, captures only reflected light. It cannot detect a smouldering pile of waste, a surface temperature spike on a switchboard or a person crossing a pitch-dark yard. The HM-TD1218-2/G0/T1A addresses those gaps directly by pairing a genuine 160 x 120 thermal sensor with a 5MP optical camera in one turret housing. The thermal channel delivers fire point detection to 13.2 m, human VCA to 20 m and vehicle VCA to 60 m, all functioning in complete darkness and without reliance on any light source. The temperature exception alarm adds a configurable monitoring layer for equipment and stored materials. For security integrators and site managers sourcing this camera through Security Wholesalers, the HM-TD1218-2/G0/T1A provides genuine thermal detection capability at an accessible price point compared to dedicated industrial thermal systems, while the PoE power supply keeps installation costs manageable.
Buyer Decision Tips
Buyer Tip: The 1.8mm thermal lens on the HM-TD1218-2/G0/T1A produces a wide field of view suited to monitoring open yards, broad perimeter zones and large floor areas. If your application requires detection at greater distances through a narrower viewing angle, such as a long driveway or a fence line corridor, a HeatPro model with a longer thermal focal length will deliver better range performance for that specific scenario before you commit to purchasing.
Buyer Tip: Smoke detection on this model operates through the optical channel by analysing visual changes in the image frame, and is rated to 3.15 m. Ensure the optical lens has a clear, unobstructed line of sight to the monitored area. Environments with persistent dust, steam or condensation may generate false positives on the smoke detection function without careful threshold configuration at commissioning.
Key Features & Technical Specifications
| Model |
HM-TD1218-2/G0/T1A |
| Camera Type |
Bi-Spectrum Thermal and Optical Turret Camera |
| Thermal Sensor Resolution |
160 x 120 |
| Thermal Lens Focal Length |
1.8mm |
| Optical Camera Resolution |
5MP |
| Optical Lens Focal Length |
2mm |
| Image Fusion |
Bi-spectrum image fusion with picture-in-picture display |
| Human VCA Detection Range (Thermal) |
Up to 20 m (target: 1.8 x 0.5 m) |
| Vehicle VCA Detection Range (Thermal) |
Up to 60 m (target: 1.4 x 4.0 m) |
| Fire Point Detection Range |
Up to 13.2 m (object: 0.5 x 0.5 m) |
| Smoke Detection Range |
Up to 3.15 m |
| Temperature Measurement Range (0.2 x 0.2 m object) |
Up to 7 m |
| Temperature Measurement Range (0.5 x 0.5 m object) |
Up to 17.5 m |
| DORI Detection Range – Human |
88 m |
| DORI Detection Range – Vehicle |
268 m |
| Smart Detection Functions |
Human detection, vehicle detection, temperature exception alarm, fire point detection, smoke detection |
| Smart Hybrid Light |
Yes |
| Audio / Alarm I/O |
Yes |
| Power Supply |
PoE (Power over Ethernet) |
| Weather Protection Rating |
IP67 |
Ideal Use Cases
Waste and Recycling Facilities
Spontaneous combustion within compacted waste piles generates heat before any visible flame. The thermal sensor detects this heat build-up and can trigger an early alarm, giving operators time to intervene before a stockpile fire takes hold.
Industrial Plant and Machinery Monitoring
The configurable temperature exception alarm flags overheating equipment, electrical switchboards and motors. Maintenance teams can act on a thermal alert before a fault develops into a fire or costly equipment failure, reducing downtime and risk simultaneously.
Construction Site After-Hours Security
Thermal VCA detects human intrusions at up to 20 m and vehicles at up to 60 m in complete darkness, with no dependence on site lighting. This makes the HM-TD1218-2/G0/T1A well suited to unmanned sites where lighting infrastructure is limited or absent during non-working hours.
Warehouse and Logistics Entry Zones
Positioned at loading dock entries and internal storage areas, the camera combines thermal fire monitoring with 5MP optical recording for post-event review and identification, covering both safety compliance and security requirements from a single camera mounting point.
Car Parks and Open Outdoor Yards
Smart hybrid lighting supports usable colour imagery from the optical channel at night, while the thermal channel ensures that persons moving through shadowed or unlit sections of the yard are not missed by the detection analytics.
High-Value Outdoor Asset Storage
For sites storing vehicles, plant equipment or bulk materials in open yards, thermal perimeter monitoring provides a detection layer that is unaffected by darkness, heavy overcast or obscured sightlines that would compromise a conventional optical camera at night.
Choosing the Right Model
- Choose this model if: Your site requires wide-area thermal perimeter detection, fire point early warning, smoke monitoring and configurable temperature alarms in a compact turret form factor powered by PoE, covering open yards, industrial floors or broad outdoor perimeters.
- Choose a different model if: Your monitoring requirement is a long, narrow corridor or a fence line where detection needs to extend well beyond the range this 1.8mm thermal lens can deliver. In that scenario, a HeatPro model with a longer thermal focal length will provide better directional range for that specific application geometry.
FAQs
- How does the bi-spectrum image fusion work on the HM-TD1218-2/G0/T1A?
Bi-spectrum fusion overlays or blends the thermal and optical image feeds into a single composite view. Operators can also configure picture-in-picture mode, which displays one channel as a smaller inset within the other. This allows security teams to read surface temperature data while simultaneously viewing the colour image for context and identification, all from one camera output.
- What size fire source can the thermal channel detect, and at what distance?
The thermal channel is specified to detect a 0.5 x 0.5 m fire source at distances up to 13.2 m. This early-detection capability is designed to alert operators before a small ignition event grows into an open flame. Detection range will vary with environmental conditions including ambient temperature, wind and the thermal contrast between the fire source and its surroundings.
- Can the thermal sensor see through walls, glass or containers?
No. The thermal sensor detects surface-emitted heat radiation and cannot see through solid walls, sealed containers, glass or thick insulation. It requires a clear line of sight to the heat source. For smouldering waste or compost piles, it can detect heat radiating from the exposed surface of the material before flames break out.
- Does the camera require a separate power supply in addition to the network cable?
No. The HM-TD1218-2/G0/T1A is powered by PoE, meaning it draws both data and electrical power through a single standard Ethernet cable from a compatible PoE switch or injector. No separate power cabling is needed, which simplifies installation and reduces material costs, particularly on industrial sites with dispersed mounting locations.
- How does the smoke detection function operate on this camera?
Smoke detection on the HM-TD1218-2/G0/T1A analyses imagery from the optical channel for visual changes consistent with smoke presence, with a detection range of up to 3.15 m. It operates as a complementary layer alongside the thermal channel. Because it analyses optical image data, it works best with a clear, unobstructed view of the monitored area and should be configured carefully in environments with dust, steam or condensation to avoid nuisance alerts.
- Is this camera rated for permanent outdoor installation in Australian conditions?
Yes. The IP67 weather protection rating confirms full dust ingress protection and the ability to withstand water immersion for short periods. This makes it suitable for exposed outdoor mounting on industrial and commercial sites across Australian conditions including rain, humidity, dust and heat. The turret housing is compact and practical for eave, fascia and wall surface mounting.
- Can the temperature exception alarm be set to a custom threshold?
Yes. The temperature exception alarm can be configured to trigger when surface temperatures in the monitored scene exceed a user-defined value. This allows the system to be calibrated to the specific risk profile of the site, whether monitoring electrical cabinets with known operating limits, stored goods with defined safe temperature ranges or open areas prone to seasonal heat build-up.
- Where can I access the official datasheet for the HM-TD1218-2/G0/T1A?
The official Hikvision datasheet for the HM-TD1218-2/G0/T1A is linked in the Additional Information section directly below this description. Security Wholesalers includes the datasheet on the product page so you can verify full technical specifications, detection range tables and installation requirements before placing your order.
