Product Overview

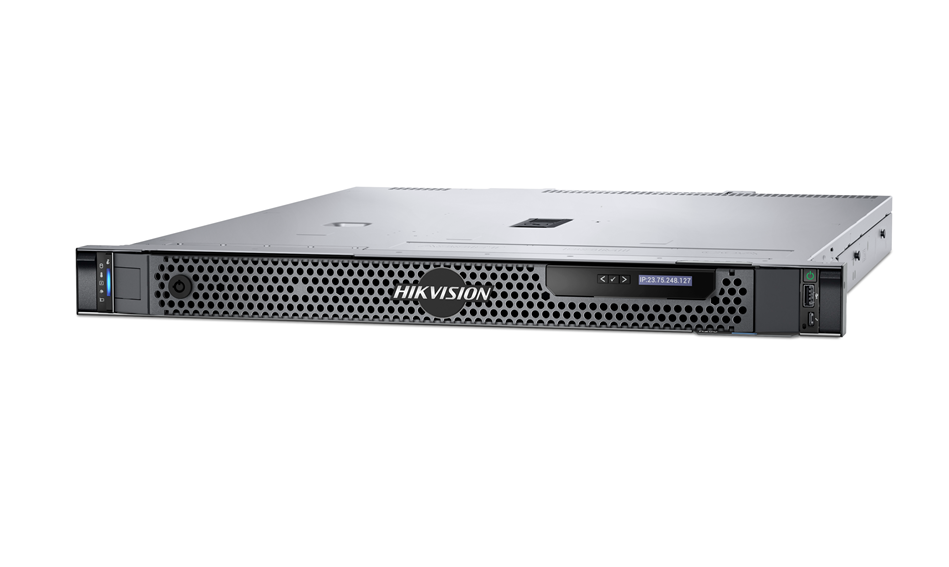

For integrators and IT managers deploying enterprise-scale surveillance, the HikCentral-P-VER/HW1D/300CH is a 1U rack-mount VMS server that arrives pre-installed and pre-activated, removing the usual overhead of OS configuration, software licensing, and initial setup. It ships with Windows Server 2019 and HikCentral Professional already loaded, licensed for 300 video channels and ready to connect to cameras on day one. Powered by an Intel Xeon E-2434 processor running at up to 5.0 GHz with 16 GB DDR5 memory, it handles concurrent stream management across large channel counts without degradation. Storage starts with dual 2 TB SATA drives in RAID1, with 4 additional 3.5-inch SAS/SATA bays available for retention growth. The server supports scaling to 3,000 channels through additional licensing, and integrates with Hikvision access control, ANPR, and intercom systems under a single management platform.
Key Capabilities
Pre-Activated 300-Channel Deployment
The server ships with HikCentral Professional pre-installed and the 300-channel license already activated, so installers can begin adding cameras without delays from software procurement or activation steps. This is particularly valuable on projects with tight commissioning timelines.
Scalable to 3,000 Channels
The underlying server architecture supports expansion up to 3,000 video channels through additional HikCentral licenses. This means the same hardware investment can grow alongside a site, avoiding forklift upgrades when channel counts increase over time.
Intel Xeon E-2434 with DDR5 Memory
The 4-core/8-thread Xeon E-2434 processor clocks up to 5.0 GHz, paired with 16 GB DDR5 UDIMM across a 4-slot board expandable to 4 x 128 GB. This combination supports stable multi-stream handling under the concurrent loads typical of large commercial and government installations.
RAID1 Storage with Expansion Bays
Dual 2 TB SATA drives configured in RAID1 provide data redundancy from the outset. Four additional 3.5-inch SAS/SATA bays allow video retention to be extended without replacing the base unit, supporting higher bitrate recording or longer storage windows as requirements grow.
iDRAC9 Enterprise Remote Management
iDRAC9 Enterprise enables out-of-band server monitoring, firmware updates, and health checks without requiring physical access to the rack. Combined with OpenManage Enterprise compatibility, this supports centralised IT operations across multi-site government or corporate deployments.
Hardware-Level Cybersecurity
Secure Boot, Signed Firmware, and Silicon Root of Trust are built into the server platform, providing hardware-enforced protections against firmware tampering and unauthorised boot sequences. These features address cybersecurity requirements increasingly mandated in government and critical infrastructure projects.
Best For
- Security Command Centres: The 1U rack form factor and pre-activated 300-channel license allow rapid integration into an existing server room infrastructure for centralised monitoring operations.
- Government and Critical Infrastructure Projects: Secure Boot, Signed Firmware, and Silicon Root of Trust address cybersecurity compliance requirements common in government-tendered surveillance systems.
- Corporate Campuses and Universities: Integration with up to 1,024 access control doors and 5,000 indoor intercom stations under a single HikCentral platform supports unified management across large multi-building sites.
- Smart City and City-Scale Infrastructure: The scalability to 3,000 channels and support for ANPR and facial recognition integration make it suitable for coordinated public safety networks managed from a central operations hub.
Why Choose the HikCentral-P-VER/HW1D/300CH
What separates the HikCentral-P-VER/HW1D/300CH from a standard server running a separately procured VMS installation is the turnkey nature of the unit. The HikCentral Professional software is pre-installed, pre-configured, and pre-activated for 300 channels, which eliminates a significant portion of the labour typically associated with commissioning an enterprise VMS. The Intel Xeon E-2434 with DDR5 memory and RAID1 storage provide a foundation that a lower-specification server simply cannot match when handling concurrent streams at scale. The PCIe Gen4 slots allow GPU or additional network cards to be added as analytics requirements increase. For organisations that need a documented, hardware-validated platform rather than a self-assembled software deployment, this server provides that assurance. It is available through Security Wholesalers as part of the Hikvision enterprise product range.
Buyer Decision Tips
Channel Count and Storage Planning: The server ships with 300 active channels and 4 TB of usable RAID1 storage. Before deployment, calculate your target retention period based on camera count, resolution, and bitrate. With high-resolution streams across all 300 channels, the base storage will fill quickly. Plan your SAS/SATA drive expansion at the time of installation rather than retrofitting later, and consider whether your network infrastructure can support the video throughput before scaling toward 3,000 channels.
Rack Environment Requirements: This server must be installed in a temperature-controlled environment between 10 °C and 35 °C with humidity kept below 80% non-condensing. It requires standard rack infrastructure with adequate ventilation. A UPS is strongly recommended to protect against unplanned shutdowns, as abrupt power loss can corrupt active recording databases. Ensure your rack has at least 1U of free space and that the power circuit can support the 600 W supply under sustained load.
Key Features & Technical Specifications
| Default Video Channel Capacity |
300 channels (expandable to 3,000 channels) |
| CPU |
Intel Xeon E-2434, 3.4 GHz to 5.0 GHz, 4 cores / 8 threads |
| Memory |
1 x 16 GB DDR5 UDIMM; 4 slots supporting up to 4 x 128 GB |
| Storage (Default) |
2 x 2 TB 7.2K SATA HDD configured in RAID1 |
| Storage Expansion Bays |
4 x 3.5-inch SAS/SATA bays |
| Storage Controller |
S160 with software RAID 0/1 support |
| Operating System |
Windows Server 2019 pre-installed |
| VMS Software |
HikCentral Professional pre-installed and pre-activated |
| PCIe Slots |
2 x PCIe Gen4 (Slot 1 x8, Slot 2 x16 with x8 bandwidth) |
| Remote Management |
iDRAC9 Enterprise; OpenManage Enterprise compatible |
| Security Features |
Secure Boot, Signed Firmware, Silicon Root of Trust |
| Network Ports |
2 x LAN 10/100/1000 Mbps, VGA, USB, iDRAC direct port |
| Form Factor |
1U rack mount |
| Dimensions |
42.8 mm x 482 mm x 598.9 mm |
| Weight |
Approx. 13.2 kg (net) / 25 kg (gross) |
| Power Supply |
600 W, 100-240 VAC, 7.1-3.6 A auto-ranging |
| Operating Temperature |
10 °C to 35 °C |
| Storage Temperature |
-40 °C to +65 °C |
| Humidity |
8%-80% non-condensing |
Ideal Use Cases
Security Operations Centres
The 1U rack form factor and pre-activated 300-channel HikCentral license make this server straightforward to deploy into an existing SOC rack. iDRAC9 Enterprise enables remote health monitoring without requiring physical access during live operations.
Airport and Transport Hubs
High camera counts, ANPR integration, and the ability to scale to 3,000 channels address the layered surveillance demands of airports, rail terminals, and port facilities, where multiple subsystems must operate from a single management platform.
University and Hospital Campuses
Integration with up to 1,024 access control doors and 5,000 indoor intercom stations through HikCentral allows a single server to manage surveillance, access, and communications across multi-building campuses without separate management platforms.
Government and Defence Facilities
Secure Boot, Signed Firmware, and Silicon Root of Trust provide hardware-enforced integrity protections that align with cybersecurity requirements in government procurement specifications and critical infrastructure protection frameworks.
Smart City Surveillance Networks
The scalable channel architecture and support for ANPR integration make this server a practical platform for city-scale deployments where camera counts grow progressively and centralised management from a single node is required across distributed locations.
Choosing the Right Model
- Choose this model if: You are deploying a large-scale surveillance system requiring 300 or more channels, need a turnkey server with HikCentral Professional pre-activated, and require hardware-level cybersecurity features such as Secure Boot and Silicon Root of Trust in a standard 1U rack-mount platform.
- Choose a different model if: Your project requires fewer than 300 channels and a full enterprise server platform is beyond the scope of the installation. A software-only HikCentral license running on existing hardware, or a smaller NVR-based solution, may better match the scale and budget of smaller commercial deployments.
- Choose a different model if: Your installation environment cannot meet the 10 °C to 35 °C operating temperature requirement or does not have a suitable ventilated rack enclosure. This server is designed for server room or data centre deployment, not for installation in uncontrolled or outdoor environments.
FAQs
- Does the HikCentral-P-VER/HW1D/300CH require any additional software setup before cameras can be added?
No. The server arrives with Windows Server 2019 and HikCentral Professional already installed and the 300-channel license pre-activated. Once the server is rackmounted, connected to the network, and powered on, the platform is ready to begin camera onboarding without a separate software installation or activation process.
- How do I expand beyond the default 300 channels?
Additional HikCentral channel licenses can be purchased and applied to this server to increase capacity up to the platform maximum of 3,000 channels. The hardware architecture and operating system are already capable of supporting this scale, so no server replacement is required when expanding.
- What types of devices can be managed through HikCentral Professional on this server beyond CCTV cameras?
The platform supports integration with Hikvision ANPR systems, facial recognition devices, access control doors (up to 1,024), and indoor intercom stations (up to 5,000). This allows a single server to serve as the central management point for multiple security subsystems across a site.
- Can GPU cards be installed in this server to support AI analytics workloads?
Yes. The server includes 2 PCIe Gen4 slots, allowing GPU cards or additional network adapters to be fitted. This is useful when deploying AI-based analytics through HikCentral Professional that benefit from GPU acceleration, though the specific GPU models and thermal requirements should be validated against the server specifications before installation.
- How is the server managed remotely without physical access to the rack?
The server includes iDRAC9 Enterprise, which provides out-of-band remote management including power control, hardware health monitoring, firmware update deployment, and virtual console access. It is also compatible with OpenManage Enterprise for organisations managing multiple servers from a centralised IT platform. This capability is important for Security Wholesalers customers deploying the server into unmanned or remotely located server rooms.
- What are the storage expansion options when the default 4 TB RAID1 capacity is insufficient?
The server ships with 2 x 2 TB SATA drives in RAID1, providing approximately 2 TB of usable space. Four additional 3.5-inch SAS/SATA bays are available for expansion drives. Adding drives allows video retention capacity to be scaled up without replacing the server, though the RAID configuration and drive compatibility should be confirmed before purchasing expansion drives.
- What are the physical installation requirements for this server?
The HikCentral-P-VER/HW1D/300CH occupies 1U of standard rack space and weighs approximately 13.2 kg net. The operating environment must be maintained between 10 °C and 35 °C with humidity between 8% and 80% non-condensing. Adequate rack ventilation and a minimum 10 cm airflow clearance around the unit are required. A UPS is recommended to protect against data loss during unplanned power events.
