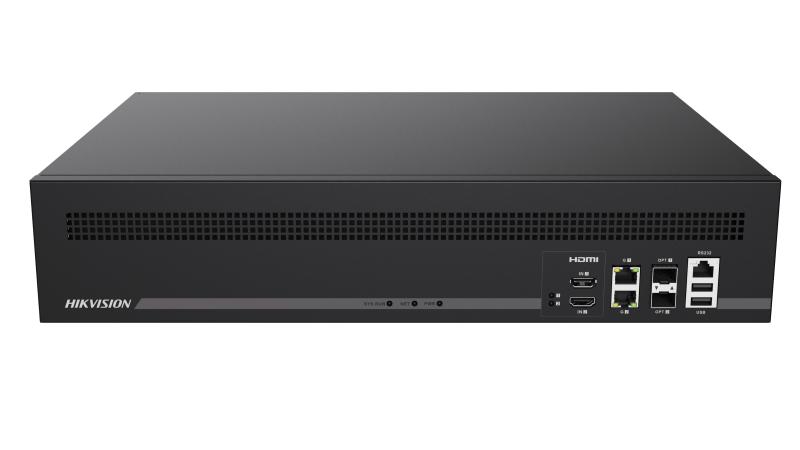

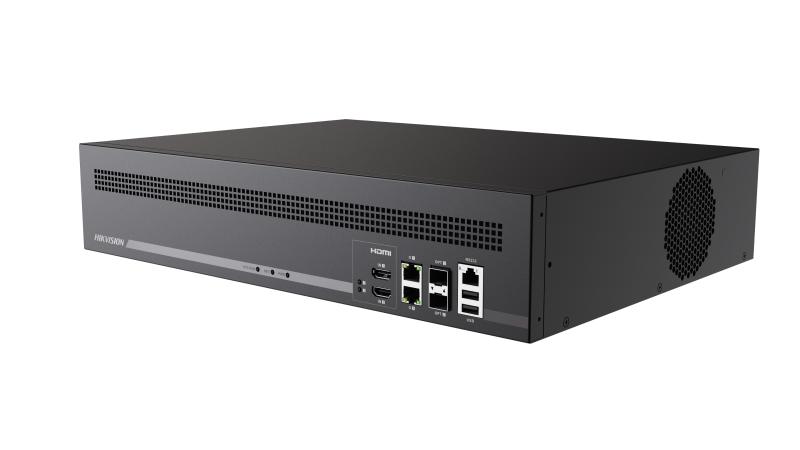

Hikvision DS-6916UDI-C 16 HDMI 4K UHD Decoder
The Hikvision DS-6916UDI-C is a high-performance ultra-high-definition video decoder designed for professional CCTV display, control room and video wall applications. Built for large surveillance systems, it allows video streams from IP cameras, NVRs and other compatible network devices to be decoded and displayed across multiple monitors.

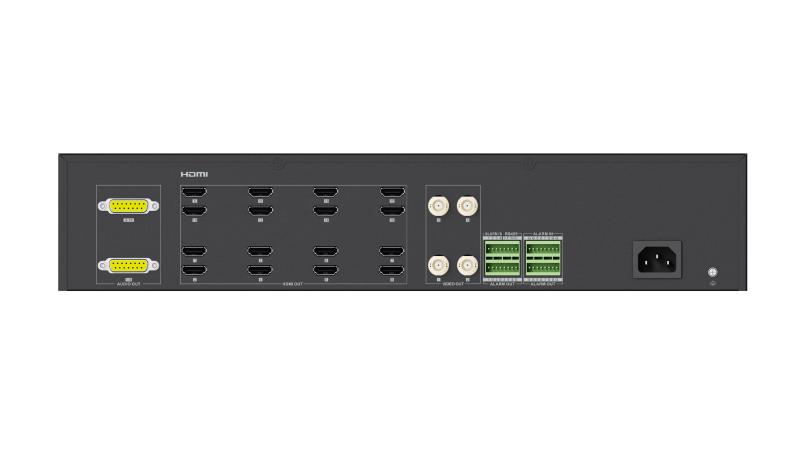

With 16 HDMI outputs and 8 BNC outputs, the DS-6916UDI-C is well suited to monitoring centres, building security rooms, retail operations, transport sites, warehouses, campuses, government facilities and enterprise CCTV systems where multiple camera feeds need to be viewed clearly and efficiently.
Key Features
- 16 HDMI Outputs: Supports multi-screen display layouts for professional video wall and control room installations.
- 8 BNC Outputs: Provides additional analogue display output options where required.
- 4K UHD HDMI Output: Supports up to 3840 × 2160 resolution at 30Hz via HDMI output for high-detail monitoring.
- High-Capacity Decoding: Supports large-scale camera systems with decoding capability for multiple resolutions, including up to 256 channels at 720p depending on stream configuration.
- Modern Video Format Support: Compatible with H.265, H.264, H.264+, H.265+ and MJPEG video streams.
- Flexible Display Layouts: Supports multiple split-screen modes including 1, 4, 6, 8, 9, 12, 16 and 25-window layouts.
- HDMI Input Support: Can accept HDMI input sources such as computers, video conference terminals and other compatible devices.
- Network Camera and NVR Input: Designed to decode video streams from Hikvision cameras, NVRs and compatible ONVIF devices.
- Audio Support: Supports embedded HDMI audio input and output, plus external audio options.
- Professional Integration: Suitable for use with Hikvision management platforms such as iVMS-4200 and HikCentral.
Designed for Video Walls and Control Rooms
The DS-6916UDI-C is ideal for sites that need centralised monitoring across multiple displays. Rather than relying on a standard NVR monitor output, this decoder provides a dedicated solution for distributing camera feeds across a larger display wall. This makes it useful for security operations centres, concierge desks, commercial buildings and industrial monitoring rooms.
High-Resolution Decoding Performance
The decoder supports a wide range of decoding resolutions, making it suitable for systems using a mix of high-resolution and standard-resolution cameras. Depending on the stream resolution and frame rate, the unit can decode multiple streams including 32MP, 24MP, 12MP, 8MP, 6MP, 4MP, 1080p and 720p camera feeds.
Flexible Screen Splitting
For live monitoring, the DS-6916UDI-C supports multiple screen split layouts, allowing operators to display single-camera views, multi-camera grids or larger video wall arrangements. This flexibility helps security teams prioritise important cameras while still maintaining awareness across the wider site.
Efficient H.265 Video Support
Support for H.265 and H.265+ helps reduce bandwidth requirements compared with older compression formats, while still maintaining strong image quality. This is particularly useful in large systems where many IP camera streams are being decoded and displayed simultaneously.
Typical Applications
- Security control rooms
- Video wall installations
- Shopping centres and retail precincts
- Commercial buildings
- Warehouses and logistics centres
- Industrial sites
- Education campuses
- Government and infrastructure monitoring
- Large Hikvision CCTV systems requiring multi-monitor display
Integration and Management
The DS-6916UDI-C can be used as part of a larger Hikvision surveillance ecosystem and is suitable for integration with Hikvision software platforms. It supports remote management and display control through compatible Hikvision software, making it a strong option for professional CCTV projects requiring centralised visual monitoring.
Summary
The Hikvision DS-6916UDI-C is a professional 16-output 4K UHD decoder built for demanding CCTV display applications. With high decoding capacity, flexible screen layouts, 16 HDMI outputs, 8 BNC outputs and support for modern video formats, it is an excellent choice for large surveillance systems, control rooms and video wall deployments.
