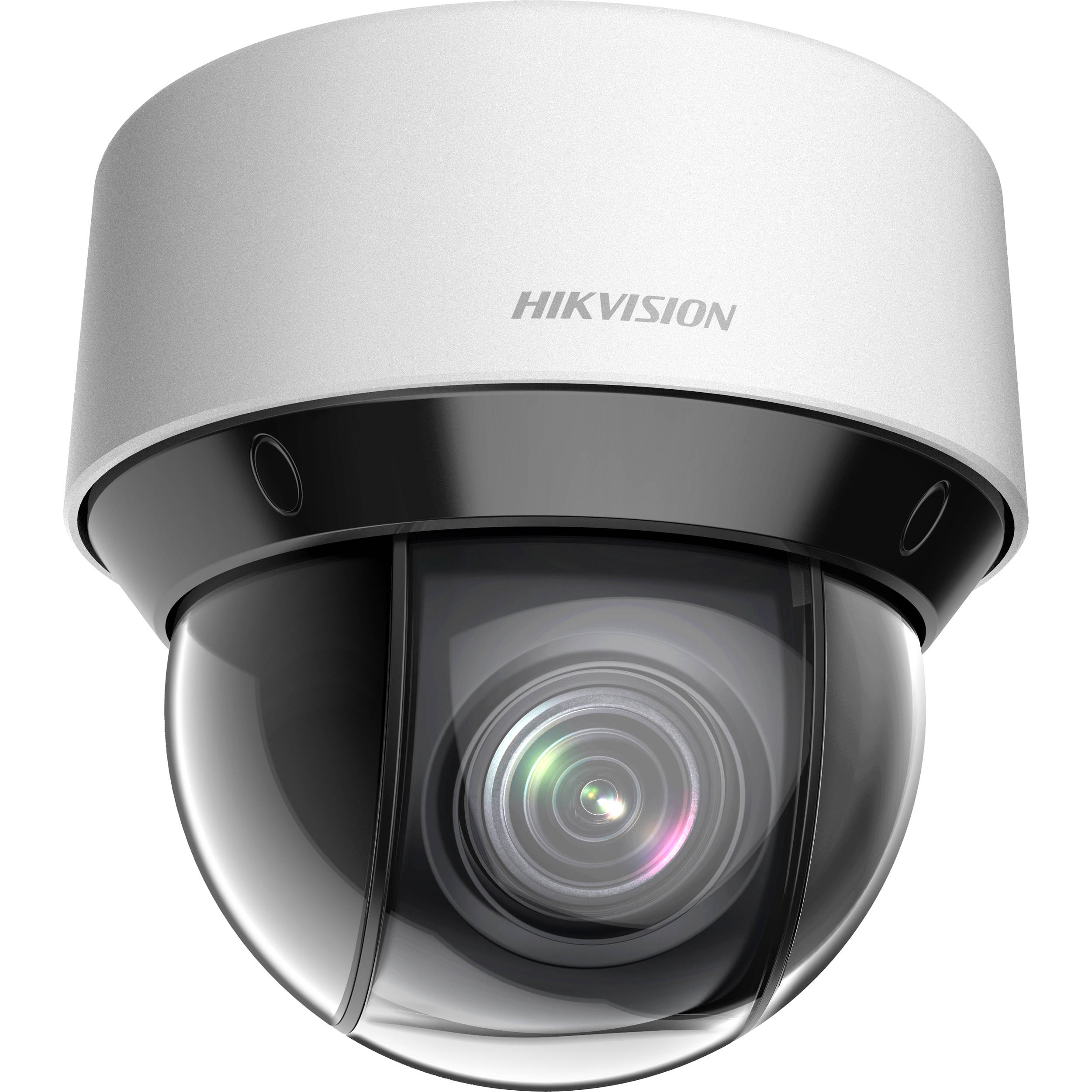

Hikvision DS-2DE4A204IWDE 2MP Darkfighter IR PTZ Camera, 4x Optical Zoom,50m IR, 2.8-12mm


Hikvision’s HIK-2DE4A204IWDE (2.8-12mm) Darkfighter network IR PTZ camera adopts a 1/1.9″ progressive scan CMOS chip. Along with the 4× optical zoom lens, the camera offers more details over expansive areas.

This series of cameras can be widely used for wide ranges of high-definition applications such as to monitor rivers, forests, roads, railways, airports, ports, squares, parks, large venues and more.

$916.00 inc GST +3 Year Warranty & Support

Hikvision’s HIK-2DE4A204IWDE (2.8-12mm) Darkfighter network IR PTZ camera adopts a 1/1.9″ progressive scan CMOS chip. Along with the 4× optical zoom lens, the camera offers more details over expansive areas.

This series of cameras can be widely used for wide ranges of high-definition applications such as to monitor rivers, forests, roads, railways, airports, ports, squares, parks, large venues and more.

Camera
Effective Pixels: 1920(H)x1080(V)
Signal System: PAL/NTSC
Minimum Illumination: Color: 0.002 Lux @(F1.6, AGC ON)
B/W: 0.0002Lux @(F1.6, AGC ON)
0 Lux with IR
White Balance: Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
AGC: Auto/Manual
BLC: ON/OFF
HLC: Support
WDR: DWDR
Shutter Time: 1/1 to 1/30,000s
Day& Night: ICR
Digital Zoom: 16×
Privacy Mask: 8 programmable privacy masks
Auto Focus: Auto / Semi-automatic / Manual
Lens
Focal Length: 2.8 mm to 12 mm
Zoom Speed: Approx. 2.2 s (optical lens, wide-tele)
Field of View: 90.1° to 31° (wide-tele)
Minimum Working Distance: 10 to 1500mm (wide-tele)
Aperture Range: F1.5 to F2.8
Pan & Tilt
Pan Range: 360°endless
Pan Speed: Configurable, from 0.1°/s to 300°/s
Preset Speed: 350°/s
Tilt Range: -5°~90° (Auto Flip )
Tilt Speed: Configurable, from 0.1°/s to 160°/s
Preset Speed: 200°/s
Proportional Zoom: Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset: 300
Patrol: 8 patrols, up to 32 presets for each patrol
Pattern: 4 pattern scans, record time over 10 minutes for each scan
Power-off Memory: Support
Park Action: Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan
PTZ Position Display: ON/OFF
Infrared
IR Distance: 50m
IR irradiation angle: Adjustable by zoom
Alarm
Alarm Input: 2
Alarm Output: 2
Alarm Linkage: Preset, Patrol, Pattern, Micro SD/SDHC card recording, Relay output, Notification on Client, Send Email, Upload to FTP, Trigger Channel
Input & Output
Audio Input: Audio input (LINE input), 2-2.4Vp-p; output impedance: 1KΩ, ±10%
Audio Output: 1 Audio output interface
Line level, impedance: 600Ω
Network
Ethernet: 10Base -T, /100Base-TX, RJ45 Connector
Max.Image Resolution: 1920×1080
Main Stream: 50Hz:25fps (1920×1080,1280×960,1280×720), 50fps (1280×960,1280×720) ;
60Hz:30fps(1920×1080,1280×960,1280×720), 60fps (1280×960,1280×720)
Sub Stream: 50Hz: 25fps(704×576, 640×480,352×288); 60Hz: 30fps(704×480, 640×480,352×240)
Third Stream: 50Hz: 25fps(1920×1080, 1280×960, 1280×720, 704×576, 640×480,352×288)
60Hz: 30fps(1920×1080, 1280×960, 1280×720, 704×576, 640×480,352×288)
Video Compression: H.265/H.264/MJPEG
Audio Compression: G.711ulaw/G.711alaw/G.726/MP2L2/G.722
Simultaneous Live View: Up to 20 channels
Three-Stream: Support
Storage: Support up to 128GB Micro SD/SDHC/SDXC card. Support Edge recording
Security Measures: User authentication (ID and PW),
Host authentication (MAC address)
IP address filtering
Client GUI
Client: Support iVMS-4200
General
Power Consumption: 12 VDC, 3.33A and PoE (802.3at), 42.5 to 57 VDC, 0.6A, Class4
Max.18 W, including Max. 5W for IR
Working Temperature/Humidity: Outdoor: -30°C to 65°C (-22°F to 149°F)
Humidity:≤ 90%
Protection Level: IP66 standard (outdoor dome)
TVS 4,000V lightning protection, surge protection and voltage transient protection
Mounting: Variable installation methods optional, including ceiling mounting (default), in-ceiling mounting, junction box installation and wall mounting
Dimensions: Φ169.39mm ×161mm (Φ6.67″×6.34″)
Weight (approx.): Approx. 2.45kg (5.40lb)
