Hikvision DS-2CD6425G0-C1 2MP Indoor Covert Pinhole Camera, 120dB WDR, 2m Cable, 3DDNR, 3.7mm

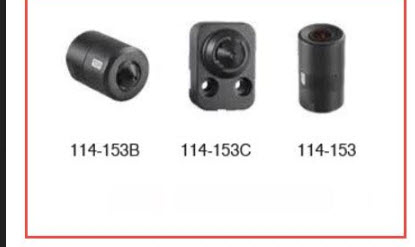

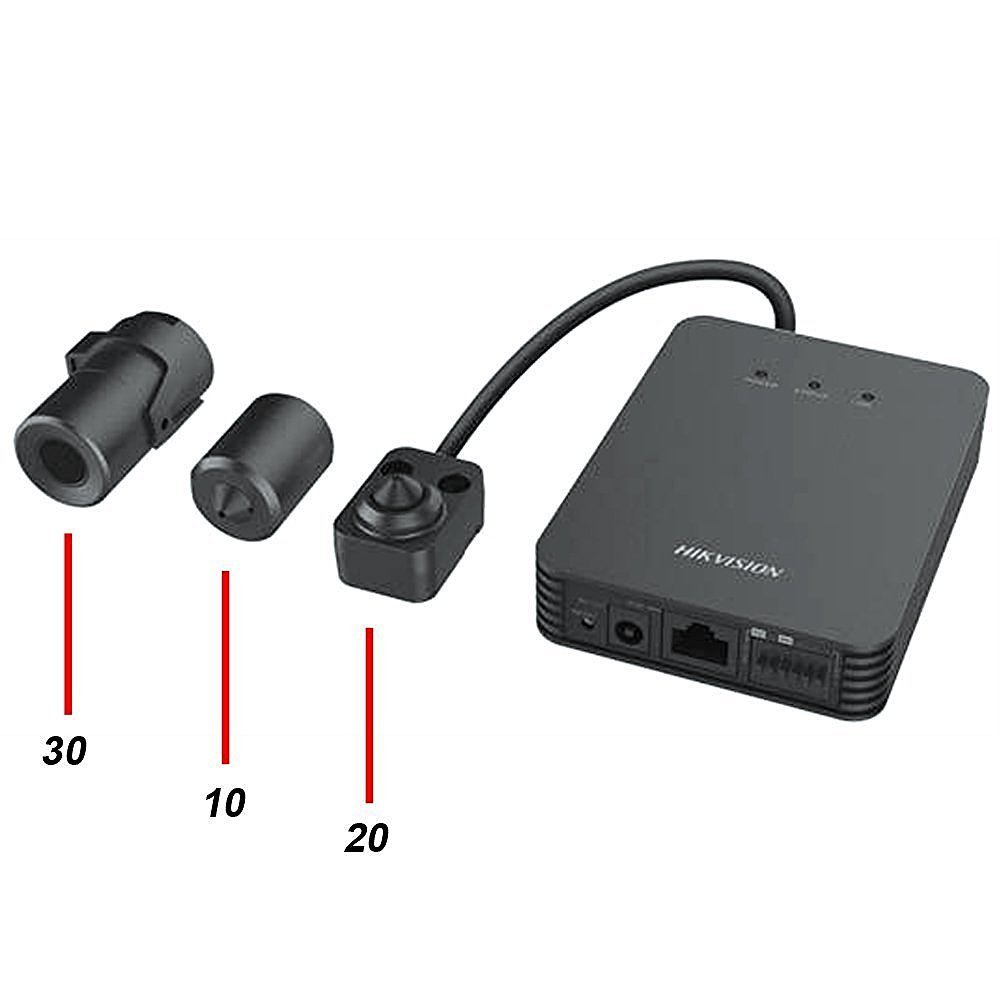

DS-2CD6424FW102 is now DS-2CD6425G0-C1 and is a covert camera with 4 optional sensor shapes, the cylindrical, the block shaped, the fixed focal and the ball shaped. The sensor and the body of the covert camera are separate, which make it easy to conceal. The cable between the sensor and body is now available in two and three meter lengths and can produce a full HD 1080p resolution in real-time.

$610.00 inc GST +3 Year Warranty & Support

HIK-2CD6424FW102 / DS-2CD6424FW102 is now replaced by DS-2CD6425G0-C1 is a covert camera with 4 optional sensor shapes, the cylindrical, the block shaped, the fixed focal and the ball shaped. The sensor and the body of the covert camera are separate, which make it easy to conceal. The cable between the sensor and body is now available in two and three meter lengths and can produce a full HD 1080p resolution in real-time.

SKU: DS-2CD6425G0-C1 Categories: , Tag:
Camera
Image Sensor: 1/2.8″ Progressive Scan CMOS
Signal System: PAL/NTSC
Min. Illumination: Color: 0.005 Lux @(F1.2, AGC ON), 0.014 Lux @(F2.0, AGC ON)
B/W: 0.0001 Lux @(F1.2, AGC ON), 0.0003 Lux @(F2.0, AGC ON)
Shutter time: 1 s to 1/100,000 s
Slow shutter: Yes
Lens: 2.8 mm/3.7 mm/4.0 mm/6.0 mm
Lens Mount: Pinhole
Adjustment Range: Pin-hole:
2.8 mm @ F2.5, horizontal FOV 88.2°
3.7 mm @ F2.5, horizontal FOV 71°
M12:
2.8 mm @ F2.0, horizontal FOV 104°
4.0 mm @ F2.0, horizontal FOV 80°
6.0 mm @ F2.0, horizontal FOV 50°
Day& Night: Electronic
Wide Dynamic Range: 120 dB
Compression Standard
Video Compression: H.265+/H.265/H.264+/H.264/MJPEG
H.264 code profile: Baseline Profile/Main Profile/High Profile
Video bit rate: 32Kbps~16Mbps
Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM
Audio bit rate: 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
Dual Stream: Yes
Triple Streams: Yes
Max. Image Resolution: 1920 x 1080
Sub Stream: 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream: 50Hz: 1fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480, 640 × 360, 352 × 288, 320 × 240)
60Hz: 1fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480, 640 × 360, 352 × 240, 320 × 240)
Image Enhancement: BLC, 3D DNR
Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
Target Cropping: No
BLC: Support
3D DNR: Support
ROI: 1 fixed region for main stream and sub stream
Picture Overlay: No
Day/Night Switch: Day/Night/Auto/Schedule/ Triggered by Alarm In
Network
Network Storage: microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger: Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
General Function: One-key reset, anti-flicker, five streams and up to 5 custom streams, heartbeat, password protection, privacy mask, watermark, IP address filter
System Compatibility: ONVIF (Profile S, Profile G), ISAPI
Intelligent
Behavior analysis: Line crossing detection, intrusion detection, unattended baggage detection, object removal detection
Interface
Communication Interface: 1 RJ45 10M/100M Ethernet port
1 VIN port
1 RS-485
Audio: 1 input, 1 output
Alarm: 1 input, 1 output (up to 24 VAC, 1A or 110 VAC, 500mA)
Alarm Input: 1
Alarm Output: 1
On-board storage: Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button: Yes
Audio
Environment Noise Filtering: Support
Audio I/O: support
Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz
Smart Feature-set
Behavior Analysis: Line crossing detection, Intrusion detection, Unattended baggage detection, Object removal detection
Line Crossing Detection: Cross a pre-defined virtual line
Intrusion Detection: Enter and loiter in a pre-defined virtual region
Unattended Baggage: Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Object Removal: Objects removed from the pre-defined region, such as the exhibits on display.
Recognition: Face Detection
General
Operation Condition: -10 °C to 40 °C (14 °F to 104 °F), humidity: 5% to 95% (non-condensing)
Power Supply: 12 VDC ± 20%, two-core terminal block, PoE: (802.3af, class 2)
Power Consumption: 12 V DC ± 20%, 0.25 A, max. 3 W
PoE: (802.3af, 36V-57V), 0.2A to 0.1A, Max: 3.5W
Dimensions: Camera: 77.1 × 69 × 26 mm (3.04″ × 2.72″ × 1.02″)
With package: 254 × 164 × 130 mm (10″ × 6.46″ × 5.12″)
Weight: Camera: 87 g (0.19 lbs.)
With package: 220 g (0.49 lbs)
