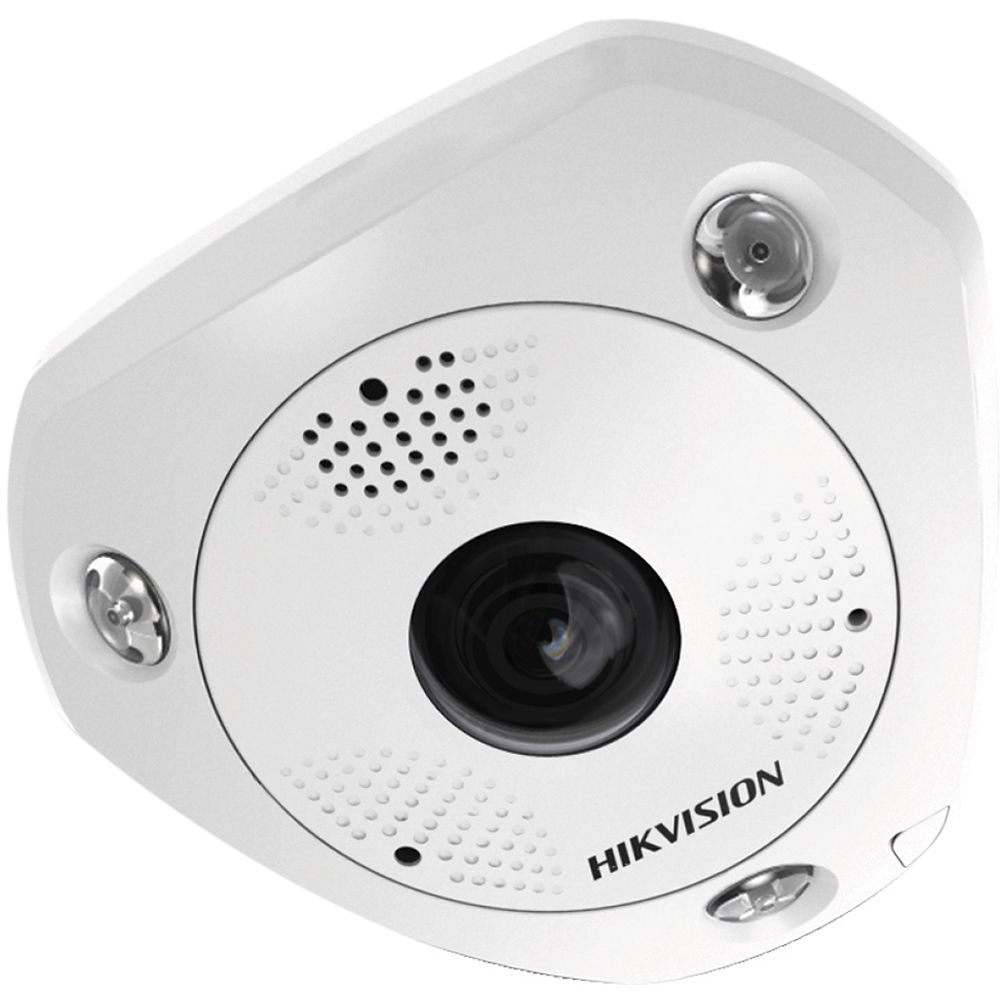

Hikvision DS-2CD63C5GO-IS 12 MP DeepinView Immervision Lens Fisheye Network Camera

HIKVISION DS-2CD63C5GO-IS is a fisheye network camera capable of providing a 360-degree panoramic image of its surveillance scene

$1,240.32 $1,550.40 inc GST +3 Year Warranty & Support

12 MP DeepinView Immervision Lens Fisheye Network Camera

  • Heatmap: based on deep learning algorithms, the camera counts people and presents an intuitive map
  • Multi dewarping modes: the image can be dewarped to normal image for viewing intuitively
  • Built-in mic and speaker: the camera supports two-way audio for real-time audio security monitoring and communication
  • Built-in IR light: an IR range of 15 meters provides good visibility in low or even zero-light environments
  • High resolution 12 MP: capturing clear images even when dewarped into 4-image PTZ mode
  • Each image is clear and detailed



Camera

  • Image Sensor1/1.7″ Progressive Scan CMOS
  • Min. IlluminationColor: 0.05 Lux @ (F2.2, AGC ON),

    B/W: 0.01 Lux @ (F2.2, AGC ON), 0 Lux with IR



  • Shutter Speed1 s to 1/100,000 s
  • Slow ShutterSupport
  • DNR3D DNR
  • WDRDigital WDR
  • Day & NightIR cut filter

Lens

  • ApertureF2.2
  • FocusNo
  • FOVHorizontal FOV: 180°, vertical FOV: 180°
  • Lens MountM12
  • Focal Length1.29 mm

Audio

  • Audio Compression8 kHz/16 kHz
  • Environment Noise Filteringyes
  • Audio I/O2 built-in microphones, 1 built-in speaker, mono sound

    -S: 1 Audio input (line in, 3.5 mm), 1 audio output (line out, 3.5 mm)




  • Image EnhancementBLC, HLC, defog, 3D DNR
  • Day/Night SwitchDay/Night/Auto/Schedule/Triggered by Alarm In (-S)
  • Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24bit bmp format
  • Image SettingsSaturation, brightness, contrast, sharpness, AGC and white balance are adjustable by client software or web browser
  • Sub-Stream50Hz: 20fps (720 × 720, 640 × 480)

    60Hz: 20fps (720 × 720, 640 × 480)



  • Max. Resolution4000 × 3000
  • Main Stream50Hz: 20fps (4000 × 3000), 25fps (3000 × 3000, 2560 × 2560)

    60Hz: 20fps (4000 × 3000), 30fps (3000 × 3000, 2560 × 2560)



Network

  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
  • APIONVIF (PROFILE S, PROFILE G), ISAPI
  • SecurityPassword protection, HTTPS encryption, IEEE 802.1x port-based network access control, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF
  • Simultaneous Live ViewUp to 20 channels
  • User/HostUp to 32 users. 3 user levels, administrator, operator and user
  • ClientiVMS-4200, iVMS-4500, Hik-Connect, iVMS-5200, Hik-Central
  • Web BrowserIE8+, Chrome31.0-44, Firefox 30.0-51, Safari8.0+
  • DetectionSupport microSD/SDHC/SDXC card (256 G), local storage and NAS (NFS,SMB/CIFS), ANR
  • General FunctionOne-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
  • Firmware Version5.5.73

Interface

  • Communication Interface1 RJ45 10M/100M/1000M self-adaptive Ethernet port
  • Alarm1-ch alarm input, max. 12 V; 1-ch alarm output, max 24 VDC, 1 A
  • On-Board StorageSupport microSD/SDHC/SDXC card (256 G)

Compression Standard

  • H.264+Main stream supports
  • H.265+Main stream supports
  • H.264 TypeBaseline Profile/ Main Profile /High Profile
  • Video CompressionMain stream: H.265+/H.265/H.264+/H.264

    Sub stream: H.265/H.264/MJPEG



  • H.265 TypeMain Profile
  • Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM
  • Video Bit Rate32 Kbps to 16 Mbps
  • Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)

IR

  • IR RangeUp to 15 m IR range, 3 LEDs. Each LED is independently controlled.
  • Wavelength850nm

Live View Display

  • Display Mode18 display modes in total

    Software decoding:

    Ceiling mount: fisheye view, 180 panorama view, 360 panorama view, 360 panorama + PTZ, 360 panorama + 3PTZ, 360 panorama + 6PTZ, 360 panorama + 8PTZ, 2PTZ, 4PTZ, fisheye + 3PTZ, fisheye +8 PTZ, hemisphere, AR hemisphere, cylinder

    Wall mount: fisheye view, panorama view, panorama + 3PTZ, panorama + 8PTZ, 4PTZ, fisheye + 3PTZ, fisheye +8 PTZ

    Table mount: fisheye view, 180 panorama view, 360 panorama view, 360 panorama + PTZ, 360 panorama + 3PTZ, 360 panorama + 6PTZ, 360 panorama + 8PTZ, 4PTZ, fisheye + 3PTZ, fisheye +8 PTZ, cylinder

    Hardware decoding:

    Ceiling mount: fisheye view, 180 panorama view, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion

    Wall mount: fisheye view, 180 panorama view, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion

    Table mount: fisheye view, 180 panorama view, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion



Smart Feature-Set

  • Exception DetectionAudio exception detection
  • Behavior AnalysisLine crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection
  • Region Of Interest4 fixed regions for main stream

General

  • Power Supply12 VDC±20%, PoE (802.3at, class 4),

    -S model: two-core terminal block

    Without –S model: Φ 5.5 × 2.1 mm coaxial power plug

  • Approx. 1400 g (3.09 lbs)
  • Power Consumption12 VDC, 1 A, max. 12.5 W s

    PoE (802.3at, 42.5 to 57 V), 0.4 A to 0.3 A, max. 15 W



  • Wiper No
SKU: HIKVISION DS-2CD63C5GO-IS Categories: , , , Tag:
Camera
Image Sensor: 1/1.7″ Progressive Scan CMOS
Signal System: PAL/NTSC
Min. Illumination: 0.01 Lux @ (F1.2, AGC ON),
0.04 Lux @ (F2.4, AGC ON),
0 Lux with IR
Shutter time: 1/25(1/30)s ~ 1/100,000s
Lens: 2mm @F2.4, angle of view: 360°
Lens Mount: M12
Day& Night: IR cut filter with auto switch
Wide Dynamic Range: Digital WDR
Digital noise reduction: 3D DNR
Compression Standard
Video Compression: H.264+/H.264/MJPEG, Support H.264+ only when the display mode is Fisheye View
Video bit rate: 32Kbps~16Mbps
Audio Compression: -S: G.711/G.726/MP2L2
Dual Stream: Yes
Max. Image Resolution: 4000 × 3072
Frame Rate: Main Stream:
50Hz: 20fps (4000 × 3072), 25fps(3072 × 3072, 2560 × 2560)
60Hz: 20fps (4000 × 3072), 24fps(3072 × 3072), 30fps(2560 × 2560)
Sub Stream: 50Hz: 12.5fps (720 × 720, 720 × 576)
60Hz: 15fps (720 × 720, 704 × 480)
Image Settings: Saturation, Brightness, Contrast , Hue, Sharpness, AGC, White Balance
3D DNR: Support
ROI: Support
Day/Night Switch: Auto/Schedule/Alarm Trigger
Network
Network Storage: NAS (Support NFS,SMB/CIFS)
Alarm Trigger: Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect , IP address conflict, Storage exception
Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General Function: User Authentication, Watermark, IP address filtering, anonymous access, flickerless, heartbeat, video mask
System Compatibility: ONVIF (Profile S, Profile G),ISAPI
Interface
Audio Input: 1 3.5mm audio interface, Mic in/Line in (-S); 1 built-in microphone by default, 24db
Audio Output: 1 3.5mm audio output interface (-S);
1 built-in speaker by default, support echo cancellation
Communication Interface: 1 RJ45 10M/100M/1000M Ethernet port, 1 RS 485 interface (-S)
Alarm Input: 1
Alarm Output: 1
On-board storage: Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button: Yes
General
Operating Conditions: Indoor: -10 °C – 50 °C (14 °F – 122 °F)
-V: -30 °C – 60 °C (-22 °F – 140 °F)
Humidity 95% or less (non-condensing)
Power Supply: 12 VDC ± 10%, PoE (802.3af)
Power Consumption: Max. 14.7 W
Impact Protection: -V: IEC60068-2-75Eh, 20J; EN50102, up to IK10
Weather Proof: IP66
IR Range: 15 meters
Dimensions: 164×152.8×43.8mm(6.46”x6.02”x1.72”)
Weight: 1400g
NOTE：: * “-S” series support 1-ch audio I/O, 1-ch alarm I/O and 1-ch RS-485 interface
