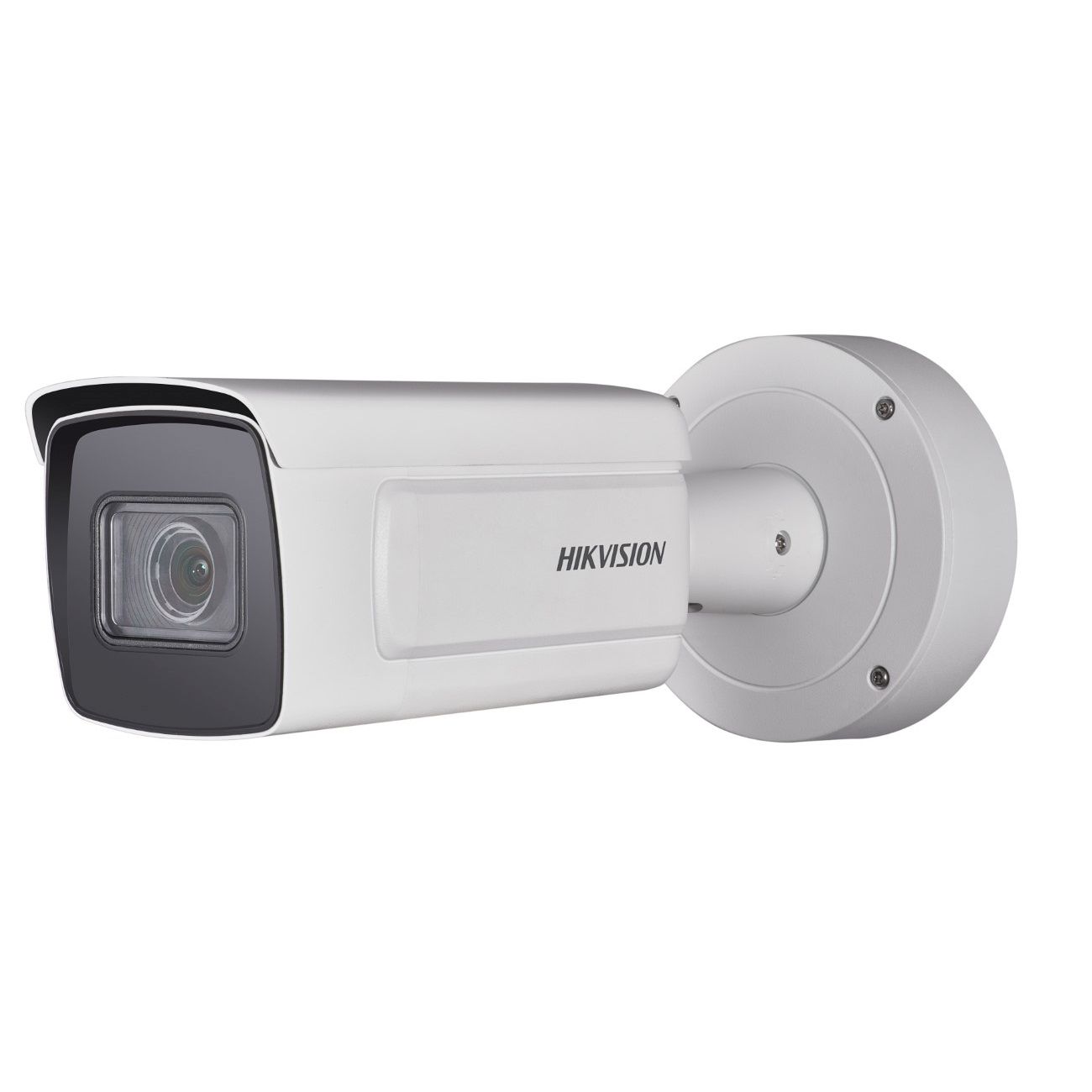

Hikvision DS-2CD4A26FWD-IZSP 2MP ANPR Bullet Camera IR LED, IP67, PoE, 2.8-12mm


Hikvision aims at providing a reliable, accurate and cost-effective automatic number plate recognition (ANPR) solution with its range of ANPR cameras. The ANPR camera range supports powerful noise reduction and head light compensation technology to produce an excellent image for number plate recognition at night and are supported on the complete range of I-Series NVR and the Blazer express NVR.

$1,070.00 $1,111.00 inc GST +3 Year Warranty & Support

HIK-2CD4A26FIZxx Datasheet

Download User Manual for HIK-2CD4A26FIZSP

Hikvision aims at providing a reliable, accurate and cost-effective automatic number plate recognition (ANPR) solution with its range of ANPR cameras. The ANPR camera range supports powerful noise reduction and head light compensation technology to produce an excellent image for number plate recognition at night and are supported on the complete range of I-Series NVR and the Blazer express NVR.

Image Sensor: 1/1.8″ Progressive Scan CMOS
Signal System: PAL/NTSC
Min. Illumination: 0.002 Lux @ (F1.2, AGC ON), 0.0027 Lux @ (F1.4, AGC ON), 0 Lux with IR
Shutter time: 1s ~ 1/100,000s
Slow shutter: Support
Auto Iris: DC drive
Day& Night: IR cut filter with auto switch
Wide Dynamic Range: 120 dB
Compression Standard
Video Compression: H.264+/H.264/MPEG4/MJPEG
H.264 code profile: Baseline Profile / Main Profile / High Profile
Video bit rate: 32Kbps~16Mbps
Audio Compression: G.711/G.722.1/G.726/MP2L2
Audio bit rate: 64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-128Kbps(MP2L2)
Triple Streams: Yes
Max. Image Resolution: 1920 x 1080
Frame Rate: 50Hz:50fps(1920×1080), 50fps(1280×960), 50fps(1280×720)
60Hz:60fps(1920×1080), 60fps(1280×960), 60fps(1280×720)
Third Stream: Independent with Main Stream and Sub Stream, up to
50Hz: 25fps (1920 × 1080)
60Hz: 30fps (1920 × 1080)
Image Enhancement: BLC/3D DNR/ROI/Defog/EIS
Image Settings: Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
Distortion Correction: Support
Target Cropping: Support
Picture Overlay: LOGO picture can be overlaid on video with 128×128 24bit bmp format
Day/Night Switch: Auto/Schedule/Triggered by Alarm In
Network
Network Storage: NAS (Support NFS,SMB/CIFS), ANR
Alarm Trigger: Motion detection, tampering alarm, network disconnect , IP address conflict, storage exception
Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General Function: User Authentication, Watermark, IP address filtering
System Compatibility: ONVIF (Profile S, Profile G),ISAPI
Interface
Audio: 1-ch 3.5 mm audio in (Mic in/Line in)/out interface
Audio Input: 1-ch 3.5 mm audio interface, MIC IN/LINE IN
Audio Output: 1-ch 3.5mm audio interface
Communication Interface: 1 RJ45 10M / 100M Ethernet interface
Alarm: 1 input, 1 output (up to DC24V 1A or AC110V 500mA )
Alarm Input: 1
Alarm Output: 1
Video Input: 1 RJ12 interface
Video Output: 1Vp-p composite output (75 Ω/BNC) (-S model)
On-board storage: Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button: Yes
Audio
Environment Noise Filtering: Support
Audio I/O: Support dual audio track, stereo
Audio Sampling Rate: 16kHz / 32kHz / 44.1kHz / 48kHz
Smart Feature-set
Behavior Analysis: Line crossing detection, Intrusion detection, Region entrance, Region exiting, Unattended baggage, Object removal
Line Crossing Detection: Cross a pre-defined virtual line
Region Entrance: Enter a pre-defined virtual region from the outside place
Region Exiting: Exit from a pre-defined virtual region
Unattended Baggage: Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Object Removal: Objects removed from the pre-defined region, such as the exhibits on display.
Exception Detections: Scene change detection, Sudden audio increase/decrease detection, Audio loss detection, Defocus detection
Recognition: Face detection recognition
Statistics: Object Counting (Entrance and Exit object number is accounted and showed on screen in real time)
General
Operating Conditions: -30 °C – 60 °C (-22 °F – 140 °F), Humidity 95% or less (non-condensing), -H: -40 °C – 60 °C
Power Supply: 12 V DC ± 10%, PoE (802.3at)
Power Consumption: Max. 20.7 W
Weather Proof: IP67
Dimensions: 100×103.9×311.8 mm (3.94” × 4.09” × 12.28”)
Weight: 2000 g (4.41 lbs)
