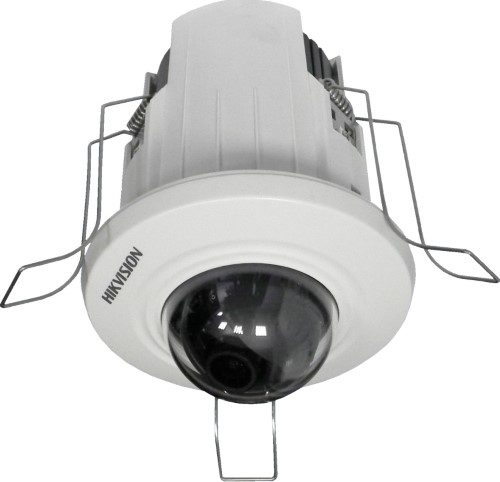

Hikvision HIK-2CD2E20F-W2 2MP Indoor Mini Dome Camera, Recessed Mount, WIFI, D/N, 2.8 mm Fixed Lens
Part of Hikvision’s 2-Line range of cameras, the HIK-2CD2E20F-W2 is an indoor recessed mount network camera that produces an exceptional 2MP high resolution video. Providing an ideal combination of features and affordability, with its ultra-compact design, this camera is ideal for any small business or office space. Remarkably easy to install, the camera includes prongs that adjust to fit any space with no installation tools required. Additionally, it also supports wireless connectivity with its built-in WiFi module.
THIS PRODUCT HAS BEEN DISCONTINUED. Similar camera (but slightly larger is available here)
Rigorously tested, Hikvision’s 2-Line generation cameras have been designed to deliver 24/7 video surveillance with the clarity you expect from a Hikvision network camera.
$266.00 inc GST +3 Year Warranty & Support
Part of Hikvision’s 2-Line range of cameras, the HIK-2CD2E20F-W2 is an indoor recessed mount network camera that produces an exceptional 2MP high resolution video. Providing an ideal combination of features and affordability, with its ultra-compact design, this camera is ideal for any small business or office space. Remarkably easy to install, the camera includes prongs that adjust to fit any space with no installation tools required. Additionally, it also supports wireless connectivity with its built-in WiFi module.
Rigorously tested, Hikvision’s 2-Line generation cameras have been designed to deliver 24/7 video surveillance with the clarity you expect from a Hikvision network camera.
Features
- Up to 2 megapixel resolution
- Full HD 1080p real-time video
- 6mm fixed lens
- Supports 128GB microSD card
- Tool-free installation
- Electronic day/night
- 3D digital noise reduction
- Digital WDR
- Back light compensation
- Built-in WiFi
| Camera | ||
| Image Sensor: | | | 1/3″ Progressive Scan CMOS |
| Min. Illumination: | | | 0.01 Lux @ F1.2, AGC ON |
| Shutter time: | | | 1/3s ~ 1/100,000s |
| Lens: | | | 2.8/46mm lens option Angle of view: 4mm: 85°, 2.8mm: 106°, 6mm: 52° |
| Lens Mount: | | | M12 |
| Day& Night: | | | Electronic |
| Wide Dynamic Range: | | | Digital WDR |
| Digital noise reduction: | | | 3D DNR |
| Compression Standard | ||
| Video Compression: | | | H.264/MJPEG |
| H.264 code profile: | | | Baseline Profile / Main Profile |
| Video bit rate: | | | 32Kbps~8Mbps |
| Dual Stream: | | | Yes |
| Image | ||
| Max. Image Resolution: | | | 1920 x 1080 |
| Frame Rate: | | | 50Hz: 25fps (1920 x 1080, 1280 × 960,1280 × 720) 60Hz: 30fps (1920 x 1080, 1280 × 960,1280 × 720) |
| Image Settings: | | | Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser |
| BLC: | | | Yes, zone configurable |
| ROI: | | | Support |
| Day/Night Switch: | | | Auto/Schedule/Triggered by Alarm In |
| Network | ||
| Network Storage: | | | NAS (Support NFS,SMB/CIFS), ANR |
| Protocols: | | | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour |
| General Function: | | | One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering |
| System Compatibility: | | | ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI |
| Interface | ||
| Communication Interface: | | | 1 RJ45 10M / 100M Ethernet interface |
| On-board storage: | | | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
| Wi-Fi Specification (-W) | ||
| Wireless Standards: | | | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range: | | | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth: | | | 20/40MHz Support |
| Modulation Mode: | | | 802.11b: CCK, QPSK, BPSK 802.11g/n: OFDM |
| Security: | | | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS |
| Transmission Rate: | | | 11b: 11Mbps 11g: 54Mbps 11n: up to 150Mbps |
| Wireless Range: | | | 50m(depend on environment) |
| General | ||
| Operating Conditions: | | | -10 °C ~ 40 °C (14 °F ~ 104 °F) Humidity 90% or less (non-condensing) |
| Power Supply: | | | 12 VDC ± 10%, PoE (802.3af) |
| Power Consumption: | | | Max. 4.2W |
| Dimensions: | | | Φ93.9×121.6 |
| Weight: | | | 200g |
| NOTE：: | | | “-W” series support Wi-Fi (802.11b/g/n) and the modules with Wi-Fi function don’t support the 802.1X protocol. |
