Hikvision DS-2CD2785S-BLK 8MP Outdoor Motorised VF Dome, H.265+, 30m IR, IO, WDR, IP67, 2.8-12mm BLACK

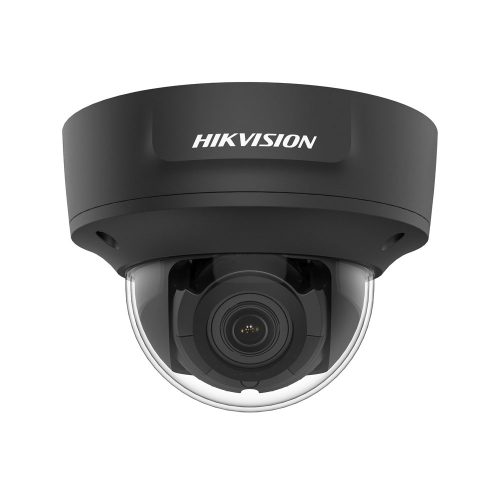

Part of Hikvision’s Easy IP 3.0 range of cameras, the HIK-2CD2785S-BLK is a vandal proof, outdoor and motorised varifocal IR dome camera that produces an exceptional 8MP high-resolution video.













$516.00 $543.53 inc GST +3 Year Warranty & Support

Part of Hikvision’s Easy IP 3.0 range of cameras, the HIK-2CD2785S-BLK is a vandal proof, outdoor and motorised varifocal IR dome camera that produces an exceptional 8MP high-resolution video. Powered by the latest innovation in image sensor technology and an ultra high definition image processing chipset from Amberella it supports H.265 and H.265+ intelligent video compression, which reduces bandwidth/storage requirements by up to 50% and 80%, respectively. Providing an ideal combination of smart features and affordability, the camera includes 120dB true wide dynamic range (WDR), Audio/Alarm IO and built-in EXIR 2.0 infrared technology providing up to 30m visibility at night. With a 2.8-12mm motorised varifocal lens, this camera offers great flexibility. Rigorously tested, Hikvision’s generation cameras have been designed to deliver 24/7 video surveillance with the clarity you expect from a Hikvision network camera.

Key Features

  • 1/2.5″ progressive scan CMOS
  • 8MP resolution (3840 x 2160) at 20fps
  • 2.8 to 12 mm motorised lens (HVOF – 115 degrees to 35 degrees)
  • H.265, H.265+, H.264+, H.264
  • Third stream
  • 120dB wide dynamic range (WDR)
  • Backlight compensation, 3D digital noise reduction
  • Up to 30m infrared
  • Audio/alarm IO
  • IP67, IK10
  • Line crossing, intrusion, object abandoned, object removed and face detection
  • Supports on-board storage, up to 128 GB
  • 802.3af PoE or 12VDC

Sample 8MP Hikvision Videos

>NOTE If you’d like to experience full 8MP, you may have to click the gear icon and change the resolution to 4K, otherwise youtube may stream at a lower quality resolution.


Image Sensor: 1/2.5″ Progressive Scan CMOS
Signal System: PAL/NTSC
Min. Illumination: Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Color: 0.014 Lux @ (F1.4, AGC ON), 0 Lux with IR
Shutter time: 1/3 s to 1/100,000 s
Slow shutter: Support
Lens: 2.8 to 12 mm
Lens Mount: φ14
Adjustment Range: Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
Day& Night: IR cut filter with auto switch
Wide Dynamic Range: 120 dB
Digital noise reduction: 3D DNR
Focus: Auto
Compression Standard
Video Compression: H.265+/H.265/H.264+/H.264/MJPEG
Video bit rate: 32Kbps~16Mbps
Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM
Audio bit rate: 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
Triple Streams: Yes
Max. Image Resolution: 3840 × 2160
Frame Rate: 50Hz: 20 fps (3840 × 2160), 25 fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)
60Hz: 20 fps (3840 × 2160), 30 fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)
Sub Stream: 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream: 50Hz: 25fps (1280 ×720, 640 × 360, 352 × 288)
60Hz: 30fps (1280 ×720, 640 × 360, 352 × 240)
Image Enhancement: BLC/3D DNR/ROI/HLC
Image Settings: Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
ROI: Support 1 fixed region for main stream and sub stream separately
Day/Night Switch: Day/Night/Auto/Schedule/Triggered by Alarm In
Network
Network Storage: microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger: Motion detection, tampering alarm, HDD full, HDD error, network disconnected, IP address conflicted, illegal login
Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General Function: One-key recovery, Anti-Flicker, three streams, heartbeat, mirror, password protection, video
mask, Watermark, IP address filtering
System Compatibility: ONVIF (Profile S, Profile G), ISAPI
Interface
Audio: 1 input (line in, 3.5 mm), 1 output (line out, 3.5 mm), mono sound
Communication Interface: 1 RJ45 10M / 100M Ethernet interface
Alarm: 1 input, 1 output (max. 12 VDC, 30 mA), terminal block
Video Output: 1Vp-p Composite Output(75Ω/CVBS) (For adjustment only)
On-board storage: Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button: Yes
Audio
Environment Noise Filtering: Support
Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz
Smart Feature-set
Behavior Analysis: Line crossing detection, Intrusion detection, Unattended baggage detection, Object removal detection
Line Crossing Detection: Cross a pre-defined virtual line
Intrusion Detection: Enter and loiter in a pre-defined virtual region
Unattended Baggage: Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Object Removal: Objects removed from the pre-defined region, such as the exhibits on display.
Exception Detections: Scene change detection
Recognition: Face Detection
General
Operating Conditions: -30 °C ~ 60 °C (-22 °F ~ 140 °F)
Humidity 95% or less (non-condensing)
Power Supply: 12 VDC ± 25%, PoE (802.3af Class3)
Power Consumption: 12 VDC, 0.95A, max. 11.5W
PoE (802.3af, 36V to 57V), 0.3A to 0.1A, max. 12.9W
Impact Protection: IK10
Weather Proof: IP66
IR Range: Up to 30m
Dimensions: Φ153.4 × 133.1 mm (Φ6.04″ × 5.24″)
Weight: Camera: 1287 g (2.84 lb.)
