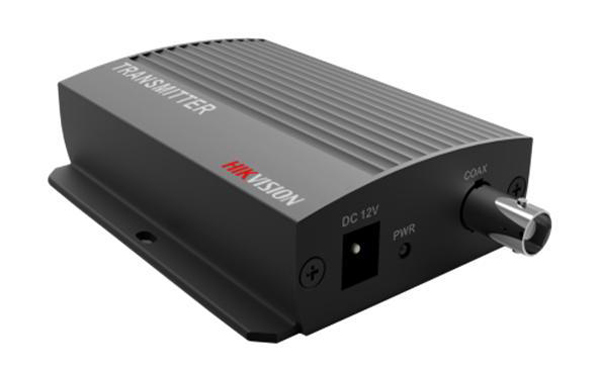

Hikvision DS-1H05TR-KIT Ethernet over Coax Transmitter / Receiver Kit


The Hikvision DS-1H05TR-KIT Over Coax can be used to transmit the network data and CVBS signal via coaxial cable to the remote device with low signal loss. This kit includes :

  • 1 x HIK-1H05-R
  • 1 x HIK-1H05-T/E

$360.00 $386.00 inc GST +3 Year Warranty & Support

The Hikvision DS-1H05TR-KIT Over Coax can be used to transmit the network data and CVBS signal via coaxial cable to the remote device with low signal loss. This kit includes :

  • 1 x HIK-1H05-R
  • 1 x HIK-1H05-T/E

HIK-1H05-xx Datasheet

Features:

  • Support 1080P HD IP video transmit over coaxial cable
  • Support up to 500 meters transmission distance
  • Support IP and analog signal transmission simultaneously
  • Max download speed is 36Mbps, Max upload speed is 11Mbps
  • DS-1H05-T/E model support PSE function, and conforms to the standard IEEE802.3 af
  • Small size easy for installation with high reliability

Specifications:

IC-DS-1H05-T/E Specifications

Input interface: RJ45 Interface& BNC
Output interface: BNC
PSE: n/a
Consumption: Max 5W
Power Supply: DC 12V
Working Humidity: 10% ~ 90%
Working Temperature: -10 °C ~+55 °C
Dimensions (W x D x H): 80 x 96 x 27 mm

IC-DS-1H05-R Specifications



Input interface: BNC
Output interface: RJ45Interface& BNC
PSE: n/a
Consumption: Max 5W
Power Supply: DC 12V
Working Humidity: 10% ~ 90%
Working Temperature: -10 °C ~+55 °C
Dimensions (W x D x H): 80 x 96 x 27 mm
