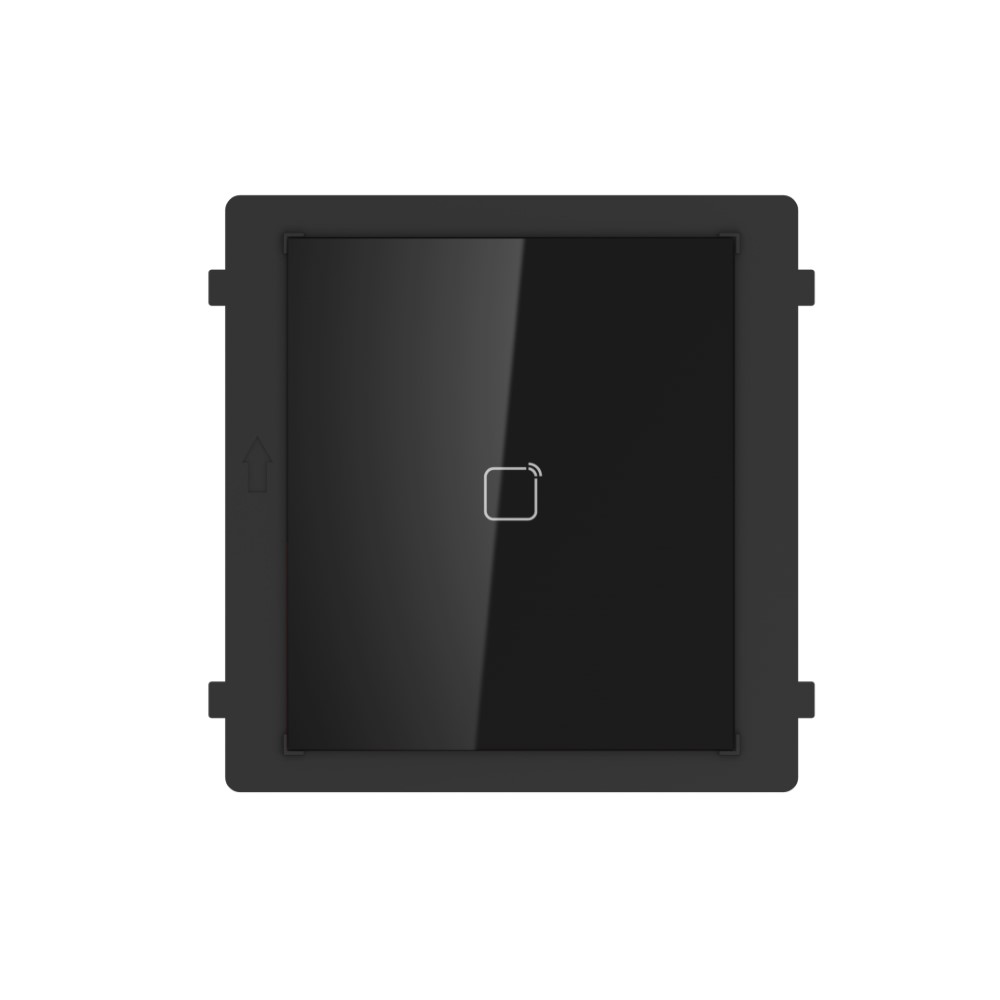

Name: Hikvision Gen2 DS-KD-M Video Intercom Mifare Card Reader Module
Brand: Hikvision
SKU: DS-KD-M
Price: 109.00 AUD
Availability: InStock

Hikvision DS-KD-M Video Intercom Mifare Card Reader Modular Video connects to the DS-KD8003-IME1 Door Station units via the supplied RS485 leads and provides a Proximity Card Reading to the system. Card Reading allows unlocking of the door via Mifare Access Card.

INSTRUCTIONS

Issue Card via Main (Master) Card: You can swipe card to issue it after swiping the main card in
advance.
Steps:
1. Swipe the main (master) card on the card reading area, and hear two beeps.
2. Swipe the unauthorized sub cards in turn after hearing a beep.
3. Swipe the main card again to end the card issuing process.

KEEP MASTER CARD SAFE

System Parameters
Internal card reader:	Built-in Card Reader
Processor:	Embedded MCU Processor

Device Interfaces

Module-connecting:

2(1 Input, 1 Output)

General
Card type:		Mifare Card
Power output:		12VDC(Powered for the other module)
Power input:		12VDC(Powered by the other module)
DIP switch:		8
Installation:		Flush Mounting, Surface Mounting
Power Consumption:		≤2W
Working Humidity:		10% to 95%
Working Temperature:		-40° C to +60° C (-40° F to 140° F)
IP Protection Level:		IP65
Dimensions(L × W × H):		98.5mm×100mm×33.7mm(3.87″×3.95″×1.33″)

User Manual

HIK-KD-M Datasheet

SKU: DS-KD-M Categories: Hikvision Gen2 Video Intercoms, Hikvision Video Intercoms, Hikvision Villa / House Intercoms
