Product Overview

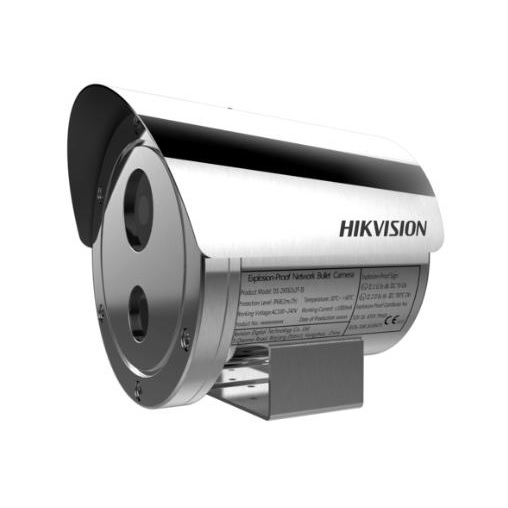

Built for deployment in environments where explosive gases and combustible dust create genuine risk, the DS-2XE6242F-IS is a 4MP fixed bullet network camera housed in a 316L stainless steel enclosure engineered to ATEX and IECEx explosion-proof certification standards. Rated to II 2 G D Ex db IIC T6 Gb classification, it is confirmed suitable for Zone 1 and Zone 21 hazardous area use across gas and dust scenarios. Featuring a 6mm fixed lens with a 55.4-degree horizontal field of view and 30m EXIR illumination range, it delivers 2560×1440 resolution imagery through low-light conditions without generating ignition risk. With IP68 and IK10 protection and an operating range of -30°C to +60°C, the DS-2XE6242F-IS is suited to chemical processing facilities, oil and gas plant perimeters, grain handling sites, and other regulated industrial environments where standard surveillance equipment is not permitted.
Key Capabilities
ATEX and IECEx Explosion-Proof Certification
The DS-2XE6242F-IS carries internationally recognised ATEX and IECEx certifications, enabling legal and safe deployment in Zone 1 gas and Zone 21 dust hazardous locations. This is a mandatory requirement at most regulated industrial sites and cannot be substituted with a standard rated camera.
316L Stainless Steel Enclosure
The 316L grade stainless steel housing combined with an anti-corrosion spray treatment provides resistance against chemical exposure, salt spray, and corrosive atmospheres commonly found in refineries, chemical plants, and coastal industrial facilities. This grade offers superior corrosion resistance compared to standard 304 stainless steel.
4MP Resolution with 30m EXIR Illumination
The 1/3″ progressive scan CMOS sensor captures 2560×1440 resolution at 25fps, while the EXIR module extends useful IR illumination to 30 metres. Minimum illumination reaches 0.01 Lux at F1.2, dropping to 0 Lux with IR active, maintaining usable imagery in completely unlit hazardous zones.
Wide-Range AC Power with PoE Option
The camera accepts AC 100V to 240V via terminal block as its primary power method, eliminating the need for a separate power adapter in industrial cabling runs. 802.3af PoE is also supported, giving installers flexibility depending on which power infrastructure is already in place at the site.
IP68 and IK10 Environmental Protection
IP68 certification provides continuous submersion protection, while IK10 impact resistance confirms the enclosure can withstand significant physical force. Together these ratings suit permanent outdoor installation in washdown areas, exposed plant environments, and locations subject to pressure cleaning or accidental impact.
Smart Event Detection and Local Storage
Confirmed smart events include line crossing, intrusion detection, region entrance and exit, unattended baggage, object removal, face detection, and defocus detection. A built-in microSD slot supports up to 128GB local storage with ANR, maintaining recording continuity if the network link is interrupted.
Best For
- Hazardous Gas and Dust Zones: The ATEX and IECEx certifications confirm this camera is approved for use in Zone 1 gas and Zone 21 dust classified areas, meeting the compliance requirements imposed by site safety assessments and regulatory authorities.
- Corrosive Industrial Environments: The 316L stainless steel enclosure with anti-corrosion treatment makes this camera appropriate for chemical processing, offshore or coastal installations, and sites with chemical wash exposure where standard aluminium-bodied cameras would deteriorate.
- Unlit Outdoor Perimeter Monitoring: The 30m EXIR range combined with 0 Lux capability with IR active allows effective coverage of plant perimeters, access gates, and equipment storage areas that receive no ambient lighting at night.
- Sites Requiring AC Industrial Wiring: The 100V to 240V AC terminal block power input suits industrial electrical installations where conduit-run AC cabling is the norm and low-voltage DC power adapters are impractical or not permitted under site electrical standards.
Why Choose the DS-2XE6242F-IS
The DS-2XE6242F-IS occupies a narrow and highly specific category: a certified explosion-proof IP camera that meets both ATEX and IECEx international standards while delivering 4MP resolution, 30m IR range, and a 316L stainless steel enclosure rated to IP68 and IK10. The 6mm lens provides a 55.4-degree horizontal field of view, balancing coverage width and subject detail for mid-range monitoring across plant corridors, loading areas, and process zone perimeters. H.265+ compression reduces storage and bandwidth overhead without sacrificing image quality, and the 120dB WDR sensor handles high-contrast lighting across outdoor industrial scenes. With 2 alarm inputs and 2 alarm outputs plus a full suite of smart detection events built in, this camera operates as a capable standalone monitoring unit in regulated environments where substituting a non-certified camera would breach site safety compliance. Available at Security Wholesalers, the DS-2XE6242F-IS is a purpose-built solution for sites where explosion-proof certification is non-negotiable.
Buyer Decision Tips
Confirm Your Hazardous Area Zone Classification First: Before specifying this camera, verify the exact zone classification assigned to the installation area by your site hazardous area document or ATEX/IECEx area classification drawing. The DS-2XE6242F-IS is certified for Zone 1 gas (Group IIC, T6) and Zone 21 dust environments. If your site is classified Zone 0 or involves a different gas group, this model may not meet your required protection level, and a different certified device would be needed.
Choose the Right Lens Focal Length for Your Coverage Distance: The 6mm variant (this listing) covers a 55.4-degree horizontal field of view, which suits medium-range coverage of 8 to 20 metres. If your target zone is closer and wider, the 4mm option (83-degree FOV) may be more appropriate. For narrower, longer-distance coverage such as a corridor or access lane beyond 20 metres, the 8mm (38.5-degree) or 12mm (24.7-degree) variants should be considered. All focal lengths share the same certified housing and explosion-proof rating.
Key Features & Technical Specifications
| Image Sensor |
1/3″ Progressive Scan CMOS |
| Maximum Resolution |
2560 x 1440 (4MP) |
| Lens (This Variant) |
6mm fixed, 55.4-degree horizontal field of view |
| Lens Mount |
M12 |
| IR Illumination Range |
30m EXIR |
| Minimum Illumination |
0.01 Lux @ F1.2 AGC ON; 0 Lux with IR active |
| Wide Dynamic Range |
120dB |
| Video Compression |
H.265+/H.265/H.264+/H.264 (main stream); H.265/H.264/MJPEG (sub stream) |
| Frame Rate |
25fps at up to 2560×1440 (50Hz); 24fps at up to 2560×1440 (60Hz) |
| On-Board Storage |
microSD/SDHC/SDXC slot, up to 128GB; ANR supported |
| Alarm Inputs/Outputs |
2 alarm inputs, 2 alarm outputs |
| Network Interface |
1x RJ45 10/100M self-adaptive Ethernet |
| Power Supply |
AC 100V to 240V terminal block; PoE 802.3af Class 3 |
| Enclosure Material |
316L stainless steel with anti-corrosion treatment |
| Protection Rating |
IP68 / IK10 |
| Explosion-Proof Certification |
ATEX: II 2 G D Ex db IIC T6 Gb / Ex tb IIIC T80°C Db IP68; IECEx: Ex db IIC T6 Gb / Ex tb IIIC T80°C Db IP68 |
| Operating Temperature |
-30°C to +60°C; Humidity 95% or less (non-condensing) |
| Dimensions |
221.3 x 174 x 172mm |
| Weight |
7.4kg |
| API/Protocol |
ONVIF Profile S, Profile G; ISAPI |
Ideal Use Cases
Oil and Gas Facilities
Refineries, processing plants, and LPG storage areas require Zone 1-rated equipment. The ATEX/IECEx certified enclosure and Gas Group IIC rating cover hydrogen and other highly ignitable gases, making this camera appropriate for monitoring critical process zones and plant access points.
Chemical Processing and Storage
Chemical handling environments combine explosion risk with corrosive atmospheres. The 316L stainless steel enclosure and anti-corrosion treatment address both threats, while the IP68 rating provides protection during pressure washdowns common in food-grade chemical production areas.
Grain Handling and Flour Milling
Grain dust is classified as a Zone 21 combustible dust environment. The Ex tb IIIC T80°C Db dust explosion protection rating confirms this camera’s suitability for monitoring grain receival, conveyor transfer points, and silo access areas where dust accumulation creates ignition risk.
Mining and Tunnelling Operations
Underground and surface mining environments with flammable gas or coal dust hazards require certified camera equipment. The wide operating temperature range of -30°C to +60°C covers the extremes encountered in both underground workings and exposed surface plant environments.
Marine and Offshore Installations
Offshore platforms and marine fuel handling areas combine salt spray corrosion with explosion hazard classification. The 316L stainless steel grade offers notably higher chloride corrosion resistance than 304 grade, making this variant the appropriate selection for marine hazardous area installations.
Choosing the Right Model
- Choose this model if: Your installation area carries a confirmed ATEX/IECEx Zone 1 gas or Zone 21 dust classification, the environment involves corrosive materials requiring 316L steel construction, and you need 4MP resolution with 30m IR coverage on a 6mm focal length. The AC 100V-240V terminal block power input also makes this model suitable for sites running industrial conduit-run AC wiring rather than low-voltage data infrastructure.
- Choose a different model if: Your installation area is not classified as a hazardous zone under ATEX or IECEx standards. In non-hazardous outdoor industrial environments such as general warehouse exteriors, loading docks, or commercial car parks, a standard IP66-rated bullet or turret camera will provide the same image quality and smart detection capability at significantly lower cost and weight. The 7.4kg enclosure of the DS-2XE6242F-IS also demands robust mounting structures not typically required for conventional surveillance cameras.
FAQs
- What does the ATEX/IECEx certification mean for the DS-2XE6242F-IS?
ATEX and IECEx are internationally recognised certification schemes confirming that this camera’s enclosure design prevents internal ignition sources from reaching surrounding explosive atmospheres. The DS-2XE6242F-IS carries the classification Ex db IIC T6 Gb for gas zones and Ex tb IIIC T80°C Db for dust zones, confirming it is certified for Zone 1 gas and Zone 21 dust hazardous areas as defined under Australian standard AS/NZS 60079.
- Why is the 316L stainless steel variant specified for this listing rather than the 304 version?
316L stainless steel contains molybdenum, which substantially increases resistance to chloride-induced corrosion compared to 304 grade. This makes the 316L variant the preferred choice for marine environments, offshore installations, chemical processing sites, and any application where chloride exposure from salt water, acidic chemicals, or washdown cleaning agents is expected. The standard 304 variant (DS-2XE6242-IS without the /316L designation) suits less aggressive industrial environments.
- Can the DS-2XE6242F-IS be powered by PoE, or does it require AC power?
Both options are supported. The camera accepts AC 100V to 240V via a terminal block connection, which is the preferred method on most industrial sites with conduit-run electrical infrastructure. It also accepts IEEE 802.3af PoE Class 3 power through the RJ45 network port, which may be used where a PoE switch or injector is already installed and site safety regulations permit low-voltage cabling in the hazardous zone.
- What is the significance of the T6 temperature class rating?
The T6 temperature class means the camera’s external surface temperature will not exceed 85°C under any operating condition. This is relevant to hazardous area selection because each gas group has a minimum ignition temperature, and T6 is the most conservative rating, covering gases with ignition temperatures as low as 85°C. Specifying a T6-rated camera ensures it will not become an ignition source even for the most sensitive flammable gases in Group IIC classification.
- How does the 6mm lens perform at typical hazardous area monitoring distances?
The 6mm fixed lens produces a 55.4-degree horizontal field of view, which at 10 metres covers approximately 10 metres of scene width. This makes it well suited to monitoring access gates, personnel airlocks, equipment bays, and plant corridor approaches in the 8 to 20 metre monitoring range. For wider zone coverage the 4mm variant (83 degrees) is more appropriate, while the 8mm or 12mm variants suit longer approach corridors where narrower framing and greater subject detail are priorities.
- Does the DS-2XE6242F-IS support local recording if the network is unavailable?
Yes. The camera includes a built-in microSD/SDHC/SDXC card slot supporting cards up to 128GB. It also supports ANR (Automatic Network Replenishment), which automatically uploads footage recorded locally during a network outage back to the NVR once connectivity is restored. This is particularly useful in industrial sites where network disruptions during plant maintenance or shutdowns may occur.
- Where can I obtain the DS-2XE6242F-IS and supporting documentation?
The DS-2XE6242F-IS is part of the Security Wholesalers range. The product datasheet is available as a direct download from the Additional Information section on this page, and covers full certification details, dimensional drawings, and wiring diagrams for both the AC terminal block and PoE connection options. Contact Security Wholesalers directly for volume pricing or project-specific technical support.
