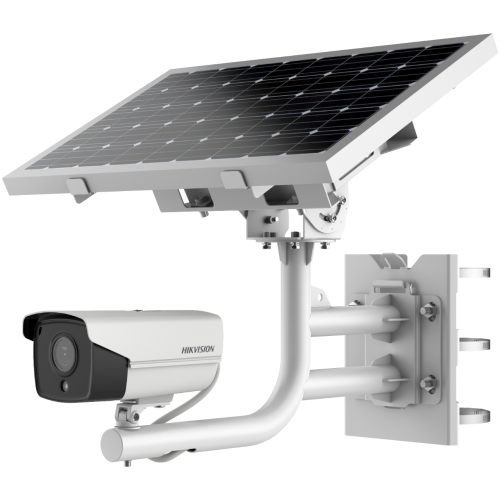

Hikvision DS-2XS6A25G0-I EXIR Fixed Bullet Solar Power 4G Network Camera 20AH Battery Included


  • High quality imaging with 2 MP(1920 × 1080 @30 fps) resolution. Note – if you are looking for a 4K Model with colour night vision, please CLICK HERE
  • Clear imaging against strong back light due to 120 dB true WDR technology
  • The camera battery can work up to seven days in rainy or cloudy days if it is fully charged
  • 40 W photovoltaic panel, 20 Ah chargeable lithium battery
  • Support battery management, battery display, battery high-low temperature protection, charge-discharge protection, low-battery sleep protection and remote wakeup
  • LTE-TDD/LTE-FDD/WCDMA/GSM 4G wireless network transmission, support Micro SIM card
  • Camera: Water and dust resistant (IP67)

IN STOCK AND READY TO SHIP

DS-2XS6A25G0-I_CH20S40_Datasheet

Solar Camera Quick Start Guide

4g_solar_camera_Setup_guide

$3,143.00 $4,081.00 inc GST +3 Year Warranty & Support

Camera

  • Image Sensor 1/2.8″ Progressive Scan CMOS
  • Min. Illumination

    Color: 0.004 Lux @ (F1.4, AGC ON),

    B/W: 0.002 Lux @ (F1.4, AGC ON), 0 Lux with IR on

  • Shutter Speed 1 s to 1/100,000 s
  • Slow Shutter Yes
  • P/N P/N
  • Wide Dynamic Range 120 dB
  • Day & Night IR cut filter



Lens

  • Lens Type Fixed Focus Lens
  • Lens Type & FOV

    2.8 mm @1.4: Horizontal FOV: 107°, vertical FOV: 57°, diagonal FOV: 128°

    4 mm @F1.4: Horizontal FOV: 86°, vertical FOV: 46°, diagonal FOV: 102°

    8 mm @F1.6: Horizontal FOV: 41°, vertical FOV: 22°, diagonal FOV: 47°

  • Lens Mount M12

DORI

  • DORI

    2.8 mm: D 44 m / O 17.5 m / R 9 m / I 4.5 m (default lens)

    4 mm: D 53 m / O 21 m / R 11 m / I 5 m (let us know if you’d like the 4mm instead)

    8 mm: D 110 m / O 44 m / R 22 m / I 11 m

Illuminator

  • IR Range Up to 30m
  • Wavelength 850nm
  • Smart Supplement Light Yes

Video

  • Max. Resolution 1920 × 1080
  • Main Stream

    50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)

    60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)

  • Sub-Stream

    50Hz: 25fps (704 × 576, 640 × 480)

    60Hz: 30fps (704 × 480, 640 × 480)

  • Third Stream

    50Hz: 1fps (1280 × 720, 640 × 480)

    60Hz: 1fps (1280 × 720, 640 × 480)

  • Video Compression

    Main stream: H.265+/H.265/H.264+/ H.264

    Sub-stream: H.265/H.264/MJPEG

    Third stream: H.265/H.264

  • Video Bit Rate 32 Kbps to 8 Mbps
  • H.264 Type Baseline Profile/Main Profile/High Profile
  • H.265  Type Main Profile
  • H.264+ Main Stream supports
  • H.265+ Main Stream supports
  • Bit Rate Control CBR/VBR
  • Stream Type Main stream/Sub-stream/third stream
  • Scalable Video Coding (SVC)H.265 and H.264 support
  • Region Of Interest (ROI)4 fixed regions for each stream

Network

  • Simultaneous Live View Up to 6 channels
  • APIOpen Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
  • User/HostUp to 32 users. 3 user levels: administrator, operator and user
  • SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, TLS 1.2
  • Network StoragemicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
  • ClientiVMS-4200, Hik-Connect, Hik-Central
  • Web Browser

    Plug-in required live view: IE8+

    Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+

    Local service: Chrome 41.0+, Firefox 30.0+

Mobile Communication

  • 4G Frequency

    LTE-TDD: Band38/40/41;

    LTE-FDD: Band1/3/5/7/8/20/28;

    WCDMA: Band1/5/8

    GSM: Band3/5/8

  • 4G StandardLTE-TDD/LTE-FDD/WCDMA/GSM


  • Smart IRThe IR LEDs on camera should support Smart IR function to automatically adjust power to avoid image overexposure.
  • Day/Night SwitchDay, Night, Auto, Schedule
  • Target CroppingYes
  • Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24bit bmp format
  • Image Enhancement BLC, HLC, 3D DNR, Defog
  • Image Parameters Switch Yes
  • Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
  • SNR≥52dB
  • Privacy Mask4 regions of privacy mask

Interface

  • RS-4851 RS-485(half duplex)
  • On-Board StorageBuilt-in micro SD slot, up to 256GB
  • Hardware ResetYes
  • Communication InterfaceRJ45 10M/100M self-adaptive Ethernet port
  • 4Gmicro SIM card

Event

  • Basic EventMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
  • Smart Event

    Line Crossing Detection, up to 4 regions configurable

    Intrusion detection, up to 4 regions configurable

    Region entrance detection, up to 4 regions configurable

    Region exiting detection, up to 4 regions configurable

    Unattended baggage detection, up to 4 regions configurable

    Object removal detection, up to 4 regions configurable,

    Scene change detection

    The smart events are only supported in full power mode.

General

  • Linkage Method

    Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture

    Trigger recording: memory card, network storage, pre-record and post-record

    Trigger captured pictures uploading: FTP, SFTP, HTTP, NAS, Email

    Trigger notification: HTTP, ISAPI, Email

  • Online UpgradeYes
  • Dual BackupYes
  • Firmware VersionV5.5.111
  • Web Client Language

    33 languages

    English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

  • General FunctionAnti- flicker, 3 streams heartbeat, mirror, privacy masks,flash log, password reset via e-mail, pixel counter
  • Software ResetYes
  • Storage Conditions-30 °C to 60 °C. Humidity 95% or less (non-condensing)
  • Startup And Operating Conditions-15 °C to 55 °C. Humidity 95% or less (non-condensing)
  • Power Supply12 VDC ± 20% ;
  • Power Consumption And Current

    1. The average power consumption of the 24 hours is 1.76 W (4G transmission is excluded, 50% illumination).

    2. On rainy or cloudy day, the camera battery life is up to 5.2 days if it has been full charged (if the camera works continuously according to the 24-hour average power consumption).

    3. The daily effective sunlight is 1.77 hour and the camera can be online always (if it works continuously according to the 24-hour average power consumption).

  • Power InterfaceΦ5.5 mm coaxial power plug
  • Screw MaterialSUS304
  • Camera Dimension760 × 732.6 × 586.9 mm (29.9″ × 28.8″ × 23.1″) (Max. size of the camera after it is completely assembled)
  • Package Dimension826 × 469 × 444 mm (32.5″ × 18.5″ × 17.5″)
  • Camera WeightApprox. 12964g (28.58 lb.)
  • With Package WeightApprox. 16861g (37.17 lb.)

Battery

  • Battery Type Lithium
  • Capacity 20 Ah
  • Max. Charging Voltage 12.6 V
  • Operating Temperature -5 °C to 60 °C (23 °F to 140 °F)
  • Battery Voltage 10.8V
  • Battery Life More than 800 cycles

Approval

  • ClassClass B
  • EMCCE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015);
  • RFCE-RED (EN 301489-1 V2.2.3; EN 301489-52 V1.1.0; EN 62311:2008); ICASA (EN 301 489-1 V2.2.3; EN 301 489-52 V1.1.0;EN 62311:2008)
  • SafetyCB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013;IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013;EN 62368-1:2014+A11:2017);
  • EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
  • ProtectionCamera: IP67(IEC 60529-2013)

Part: HIK-2XS6A25CH2S4

Description: Hikvision 2MP Standalone 4G Camera, Includes 40W Solar Panel, 4mm

Part: HIK-TYN1220S

Description: Hikvision 20Ah battery included to suit HIK-2XS6A25CH2S4

SKU: DS-2XS6A25G0-I/CH20S40 Categories: , , Tag:
