Product Overview

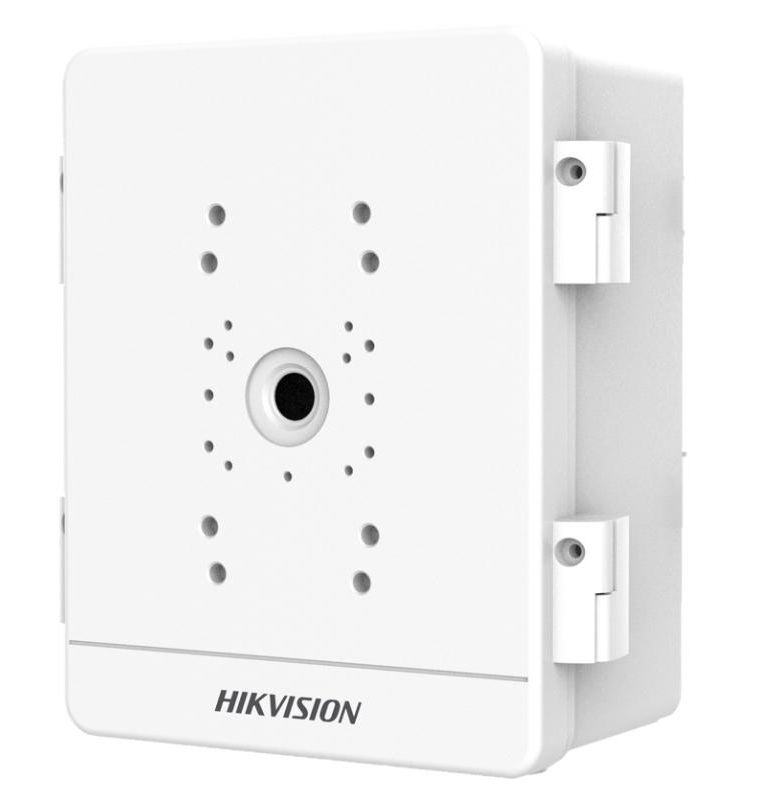

Protecting compatible CCTV equipment at exposed outdoor locations is a practical challenge on any commercial or industrial surveillance project. The DS-SBOX-01 is an outdoor surveillance box from Hikvision, designed to house compatible surveillance accessories and installation components at camera points where weather, impact, and environmental exposure are ongoing concerns. Featuring IP66 weather protection and an IK10 impact rating, it is suited to demanding installations including car parks, building perimeters, gate entry points, outdoor yards, and industrial sites. It supports both pole and wall mounting, giving installers flexibility when positioning the enclosure relative to nearby cameras and cable routes. The DS-SBOX-01 is useful wherever a weather-rated, impact-resistant equipment box is needed at an outdoor camera or infrastructure point, and where an indoor-grade enclosure would not be appropriate.
Key Capabilities
IP66 Weather Protection
The IP66 rating means the enclosure is protected against dust ingress and powerful water jets, making it practical for fully exposed outdoor installation positions including rooftops, perimeter poles, and open yard locations.
IK10 Impact Resistance
IK10 is the highest standard impact resistance rating. It helps the enclosure withstand strong physical impact forces, which is relevant for public areas, car parks, industrial yards, and sites where accidental or deliberate impact is a realistic risk.
Pole Mounting Support
Pole mounting capability allows the box to be positioned alongside pole-mounted cameras at car parks, gate entries, perimeter lines, and remote outdoor locations where wall mounting is not available or practical.
Wall Mounting Support
Wall mounting gives installers a second placement option, useful when the box needs to be fixed to a building exterior, boundary wall, or structure face close to the camera position or cable entry point.
Outdoor Equipment Housing
The enclosure provides a protected space for compatible surveillance accessories, cable connection points, or installation components at outdoor camera locations where an indoor-grade or unrated housing would not be suitable.
Best For
- Pole-Mounted Camera Locations: Suits installers who need a protected equipment box mounted alongside pole cameras at car parks, gates, or remote perimeter points, with IP66 weather protection against the elements.
- Industrial and Commercial Sites: Useful for warehouses, yards, and industrial facilities where surveillance equipment housing must meet both weather and impact resistance requirements.
- Public Area Surveillance Infrastructure: The IK10 rating makes this a practical enclosure choice for public-facing locations including campuses, parks, and public building perimeters where impact risk is higher.
- Building Perimeter Installations: Suited to wall-mounted deployments on building exteriors where compatible accessories or cable connections need a weatherproof housing at the camera point.
Why Choose the DS-SBOX-01
The DS-SBOX-01 addresses a specific gap in outdoor CCTV projects: protecting the supporting components and accessories at exposed camera locations. Unlike basic unrated enclosures, it combines IP66 weather protection with an IK10 impact rating in a single housing, which removes the need to source separate weatherproofing or impact protection measures at each camera point. The dual mounting support for both pole and wall positions means it can be used across a variety of site layouts without specifying separate products for different mounting configurations. It is a straightforward choice for installers working on car parks, industrial perimeters, gate entries, and remote outdoor surveillance infrastructure. Available through Security Wholesalers, the DS-SBOX-01 should be selected after confirming internal equipment fit, cable entry requirements, and mounting surface suitability for the specific installation.
Buyer Decision Tips
Fit and Entry Check: Before ordering the DS-SBOX-01, confirm that the compatible equipment or accessories intended for the enclosure will fit within the internal dimensions, and that cable entry points, glands, and conduit routing can be accommodated at the installation location. The IP66 rating depends on correct sealing at all cable entry points during installation.
Mounting Surface and Hardware: Identify whether pole or wall mounting is needed before installation. Confirm the pole diameter or wall surface type is compatible with the mounting hardware, and check that any additional brackets, fixings, or pole clamps required are sourced before the installation date.
Key Features & Technical Specifications
| Model |
DS-SBOX-01 |
| Product Type |
Outdoor surveillance box |
| Accessory Category |
CCTV accessory – outdoor equipment enclosure |
| Weather Protection Rating |
IP66 |
| Impact Rating |
IK10 |
| Mounting Options |
Pole mounting and wall mounting supported |
| Primary Function |
Protective outdoor housing for compatible CCTV accessories, cable connection points, or installation components at outdoor camera locations |
| Installation Environment |
Outdoor use in exposed environments including perimeters, car parks, industrial sites, and building exteriors |
| Typical Locations |
Car parks, building perimeters, gate entry points, warehouses, outdoor yards, campuses, public facilities, and industrial sites |
| IP66 Rating Meaning |
Total dust protection and protection against powerful water jets from any direction |
| IK10 Rating Meaning |
Highest standard IK impact resistance rating – resistant to strong physical impact forces |
| Installation Consideration |
Confirm equipment fit, internal dimensions, cable entry sealing, mounting surface, pole diameter or wall type, and service access requirements before installation |
Ideal Use Cases
Car Park Camera Infrastructure
Pole mounting support makes the DS-SBOX-01 practical for car park installations where cameras sit on freestanding poles and accessories or cable connections need an IP66 and IK10-rated enclosure at ground level or mid-pole.
Building Perimeter and Gate Points
Wall mounting allows the box to be positioned on building exteriors, boundary structures, or gate pillars where compatible equipment needs weatherproof housing close to the camera position.
Industrial and Warehouse Sites
The combined IP66 and IK10 ratings suit industrial environments where dust, moisture, and physical impact from equipment or vehicles are ongoing concerns for outdoor surveillance infrastructure.
Public Facility Surveillance
The IK10 impact rating is directly relevant to public area deployments at parks, campuses, and public buildings, where enclosures are more exposed to accidental or deliberate physical contact.
Remote Outdoor Camera Points
For camera locations distant from the main equipment room, the DS-SBOX-01 provides a weatherproof enclosure for compatible local installation components where a run back to an indoor cabinet is not practical.
Choosing the Right Model
- Choose this model if: You need an outdoor surveillance enclosure with IP66 weather protection and IK10 impact resistance that can be mounted on either a pole or a wall, and where the compatible equipment dimensions fit within the box.
- Choose a different accessory if: The installation requires a camera-specific junction box, a standalone pole bracket or wall bracket only, a larger enclosure for greater internal capacity, an indoor-rated housing, or a model-specific camera mounting accessory. Confirm internal dimensions match your equipment before ordering.
FAQs
- What does the DS-SBOX-01 actually protect inside?
The DS-SBOX-01 is designed to house compatible surveillance accessories, cable connection points, or installation components at outdoor camera locations. The specific items installed inside will depend on your system design, internal dimensions, and heat or power requirements at that location. It is not a camera itself but an enclosure for supporting equipment.
- What does IP66 mean in practical terms for outdoor CCTV use?
IP66 means the enclosure is fully protected against dust ingress and against powerful water jets from any direction. For outdoor CCTV installations, this means rain, hose-down cleaning in industrial areas, and general weather exposure should not compromise the internal components, provided all cable entry points are correctly sealed during installation.
- What is the IK10 rating and why does it matter for this enclosure?
IK10 is the highest impact resistance classification under the IEC 62262 standard, indicating the enclosure can withstand significant physical impact force. This is relevant for car parks, public facilities, and industrial sites where the box may be in reach of vehicles, equipment, or pedestrian contact and where a lower-rated housing would be at greater risk of damage.
- Can the DS-SBOX-01 be mounted on a standard surveillance pole?
Yes. The DS-SBOX-01 supports pole mounting, which makes it suitable for car park poles, perimeter poles, and remote camera posts. Confirm that the pole diameter is compatible with the mounting hardware included or required, and that the pole structure can support the combined weight of the box and any internal equipment.
- Does the enclosure need any additional weatherproofing at the cable entry points?
The IP66 rating applies to the enclosure body, but maintaining that rating depends on correctly sealing all cable entries during installation. Cable glands or conduit fittings appropriate for the cable types and diameters used should be sourced and fitted as part of the installation to preserve the IP66 performance at entry points.
- Where is this surveillance box commonly installed on commercial sites?
Common locations include car park poles, gate entry structures, warehouse exterior walls, building perimeter walls, outdoor yards, campus grounds, and public facility exteriors. It is generally placed close to the outdoor camera position to minimise exposed cable runs and protect localised installation components.
- What should I check before ordering the DS-SBOX-01?
Before ordering, confirm that the equipment intended for the enclosure fits within the internal dimensions, that cable entry points and gland sizes are compatible with your cable types, that the mounting surface or pole is suitable, and that service access for future maintenance is achievable at the chosen location. Security Wholesalers recommends reviewing the DS-SBOX-01 datasheet for dimensional details before committing to installation.
