Product Overview

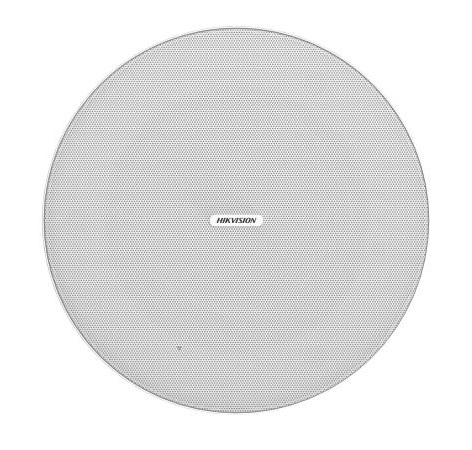

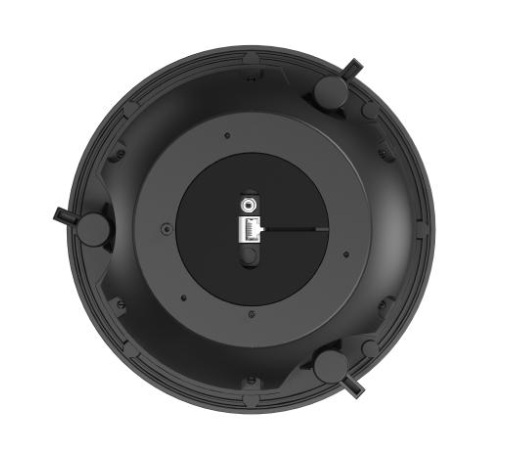

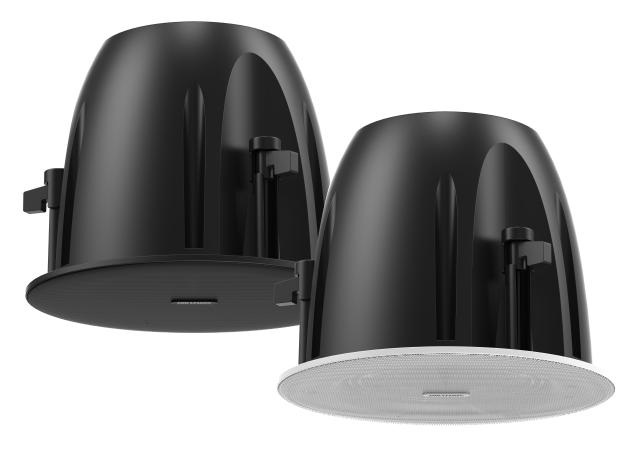

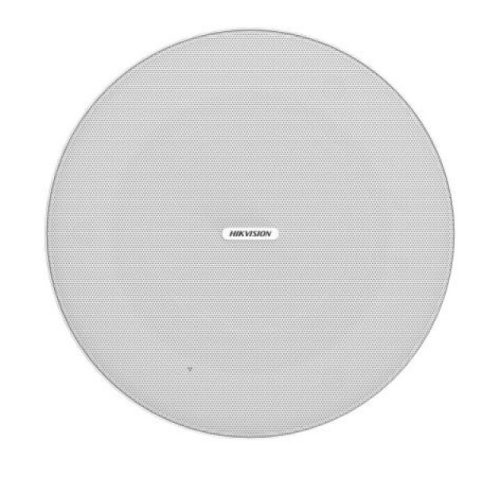

For commercial spaces where ceiling audio needs to sit flush and unobtrusive, the DS-QAZ0610G1 is an analog frameless ceiling speaker built for public address, paging, and background audio applications. Featuring 10W rated power, a 6.5-inch woofer, a 1-inch tweeter, and a maximum SPL of 98dB, it delivers suitable sound output for voice announcements and distributed audio across compatible analog PA systems. The frameless ceiling format removes the visible mounting ring found on standard grille-style speakers, producing a cleaner finish for offices, retail stores, reception areas, schools, corridors, and public facilities. It is best selected for analog system builds where both audio coverage and ceiling aesthetics are part of the installation brief. Note that this product carries a 70-day lead time – confirm availability before committing to project timelines.
Key Capabilities
10W Rated Power Output
A 10W rating makes this speaker practical for distributed PA loops and background audio zones in compatible analog amplifier systems. Confirm that amplifier power and speaker line impedance match the installation design before ordering.
6.5-Inch Woofer
The 6.5-inch woofer supports fuller audio reproduction across the lower and mid frequencies, making voice announcements and general audio playback more natural-sounding in typical commercial ceiling heights.
1-Inch Tweeter
The 1-inch tweeter handles high-frequency reproduction, improving speech intelligibility for paging and voice broadcast in environments where clarity matters, such as schools, reception areas, and retail floors.
98dB Maximum SPL
A maximum SPL of 98dB provides sufficient headroom for announcements to carry clearly over typical ambient noise levels in commercial interiors. Actual coverage depends on ceiling height, room acoustics, and speaker spacing.
Frameless Ceiling Design
The frameless format eliminates the visible outer ring common to standard ceiling speakers, producing a low-profile finish that integrates more neatly into modern commercial ceilings, open-plan offices, and public-facing interiors.
Best For
- Public Address and Paging Systems: Suited to analog PA installations requiring distributed ceiling coverage for voice announcements, paging, and voice broadcast in commercial interiors.
- Retail and Office Environments: Practical for shop floors, offices, corridors, and reception areas where background audio and staff paging need a clean ceiling-mounted speaker solution.
- Schools and Public Facilities: Useful for classrooms, halls, corridors, and common areas in education and public buildings requiring evenly distributed audio from ceiling speakers.
- Aesthetics-Focused Installations: Best selected when the frameless ceiling finish is a specific requirement and a standard grille-style speaker would not suit the interior design brief.
Why Choose the DS-QAZ0610G1
The DS-QAZ0610G1 stands apart from standard ceiling speakers by combining a two-way speaker configuration with a frameless ceiling format in a single analog PA unit. The pairing of a 6.5-inch woofer and 1-inch tweeter improves both voice intelligibility and overall audio balance compared to single-driver ceiling speakers operating at the same power level. At 10W rated power and 98dB maximum SPL, it has the output to cover typical commercial ceiling zones without requiring excessive amplifier headroom. The frameless design addresses a genuine aesthetic gap in ceiling speaker installations, making it suitable for projects where the speaker must blend into the ceiling rather than protrude visually. Available through Security Wholesalers, the DS-QAZ0610G1 is a practical option for integrators specifying analog PA systems in offices, retail spaces, schools, and public facilities where both audio coverage and visual finish are part of the brief.
Buyer Decision Tips
Compatibility Tip: The DS-QAZ0610G1 is an analog ceiling speaker and must connect to a compatible analog PA amplifier. Confirm the amplifier’s rated output, speaker line type, and total speaker load before finalising the system design. If the project requires network audio, IP addressing, or integration with a digital audio matrix, this speaker is not the correct choice.
Lead Time Tip: This product carries a 70-day lead time. Factor this into project scheduling, particularly for fitouts or installations with fixed handover dates. Order well in advance to avoid delays on the audio portion of the installation.
Key Features & Technical Specifications
| Model |
DS-QAZ0610G1 |
| Product Type |
Analog frameless ceiling speaker |
| Audio Category |
Public address analog speaker |
| Rated Power |
10W |
| Woofer Size |
6.5 inches |
| Tweeter Size |
1 inch |
| Maximum SPL |
98dB |
| Speaker Configuration |
Two-way (woofer and tweeter) |
| Installation Type |
Frameless ceiling mount |
| System Compatibility |
Compatible analog public address and audio systems |
| Primary Application |
Public address announcements, paging, voice broadcast, and background audio |
| Typical Locations |
Offices, retail stores, reception areas, classrooms, corridors, showrooms, halls, and public facilities |
| Outdoor Rated |
Indoor use only |
| Lead Time |
70 days – confirm availability before ordering |
| Installation Consideration |
Confirm amplifier compatibility, speaker line type, ceiling structure, cut-out requirements, speaker spacing, and required sound coverage before installation |
Ideal Use Cases
Retail Store PA Audio
The 10W output and 98dB maximum SPL make this speaker suited to retail floor coverage for customer announcements and staff paging where the speaker must sit flush with a modern ceiling finish.
Office and Open-Plan Workspaces
The frameless ceiling design integrates cleanly into office environments where standard grille speakers would look out of place. Suitable for distributed paging and background audio across open-plan and partitioned areas.
School Corridors and Classrooms
Voice intelligibility for announcements and paging in school environments benefits from the two-way woofer and tweeter configuration, which improves speech clarity at typical classroom and corridor ceiling heights.
Reception and Public Foyer Areas
The discreet frameless format suits reception areas, hotel lobbies, and public foyers where audio coverage is required but visible speaker hardware should be minimised for aesthetic reasons.
Distributed Background Audio Systems
For analog PA systems requiring multiple ceiling speakers across a large commercial floor, the DS-QAZ0610G1 can be distributed across zones where a consistent low-profile ceiling appearance is part of the design specification.
Choosing the Right Model
- Choose this model if: The installation requires an analog frameless ceiling speaker with 10W rated power, a two-way woofer and tweeter configuration, 98dB maximum SPL, and a discreet ceiling finish for a compatible analog PA system indoors.
- Choose a different speaker if: The project needs a wall-mounted, pendant, or horn speaker format, outdoor-rated audio hardware, a higher wattage output, or an IP network speaker for integration with a digital or networked audio system. Also consider a different option if the lead time of 70 days cannot be accommodated by the project schedule.
FAQs
- What does the DS-QAZ0610G1 do?
The DS-QAZ0610G1 is an analog frameless ceiling speaker designed for public address systems. It handles voice announcements, staff paging, voice broadcast, and background audio in compatible analog PA installations across indoor commercial spaces.
- What does frameless mean for a ceiling speaker?
A frameless ceiling speaker omits the outer visible mounting ring or bezel that standard ceiling speakers typically show after installation. The result is a cleaner, more flush appearance against the ceiling surface, which suits modern commercial interiors where the speaker should not draw visual attention.
- What amplifier does this speaker need?
The DS-QAZ0610G1 is an analog speaker rated at 10W. It requires connection to a compatible analog PA amplifier with the correct output power and speaker line configuration. The amplifier type, total speaker load, and line impedance must all be confirmed before the system is designed. This speaker is not compatible with IP or networked audio systems.
- Why does this speaker use both a woofer and a tweeter?
The two-way configuration uses a 6.5-inch woofer for mid and low-frequency reproduction and a 1-inch tweeter for high-frequency detail. Together, they produce more balanced audio than a single-driver speaker, which is particularly useful for speech intelligibility in paging and announcement applications where clarity matters.
- Can the DS-QAZ0610G1 be used outdoors?
No. This product is designed for indoor ceiling installation. If outdoor audio coverage is required, a speaker specifically rated for outdoor or weatherproof environments should be selected instead.
- How many of these speakers are needed for a room?
Speaker quantity depends on ceiling height, room dimensions, background noise levels, required audio uniformity, and the coverage pattern of each speaker. These factors need to be calculated as part of the PA system design. There is no fixed rule for quantity without knowing the room parameters.
- Is there a lead time on this product?
Yes. The DS-QAZ0610G1 carries a 70-day lead time. Orders should be placed well in advance of the installation date to avoid delays. This product is part of the Security Wholesalers range – confirm current stock and delivery timelines at the point of order.
