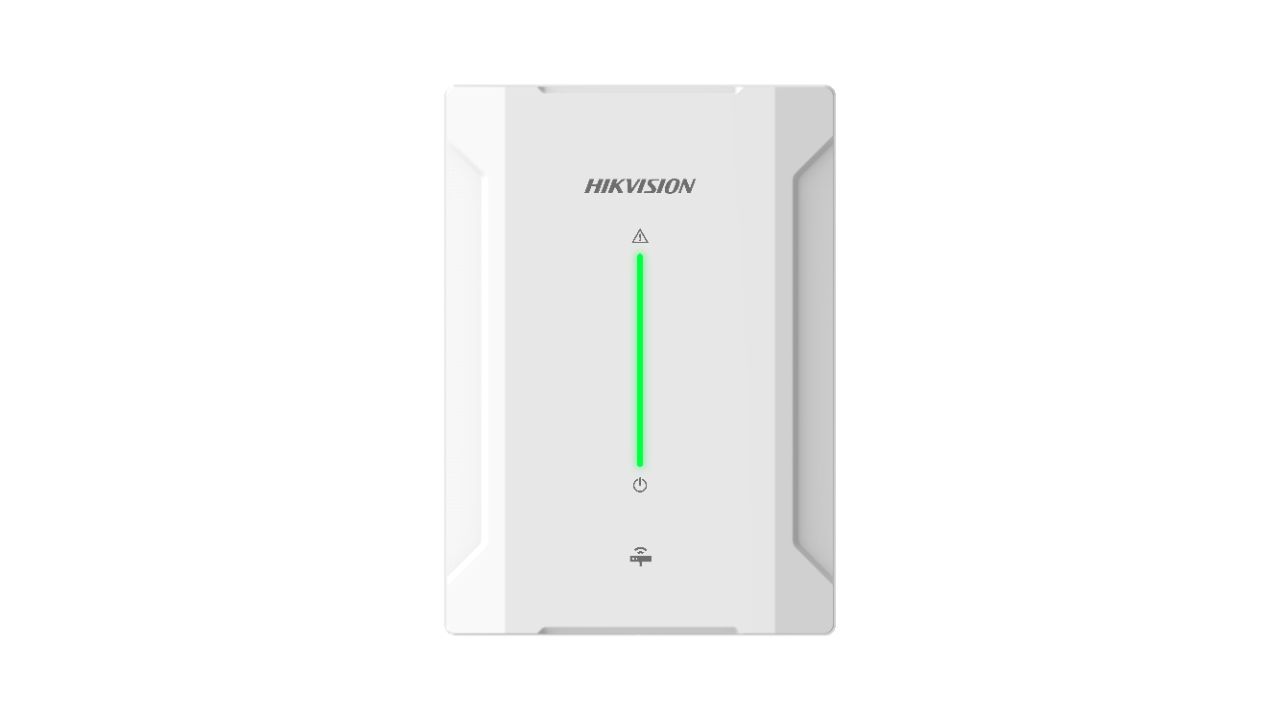

Hikvision DS-PM1-RT-HWB AX Hybrid Tri-X Wireless Receiver‍‌‌‌‌‌​​​‌​‌‌​‌​​‍

$75.00$83.33
SAVE $8.33WARRANTY GUARANTEED
✔ Dedicated 5★ Customer Care Team   ✔ Fast & Responsive Tech Support

Hikvision AX Hybrid Tri-X Wireless Receiver | AX Hybrid PRO Support | Wireless Device Integration | Hardwired Alarm Controller Expansion | Intrusion Alarm Accessory

‍‌‌‌‌‌​​​‌​‌‌​‌​​‍

The Hikvision DS-PM1-RT-HWB delivers an AX Hybrid Tri-X wireless receiver designed for compatible AX Hybrid PRO alarm systems requiring wireless device integration alongside hardwired alarm control. Featuring Tri-X wireless receiver support and AX Hybrid PRO compatibility, it helps connect suitable Hikvision wireless detectors, keyfobs, and alarm accessories into a wired or hybrid security setup.

It also provides a practical expansion path for sites needing both hardwired reliability and wireless installation flexibility, with this receiver available at Security Wholesalers for professional intrusion alarm projects. This makes it suitable for homes, offices, retail sites, warehouses, commercial buildings, and retrofit alarm installations where extra wireless coverage is required. Built for compatible Hikvision AX Hybrid deployments, it helps extend system flexibility while keeping device management centralised.

Key Features

  • Tri-X Wireless Receiver: Enables compatible Hikvision wireless alarm devices to connect with supported AX Hybrid systems.
  • AX Hybrid PRO Support: Designed for professional Hikvision wired and hybrid intrusion alarm deployments.
  • Wireless Device Integration: Supports expansion using suitable wireless detectors, keyfobs, and alarm accessories.
  • Hybrid Alarm Flexibility: Helps combine hardwired alarm control with wireless device placement options.
  • Retrofit Installation Support: Useful for upgrading existing alarm systems where new cabling is difficult.
  • Professional Security Fit: Suited to homes, offices, retail sites, warehouses, and commercial buildings.



Additional Information

DS-PM1-RT-HWB_Datasheet_20220616

$75.00 $83.33 inc GST +3 Year Warranty & Support

Product SKU: Hikvision DS-PM1-RT-HWB

‍‌‌‌‌‌​​​‌​‌‌​‌​​‍

Product Overview

The Hikvision DS-PM1-RT-HWB AX Hybrid Tri-X Wireless Receiver is an expansion receiver designed for compatible Hikvision AX Hybrid PRO alarm control panels. It adds 433MHz Tri-X wireless capability to the hardwired AX Hybrid PRO platform, allowing compatible Hikvision Tri-X wireless detectors and wireless sounders to be integrated into the system. With Speed-X Bus connection, up to 1300m wireless transmission distance in open space and support for up to 32 wireless detectors, 4 wireless indoor sounders and 8 wireless outdoor sounders, it is ideal for hybrid alarm installations where wired reliability and wireless flexibility are both required.

Key Capabilities

Tri-X Wireless Expansion

The DS-PM1-RT-HWB adds Tri-X wireless receiver capability to compatible AX Hybrid PRO control panels, allowing supported wireless devices to join the hardwired alarm system.

433MHz Wireless Receiver

The receiver operates on 433MHz, making it suitable for compatible Hikvision wireless detectors and sounders in the matching regional frequency range.

Up to 1300m Wireless Range

Wireless transmission distance of up to 1300m in open space gives installers flexibility when adding compatible wireless alarm devices across larger properties.

Wireless Detector and Sounder Support

The receiver supports up to 32 wireless detectors, 4 wireless indoor sounders and 8 wireless outdoor sounders in compatible AX Hybrid PRO system layouts.

Speed-X Bus Connection

The module connects to the AX Hybrid PRO controller through Speed-X Bus, supporting structured wired integration with the main alarm panel.

Best For

  • AX Hybrid PRO Systems: Designed for compatible Hikvision AX Hybrid PRO control panels requiring wireless device expansion.
  • Hybrid Alarm Installations: Ideal where wired alarm zones are used alongside selected wireless detectors or sounders.
  • Retrofit Alarm Projects: Useful where adding new wired cabling is difficult, but wireless detectors can extend coverage.
  • Large Homes and Commercial Sites: Practical for properties needing extra wireless detection in garages, sheds, offices, storage areas or detached spaces.
  • Wireless Sounder Integration: Suitable where compatible indoor or outdoor wireless sounders need to be added to the hybrid alarm design.

Why Choose the DS-PM1-RT-HWB

The DS-PM1-RT-HWB is a strong choice when a Hikvision AX Hybrid PRO system needs the flexibility to include wireless Tri-X devices without abandoning the benefits of a hardwired alarm controller. It helps bridge wired and wireless security design by allowing compatible wireless detectors and sounders to be added where cabling may be difficult, expensive or impractical. The 433MHz receiver, Speed-X Bus interface and support for multiple wireless devices make it useful for homes, offices, warehouses and commercial premises with mixed installation requirements. For alarm systems supplied through Security Wholesalers, this receiver should be selected after confirming the controller model, frequency version, wireless device count, signal coverage and final system topology.

Buyer Decision Tips

Buyer Tip: Choose the DS-PM1-RT-HWB when you need to add 433MHz Tri-X wireless detector and wireless sounder support to a compatible Hikvision AX Hybrid PRO hardwired alarm controller.

Installation Tip: Confirm the AX Hybrid PRO panel compatibility, Speed-X Bus wiring, 433MHz wireless device compatibility, receiver placement, signal range, device quantity and any indoor or outdoor sounder requirements before installation.

Key Features & Technical Specifications

Model DS-PM1-RT-HWB
Product Type AX Hybrid PRO Tri-X wireless receiver
System Compatibility Compatible Hikvision AX Hybrid PRO control panels
Primary Use Expands wireless capability for compatible AX Hybrid PRO hardwired alarm systems
Wireless Technology Tri-X wireless receiver
RF Frequency 433MHz
Wireless Transmission Distance Up to 1300m in open space
Wireless Security Frequency hopping and AES-128 encryption
Bus Interface 1 x Speed-X Bus
Wireless Detector Capacity Up to 32 wireless detectors, excluding portable emergency buttons
Wireless Indoor Sounder Capacity Up to 4 wireless indoor sounders
Wireless Outdoor Sounder Capacity Up to 8 wireless outdoor sounders
Power Supply 9 to 28VDC, 1A
Power Consumption Maximum current 100mA @ 12VDC; quiescent current 40mA @ 12VDC
LED Indicators Green for power / find me; orange for alarm / fault
Dimensions 110 × 155 × 32mm
Shell Material Plastic
Weight Approx. 233g
Operating Temperature -10°C to 40°C
Operating Humidity 10% to 90%
Best Use Hybrid alarm systems, wired alarm upgrades, wireless detector expansion, wireless sounder integration and AX Hybrid PRO installations

Ideal Use Cases

Hybrid Wired/Wireless Alarm Builds

Use the receiver where a hardwired AX Hybrid PRO system needs selected Tri-X wireless detectors or sounders added.

Detached Garages and Sheds

Suitable where wireless detectors are easier to install than running new alarm cabling to detached or difficult-to-cable areas.

Commercial Alarm Expansion

Practical for offices, shops, warehouses and workshops that need wireless coverage added to a wired alarm foundation.

Wireless Sounder Additions

Useful where compatible indoor or outdoor wireless sounders need to be added to the AX Hybrid PRO alarm system.

Retrofit Alarm Upgrades

A good option where the existing site design benefits from wired control but also needs flexible wireless expansion.

Choosing the Right Model

  • Choose this model if: You need a 433MHz Tri-X wireless receiver to add compatible wireless detectors and wireless sounders to a Hikvision AX Hybrid PRO control panel.
  • Choose a different receiver if: The site requires a different wireless frequency, uses a fully wireless AX PRO hub, or needs a different regional receiver variant for compatible wireless devices.
  • Check before ordering: Confirm AX Hybrid PRO controller compatibility, 433MHz device compatibility, Speed-X Bus wiring, receiver placement, wireless range, wireless device count and sounder requirements.

FAQs

  1. What is the Hikvision DS-PM1-RT-HWB used for?
    The DS-PM1-RT-HWB is used as a Tri-X wireless receiver for compatible Hikvision AX Hybrid PRO alarm control panels. It expands the panel’s wireless capability so compatible wireless detectors and sounders can be added to the hybrid system.
  2. What wireless frequency does this receiver use?
    The DS-PM1-RT-HWB uses 433MHz wireless communication. The receiver frequency must match the compatible Hikvision wireless devices and the regional alarm system requirements.
  3. How many wireless detectors can it support?
    The receiver supports up to 32 wireless detectors, excluding portable emergency buttons. This makes it useful for hybrid alarm installations where several wireless devices need to be added to a wired control panel.
  4. Can it support wireless sounders?
    Yes. The DS-PM1-RT-HWB supports up to 4 wireless indoor sounders and up to 8 wireless outdoor sounders in compatible AX Hybrid PRO system layouts.
  5. What is the wireless transmission range?
    The wireless transmission distance is up to 1300m in open space. Actual range depends on building construction, interference, receiver position, device placement and site conditions.
  6. Does this receiver use encrypted communication?
    Yes. The receiver supports frequency hopping and AES-128 encryption for wireless security with compatible Hikvision Tri-X devices.
  7. Is this receiver for AX PRO wireless hubs?
    No. The DS-PM1-RT-HWB is designed for compatible AX Hybrid PRO hardwired control panels. For fully wireless AX PRO systems supplied through Security Wholesalers, use compatible AX PRO wireless devices directly with the AX PRO hub.
  8. What should be checked before installation?
    Before installation, confirm the AX Hybrid PRO controller model, Speed-X Bus wiring, power supply, 433MHz wireless device compatibility, receiver location, wireless range, detector count, indoor and outdoor sounder count and whether site conditions may reduce wireless performance.

Additional Information

DS-PM1-RT-HWB_Datasheet_20220616
