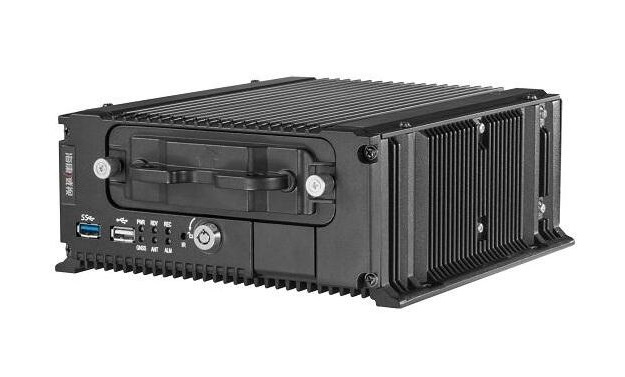

• Hikvision 8ch Mobile TVI DVR, HD1080P, 3G, WiFi, GPS, VGA/CVBS, No HDD

Video/Audio Input

  • Analog Camera8 TVI cameras, up to 1080p resolution
  • IP CameraUp to 8 IP cameras (4 cameras connection via 6-pin aviation connectors on rear panel, 4 cameras connection via PoE switch)
  • Two-Way Audio1, integrated in EXT.DEV interface

Storage

  • HDD/SSD2 × 2.5 inch HDD/SSD, up to 2 TB for each HDD/SSD
  • SD Card1 × SD card slot, up to 256 GB

General

  • Working TemperatureDevice that provides dummy HDD with heating function: ,-30 °C to +60 °C (-22 °F to +140°F),Other devices: ,-10 °C to +60 °C (+14 °F to +140°F),
  • Working Humidity10% to 95%
  • Power Supply9 to 32 VDC
  • ConsumptionStandby: ≤ 0.5 W, Full load: ≤ 99 W,Note: Without peripheral and storage media: ≤ 20 W
  • Operating MethodMouse, IR remote control, and Web control
  • Dimensions (W × D × H)202 × 267.6 × 93.9 mm ( 7.95 × 10.53 × 3.7 inch)
  • Weight (Without Storage Media)3 .66 kg (8.07 lb)

Positioning

  • GNSS (Global Navigation Satellite System)GPS (Global Positioning System) & GLONASS (Global Navigation Satellite System), 1 × Rosenberger antenna

G-Sensor

  • G-SensorBuilt-in

Video/Audio Output

  • Video OutputCVBS: 2 ,VGA: 1,
  • Audio OutputH.264/H.265

Encoding/Decoding Parameters

  • Encoding ResolutionMain stream: 1080/720/WD1/4CIF
  • Frame RatePAL: 1 to 25 fps, NTSC: 1 to 30 fps
  • Audio CompressionG.711/G.722.1
  • Stream TypeVideo, video & audio
  • Audio Bitrate16 Kbps
  • Dual StreamSupported

Wireless Network

  • 3G/4G Dialing1 × 3G/4G card slot, 1 × Rosenberger antenna
  • Wi-FiWI58 model: 2 × 5.8 G Wi-Fi SMA antenna, WI model: 1 × 2.4 G Wi-Fi SMA antenna,

External Interface

  • Network Interface 1 × RJ45 10M/100M self-adaptive Ethernet interface
  • Serial Port 3 × RS-232, 2 × RS-485, 1 × RS-422
  • USB Interface Front panel: 2 × standard USB 2.0 and 1 × A-type USB 3.0, Rear panel: 1 × USB 2.0 (5-pin aviation connector)
  • CAN Interface 2
  • Sensor-In 4 high/low level signal inputs, 1 pulse signal input
  • Alarm Input 4 high/low level signal inputs
  • Alarm Output 2 relay signal outputs
