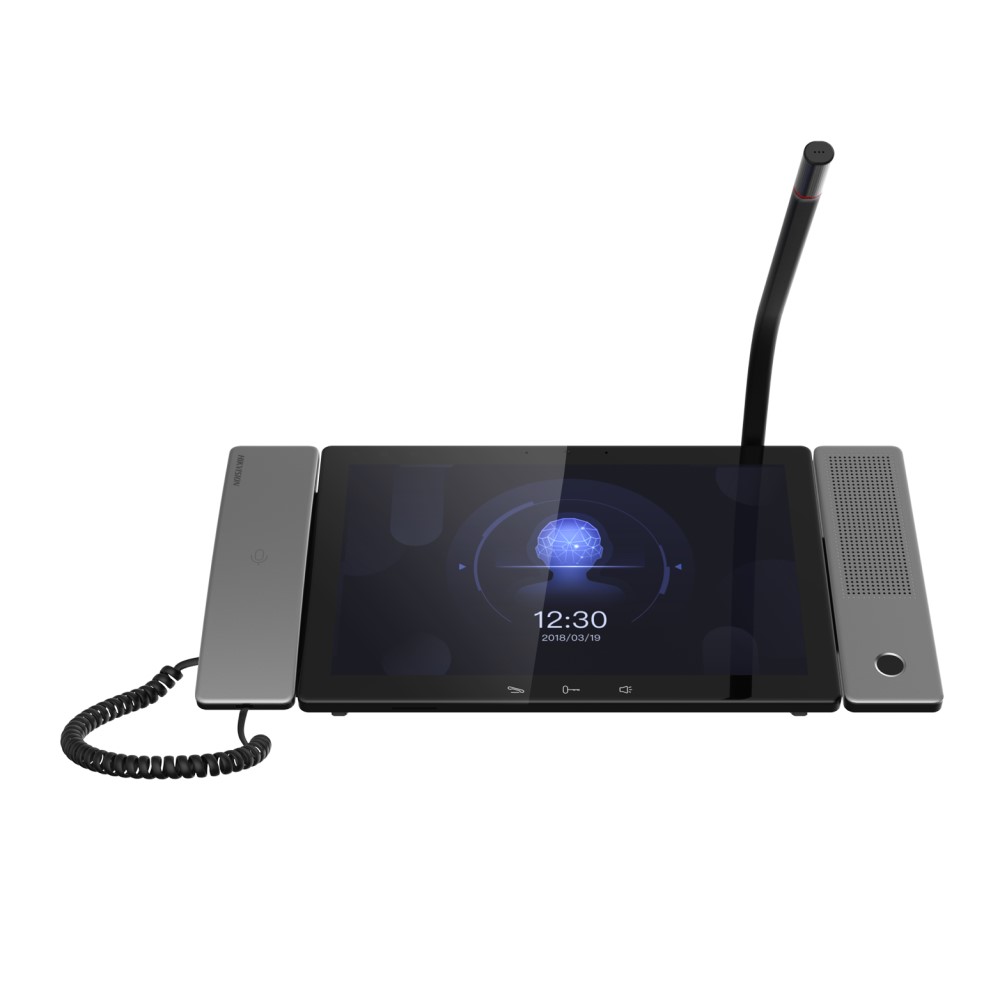

The Hikvision KM8301 master station is an intelligent video management terminal. Usually located in the building manager’s office or concierge station. It controls door locks and communication between door stations and room stations. Equipped with a 7″ TFT capacitive touch screen and a built-in camera for easy operation.
- Glass panel and aluminium alloy bracket
- Supports video intercom
- Supports live view of door stations and IP cameras
- Noise suppression and echo cancellation
- Alarm processing function
- Supports remote unlocking door function
- Supports handsfree mode
System Parameters | ||
---|---|---|
Processor: | High-Performance Embedded SOC Processor | |
Operation System: | Embedded Linux Operation System |
Display Parameters | ||
---|---|---|
Display Screen: | 7-Inch Colorful TFT LCD | |
Display Resolution: | 1024 × 600 | |
Operation Method: | Capacitive Touch Screen, Touch Key, Physical Button | |
Operation interface: | Flattened UI Operation Interface |
Video Parameters | ||
---|---|---|
Camera: | CMOS 0.3 MP | |
Video Compression Standard: | H.264 | |
Resolution: | 1280 x 720, 704 x 576 | |
Video frame rate: | 25 fps, 12.5 fps |
Audio Parameters | ||
---|---|---|
Audio Input: | Built-in Omnidirectional Microphone + External Handset | |
Audio Output: | Built-in Loudspeaker + External Handset | |
Audio Compression Standard: | G.711 U | |
Audio Compression Rate: | 64 Kbps | |
Audio Quality: | Noise Suppression and Echo Cancellation |
Network Parameters | ||
---|---|---|
Ethernet: | 10/100/1000 Mbps Self-Adaptive Ethernet | |
Network Protocol: | TCP/IP, RTSP |
Device Interfaces | ||
---|---|---|
Network Interface: | 1 RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface | |
RS-485: | 2 RS-485 Half-Duplex Port | |
I/O Input: | 4 On-Off Input | |
I/O Output: | 2 On-Off Output, 2 Relay Output |
General | ||
---|---|---|
Material: | Plastic | |
Power Supply: | 12 VDC | |
Power Consumption: | ≤10 W | |
Certification: | FCC, IC, CE, C-TICK, ROHS, REACH, WEEE | |
Working Temperature: | -10° C to + 55° C (14° F to 131° F) | |
Working Humidity: | 10% to 90% | |
Dimensions(L × W × H): | 436 mm × 215 mm × 67 mm (17.2″ ×8.5″ × 2.6″) |
SKU: DS-KM8301
Categories: Hikvision Apartment Intercoms, Hikvision Video Intercoms
