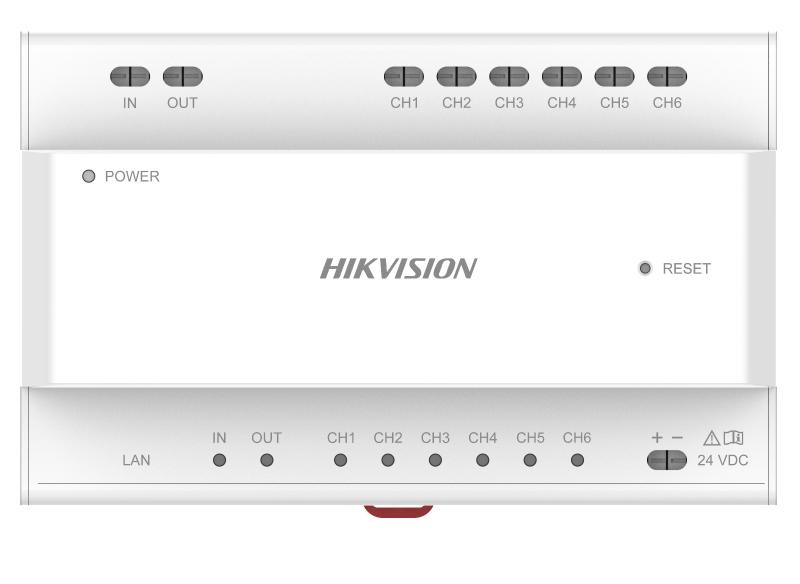

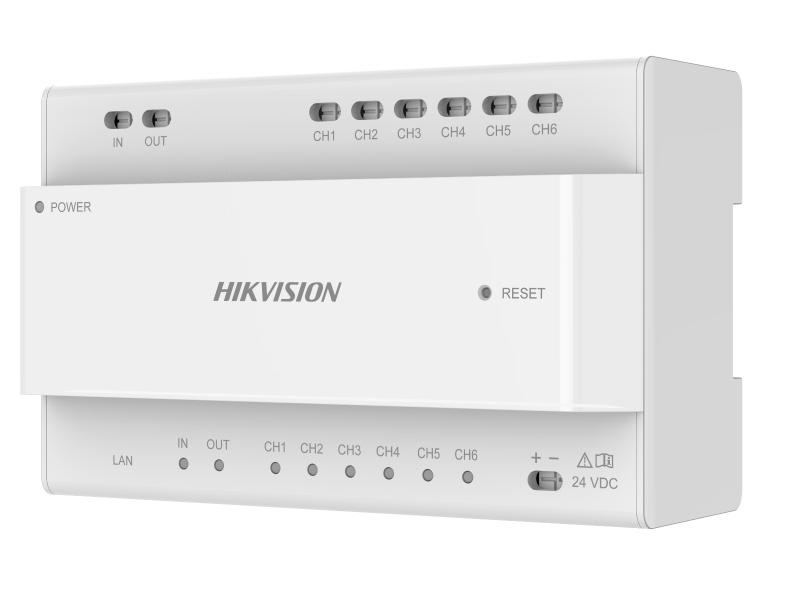

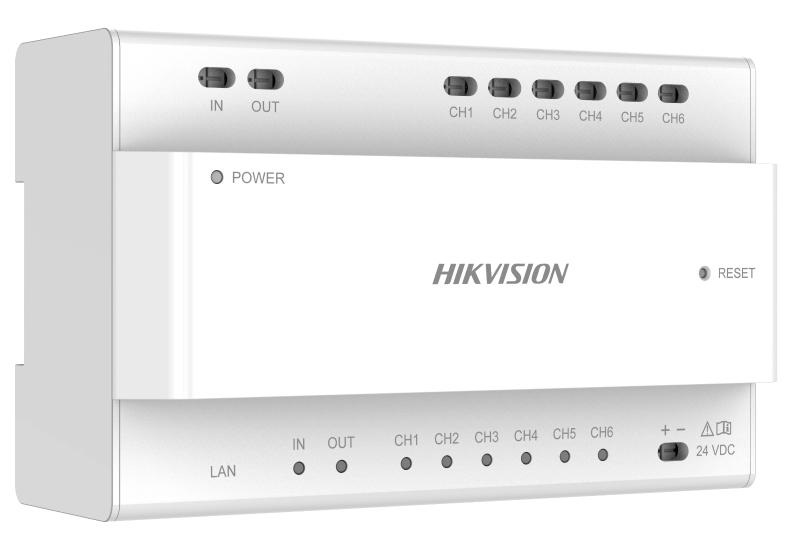

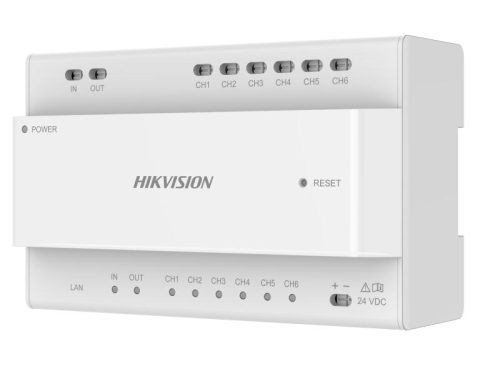

Hikvision DS-KAD706Y-SP 2-Wire IP Distributor with 6-Port Cascade Interfaces, 1 RJ45 Port, 8 Interface Indicators & DIN Rail Mounting

$135.00
FREE DELIVERYWARRANTY GUARANTEED
✔ Dedicated 5★ Customer Care Team   ✔ Fast & Responsive Tech Support

Hikvision 2-Wire IP Distributor | 6-Port Cascade Interfaces | 1 RJ45 Port | 8 Interface Indicators | DIN Rail Mounting | Video Intercom Distribution Module

The Hikvision DS-KAD706Y-SP delivers a 2-wire IP distributor designed for video intercom systems requiring organised device connection, cascade expansion, and network integration support. Featuring 6-port cascade interfaces, 1 RJ45 port, 8 interface indicators, and DIN rail mounting, it helps simplify compatible Hikvision 2-wire IP intercom installations.

It also provides a practical distribution point for managing connected intercom devices and system wiring, with this distributor available at Security Wholesalers for professional video intercom projects. This makes it suitable for apartments, townhouses, commercial buildings, reception entries, and structured multi-room intercom layouts requiring clean connectivity and scalable expansion. Built for compatible Hikvision 2-wire IP systems, it supports easier installation checks, organised cabling, and professional equipment mounting.

Key Features

  • 2-Wire IP Distribution: Supports compatible Hikvision 2-wire IP video intercom system connections.
  • 6-Port Cascade Interfaces: Enables system expansion across larger or more complex intercom layouts.
  • 1 RJ45 Port: Provides network connection support for compatible intercom system integration.
  • 8 Interface Indicators: Offers visual status indication to assist installation checks and maintenance.
  • DIN Rail Mounting: Allows neat installation inside suitable electrical or equipment enclosures.
  • Professional Intercom Fit: Suited to apartments, commercial buildings, townhouses, and structured entry communication systems.



Additional Information

DS-KAD706Y-SP_Two-Wire-Distributor_Datasheet_20240305

$135.00 inc GST +3 Year Warranty & Support

Product SKU: Hikvision DS-KAD706Y-SP

Product Overview

The Hikvision DS-KAD706Y-SP 2-Wire IP Distributor is a DIN rail-mounted distributor designed for compatible Hikvision 2-wire IP video intercom systems. It provides 6 two-wire cascade interfaces without device power supply, 2 cascade interfaces for compatible DS-KAD704Y, DS-KAD706Y and DS-KAD706Y-S series layouts, 8 interface indicators, 1 RJ45 network interface and 1 reset button. With 24VDC input power and a compact rail-mounted design, it is best suited to intercom projects where the distributor is required for cascade and network communication rather than directly powering connected 2-wire devices. This model suits apartment buildings, villa systems, commercial intercom projects, equipment cabinets and structured low-voltage installations using supported Hikvision 2-wire IP architecture.

Key Capabilities

2-Wire IP Distribution

The DS-KAD706Y-SP is designed for Hikvision 2-wire IP intercom layouts, supporting distributor-level communication and cascade architecture in compatible systems.

6 Cascade Interfaces Without Device Power

The six 2-wire cascade interfaces are designed without device power supply, making this model suitable for cascade networking rather than powering endpoint devices directly.

2 Additional Cascade Interfaces

Two cascade interfaces support compatible DS-KAD704Y, DS-KAD706Y and DS-KAD706Y-S series distributor layouts, helping installers plan scalable 2-wire IP intercom systems.

8 Interface Indicators

Eight interface indicators provide quick visual status feedback, helping technicians check distributor operation during installation, commissioning and service work.

DIN Rail Cabinet Mounting

DIN rail mounting and 24VDC input power make the distributor suitable for structured intercom cabinets, communications cupboards and professional low-voltage enclosures.

Best For

  • 2-Wire IP Intercom Systems: Designed for compatible Hikvision 2-wire IP video intercom distributor layouts.
  • Cascade Network Layouts: Suitable where distributor-to-distributor cascade communication is required without endpoint device power supply.
  • Apartment and Multi-Tenant Buildings: Useful for structured intercom systems where multiple distributor sections need organised communication.
  • Commercial Intercom Cabinets: DIN rail mounting makes it practical for comms rooms, service cupboards and low-voltage equipment enclosures.
  • System Expansion Projects: A good option where compatible DS-KAD704Y, DS-KAD706Y or DS-KAD706Y-S series distributors are used in the wider design.

Why Choose the DS-KAD706Y-SP

The DS-KAD706Y-SP is a practical choice when a Hikvision 2-wire IP intercom design requires cascade communication but does not require the distributor to power endpoint devices directly. This distinction matters because the “SP” model provides 6 cascade interfaces without device power supply, so it should be selected according to the system topology rather than used as a general-purpose device distributor. The RJ45 interface, reset button, 8 interface indicators and DIN rail mounting make it suitable for structured cabinet installations where status visibility and service access are important. For intercom projects supplied through Security Wholesalers, this model should be confirmed against the Hikvision system diagram before ordering.

Buyer Decision Tips

Buyer Tip: Choose the DS-KAD706Y-SP when your compatible Hikvision 2-wire IP system specifically needs cascade interfaces without device power supply. If endpoint devices need power from the distributor, confirm whether DS-KAD706Y-P or another powered distributor is required instead.

Installation Tip: Confirm the 2-wire IP topology, upstream and downstream distributor roles, 24VDC power supply, RJ45 network connection, cascade path and whether the connected devices require separate power before installation.

Key Features & Technical Specifications

Model DS-KAD706Y-SP
Product Type 2-Wire IP Distributor for Hikvision video intercom systems
Primary Use Cascade distribution and network communication in compatible 2-wire IP layouts
2-Wire Cascade Interfaces 6-port 2-wire cascade interfaces without device power supply
Additional Cascade Support 2 cascade interfaces for DS-KAD704Y, DS-KAD706Y and DS-KAD706Y-S series
RJ45 Interface 1 RJ45 interface
Interface Indicators 8 interface indicators
Reset Button 1 reset button
Power Supply Input 24VDC
Device Power Supply No device power supply from the 6 cascade interfaces
Installation DIN rail mounting
Working Temperature -10°C to 55°C
System Architecture Hikvision 2-wire IP video intercom systems
Best Use 2-wire IP cascade systems, apartment intercoms, villa systems, commercial intercom layouts and DIN rail cabinet installations
Installation Consideration Confirm system topology, cascade roles, 24VDC power input, RJ45 network path and endpoint power requirements before installation

Ideal Use Cases

2-Wire IP Cascade Layouts

Use the DS-KAD706Y-SP where the intercom system needs cascade communication without supplying device power through the six 2-wire cascade interfaces.

Apartment Intercom Systems

Suitable for larger building layouts where distributor sections need to be linked as part of a planned 2-wire IP topology.

Commercial Entry Systems

Useful for offices and shared building entries where Hikvision 2-wire IP intercom distributors are installed in a central equipment area.

DIN Rail Cabinets

A good fit for structured communications cupboards, low-voltage enclosures and service areas requiring clean rail-mounted equipment.

Distributor Network Expansion

Practical where compatible DS-KAD704Y, DS-KAD706Y or DS-KAD706Y-S series distributor sections need to be connected in a scalable layout.

Choosing the Right Model

  • Choose this model if: Your Hikvision 2-wire IP system needs a DIN rail distributor with 6 cascade interfaces without device power supply, 2 compatible cascade interfaces, 1 RJ45 interface and 24VDC input.
  • Choose a different distributor if: Endpoint devices need power from the distributor, the system requires powered device interfaces, or the topology uses a different Hikvision 2-wire HD or 2-wire IP architecture.
  • Check before ordering: Confirm the system diagram, distributor role, cascade path, device power plan, RJ45 network path, 24VDC supply and whether DS-KAD706Y-SP is specifically required.

FAQs

  1. What is the Hikvision DS-KAD706Y-SP used for?
    The DS-KAD706Y-SP is used as a 2-wire IP distributor in compatible Hikvision video intercom systems. It is designed for cascade and distributor-level communication, especially where the six 2-wire cascade interfaces are required without device power supply.
  2. Does the DS-KAD706Y-SP power connected devices?
    No. The DS-KAD706Y-SP is listed with 6-port 2-wire cascade interfaces without device power supply. If your system requires the distributor to power connected endpoints, confirm whether a powered model such as DS-KAD706Y-P or another suitable distributor is required.
  3. How many interfaces does the DS-KAD706Y-SP have?
    The DS-KAD706Y-SP includes 6 two-wire cascade interfaces without device power supply, 2 cascade interfaces for compatible DS-KAD704Y, DS-KAD706Y and DS-KAD706Y-S series layouts, 1 RJ45 interface, 8 interface indicators and 1 reset button.
  4. Does the DS-KAD706Y-SP support DIN rail mounting?
    Yes. The DS-KAD706Y-SP supports DIN rail mounting, making it suitable for structured intercom cabinets, low-voltage enclosures and equipment cupboards. For installations supplied through Security Wholesalers, this helps keep the system tidy and serviceable.
  5. What power input does the DS-KAD706Y-SP require?
    The DS-KAD706Y-SP uses 24VDC input power. The installer should confirm power supply capacity, distributor location, cabling, network path and whether downstream devices require separate power before installation.
  6. Is the DS-KAD706Y-SP suitable for all Hikvision intercom systems?
    No. The DS-KAD706Y-SP is intended for compatible Hikvision 2-wire IP video intercom systems. It should not be selected for IP-only, 2-wire HD or other intercom architectures unless the Hikvision system design specifically requires this model.
  7. When should I choose DS-KAD706Y-SP instead of DS-KAD706Y-P?
    Choose DS-KAD706Y-SP when the six cascade interfaces are needed without device power supply. Choose a powered distributor model only when the system design requires endpoint device power through the distributor. Always confirm the Hikvision system diagram before ordering.
  8. What should be checked before installation?
    Before installation, confirm the 2-wire IP system topology, cascade requirements, endpoint power plan, RJ45 network path, 24VDC power supply, DIN rail cabinet space, cable distance and compatibility with DS-KAD704Y, DS-KAD706Y or DS-KAD706Y-S series devices.

Additional Information

DS-KAD706Y-SP_Two-Wire-Distributor_Datasheet_20240305
