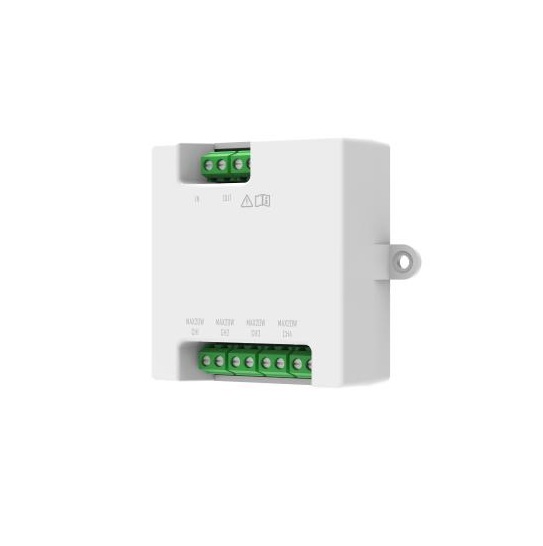

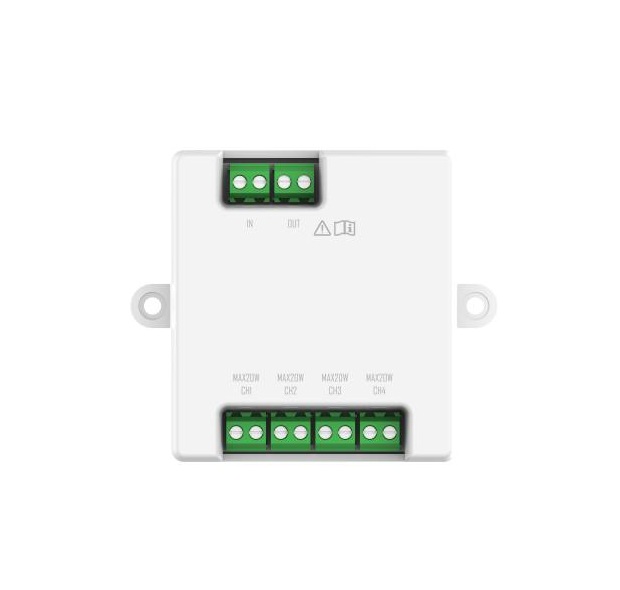

Hikvision DS-KAD7061EY 2-Wire HD Distributor with 4 Indoor Station Channels, 2 Cascade Interfaces, 6 Status Indicators & No Power Supply Required

$90.00
WARRANTY GUARANTEED
✔ Dedicated 5★ Customer Care Team   ✔ Fast & Responsive Tech Support

Hikvision 2-Wire HD Distributor | 4 Indoor Station Channels | 2 Cascade Interfaces | 6 Status Indicators | No Power Supply Required | Video Intercom Distribution Module

The Hikvision DS-KAD7061EY delivers a 2-wire HD distributor designed for video intercom systems requiring organised indoor station connection and simple expansion support. Featuring 4 indoor station channels, 2 cascade interfaces, 6 status indicators, and no separate power supply requirement, it helps streamline compatible Hikvision 2-wire HD intercom installations.

It also provides a practical distribution point for expanding connected intercom devices and monitoring system status, with this distributor available at Security Wholesalers for professional video intercom projects. This makes it suitable for apartments, townhouses, commercial buildings, reception entries, and multi-room intercom layouts requiring structured 2-wire connectivity. Built for compatible Hikvision 2-wire HD systems, it supports cleaner cabling, easier installation checks, and scalable intercom deployment.

Key Features

  • 4 Indoor Station Channels: Supports connection for up to 4 compatible indoor station channels in 2-wire HD intercom systems.
  • 2 Cascade Interfaces: Enables system expansion across larger or more complex intercom layouts.
  • 6 Status Indicators: Provides visual indication to assist installation checks and system troubleshooting.
  • No Power Supply Required: Helps simplify installation by operating without a separate power supply requirement.
  • 2-Wire HD Distribution: Supports compatible Hikvision 2-wire HD video intercom system connections.
  • Professional Intercom Fit: Suited to apartments, commercial buildings, townhouses, and structured entry communication systems.



Additional Information

DS-KAD7061EY-2-wire-HD-Distributor_Datasheet_20240425

PLEASE NOTE: 70 DAY LEAD TIME

$90.00 inc GST +3 Year Warranty & Support

Product SKU: Hikvision DS-KAD7061EY

Product Overview

The Hikvision DS-KAD7061EY 2-Wire HD Distributor is a compact floor-shunt distributor designed for compatible Hikvision 2-wire HD video intercom systems. It provides 4 two-wire interfaces for indoor station connections, 2 cascade interfaces for expansion, 6 status indicators and a small surface-mount body that saves installation space in apartments, villas, equipment cupboards and low-voltage intercom locations. The distributor does not require a separate local power supply, as it is powered through the 2-wire bus in compatible system layouts. This model is best selected where a Hikvision 2-wire HD intercom system needs a compact floor or section distributor for indoor station runs and cascade expansion.

Key Capabilities

4 Indoor Station Channels

The DS-KAD7061EY includes 4 two-wire interfaces for indoor station connections, making it useful as a compact floor or section distributor in compatible Hikvision 2-wire HD systems.

2 Cascade Interfaces

Two cascade interfaces allow the distributor to be linked with other compatible distributor devices, helping expand suitable intercom layouts across floors, sections or building areas.

6 Status Indicators

Six indicators show whether the device and connected interfaces are working properly, helping installers and technicians check system status during installation and servicing.

No Local Power Supply Required

The distributor is powered through the compatible 2-wire bus, reducing local power supply requirements and helping simplify suitable 2-wire HD intercom layouts.

Compact Surface Mount Design

The 70.6 × 60 × 25mm body is small enough for tight intercom cupboards, risers and floor distribution points where space is limited.

Best For

  • 2-Wire HD Intercom Systems: Designed for compatible Hikvision EY series 2-wire HD video intercom installations.
  • Indoor Station Distribution: Suitable for connecting up to 4 compatible indoor station runs from one compact distributor.
  • Apartment Floor Distribution: Useful as a floor-shunt distributor where indoor monitors are grouped by floor or section.
  • Cascade Expansion: Practical where multiple distributors need to be linked through 2 cascade interfaces.
  • Compact Retrofit Layouts: A good option where installation space is limited and a small surface-mounted distributor is preferred.

Why Choose the DS-KAD7061EY

The DS-KAD7061EY is a practical choice when a Hikvision 2-wire HD intercom system needs a compact distributor for indoor station branches rather than a larger central distributor. Its 4 indoor station interfaces make it useful for floor-by-floor or section-based wiring, while the 2 cascade interfaces support expansion where the system design requires additional distributors. The small surface-mount design helps save space in risers and service cupboards, and the 6 indicators make installation checks easier. For intercom projects supplied through Security Wholesalers, this model should be selected after confirming the system topology, indoor station models, cascade path and compatibility with the master distributor or 2-wire bus.

Buyer Decision Tips

Buyer Tip: Choose the DS-KAD7061EY when your Hikvision 2-wire HD system needs a compact floor distributor for up to 4 indoor station channels. If you need a larger DIN rail distributor with 48VDC input, check whether DS-KAD7060EY is the correct model instead.

Installation Tip: Confirm the 2-wire HD topology before ordering. The power path, cascade design, indoor station channel count, cable distance and compatibility with the selected EY series intercom devices should be checked before installation.

Key Features & Technical Specifications

Model DS-KAD7061EY
Product Type 2-Wire HD Distributor / floor-shunt distributor
Primary Use Indoor station distribution and cascade support in compatible Hikvision 2-wire HD systems
Two-Wire Interfaces 4 two-wire interfaces for indoor station connection
Cascade Interfaces 2 cascade interfaces
Status Indicators 6 indicators showing whether the device is working properly
Power Supply Requirement No separate local power supply required
Power Source Powered through compatible 2-wire bus / master distributor layout
Power Consumption ≤2W
Installation Surface mounting
Working Temperature -10°C to 55°C
Working Humidity 10% to 90%, non-condensing
Dimensions 70.6 × 60 × 25mm
Best Use Apartment floor distribution, villa systems, indoor station branches, retrofit 2-wire HD layouts and compact intercom service locations
Installation Consideration Confirm EY series compatibility, indoor station count, cascade layout, cable distance and power path before installation

Ideal Use Cases

Apartment Floor Distribution

Use the DS-KAD7061EY where a floor or section needs up to 4 compatible indoor station connections from one distributor.

Villa Intercom Systems

Suitable for compatible 2-wire HD residential intercom layouts where indoor station branches need a compact distributor.

Cascade Expansion Points

Useful where distributors need to be linked in a planned cascade topology as part of a larger 2-wire HD system.

Compact Service Cupboards

A good fit for risers, wall boxes and low-voltage cupboards where a small surface-mounted distributor is easier to accommodate.

Retrofit 2-Wire Projects

Practical where 2-wire HD architecture is selected to simplify intercom cabling compared with separate power and network runs.

Choosing the Right Model

  • Choose this model if: You need a compact surface-mounted 2-wire HD floor distributor with 4 indoor station channels and 2 cascade interfaces.
  • Choose a different distributor if: Your system requires 48VDC input, DIN rail installation, CH1–CH6 distribution, door station connection from the distributor, or larger central distribution capacity.
  • Check before ordering: Confirm the Hikvision 2-wire HD system topology, master distributor, indoor station models, cascade path, cable distance and whether the layout specifically calls for DS-KAD7061EY.

FAQs

  1. What is the Hikvision DS-KAD7061EY used for?
    The DS-KAD7061EY is used as a compact 2-wire HD distributor for compatible Hikvision video intercom systems. It provides 4 two-wire interfaces for indoor station connections and 2 cascade interfaces for linking additional distributor sections.
  2. How many indoor stations can connect to the DS-KAD7061EY?
    The DS-KAD7061EY has 4 two-wire interfaces designed for indoor station connections. The final supported system size depends on the complete Hikvision 2-wire HD topology, master distributor, cable distance and connected indoor station models.
  3. Does the DS-KAD7061EY support cascading?
    Yes. The DS-KAD7061EY includes 2 cascade interfaces, allowing it to be linked with compatible distributor devices in supported system layouts. This is useful for floor-by-floor or section-based expansion in larger intercom installations.
  4. Does the DS-KAD7061EY need a separate power supply?
    No. The DS-KAD7061EY does not require a separate local power supply. It is powered through the compatible 2-wire bus, typically from the master distributor or upstream distributor arrangement in the system design.
  5. Is the DS-KAD7061EY DIN rail mounted?
    No. The DS-KAD7061EY is a surface-mount distributor, not a DIN rail distributor. For installations supplied through Security Wholesalers that require DIN rail mounting and 48VDC input, the DS-KAD7060EY series may be more suitable depending on the system design.
  6. What do the 6 indicators show?
    The DS-KAD7061EY includes 6 indicators to show whether the device and interfaces are working properly. These indicators help installers check connected channel and cascade status during commissioning, troubleshooting and servicing.
  7. What is the difference between DS-KAD7061EY and DS-KAD7060EY?
    The DS-KAD7061EY is a compact surface-mounted floor distributor with 4 indoor station channels and 2 cascade interfaces. The DS-KAD7060EY is a larger DIN rail distributor with 8 interfaces and 48VDC input. The right model depends on the required system topology.
  8. What should be checked before installation?
    Before installation, confirm the indoor station models, 2-wire HD system topology, master distributor, cascade route, cable distance, mounting location and whether the DS-KAD7061EY is correctly placed as a floor or section distributor in the overall design.

Additional Information

DS-KAD7061EY-2-wire-HD-Distributor_Datasheet_20240425
