Hikvision DS-KAD7060EY-S 2-Wire HD Distributor with 8 Interface Indicators, DIN Rail Installation, 48VDC Power Input & Cascade Support

Product SKU: Hikvision DS-KAD7060EY-S

Product Overview

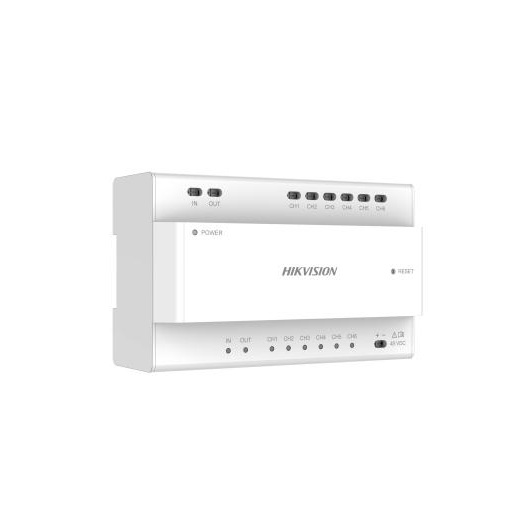

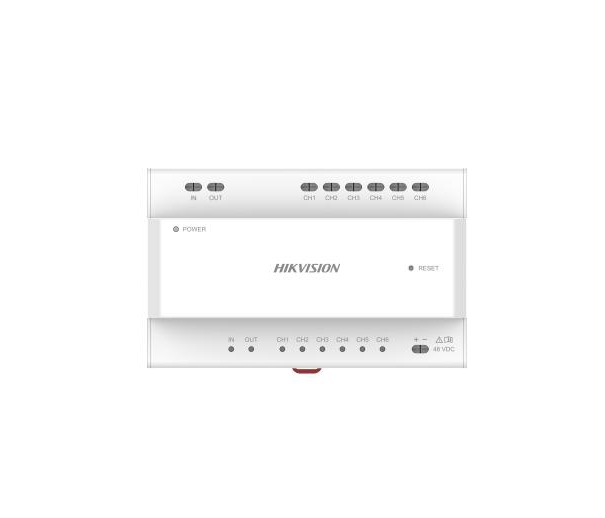

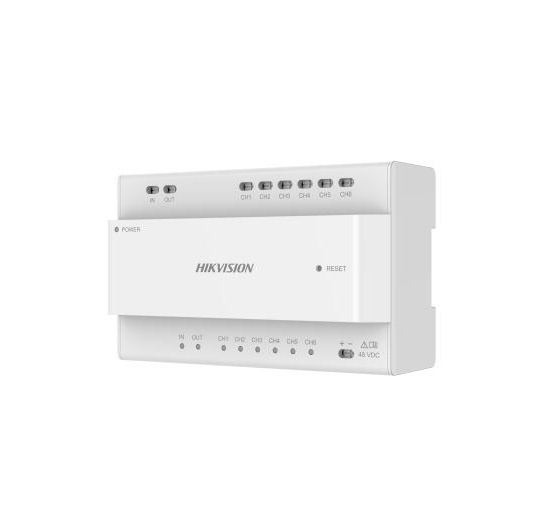

The Hikvision DS-KAD7060EY-S 2-Wire HD Distributor is a DIN rail-mounted distributor designed for compatible Hikvision 2-wire HD video intercom systems where cascade networking between distributors or buildings is required. It supports power and network signal transmission over 2-wire intercom architecture, helping create a structured backbone for larger intercom layouts. With 8 interface indicators, 1 power indicator, 1 reset button, 48VDC power input, low power consumption and DIN rail installation, it is well suited to apartment buildings, villas, multi-building intercom systems, equipment cabinets and structured low-voltage installations. This model is best selected where the system design requires DS-KAD7060EY-S cascade support or network communication between multiple Hikvision 2-wire HD distributor groups.

Key Capabilities

Best For

• 2-Wire HD Intercom Systems: Designed for compatible Hikvision 2-wire HD video intercom distributor networks.
• Cascade Distributor Layouts: Suitable where multiple 2-wire distributor groups need to be linked as part of the system design.
• Multi-Building Communication: Useful where intercom communication is required between multiple buildings or distributed system sections.
• Apartment and Villa Systems: Practical for residential intercom projects with structured 2-wire HD cabling and central distribution points.
• DIN Rail Cabinets: A good fit for low-voltage enclosures, comms cupboards and equipment rooms where neat service access is important.

Why Choose the DS-KAD7060EY-S

The DS-KAD7060EY-S is a practical choice when a Hikvision 2-wire HD intercom installation needs structured cascade support rather than a simple standalone distributor layout. Larger residential, apartment or multi-building projects often need a central way to link distributor sections, and the DS-KAD7060EY-S helps support that type of topology. The 8 interface indicators and power indicator also make commissioning easier by giving technicians status visibility during setup. For intercom projects supplied through Security Wholesalers, this model should be selected only after confirming the full system diagram, distributor requirements, cascade design, 48VDC power supply and compatibility with the selected 2-wire HD devices.

Buyer Decision Tips

Key Features & Technical Specifications

Ideal Use Cases

Choosing the Right Model

• Choose this model if: Your Hikvision 2-wire HD system requires DS-KAD7060EY-S cascade support, distributor networking or multi-building communication between compatible distributor groups.
• Choose a different model if: You need to connect and power door stations or indoor stations directly from CH interfaces, in which case the DS-KAD7060EY may be the more appropriate distributor depending on the system design.
• Check before ordering: Confirm the 2-wire HD topology, distributor roles, cascade path, power supply, compatible device models and whether the system diagram specifically calls for DS-KAD7060EY-S.

FAQs

1. What is the Hikvision DS-KAD7060EY-S used for?
   The DS-KAD7060EY-S is used in compatible Hikvision 2-wire HD video intercom systems where cascade or distributor-level communication is required. It is commonly selected for larger intercom layouts where multiple distributor groups or building sections need to be linked.
2. How is the DS-KAD7060EY-S different from the DS-KAD7060EY?
   The DS-KAD7060EY is typically used to connect compatible door stations and indoor stations through CH interfaces, while the DS-KAD7060EY-S is used for cascade or network communication between distributor sections. The correct choice depends on the Hikvision system diagram and the role required in the 2-wire HD layout.
3. Does the DS-KAD7060EY-S support DIN rail installation?
   Yes. The DS-KAD7060EY-S supports DIN rail installation, making it suitable for intercom cabinets, low-voltage enclosures and communications rooms. For installations supplied through Security Wholesalers, this helps keep the distributor network tidy and serviceable.
4. What power supply does the DS-KAD7060EY-S require?
   The DS-KAD7060EY-S uses 48VDC power input and has listed power consumption under 10W. The power supply should be selected as part of the complete intercom design, taking into account the distributor layout and other connected devices.
5. Does this model have interface indicators?
   Yes. The DS-KAD7060EY-S includes 8 interface indicators, plus a power indicator and reset button. These indicators help technicians check status during installation, commissioning and service work.
6. Is this distributor suitable for all Hikvision intercom systems?
   No. The DS-KAD7060EY-S is intended for compatible Hikvision 2-wire HD video intercom systems. It should not be selected for IP-only systems or other Hikvision intercom architectures unless the system design specifically requires this model.
7. When should I choose the DS-KAD7060EY-S?
   Choose the DS-KAD7060EY-S when the intercom layout requires cascade support, distributor network linking or multi-building communication. For simpler systems with only one distributor group, check whether the standard DS-KAD7060EY is the correct distributor instead.
8. What should be checked before installation?
   Before installation, confirm the system topology, door station and indoor station models, distributor roles, cascade path, 48VDC power supply, cable distance, DIN rail cabinet space and whether the project diagram specifically calls for the DS-KAD7060EY-S model.

Additional Information

DS-KAD7060EY-S-2-wire-HD-Distributor_Datasheet_20231202
