Hikvision DS-KAD7060EY 2-Wire HD Distributor with 8 Interface Indicators, DIN Rail Installation, 48VDC Power Input & Cascade Support

Product SKU: Hikvision DS-KAD7060EY

Product Overview

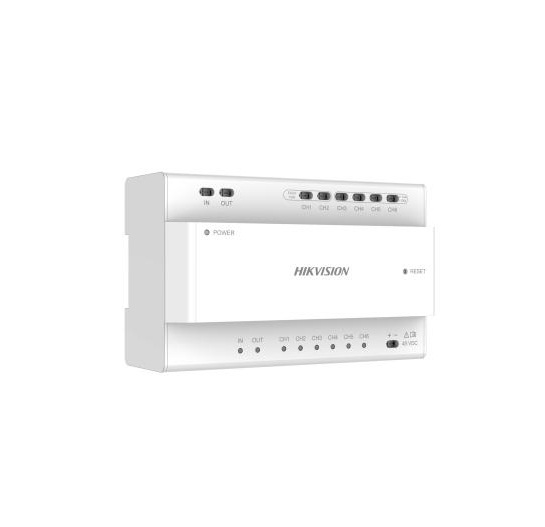

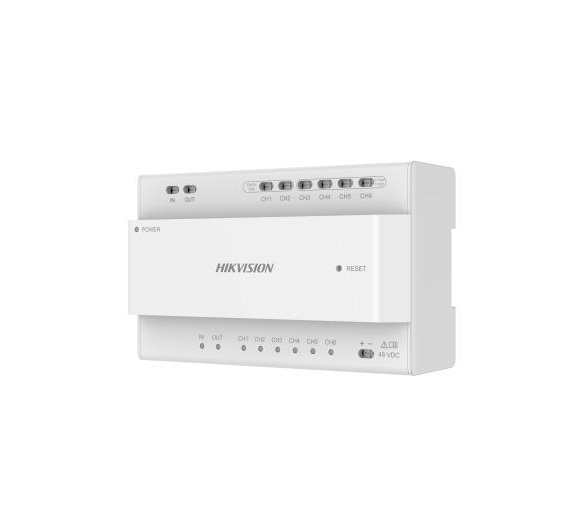

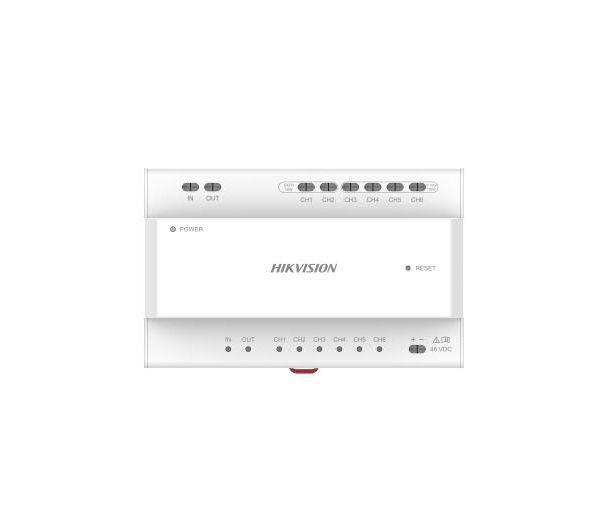

The Hikvision DS-KAD7060EY 2-Wire HD Distributor is a DIN rail-mounted video intercom distribution device designed for Hikvision 2-wire HD intercom systems. It supports simultaneous power and network signal transmission over 2 wires, helping simplify cabling for compatible door stations, indoor stations and related 2-wire HD devices. With 8 two-wire interfaces, 8 signal indicators, 1 power indicator, 1 reset button, 48VDC power input and cascade support, it is well suited to apartments, villas, small buildings, multi-room intercom systems and multi-building intercom layouts. This distributor is best selected when a compatible Hikvision 2-wire HD system needs organised device connection, status visibility and DIN rail installation in a central cabinet or equipment location.

Key Capabilities

Best For

• 2-Wire HD Video Intercom Systems: Designed for compatible Hikvision 2-wire HD door station and indoor station deployments.
• Apartment and Multi-Room Intercoms: Suitable for structured intercom systems where several devices need organised 2-wire distribution.
• Multi-Building Layouts: Useful where cascading or connection to DS-KAD7060EY-S is required for inter-building communication.
• Equipment Cabinets: DIN rail mounting makes it practical for intercom cupboards, comms rooms and serviceable low-voltage enclosures.
• Retrofit Cabling Projects: A good option where 2-wire HD architecture is selected to simplify cabling compared with separate power and network runs.

Why Choose the DS-KAD7060EY

The DS-KAD7060EY is a practical choice when a compatible Hikvision 2-wire HD video intercom system needs a central distributor with clear status indication and structured cabinet mounting. The 8 two-wire interfaces allow installers to connect IN, OUT and CH1–CH6 device runs, while the indicator lights make troubleshooting easier during commissioning. Cascade support helps expand suitable system layouts, especially where multiple distributors or inter-building links are involved. For intercom projects supplied through Security Wholesalers, this model is best selected after confirming the door station, indoor station, cable layout, power budget and whether cascade or DS-KAD7060EY-S communication is required.

Buyer Decision Tips

Key Features & Technical Specifications

Ideal Use Cases

Choosing the Right Model

• Choose this model if: You need an 8-interface 2-wire HD distributor with DIN rail mounting, 48VDC input, device status indicators and cascade support.
• Choose a different accessory if: Your system uses IP-only video intercom wiring, needs fewer interfaces, requires a different 2-wire distributor, or uses a different Hikvision intercom architecture.
• Check before ordering: Confirm the selected door station, indoor station, 2-wire topology, cable distance, power draw, cascade plan and whether DS-KAD7060EY-S is needed for multi-building network communication.

FAQs

1. What is the Hikvision DS-KAD7060EY used for?
   The DS-KAD7060EY is used as a 2-wire HD distributor in compatible Hikvision video intercom systems. It helps distribute power and network signals over 2-wire cabling to supported door stations, indoor stations and related 2-wire HD intercom devices.
2. How many two-wire interfaces does the DS-KAD7060EY have?
   The DS-KAD7060EY has 8 two-wire interfaces, including IN, OUT and CH1–CH6. IN and OUT are used for cascading or system connection, while CH1–CH6 are used for compatible door station and indoor station connections.
3. Does the DS-KAD7060EY support cascading?
   Yes. The IN and OUT interfaces support DS-KAD7060EY cascade, or connection to DS-KAD7060EY-S for network communication between multiple buildings. This makes it useful for larger layouts where one distributor is not enough.
4. What power supply does the DS-KAD7060EY require?
   The DS-KAD7060EY uses 48VDC power input. The power design should be checked carefully against the connected devices, cable layout and channel power requirements before installation.
5. Can the DS-KAD7060EY be installed on a DIN rail?
   Yes. The DS-KAD7060EY supports DIN rail installation, making it suitable for structured intercom cabinets, communications rooms and low-voltage enclosures. For installations supplied through Security Wholesalers, this helps create a tidy and serviceable system layout.
6. What do the indicators on the DS-KAD7060EY show?
   The distributor includes 8 signal indicators and 1 power indicator. These indicators help show device and interface status, making installation, troubleshooting and future servicing easier for technicians.
7. What type of intercom system is this distributor for?
   The DS-KAD7060EY is for Hikvision 2-wire HD video intercom systems. It should not be selected for IP-only intercom systems or other wiring architectures unless the system design specifically calls for this 2-wire HD distributor.
8. What should be checked before installation?
   Before installation, confirm the door station and indoor station models, 2-wire topology, cable length, power budget, CH1–CH6 layout, IN/OUT cascade design, 48VDC power supply and whether inter-building communication requires DS-KAD7060EY-S.

Additional Information

DS-KAD7060EY-2-wire-HD-Distributor_Datasheet_20231202
