Product Overview

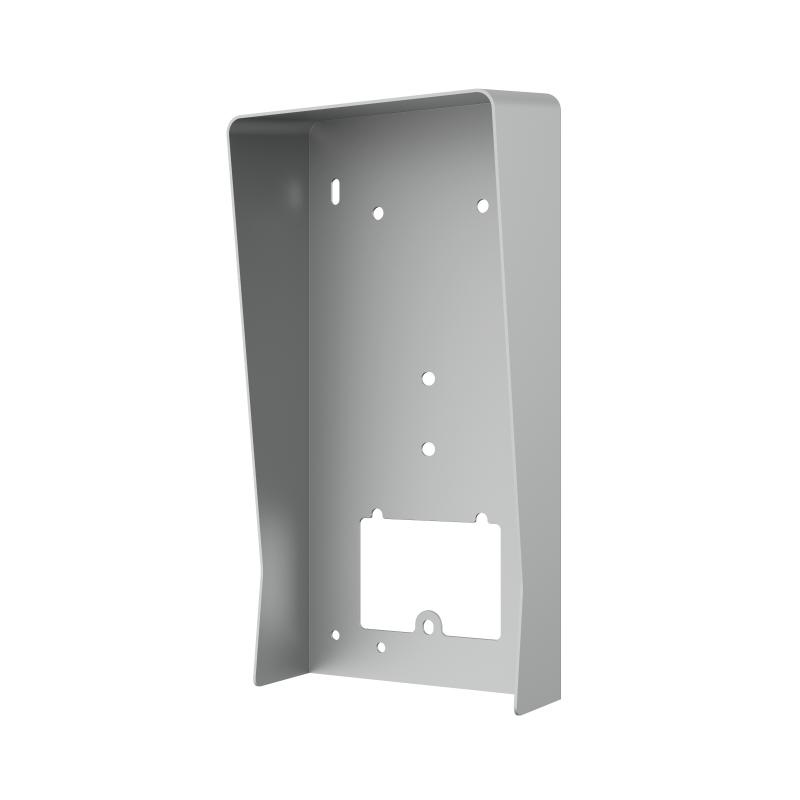

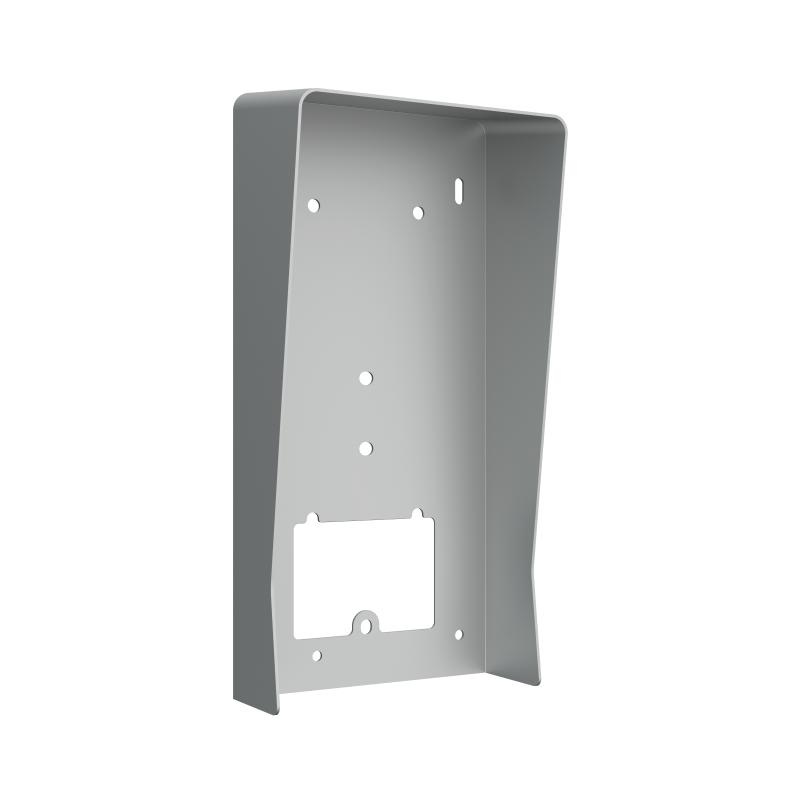

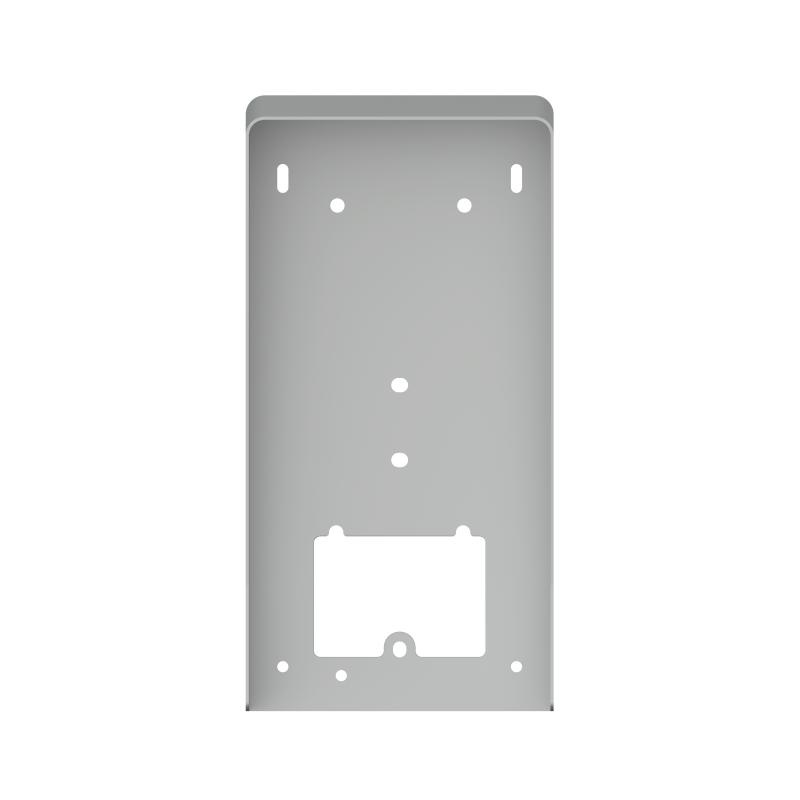

For installers completing a DS-KV9503-WBE1 villa door station setup in a surface-mounted location, the Hikvision DS-KABV9503-RS is the purpose-matched protective shield for that specific intercom model. Built from SECC, the shield wraps around the compatible door station to provide added physical cover and a cleaner, more integrated finish at the entry point. It is suited to residential villa doors, gated access points, apartment entries and small commercial doorways where the door station is mounted directly onto a wall or post rather than recessed flush into the surface. Using a purpose-matched accessory avoids the fit and finish issues that come with generic covers and simplifies the installation process when the correct accessory is confirmed at the planning stage. It is not a universal Hikvision intercom shield, so the door station model and mounting method should be confirmed before ordering.
Key Capabilities
DS-KV9503-WBE1 Compatibility
The DS-KABV9503-RS is designed for compatible DS-KV9503-WBE1 villa door station installations, providing a fitted cover that aligns with the door station dimensions rather than requiring modification or improvisation on site.
Surface Mount Support
Designed for surface-mounted door station installations, the shield allows the compatible intercom to be mounted directly onto a wall, gate post or entry structure with a cleaner and more professional finished appearance.
SECC Construction
The SECC build provides a practical and durable protective cover structure for professional intercom installations, giving the mounted door station a more robust and complete appearance at the entry point.
Added Physical Cover at Entry Points
The shield reduces direct exposure of the compatible door station at visible, high-use entry locations, helping improve both the installation finish and the overall presentation of the intercom setup.
Best For
- DS-KV9503-WBE1 Surface-Mount Projects: The primary use case for this accessory is a surface-mounted installation of the compatible Hikvision DS-KV9503-WBE1 villa door station.
- Residential Villa and Home Entries: Suitable for front doors, side gates and villa entries where the door station is installed in a visible, exposed position and a neater finish is required.
- Gated Access and Perimeter Entry Points: Practical for gate posts and boundary entry structures where the intercom is surface mounted and the installation needs to look tidy and integrated.
- Small Commercial and Apartment Entries: Useful for offices, shopfronts and smaller shared building entries using compatible Hikvision villa-style door station hardware that needs a more professional mounting finish.
Why Choose the DS-KABV9503-RS
The DS-KABV9503-RS provides a purpose-matched shield for the compatible Hikvision DS-KV9503-WBE1 villa door station, which means the fit, finish and overall installation outcome are more predictable than using a generic cover. Door stations installed at visible residential or commercial entries benefit from a correct accessory because the mounted intercom looks more intentional and less exposed. The SECC construction gives the shield a practical build quality suited to professional intercom installations. Selecting this accessory at the planning stage rather than after installation avoids rework and ensures the surface-mount layout, cable entry and clearances are all accounted for. Available through Security Wholesalers, the DS-KABV9503-RS is best ordered alongside the compatible door station to allow the installer to confirm all mounting details before attending site.
Buyer Decision Tips
Mounting Method Tip: This shield is for surface-mounted installations only. If the DS-KV9503-WBE1 door station will be recessed into the wall or gate post, confirm the correct flush-mount accessory for that installation type instead of ordering this shield.
Compatibility Tip: The DS-KABV9503-RS is designed for DS-KV9503-WBE1 compatibility. It is not a universal Hikvision door station shield. Confirm the exact door station model number before ordering to avoid fit issues on site.
Key Features & Technical Specifications
| Model |
DS-KABV9503-RS |
| Product Type |
Villa door station protective shield with surface mount support |
| Compatible Door Station |
DS-KV9503-WBE1 (where supported) |
| Mounting Type |
Surface mount |
| Material |
SECC |
| Primary Function |
Protective shield and surface-mount cover for compatible villa door station |
| Application |
Video intercom door station mounting accessory |
| Suitable Locations |
Residential villa entries, gated access points, apartment entries, small commercial doors |
| Installation Requirement |
Surface-mounted installation of compatible DS-KV9503-WBE1 door station |
| Pre-Installation Checks |
Confirm door station model, mounting method, cable entry path, wall or post surface, and site exposure before installation |
Ideal Use Cases
Villa Door Entries
The DS-KABV9503-RS is the purpose-matched shield for compatible DS-KV9503-WBE1 installations at residential villa entries where a neat surface-mounted finish is needed.
Gate Post and Perimeter Access
Suits installations on gate posts and boundary entry structures where the surface-mounted door station is visible and the SECC shield improves both the appearance and the protection of the intercom hardware.
Apartment and Strata Entry Points
Useful for shared building entries where the compatible door station is surface mounted and a more professional installation finish is required for the intercom hardware.
Small Commercial Doorways
Practical for offices, shopfronts and small business entries using compatible Hikvision villa-style door station hardware that needs a tidier and more integrated surface-mount presentation.
Choosing the Right Model
- Choose this model if: You are installing a compatible Hikvision DS-KV9503-WBE1 villa door station in a surface-mounted location and need a purpose-matched protective shield with SECC construction.
- Choose a different accessory if: The door station will be flush mounted into the wall, if you are using a different Hikvision villa intercom model, or if the installation requires a rain hood or mounting box designed for a different door station series.
FAQs
- What does the DS-KABV9503-RS do?
The DS-KABV9503-RS is a protective shield designed for compatible DS-KV9503-WBE1 villa door station surface-mount installations. It wraps around the door station to provide added physical cover and a cleaner finished appearance at the entry point, making the intercom setup look more integrated and professionally installed.
- Which Hikvision door station is this shield compatible with?
The DS-KABV9503-RS is designed for DS-KV9503-WBE1 compatibility where supported. It is not a universal shield for all Hikvision door stations, so the exact model number of the door station should be confirmed before this accessory is ordered.
- What material is the DS-KABV9503-RS made from?
The shield is constructed from SECC, which is a standard steel material used in professional enclosures and mounting accessories. The SECC build provides a practical and durable cover structure suited to video intercom installations in residential and small commercial settings.
- Is the DS-KABV9503-RS for surface mounting or flush mounting?
The DS-KABV9503-RS is designed for surface-mounted installations, where the door station sits on the face of a wall, gate post or entry structure. If the project requires the door station to be recessed into the wall, a different accessory type is needed for that installation method.
- Does this shield make the door station weatherproof?
No. The shield adds physical cover and improves the surface-mount finish, but it does not replace proper cable sealing, sealant application at mounting edges, or the door station’s own rated environmental protection. Site exposure, cable entry sealing and weatherproofing should still be addressed by the installer.
- Is this accessory available through Security Wholesalers?
Yes. The DS-KABV9503-RS is part of the Security Wholesalers range and is best ordered at the same time as the compatible DS-KV9503-WBE1 door station. Ordering both together allows the installer to plan the mounting layout, cable path and surface clearances before attending site.
