Product Overview

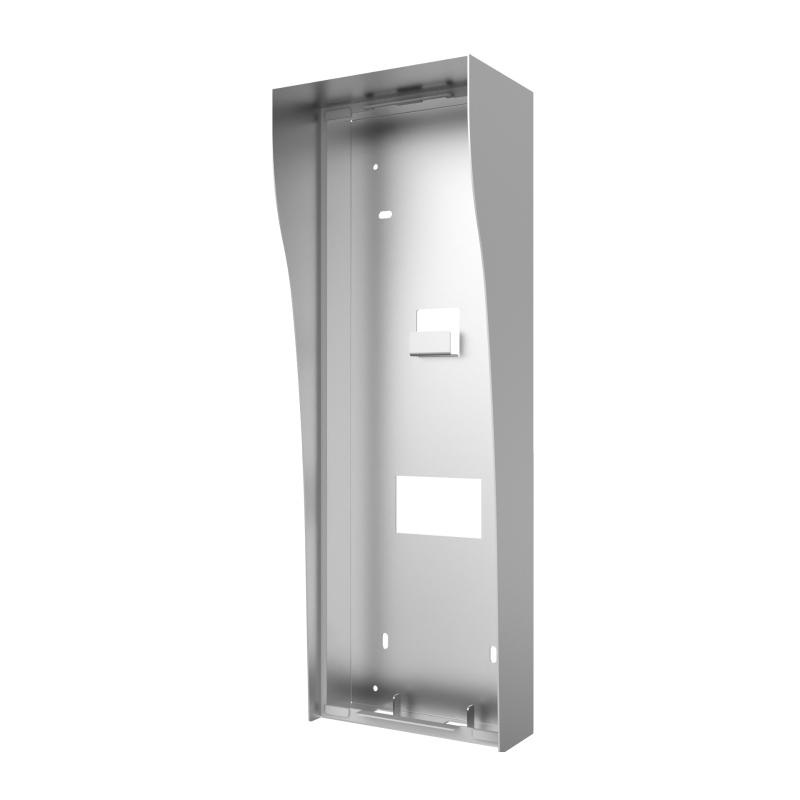

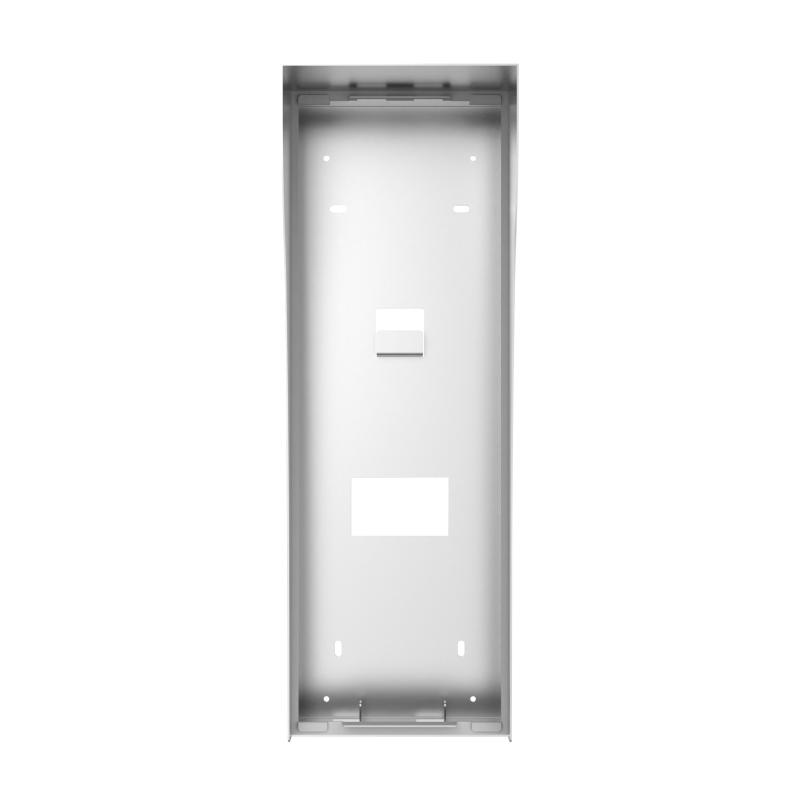

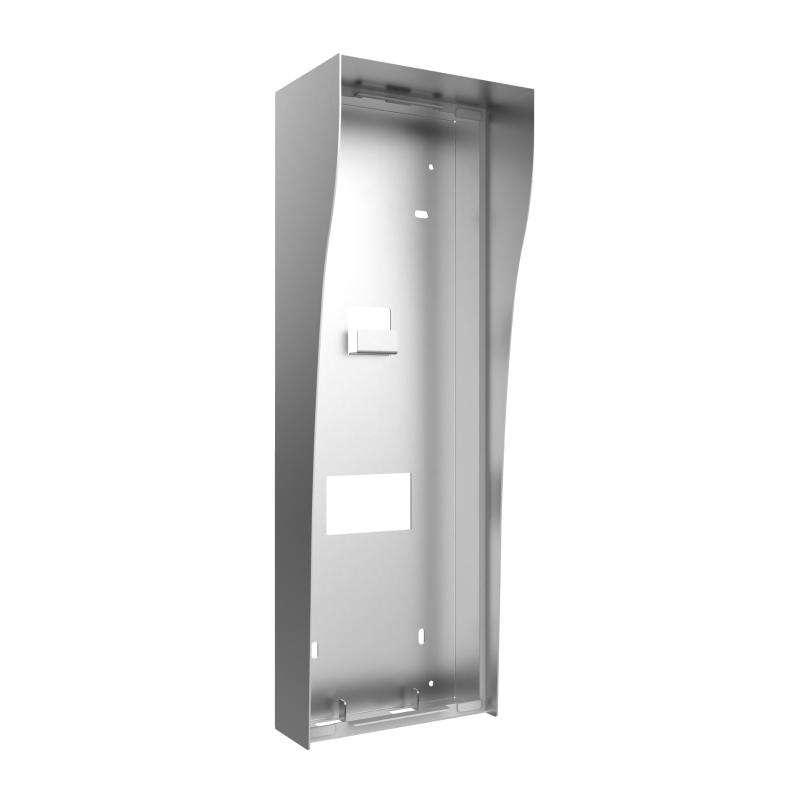

For installers mounting a Hikvision KD9203 series video intercom door station in an exposed outdoor location, the DS-KABD9203-RS provides a purpose-built rain shield and protective cover that adds weather protection and a cleaner surface-mount finish. Constructed from SGCC in a grey finish, the shield measures 377 x 128 x 86mm and is designed to sit over a compatible surface-mounted door station, reducing direct rain exposure at entry points including apartment lobbies, commercial reception doors, school visitor entries and gated access points. It operates across a working temperature range of -30 degrees Celsius to 60 degrees Celsius, making it suited to Australian outdoor installation conditions. The DS-KABD9203-RS is an accessory item and must be confirmed against the exact door station model before ordering, as rain shields in the Hikvision KD9 range are model-specific and not interchangeable across all door station variants.
Key Capabilities
KD9203 Series Compatibility
Designed specifically for compatible Hikvision KD9203 series door stations, this rain shield is a model-specific accessory. Confirm the exact door station model before ordering to ensure the shield fits correctly around the surface-mounted unit.
Weather Protection at Entry Points
The protective cover helps reduce direct rain exposure for the door station at outdoor entry points including apartment foyers, commercial doors and gated facility intercoms. It complements the door station’s own environmental rating rather than replacing correct installation sealing.
SGCC Construction
Built from SGCC steel in a grey finish, the DS-KABD9203-RS provides a durable structure suited to professional intercom installations where longevity at an outdoor entry point is a priority.
Wide Temperature Range
Rated for working temperatures from -30 degrees Celsius to 60 degrees Celsius, the shield is suited to outdoor installation across a broad range of Australian climate conditions, from cool-climate building entries to warmer northern locations.
Best For
- Surface-Mounted Door Station Installations: Designed for KD9203 series door stations mounted directly to a wall surface rather than flush-recessed, where a cover over the unit improves both protection and finish.
- Apartment and Strata Entry Points: Suitable for shared residential building entries where the intercom is exposed to weather and a neater protected installation is required by body corporate or strata requirements.
- Commercial Front Doors and Reception Entries: Useful at business entrances where the door station faces direct rainfall or sun exposure and a more finished installation outcome is expected.
- School and Facility Visitor Doors: Practical for controlled access entries at schools, childcare centres and facilities where the intercom is positioned at an exposed outdoor wall.
Why Choose the DS-KABD9203-RS
Door stations installed at apartment entries and commercial access points are used by visitors, residents and delivery drivers throughout the day, often in direct sun and rain. Leaving a surface-mounted door station uncovered in an exposed position increases the risk of water ingress and accelerates cosmetic wear at a visible access point. The DS-KABD9203-RS is built specifically for compatible KD9203 series door stations, so the dimensions and fitment are designed for the unit rather than being a generic bracket that may not align correctly. Its SGCC construction and working temperature range of -30 degrees Celsius to 60 degrees Celsius make it a practical long-term addition to a professionally finished intercom installation. Available through Security Wholesalers, the DS-KABD9203-RS is best ordered at the same time as the door station so the installer can plan the wall surface, cable entry and mounting position before attending site.
Buyer Decision Tips
Surface Mount vs Flush Mount: The DS-KABD9203-RS is designed for surface-mounted door station installations. If the project specifies a flush-mounted or in-wall recessed installation, confirm whether a different accessory or back box is required before ordering this rain shield.
Confirm Door Station Model First: Rain shields in the Hikvision KD9 accessory range are model-specific. Do not assume this shield will fit all KD9 series variants. Check the exact door station model number and cross-reference the DS-KABD9203-RS compatibility before purchasing.
Key Features & Technical Specifications
| Model |
DS-KABD9203-RS |
| Product Type |
Video intercom rain shield and protective cover |
| Compatible Series |
KD9203 series video intercom door stations where confirmed compatible |
| Mounting Type |
Surface mount accessory |
| Material |
SGCC |
| Colour |
Grey |
| Dimensions |
377 x 128 x 86mm |
| Working Temperature |
-30 degrees Celsius to 60 degrees Celsius |
| Working Humidity |
10% to 90%, non-condensing |
| Installation Role |
Adds rain protection and a finished appearance to compatible surface-mounted door station installations |
| Typical Applications |
Apartment entries, commercial reception doors, school visitor access, gated facility intercoms |
| Pre-Installation Check |
Confirm door station model compatibility, wall surface type, cable entry path, sealing and rain exposure direction before installation |
Ideal Use Cases
Apartment Building Entries
Where a KD9203 series door station is surface-mounted at a shared residential entry, the DS-KABD9203-RS provides rain cover and a more complete installation finish for residents and visitors using the intercom daily.
Commercial Reception Doors
Business entrances where the KD9203 series door station faces direct rainfall benefit from the protective cover, which reduces weather exposure and produces a more professional surface-mounted appearance at a visible access point.
School and Childcare Visitor Entries
Controlled access entries at schools and childcare facilities where the intercom is mounted on an exposed external wall benefit from the SGCC cover, which is rated to handle the temperature range typical of Australian outdoor environments.
Gated Facility and Perimeter Intercoms
For gate columns and external perimeter walls where a compatible KD9203 series door station is positioned in a fully exposed outdoor location, the rain shield adds a practical layer of cover to the surface-mounted unit.
Choosing the Right Model
- Choose this model if: You are installing a compatible Hikvision KD9203 series door station in a surface-mounted configuration at an outdoor or semi-exposed entry point and need a purpose-built rain shield that matches the unit.
- Choose a different accessory if: The project uses a different Hikvision door station series outside the KD9203 range, requires a flush-mounted or in-wall recessed installation, or needs a different back box or mounting bracket rather than a surface rain shield.
- Check before ordering: Confirm the door station model number, confirm the surface-mount requirement, check the cable entry position and wall surface, and review the rain exposure direction to make sure this shield will provide the coverage needed at the specific installation point.
FAQs
- What does the DS-KABD9203-RS actually do?
The DS-KABD9203-RS is a rain shield and protective cover that sits over a compatible KD9203 series door station installed at a surface-mounted outdoor entry point. It reduces direct rain exposure on the unit and gives the overall installation a cleaner, more finished appearance without replacing any of the door station’s own environmental protection.
- Which door stations is the DS-KABD9203-RS compatible with?
The DS-KABD9203-RS is designed for KD9203 series door stations where compatibility is confirmed. It is not a universal rain shield for all Hikvision video intercom products. Always check the exact door station model number against this accessory before ordering, as rain shields in the KD9 range are model-specific.
- What is the DS-KABD9203-RS made from and what are its dimensions?
The shield is constructed from SGCC steel with a grey finish. It measures 377 x 128 x 86mm. These dimensions are specific to the KD9203 series door station fitment, so the shield should only be ordered for confirmed compatible installations rather than assumed to fit other models.
- Is the DS-KABD9203-RS suitable for outdoor installation in Australian conditions?
Yes. The working temperature range of -30 degrees Celsius to 60 degrees Celsius covers the range of conditions found across Australian outdoor environments. The working humidity rating of 10% to 90%, non-condensing, also makes it practical for exposed entry point installations. However, the installer should still ensure the door station’s own environmental rating, cable sealing and wall penetration are addressed correctly.
- Does the rain shield replace proper waterproofing and sealing of the door station?
No. The DS-KABD9203-RS adds a physical cover that reduces direct rain exposure on the door station, but it does not replace correct installation sealing. Cable entries through the wall, wall penetration sealing, drainage clearance and the door station’s own IP rating all remain the responsibility of the installer. Available through Security Wholesalers, the DS-KABD9203-RS works best as part of a correctly sealed surface-mount installation.
- Can this rain shield be used with a flush-mounted door station installation?
No. The DS-KABD9203-RS is a surface-mount accessory designed to cover a door station mounted directly on the wall face. If the installation specifies a flush-mounted or in-wall recessed door station, a different accessory or back box will be required. Confirm the mounting method for the project before ordering this shield.
Cabling Considerations
- Cable Entry Planning: Plan the cable entry path before fitting the DS-KABD9203-RS. The shield will cover the rear of the door station, so cable penetrations through the wall must be positioned correctly before the shield is mounted to avoid the need for disassembly later.
- Wall Penetration Sealing: All cable entry points through the wall behind the door station must be sealed correctly during installation. The rain shield reduces direct water exposure but does not seal wall penetrations or cable conduit entries.
- Cable Routing: Confirm the cable routing and conduit entry position relative to the shield dimensions of 377 x 128 x 86mm before installation. Ensure there is adequate clearance for all cables entering the door station without stressing connectors or restricting the shield from seating flush against the wall.
- Intercom System Cabling: Follow the cabling requirements of the compatible KD9203 series door station for network, power and any access control connections. The rain shield itself has no electrical requirements and does not affect cable specifications.
