What does the DS-KAB6-ZU1 bracket do?

The DS-KAB6-ZU1 is a face terminal bracket that mounts compatible Hikvision face recognition terminals onto supported speed gates and turnstiles using gang box installation. It is a purpose-built accessory for pedestrian access control lane installations and is not designed for general wall or surface mounting of face terminals.

Which Hikvision speed gates and turnstiles is this bracket compatible with?

Hikvision lists the DS-KAB6-ZU1 for speed gate and turnstile models that include "Pg" in the model name. This is not a universal bracket for all Hikvision lane products, so the exact gate or turnstile model must be confirmed before ordering to avoid ordering the wrong accessory for the installation.

Does the DS-KAB6-ZU1 support gang box installation?

Yes. The bracket is designed specifically for compatible face recognition terminals that support gang box installation. This structured mounting approach helps installers produce a secure and professional terminal position on the access lane, reducing the need for improvised or custom mounting solutions on site.

What material is the DS-KAB6-ZU1 made from?

The bracket is made from AL-6061 aluminium alloy. This gives the DS-KAB6-ZU1 a durable structure suited to commercial access control lane environments, including both indoor lobbies and outdoor pedestrian entry points where the bracket is exposed to general environmental conditions.

What are the dimensions and weight of the DS-KAB6-ZU1?

The DS-KAB6-ZU1 measures 100 x 100 x 196mm and weighs approximately 1.1kg. These dimensions are specific to this bracket model. When planning the installation, the bracket size should be matched against the lane mounting position, terminal size and cable routing path to confirm the fit before installation begins.

Can the DS-KAB6-ZU1 be used for outdoor access lane installations?

The bracket is listed for both indoor and outdoor application environments. However, overall outdoor suitability for the complete lane system depends on the compatible face terminal, the speed gate or turnstile model, cable sealing at the entry points and site-specific exposure conditions. The full lane hardware should be reviewed for outdoor suitability, not just the bracket. This bracket is available through Security Wholesalers for professional access control projects.

What should be confirmed before fitting the DS-KAB6-ZU1 on site?

Before installation, confirm the face terminal model and its gang box support, the exact speed gate or turnstile model and its "Pg" designation, the planned mounting height for face recognition at the lane, the user approach direction, and the cable routing path through the lane body. Checking these details before installation reduces the risk of repositioning the bracket after the lane is set up.

Hikvision Mounts & Brackets

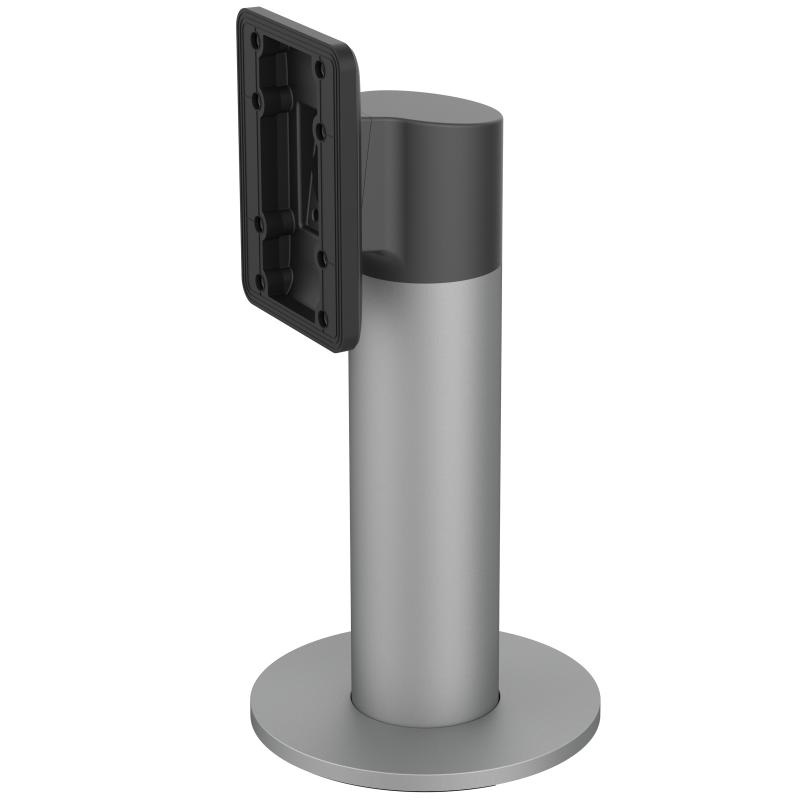

Hikvision DS-KAB6-ZU1 Face Terminal Bracket with Gang Box Installation Support, Speed Gate & Turnstile Compatibility, Indoor/Outdoor Use

$155.00

FREE DELIVERYWARRANTY GUARANTEED

✔ Dedicated 5★ Customer Care Team ✔ Fast & Responsive Tech Support

Hikvision Face Terminal Bracket | Gang Box Installation Support | Speed Gate & Turnstile Compatibility | Indoor & Outdoor Use

The Hikvision DS-KAB6-ZU1 delivers a face terminal mounting bracket designed for access control installations requiring flexible support across gang boxes, speed gates, and turnstiles. Featuring compatibility with selected Hikvision face terminal devices, it helps create a cleaner and more professional terminal setup. It also supports both indoor and outdoor installation environments, making it suited to a wide range of commercial and controlled access applications. This makes it suitable for office entrances, commercial foyers, turnstile lanes, staff entry points, and education facilities requiring organised terminal mounting.

Key Features

Face Terminal Bracket: Supports secure mounting for compatible Hikvision face terminal installations.
Gang Box Installation: Allows installation with suitable gang box mounting setups.
Speed Gate Compatibility: Supports compatible Hikvision speed gate access control deployments.
Turnstile Compatibility: Designed for selected turnstile-based entry management applications.
Indoor & Outdoor Use: Suitable for access control installations across internal and exposed entry environments.
Professional Installation Fit: Helps create a stable and organised mounting finish for access control projects.

Additional Information

DS-KAB6-ZU1 Bracket Datasheet

$155.00 inc GST +3 Year Warranty & Support

Description

Product Overview

Installing a compatible Hikvision face recognition terminal onto a speed gate or turnstile lane requires a bracket that is matched to both the terminal and the lane hardware. The DS-KAB6-ZU1 is a purpose-built face terminal bracket fabricated from AL-6061 aluminium alloy, designed to mount compatible Hikvision face terminals using gang box installation on supported speed gate and turnstile models. At 100 x 100 x 196mm and approximately 1.1kg, it provides a stable and professional mounting position for access control lane terminals across indoor and outdoor application environments. It is listed for use with speed gate and turnstile models that carry “Pg” in the model name, which means confirming the exact lane hardware before ordering is essential. Well suited to commercial lobbies, office entry lanes, apartment access points, transport-style facilities and education campuses using compatible Hikvision pedestrian access control systems.

Key Capabilities

Gang Box Installation Support

The DS-KAB6-ZU1 supports gang box installation for compatible Hikvision face terminals, giving installers a structured and secure mounting method on pedestrian access lanes rather than relying on improvised fixings or custom fabrication.

Speed Gate and Turnstile Compatibility

The bracket is designed for supported Hikvision speed gates and turnstile models with “Pg” in the model name, making it the correct accessory for pedestrian lane face terminal deployments where the lane hardware includes that designation.

AL-6061 Aluminium Alloy Build

Constructed from AL-6061 aluminium alloy, the DS-KAB6-ZU1 provides a durable and stable bracket structure for commercial access control lane installations, supporting both indoor foyer environments and exposed outdoor entry points.

Indoor and Outdoor Use

Listed for indoor and outdoor application environments, the bracket is suitable for controlled access lane installations across a range of sites, from climate-controlled corporate lobbies to exposed pedestrian entry points at commercial and transport facilities.

Integrated Lane Presentation

Using a purpose-matched Hikvision bracket rather than a generic fitting helps the face terminal sit flush and aligned with the lane hardware, which matters in customer-facing lobbies, apartment entries and commercial access points where appearance reflects professionalism.

Best For

Speed Gate Lane Deployments: Matched to supported Hikvision speed gates with “Pg” model names where a face terminal with gang box mounting is part of the access control design.
Turnstile Face Recognition Access: Suitable for turnstile-based entry systems where a compatible face terminal needs a stable and professional mounting position on the lane body.
Commercial and Corporate Lobbies: A practical fit for front-of-house access lanes where the terminal installation must present as a clean and integrated part of the entry system.
Controlled Facility Access Points: Useful for apartment buildings, education campuses and secure commercial facilities using compatible Hikvision pedestrian access control hardware.

Why Choose the DS-KAB6-ZU1

A bracket plays a more significant role in a face terminal installation than its physical size suggests. The DS-KAB6-ZU1 determines the terminal position, sets the cable path through the lane body and defines how the face recognition device presents to the user approaching the access point. Using the correct purpose-built bracket reduces installation rework, avoids unstable terminal positions and produces a finish that meets the expectation of commercial access control projects. The AL-6061 aluminium alloy construction at 100 x 100 x 196mm is designed specifically for compatible Hikvision terminals on supported speed gate and turnstile models, not as a substitute for generic hardware. Installers and integrators working on projects supplied through Security Wholesalers should confirm the face terminal model, the speed gate or turnstile model designation, and gang box support before ordering to avoid bracket mismatches on site.

Buyer Decision Tips

Compatibility Check: This bracket is listed specifically for Hikvision speed gates and turnstile models with “Pg” in the model name. It is not a universal face terminal bracket. Before ordering, confirm the exact lane model, the face terminal model and whether gang box installation is supported by that terminal. A mismatch on any of these three points means the bracket will not be suitable for the installation.

Placement Planning Tip: Consider the user approach direction, the mounting height for face recognition and the cable routing path before the bracket is fitted. The face terminal position on the lane affects recognition accuracy in use, so planning the bracket location as part of the overall lane design will produce a better outcome than adjusting after installation.

Key Features & Technical Specifications

Model	DS-KAB6-ZU1
Product Type	Face terminal bracket for compatible speed gates and turnstiles
Primary Function	Mounting compatible face recognition terminals on supported Hikvision speed gate and turnstile lane hardware
Installation Method	Gang box installation support for compatible face recognition terminals
Speed Gate and Turnstile Compatibility	Supported models with “Pg” in the model name
Application Environment	Indoor and outdoor
Material	AL-6061 aluminium alloy
Dimensions	100 x 100 x 196mm
Weight	Approx. 1.1kg
Installation Consideration	Confirm face terminal model, gang box support, speed gate or turnstile model designation, mounting height, user approach direction and cable routing before installation
Best Use Environments	Corporate lobbies, office entry lanes, apartment access points, transport facilities, education campuses and secure commercial access control installations
Wall Mounting	Not intended for standalone wall mounting. Select the appropriate Hikvision wall bracket or rain shield for wall-mounted terminal installations.

Ideal Use Cases

Corporate Lobby Speed Gate Lanes

Where a compatible face recognition terminal with gang box support needs to mount cleanly onto a supported Hikvision speed gate, this bracket provides the correct purpose-built interface between the terminal and the lane body.

Turnstile-Based Entry Management

Suitable for turnstile installations where face recognition is part of the access workflow and the selected terminal supports gang box installation, giving the entry lane a stable and integrated terminal mounting position.

Apartment and Residential Building Access

Practical for shared pedestrian access lane installations in apartment buildings and residential complexes where compatible Hikvision speed gate or turnstile hardware manages resident and visitor entry.

Secure Facilities and Education Campuses

Useful for offices, schools, government buildings and controlled facilities where face terminal mounting on supported Hikvision lane hardware needs a professional, purpose-built bracket for a tidy finished installation.

Choosing the Right Model

Choose this model if: The access control project uses a compatible Hikvision face recognition terminal that supports gang box installation, and the lane hardware is a supported Hikvision speed gate or turnstile with “Pg” in the model name.
Choose a different bracket if: The face terminal is being wall-mounted, pole-mounted or flush-mounted, if the speed gate or turnstile model does not carry the “Pg” designation, or if the terminal series requires a different Hikvision mounting accessory such as a wall bracket, rain shield or protective shield for that specific terminal model.

FAQs

What does the DS-KAB6-ZU1 bracket do?
The DS-KAB6-ZU1 is a face terminal bracket that mounts compatible Hikvision face recognition terminals onto supported speed gates and turnstiles using gang box installation. It is a purpose-built accessory for pedestrian access control lane installations and is not designed for general wall or surface mounting of face terminals.
Which Hikvision speed gates and turnstiles is this bracket compatible with?
Hikvision lists the DS-KAB6-ZU1 for speed gate and turnstile models that include “Pg” in the model name. This is not a universal bracket for all Hikvision lane products, so the exact gate or turnstile model must be confirmed before ordering to avoid ordering the wrong accessory for the installation.
Does the DS-KAB6-ZU1 support gang box installation?
Yes. The bracket is designed specifically for compatible face recognition terminals that support gang box installation. This structured mounting approach helps installers produce a secure and professional terminal position on the access lane, reducing the need for improvised or custom mounting solutions on site.
What material is the DS-KAB6-ZU1 made from?
The bracket is made from AL-6061 aluminium alloy. This gives the DS-KAB6-ZU1 a durable structure suited to commercial access control lane environments, including both indoor lobbies and outdoor pedestrian entry points where the bracket is exposed to general environmental conditions.
What are the dimensions and weight of the DS-KAB6-ZU1?
The DS-KAB6-ZU1 measures 100 x 100 x 196mm and weighs approximately 1.1kg. These dimensions are specific to this bracket model. When planning the installation, the bracket size should be matched against the lane mounting position, terminal size and cable routing path to confirm the fit before installation begins.
Can the DS-KAB6-ZU1 be used for outdoor access lane installations?
The bracket is listed for both indoor and outdoor application environments. However, overall outdoor suitability for the complete lane system depends on the compatible face terminal, the speed gate or turnstile model, cable sealing at the entry points and site-specific exposure conditions. The full lane hardware should be reviewed for outdoor suitability, not just the bracket. This bracket is available through Security Wholesalers for professional access control projects.
What should be confirmed before fitting the DS-KAB6-ZU1 on site?
Before installation, confirm the face terminal model and its gang box support, the exact speed gate or turnstile model and its “Pg” designation, the planned mounting height for face recognition at the lane, the user approach direction, and the cable routing path through the lane body. Checking these details before installation reduces the risk of repositioning the bracket after the lane is set up.

Additional Information

DS-KAB6-ZU1-Bracket_Datasheet_V1.0_20211102

SKU: DS-KAB‌6-ZU1 Category: Hikvision Mounts & Brackets
