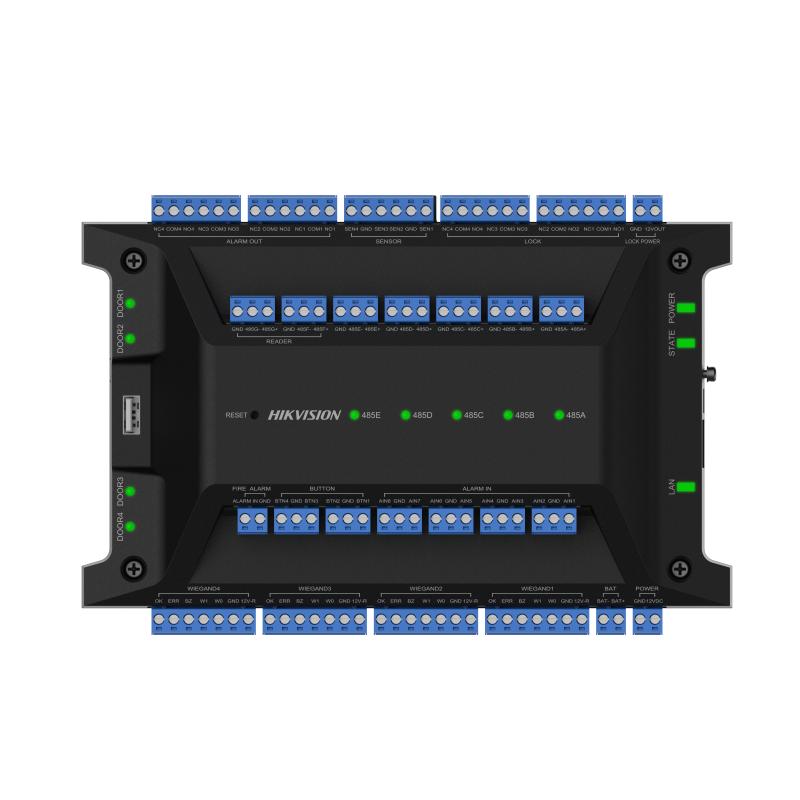

The DS-K2704X-P from Hikvision is a high-capacity, panel-mounted 4-door access controller module engineered for secure and scalable access control systems. It supports up to 4 doors natively and can expand to manage up to 128 doors via integration with 62 DS-K2M002X access modules over RS-485.
With its 12V DC input, the “(P)” variant is optimized for low-voltage environments, making it ideal for use within structured control cabinets or centralized power setups. The unit offers web-based configuration, eliminating the need for additional software, and includes redundant RS-485 architecture to ensure stable communication in large deployments.
| Image | Name | Price | Buy | hf:att:pa_ai-technology | hf:att:pa_audio-features | hf:att:pa_camera-count | hf:att:pa_camera-style | hf:att:pa_detection-features | hf:att:pa_deterrence-features | hf:att:pa_environmental-features | hf:att:pa_focal-length | hf:att:pa_hdd-bays | hf:att:pa_hdd-included | hf:att:pa_ik-rating | hf:att:pa_included-storage | hf:att:pa_installation-level | hf:att:pa_ip-rating | hf:att:pa_kit-camera-style | hf:att:pa_lens-type | hf:att:pa_low-light-technology | hf:att:pa_max-recording-resolution | hf:att:pa_mounting-position | hf:att:pa_night-vision-range | hf:att:pa_night-vision-type | hf:att:pa_optical-zoom | hf:att:pa_poe-ports | hf:att:pa_power-connectivity | hf:att:pa_protocol-compatibility | hf:att:pa_recorder-channels | hf:att:pa_remote-viewing | hf:att:pa_resolution | hf:att:pa_specialist-features | hf:att:pa_system-format | hf:att:pa_white-light-range | hf:att:pa_zoom-type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | Hikivision DS-K1107AM Slimline Card Reader Access Control | $60.00 inc GST +3 Year Warranty & Support | |||||||||||||||||||||||||||||||||
 | Hikivision DS-K1104MK Card Reader Access Control Vandalproof | $145.00 inc GST +3 Year Warranty & Support | |||||||||||||||||||||||||||||||||
 | Hikivision DS-K1107AMK Card Reader with Keypad Access Control | $70.00 inc GST +3 Year Warranty & Support |
Key Features:
-
Manages 4 doors natively, expandable to 128 with access modules
-
Web browser-based setup — no software installation required
-
Supports anti-passback, multi-door interlocking, and multi-factor authentication
-
Redundant RS-485 bus design with support for up to 16 modules per loop
-
Integration-ready with 12 I/O indicators and USB, Wiegand, and RS-485 interfaces
-
Backup battery support with charging/discharging capability
Technical Highlights:
-
User Capacity: 100,000 users
-
Card Capacity: 200,000 cards
-
Fingerprint Capacity: 10,000
-
Event Storage: 600,000 logs
-
Reader Interfaces: 8 × RS-485 readers (OSDP), 4 × Wiegand readers (customizable)
-
Inputs/Outputs:
-
4 × lock control
-
4 × exit button
-
4 × door contacts
-
8 × alarm inputs, 4 × alarm outputs
-
1 × tamper, 1 × fire interface
-
1 × USB 2.0
-
-
Power Supply: 12V DC ±15%
-
Power Consumption: ≤102W
-
Operating Environment: -10°C to 55°C, 0–90% RH (non-condensing)
-
Installation: Guide rail mounting
-
Languages Supported: Over 20 languages including English, Spanish, Arabic, French, and more
Use Cases
-
Custom Security Panels: Ideal for integration inside control cabinets in smart buildings or server rooms.
-
Distributed Access Control: Use in multi-zone buildings powered by centralized DC systems.
-
Secure Infrastructure: Suitable for banks, airports, education campuses, and large commercial facilities needing scalable, rack-based control.
This model is perfect for professional installers and system integrators looking for a reliable, low-voltage access controller with high capacity and advanced features in a modular format.
