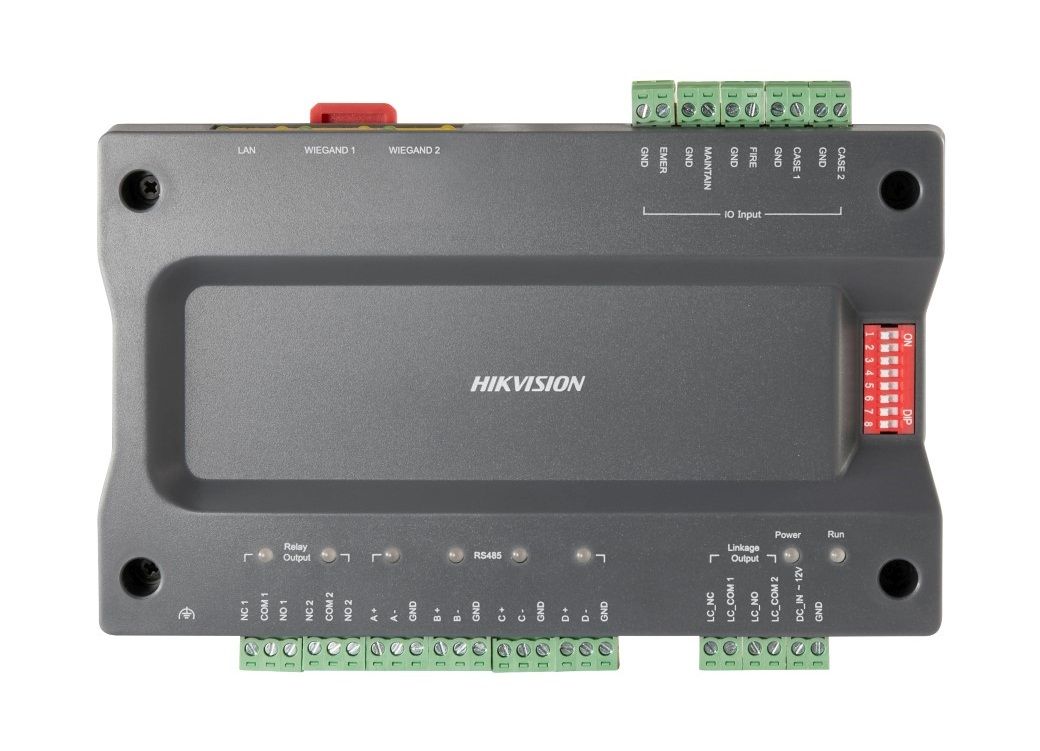

Hikvision DS-K2210 Master elevator controller
Hikvision Master elevator controller, Up to 2 RS-
485/Wiegand Cad Readers, 5 relay,TCP/IP,RS-485,
- Master elevator controller
- Control 128 floors’ permissions
- 20,000 cards and 50,000 events storage
- Uplink Communication: TCP/IP and RS-485
- Multiple authentication modes
- Configure and manage device via web client and client software
- Watchdog and tamper-proof function
- Accessible Card Reader: 2 Wiegand readers or 2 RS485 readers
$550.00 inc GST +3 Year Warranty & Support
| System Parameters | ||
|---|---|---|
| Card Reading Mode: | Up to 2 RS-485 Card Readers or 2 Wiegand Card Readers | |
| Storage: | 20,000 Cards and 50,000 Events | |
| Indicator: | Power On: Solid Green Running Properly: Flashing Green Running Exception: Solid Red Serial Port Not Communicating: Off Serial Port Communicating: Solid Green Relay NC: Off Relay NO: Solid Green Network Disconnected: Off Network Cable Connected: Solid Yellow, Flashing Green Network Armed: Solid Yellow, Flashing Green |
|
| Processor: | 32-bit | |
| RTC: | Support | |
| Device Interfaces | ||
|---|---|---|
| Output Interface: | 5 Relay Outputs | |
| Input Interface: | 1 Panic Button; 1 Fire Alarm Button; 1 Maintenance Button | |
| Communication Mode: | TCP/IP;RS-485, and Wiegand | |
| General | ||
|---|---|---|
| Power Supply: | 12 VDC±15% | |
| Installation: | Guide Rail Installation | |
| Working Humidity: | 10% to 90% (Non-Condensing) | |
| Working Temperature : | -40°C to +70°C (-40°F to +158°F) | |
| Dimensions (L×W×H): | 167mm × 105mm × 30mm | |
