Product SKU: DS-K1T673TDWX
Product Overview

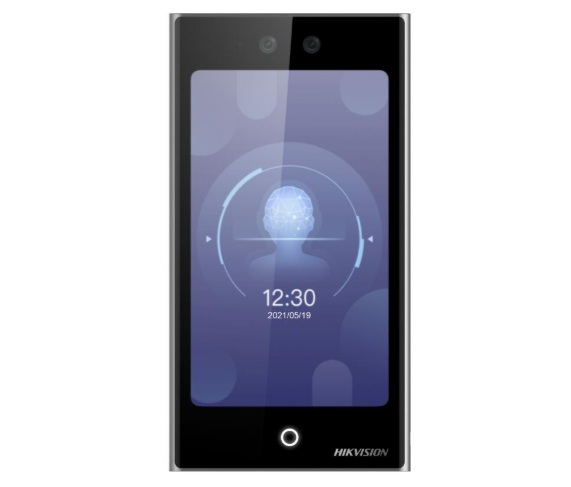

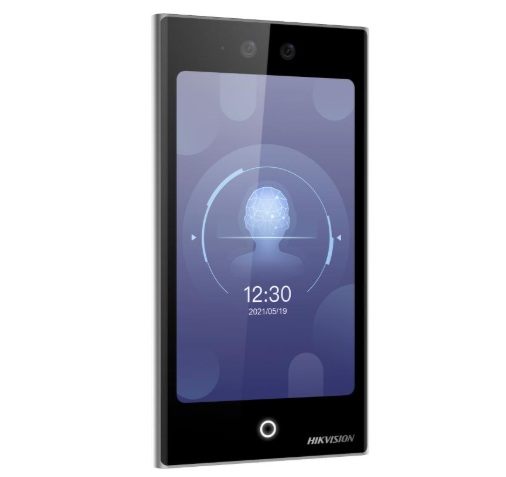

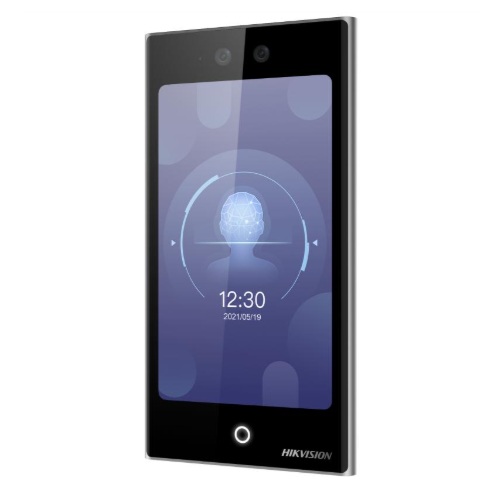

The Hikvision DS-K1T673TDWX is a 7-inch face recognition access-control terminal designed for high-capacity commercial, institutional and enterprise entry points requiring fast biometric authentication and flexible card-based access. Its 2 MP dual-lens camera supports facial recognition from approximately 0.3 to 3 metres, with Hikvision specifying recognition in less than 0.2 seconds per person and an accuracy rate of at least 99%. The terminal stores up to 100,000 faces, 500,000 cards and 150,000 access events, while supporting M1, DESFire and Felica credentials. Built-in 2.4 GHz Wi-Fi and Gigabit Ethernet provide flexible network connectivity, while face anti-spoofing, face-mask detection, multi-person recognition and IP65 protection suit demanding access-control environments.
Key Capabilities
Fast Face Recognition
The dual-lens face-recognition system operates from approximately 0.3 to 3 metres, with a stated recognition time of less than 0.2 seconds per person and accuracy of at least 99%.
100,000-Face Capacity
A large biometric database supports up to 100,000 face records, making the terminal suitable for substantial staff, resident, student or authorised-user populations.
500,000-Card Capacity
The built-in reader supports M1, DESFire and Felica cards, with storage for up to 500,000 card credentials and a stated reading distance of approximately 0 to 3 cm.
Face Anti-Spoofing & Mask Detection
Face anti-spoofing helps protect against presentation attacks, while face-mask detection provides additional functionality for supported access and attendance workflows.
Wi-Fi & Gigabit Ethernet
2.4 GHz 802.11b/g/n Wi-Fi and a 10/100/1000 Mbps self-adaptive wired network interface provide flexible connectivity for different access-control network designs.
Multi-Person Recognition
The terminal supports both individual and multi-person face recognition, with up to five people able to be recognised simultaneously in supported operating modes.
Best For
- Corporate Offices: High-capacity face and card databases support large employee populations and busy entrances.
- Schools & Campuses: Fast face recognition and large credential capacity suit high-throughput institutional access points.
- Factories & Warehouses: Face recognition, card access and IP65 protection suit controlled staff entry points in industrial environments.
- Residential Developments: Face and card authentication can support apartment, community and shared-building access.
- Attendance Applications: Hikvision includes an attendance-only operating function for supported workforce and attendance deployments.
Why Choose the DS-K1T673TDWX
The DS-K1T673TDWX is designed for sites where access control needs to handle large user volumes without sacrificing authentication speed or flexibility. Its 100,000-face and 500,000-card capacities, rapid face matching, anti-spoofing and multi-person recognition make it suitable for high-traffic entrances, while the 7-inch touchscreen provides a clear user interface at the door. Gigabit Ethernet, Wi-Fi, RS-485, OSDP and Wiegand interfaces support a range of integration approaches. Available through Security Wholesalers, the DS-K1T673TDWX is especially well suited to organisations requiring a scalable biometric terminal with card support, network connectivity and outdoor-rated construction.
Buyer Decision Tips
Buyer Tip: This model supports M1, DESFire and Felica cards rather than 125 kHz EM cards. Confirm the credential technology already used at the site before ordering if existing cards need to remain in service.
Buyer Tip: The DS-K1T673TDWX uses a 12 VDC to 24 VDC power input rather than standard PoE on the base model. If PoE is required, verify the correct PoE variant rather than assuming network power is supported by this exact model.
Key Features & Technical Specifications
| Product Type |
7-inch face recognition access-control terminal. |
| Model |
DS-K1T673TDWX. |
| Operating System |
Linux. |
| Display |
7-inch touchscreen. |
| Camera |
2 MP dual-lens wide-angle camera. |
| Camera Field of View |
75.5° horizontal, 41.5° vertical and 87° diagonal. |
| Face Recognition Distance |
Approximately 0.3 to 3 m. |
| Face Recognition Speed |
Less than 0.2 seconds per person. |
| Face Recognition Accuracy |
≥99% stated by Hikvision. |
| Multi-Person Recognition |
Up to 5 people simultaneously in supported operation. |
| Face Capacity |
100,000. |
| Card Capacity |
500,000. |
| Event Capacity |
150,000. |
| Fingerprint Capacity |
Up to 10,000 with supported fingerprint module. |
| Card Types |
M1, DESFire and Felica. |
| Card Reading Distance |
Approximately 0 to 3 cm. |
| Card Reading Time |
Less than 1 second. |
| Face Anti-Spoofing |
Supported. |
| Face Mask Detection |
Supported. |
| Wired Network |
10/100/1000 Mbps self-adaptive Ethernet. |
| Wi-Fi |
2.4 GHz IEEE 802.11b/g/n. |
| Network Protocol Support |
TCP/IP with IPv4 and IPv6, ISAPI and ISUP 5.0. |
| RS-485 |
1 interface with OSDP V2.1.7 support. |
| Wiegand |
1 interface with customisable Wiegand parameters. |
| Lock Output |
1. |
| Exit Button Input |
1. |
| Door Contact Input |
1. |
| Alarm Input |
2. |
| Alarm Output |
1. |
| Tamper Input |
1. |
| USB |
1 interface for supported modules. |
| Audio Output |
1 × 3.5 mm interface. |
| Two-Way Audio |
Supported. |
| Power Supply |
12 VDC to 24 VDC, 2 A. |
| Protection Rating |
IP65. |
| Operating Temperature |
-30°C to 60°C. |
| Operating Humidity |
0% to 90%, non-condensing. |
| Dimensions |
Approximately 110.5 × 209.2 × 24 mm. |
| Net Weight |
Less than 0.57 kg. |
Ideal Use Cases
Corporate Offices
Fast face recognition and high credential capacity suit busy staff entrances and controlled office areas.
Schools & Campuses
Large face and card databases support high user numbers across educational and institutional environments.
Factories & Warehouses
Biometric authentication, IP65 protection and attendance functions suit workforce access at commercial and industrial sites.
Residential Developments
Face and card access can support shared residential entrances where large user populations need convenient authentication.
High-Traffic Entry Points
Sub-0.2-second face recognition and multi-person detection suit entrances where rapid throughput is important.
Choosing the Right Model
- Choose the DS-K1T673TDWX if: You need a 7-inch face-recognition terminal with very high face and card capacity, Wi-Fi and Gigabit Ethernet connectivity.
- Choose a simpler card terminal if: Biometric face recognition and large-scale face storage are unnecessary for the project.
- Choose a compatible PoE variant if: Network-delivered power is a requirement, as the base DS-K1T673TDWX is specified for 12 VDC to 24 VDC power.
- Confirm card technology if: Existing credentials are already deployed, because this model supports M1, DESFire and Felica rather than 125 kHz EM cards.
FAQs
- What authentication methods does the Hikvision DS-K1T673TDWX support?
The Hikvision DS-K1T673TDWX supports face recognition and card authentication using M1, DESFire and Felica cards. The platform also supports configurable authentication workflows and is designed for access-control environments where fast face recognition is required. Face recognition operates from approximately 0.3 to 3 metres, with Hikvision specifying recognition in less than 0.2 seconds per person and an accuracy rate of at least 99%.
- How many faces and cards can the DS-K1T673TDWX store?
The DS-K1T673TDWX supports up to 100,000 face records, 500,000 cards and 150,000 access events. Hikvision also lists support for up to 10,000 fingerprints when the optional fingerprint module is used. These capacities make the terminal suitable for large commercial, institutional and enterprise deployments with substantial user databases.
- Does the DS-K1T673TDWX have Wi-Fi and Gigabit Ethernet?
Yes. The terminal supports 2.4 GHz Wi-Fi using IEEE 802.11b/g/n and also includes a 10/100/1000 Mbps self-adaptive wired network interface. This gives installers flexibility to use a wired Gigabit network connection where available or 2.4 GHz wireless networking in compatible environments.
- What camera system does the DS-K1T673TDWX use for face recognition?
The DS-K1T673TDWX uses a 2 MP dual-lens camera system with a wide-angle field of view. Hikvision specifies approximately 75.5° horizontal, 41.5° vertical and 87° diagonal coverage. The terminal supports single-person recognition as well as recognition of multiple people, with up to five people supported simultaneously in compatible operation.
- Can the DS-K1T673TDWX be installed outdoors?
Yes. The DS-K1T673TDWX is rated IP65 and is specified to operate from -30°C to 60°C with working humidity from 0% to 90% non-condensing. For Security Wholesalers installations, the mounting surface, cable entry, lock wiring and network or power connection should still be designed so the completed installation maintains the required environmental protection.
- What access-control interfaces does the DS-K1T673TDWX provide?
The terminal provides one lock output, one exit-button input, one door-contact input, two alarm inputs, one alarm output, one RS-485 interface with OSDP support, one Wiegand interface, one USB interface for supported modules and one 3.5 mm audio output. It also supports two-way audio, allowing it to serve as a comprehensive door-side access-control terminal.
