Product SKU: DS-K1T502DBWX-E1
Product Overview

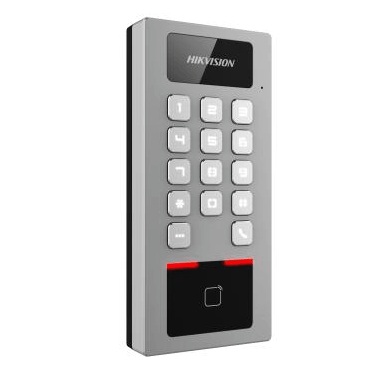

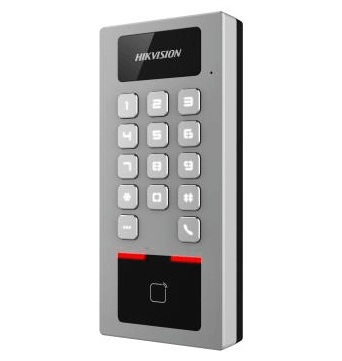

The Hikvision DS-K1T502DBWX-E1 is a Pro Series network access-control terminal designed for commercial and enterprise entrances requiring card, PIN and mobile credential authentication with flexible network and power options. The terminal supports M1 and DESFire cards, Bluetooth-based mobile access and PIN authentication, while built-in Wi-Fi and 10/100 Mbps Ethernet provide wired or wireless connectivity. The E1 version adds IEEE 802.3at PoE and local support for two lock-control outputs, helping simplify installations where network cabling is already available. RS-485 and Wiegand interfaces support compatible readers and access-control integrations, while Hik-Connect provides supported remote management and door-control functions. IP65 weather resistance and IK09 impact protection further suit appropriately installed indoor and outdoor access points.
Key Capabilities
M1 & DESFire Card Authentication
The built-in reader supports M1 and DESFire credentials, allowing the terminal to be used in compatible 13.56 MHz card-based access-control systems.
PIN & Bluetooth Access
PIN authentication and Bluetooth-based mobile access provide additional credential methods beyond physical cards for supported single-factor and multi-factor workflows.
IEEE 802.3at PoE
The E1 variant supports PoE as well as 12 VDC to 24 VDC input, helping simplify installations by combining compatible network and power delivery over Ethernet.
Dual Lock Control
The PoE-series hardware provides two lock-control outputs, allowing the terminal to support dual-door functions in compatible system configurations.
Wi-Fi, Ethernet & Hik-Connect
2.4 GHz Wi-Fi, wired Ethernet and Hik-Connect support provide flexible network connectivity and remote access-control management options.
IP65 & IK09 Protection
The rugged zinc-alloy housing combines IP65 weather resistance with IK09 impact protection for appropriately installed commercial and exterior access points.
Best For
- Commercial Entrances: Card, PIN and Bluetooth authentication suit offices, warehouses, retail premises and controlled staff areas.
- Dual-Door Applications: The E1 PoE version adds a second lock-control output for supported two-door configurations.
- PoE Installations: IEEE 802.3at support can reduce local power cabling where a suitable PoE network is available.
- Outdoor Access Points: IP65 and IK09 protection suit appropriately installed exterior entrances exposed to weather and physical contact.
- Large Credential Databases: The DS-K1T502 platform supports up to 100,000 cards and 300,000 access events.
Why Choose the DS-K1T502DBWX-E1
The DS-K1T502DBWX-E1 combines access-control processing, card reading, keypad authentication, Bluetooth, Wi-Fi and PoE in one compact terminal. Compared with a basic card reader, it includes its own access controller and provides direct lock, door contact, alarm and exit-button interfaces, reducing the need for separate devices in suitable installations. The E1 version further adds PoE and second-lock support, while Hik-Connect enables supported remote door-control functions. Available through Security Wholesalers, it is particularly well suited to commercial entrances where flexible credentials, robust construction and simplified network-powered installation are required.
Buyer Decision Tips
Buyer Tip: The DS-K1T502DBWX-E1 supports M1 and DESFire cards rather than 125 kHz EM cards. Check the existing credential technology before ordering if the site already has cards in circulation.
Buyer Tip: The E1 model supports PoE and two local lock outputs, but the complete door design still needs compatible locks, exit devices, door contacts and appropriate fail-safe or fail-secure configuration. Confirm the full door hardware and fire-egress requirements before installation.
Key Features & Technical Specifications
| Product Type |
Pro Series network access-control terminal. |
| Model |
DS-K1T502DBWX-E1. |
| Authentication Methods |
M1 card, DESFire card, PIN and Bluetooth in supported configurations. |
| Card Capacity |
Up to 100,000 cards on the DS-K1T502 platform. |
| Event Capacity |
Up to 300,000 events. |
| Card Reading Distance |
Approximately 0 to 3 cm. |
| Built-In Access Controller |
Supported. |
| Wired Network |
1 × RJ45 10/100 Mbps self-adaptive Ethernet interface. |
| Wi-Fi |
2.4 GHz, IEEE 802.11b/g/n. |
| Bluetooth |
Supported for compatible mobile access. |
| Lock Control |
2 outputs on E1 PoE model. |
| Exit Button Input |
1. |
| Door Contact Input |
1. |
| Alarm Input |
2. |
| Alarm Output |
1. |
| Tamper |
1. |
| RS-485 |
1 × half-duplex Hikvision RS-485 interface. |
| Wiegand |
1 × Wiegand interface supporting Hik 26-bit and Hik 34-bit formats. |
| SD Card Slot |
1. |
| Hik-Connect |
Supported. |
| AP Mode |
Supported. |
| Power Supply |
IEEE 802.3at PoE or 12 VDC to 24 VDC, 1 A. |
| Maximum Power Consumption |
≤24 W on current E1 specification. |
| Protection Rating |
IP65. |
| Impact Rating |
IK09. |
| Housing |
Zinc-alloy construction. |
| Operating Temperature |
-40°C to 65°C. |
| Dimensions |
Approximately 177 × 81 × 27.5 mm for the PoE-series housing. |
Ideal Use Cases
Office Entrances
Card, PIN and Bluetooth access provide flexible authentication for staff and controlled office areas.
Warehouses & Industrial Sites
IP65 and IK09 protection suit appropriately installed access points where durability and environmental resistance are important.
Dual-Door Entry Points
The E1 PoE version provides two lock-control outputs for supported dual-door access-control configurations.
PoE Access-Control Deployments
IEEE 802.3at PoE can simplify installation where suitable network cabling and PoE switching are already available.
Large Commercial User Databases
Support for up to 100,000 cards and 300,000 events suits larger staff populations and longer access-event histories.
Choosing the Right Model
- Choose the DS-K1T502DBWX-E1 if: You need M1/DESFire card, PIN and Bluetooth authentication together with Wi-Fi, PoE and built-in access control.
- Choose the E1 version if: PoE or the additional local lock-control output is important to the installation.
- Choose an EM-compatible model if: The site already uses 125 kHz EM credentials, because this model is designed around M1 and DESFire cards.
- Choose a QR-capable variant if: Temporary visitor QR codes or QR-based authentication are required, as QR functionality is designated separately within the DS-K1T502 family.
FAQs
- What authentication methods does the Hikvision DS-K1T502DBWX-E1 support?
The Hikvision DS-K1T502DBWX-E1 supports M1 and DESFire cards, PIN authentication and Bluetooth-based mobile access in supported configurations. The terminal can therefore be used for card-only, PIN-based and supported multi-factor access workflows. Its built-in access controller also allows the unit to operate as more than a basic card reader at the door.
- Does the DS-K1T502DBWX-E1 support PoE?
Yes. The E1 designation identifies the PoE version of the DS-K1T502 series. Hikvision specifies IEEE 802.3at PoE support as well as 12 VDC to 24 VDC input. This can simplify installation by allowing compatible deployments to deliver network connectivity and power through the Ethernet connection instead of requiring a separate local power supply.
- Can the DS-K1T502DBWX-E1 control two doors?
Yes. Hikvision’s current DS-K1T502 series firmware documentation states that the PoE model adds local control for a second door. The E1 specification lists two lock-control outputs, one exit-button input, one door-contact input, two alarm inputs and one alarm output. The final door configuration should still be designed around the controller, lock hardware and required fail-safe or fail-secure operation.
- What network connections does the DS-K1T502DBWX-E1 support?
The terminal provides a 10/100 Mbps self-adaptive RJ45 Ethernet interface and 2.4 GHz 802.11b/g/n Wi-Fi. Bluetooth is also supported for compatible mobile-access functions. For peripheral and controller integration, the terminal provides RS-485 and Wiegand interfaces, giving installers several options when connecting external readers or supported access-control equipment.
- Can the DS-K1T502DBWX-E1 be installed outdoors?
Yes. The DS-K1T502 series housing is specified with IP65 weather resistance and IK09 impact protection, and the E1 model operates from -40°C to 65°C. For Security Wholesalers installations, the mounting surface, cable entry, lock wiring and power or network connection should still be designed so the completed installation maintains the required environmental protection.
- How many cards and events can the DS-K1T502DBWX-E1 store?
The DS-K1T502 platform supports up to 100,000 cards and 300,000 events. It also includes an SD card slot for local storage functions. These capacities make the terminal suitable for larger commercial and enterprise access-control deployments where a substantial credential database and long event history are required.
