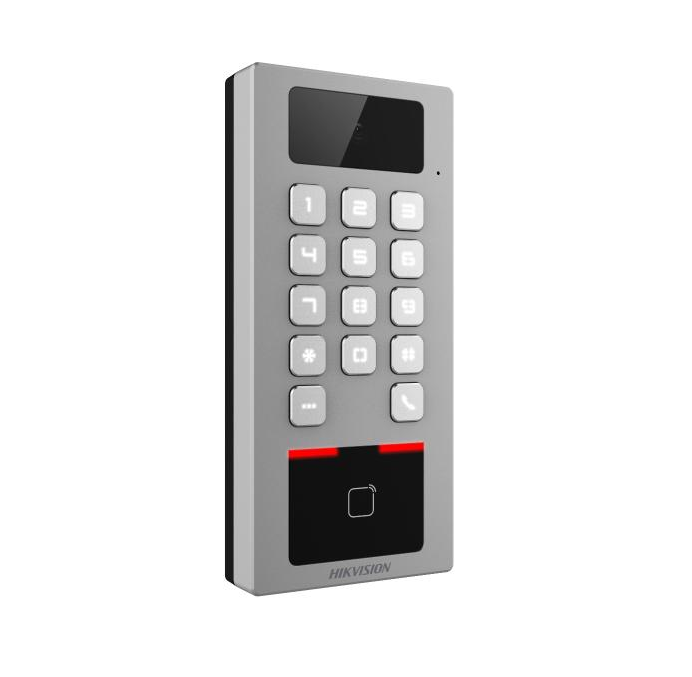

Hikvision DS-K1T502DBWX-C Access Control Terminal Keypad with Camera & Intercom

Manage access control and intercom functions in one device

IP65 & IK09 protections, as well as increased stability with zinc alloy materials
Supports multiple authentication methods (card, PIN, etc.)
Remote control via the Hik-Connect mobile app
Connects to external access controller via Wiegand protocol
Video intercom via SIP protocol. Supported SIP server: Brekeke, miniSipServer,FreePBX, Asterisk, 3CX, ELASTIX, and PBX ware
RS-485 communication for connecting external card reader and calling elevator
Supports AP mode
Press calling button to call one of the following objects: management center, indoor station, specified indoor station, or Hik-Connect App
Supports up to 256 GB SD card memory
Supports PIN settings under platform mode and local mode
Setting the priority of wired network and wireless network is available

$404.00 $410.00 inc GST +3 Year Warranty & Support


  • Operating System Linux


  • Lens1
  • Video Compression StandardH.264 and H.265
  • Resolution2 MP
  • FOVHFOV = 110°; VFOV = 81°; DFOV = 122°
  • Video StandardPAL (Default) and NTSC


  • Wired Network10 M/100 M self-adaptive
  • Wi-FiSupport


  • Network Interface1
  • Lock Control1
  • Exit Button1
  • Door Contact Input1
  • Alarm Input1
  • Alarm Output1
  • RS-4851
  • Wiegand1 (output)
  • SD Card Slot1


  • Card Capacity 100,000
  • Event Capacity 300,000


  • Card TypeM1 card;DESfire card
  • Card Reading Distance0 ~ 3 cm


  • Power Supply1 A (12 VDC to 24 VDC)
  • Power Consumption≤12 W
  • Working Temperature-40 ℃ ~ +70 ℃ (-40 °F ~ +158 °F)
  • Protective LevelIK09, IP65
  • LanguageArabic, English, French, Indonesian, Italian, Portuguese (Brazil), Russian, Spanish (Europe), Thai, Ukrainian, Vietnamese, German, Polish, Hungarian, Czech, Romanian, Bulgarian, Croatian, Serbian, Greek, Slovak, Portuguese, Dutch, and Turkish


  • Two-Way AudioSupport
  • Video IntercomSupport
  • Hik-Connect Support


Spec Sheet
