Product SKU: DS-K1T344MBWX-QRE1
Product Overview

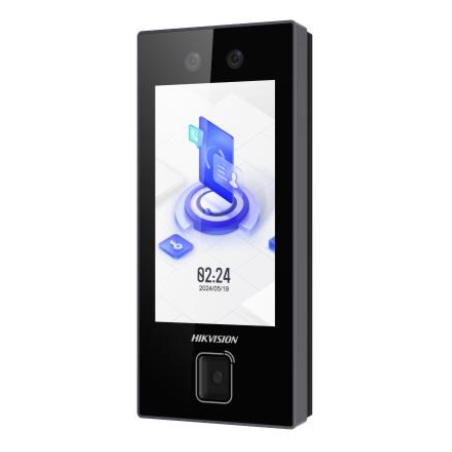

The Hikvision DS-K1T344MBWX-QRE1 is an IP65 face recognition access terminal designed for secure single-door access control using multiple authentication methods. Its 4.5-inch 480 × 854 LCD touchscreen works with a 2MP wide-angle camera system to provide face recognition from approximately 0.3 to 1.5 metres, with recognition completed in less than 0.2 seconds per user and accuracy above 99%. Users can authenticate by face, 13.56 MHz M1 card, PIN or QR code, while face anti-spoofing adds an additional layer of identity verification. The terminal supports up to 3,000 users, 3,000 faces, 3,000 cards and 150,000 events. Wired Ethernet, Wi-Fi, Bluetooth, standard PoE and 12 V DC power provide flexible installation options, while integrated lock, exit-button, door-contact, alarm, RS-485 and Wiegand interfaces support complete access-control integration.
Key Capabilities
Fast Face Recognition
Hikvision specifies face recognition in less than 0.2 seconds per user with an accuracy rate above 99%. The recognised working distance is approximately 0.3 to 1.5 metres, supporting quick touch-free entry at compatible controlled doors.
Face, M1 Card, PIN & QR Authentication
Multiple authentication methods allow users to enter using facial recognition, 13.56 MHz M1 cards, PIN codes or QR credentials. QR codes can be read through the dedicated QR module or camera according to the configured system.
4.5-Inch Touchscreen Interface
The 4.5-inch LCD touchscreen provides 480 × 854 resolution for credential entry, prompts and terminal operation. The QRE1 version does not use a separate physical call button, helping keep the front panel compact and focused on touchscreen access control.
3,000 Face & Card Capacity
The terminal stores up to 3,000 users, 3,000 facial templates and 3,000 cards, together with up to 150,000 access events. This provides suitable capacity for homes, offices and small-to-medium commercial sites.
Ethernet, Wi-Fi & Bluetooth
The terminal supports 10/100 Mbps wired Ethernet, Wi-Fi and Bluetooth, providing flexibility when integrating the unit into a supported Hikvision access-control environment. Wired Ethernet can also be used with PoE for a combined network and power connection.
Door Control & Intercom Integration
Lock control, exit-button input, door-contact input, alarm interfaces, RS-485, Wiegand and two-way audio support allow the terminal to operate as part of a complete access-control and intercom installation rather than functioning only as a standalone credential reader.
Best For
- Commercial offices: Supports fast touch-free staff entry together with cards, PINs and QR credentials.
- Apartment and residential entries: Compact wall-mounted design and multiple credential options suit controlled pedestrian entrances.
- Small-to-medium businesses: 3,000-user capacity and 150,000 event storage provide practical capacity without requiring an enterprise-scale terminal.
- Visitor access: QR-code support provides a useful alternative to issuing permanent physical cards for temporary users.
- Outdoor entry points: IP65 protection and a -30°C to 60°C operating range support appropriately installed exposed entrances.
Why Choose the DS-K1T344MBWX-QRE1
The DS-K1T344MBWX-QRE1 combines several access technologies in one compact terminal, reducing the need for separate face, card and QR readers around the same doorway. Fast facial recognition, anti-spoofing, M1 card support, PIN entry and QR authentication give administrators flexibility when assigning credentials to staff, residents and visitors. Standard PoE can simplify cabling, while Wi-Fi and Bluetooth provide additional connectivity options where appropriate. Door-lock, exit-button, door-contact, alarm and Wiegand interfaces allow the unit to participate directly in a complete access-control installation. Available through Security Wholesalers, this model is particularly useful where a weather-resistant terminal with flexible authentication methods and straightforward single-door integration is required.
Buyer Decision Tips
Buyer Tip: The DS-K1T344MBWX-QRE1 uses 13.56 MHz M1 cards. Confirm the existing credential technology before ordering, particularly if the site currently uses 125 kHz EM cards or another card format that is not interchangeable with M1.
Buyer Tip: Plan the electric lock and power arrangement together with the terminal. PoE can power the access terminal and supported door lock arrangements, but lock voltage, current, fail-safe or fail-secure behaviour, cable length and emergency-release requirements must all be checked as part of the complete door design.
Key Features & Technical Specifications
| Product |
Face recognition access-control terminal with QR, M1 card, PIN, Wi-Fi and Bluetooth. |
| Model |
DS-K1T344MBWX-QRE1. |
| Operating System |
Linux. |
| Display |
4.5-inch LCD touchscreen. |
| Display Resolution |
480 × 854. |
| Camera |
2MP wide-angle imaging system. |
| User Capacity |
3,000. |
| Face Capacity |
3,000. |
| Card Capacity |
3,000. |
| Event Capacity |
150,000. |
| Authentication Methods |
Face, M1 card, PIN and QR code. |
| Card Type |
M1 card / M1 card content. |
| Card Frequency |
13.56 MHz. |
| Face Recognition Distance |
0.3 m to 1.5 m. |
| Face Recognition Duration |
Less than 0.2 seconds per user. |
| Face Recognition Accuracy |
Above 99%. |
| Face Anti-Spoofing |
Supported. |
| QR Recognition |
Supported through QR module or camera. |
| Wired Network |
10/100 Mbps self-adaptive Ethernet. |
| Wi-Fi |
Supported. |
| Bluetooth |
Supported. |
| PoE |
IEEE 802.3at standard PoE. |
| Alternative Power |
12 V DC, 1 A. |
| Lock Control |
1. |
| Exit Button Input |
1. |
| Door Contact Input |
1. |
| Alarm Interfaces |
2 alarm inputs and 1 alarm output. |
| RS-485 |
1. |
| Wiegand |
1 input, single direction. |
| Tamper Input |
1. |
| USB |
1. |
| Two-Way Audio |
Supported with client software, indoor station and main station. |
| Protection |
IP65. |
| Operating Temperature |
-30°C to 60°C. |
| Operating Humidity |
10% to 90%, non-condensing. |
| Installation |
Wall mounting. |
| Dimensions |
165.2 × 75.7 × 25 mm. |
| Net Weight |
Approximately 0.30 kg. |
Ideal Use Cases
Office Entrances
Provide staff with fast face or M1 card entry while maintaining PIN and QR alternatives for other authorised users.
Apartment Buildings
Use multiple credential types at a controlled pedestrian entrance where residents and authorised visitors require different access methods.
Visitor Access
QR-code authentication provides a convenient credential option where issuing a permanent physical access card is unnecessary.
Small & Medium Businesses
A 3,000-user capacity and complete single-door I/O set provide practical access control for offices, clinics, warehouses and similar sites.
Outdoor Doorways
IP65 protection and the broad operating-temperature range suit correctly installed external pedestrian access points.
Choosing the Right Model
- Choose the DS-K1T344MBWX-QRE1 if: You need face, 13.56 MHz M1 card, PIN and QR authentication together with PoE, Wi-Fi, Bluetooth and IP65 protection.
- Choose an EM-card version if: The existing access-control system uses 125 kHz EM credentials rather than 13.56 MHz M1 cards.
- Choose a fingerprint model if: Fingerprint authentication is specifically required as part of the access-control policy.
- Choose a higher-capacity terminal if: The site requires substantially more than 3,000 faces or cards or more advanced enterprise access-control capacity.
FAQs
- What authentication methods does the Hikvision DS-K1T344MBWX-QRE1 support?
The DS-K1T344MBWX-QRE1 supports face recognition, 13.56 MHz M1 cards, PIN codes and QR codes. QR credentials can be scanned through the dedicated QR module or camera according to the configured system. These multiple methods allow the terminal to support touch-free entry, physical card users and temporary or visitor credentials within the same access-control installation.
- How many faces and cards can the DS-K1T344MBWX-QRE1 store?
The terminal supports up to 3,000 users, 3,000 faces and 3,000 cards, with storage for up to 150,000 events. These capacities make it suitable for homes, offices and small-to-medium commercial sites where access records and several credential types need to be managed from one terminal.
- How fast is face recognition on the DS-K1T344MBWX-QRE1?
Hikvision specifies face recognition in less than 0.2 seconds per user with an accuracy rate above 99%. The recognition distance is approximately 0.3 to 1.5 metres. The terminal also supports face anti-spoofing, helping reduce the risk of unauthorised access attempts using photographs or other simple presentation attacks.
- Does the DS-K1T344MBWX-QRE1 support PoE?
Yes. The DS-K1T344MBWX-QRE1 supports standard PoE using IEEE 802.3at as well as 12 V DC power. Hikvision also specifies that PoE can power the terminal and the connected door lock in a supported installation. The complete power design should still be checked against the electric lock, cable length and wider access-control requirements.
- Does the DS-K1T344MBWX-QRE1 support Wi-Fi and Bluetooth?
Yes. The terminal supports 10/100 Mbps wired Ethernet, Wi-Fi and Bluetooth. This gives installers flexibility when integrating the unit into the local network and supported Hikvision access-control environment. Wired Ethernet is still the preferred choice where a stable fixed network connection and PoE power are required at the terminal.
- Can the DS-K1T344MBWX-QRE1 work with a door lock and exit button?
Yes. The terminal provides one lock-control output, one exit-button input and one door-contact input. It also includes two alarm inputs, one alarm output, RS-485, Wiegand input, a tamper input and USB. These interfaces allow the terminal to form part of a complete single-door access-control installation when matched with the correct lock, power and door hardware.
- Is the DS-K1T344MBWX-QRE1 suitable for outdoor installation?
Yes. Hikvision specifies IP65 protection and an operating temperature range from -30°C to 60°C with 10% to 90% non-condensing humidity. The metal-frame terminal is intended for wall mounting, but the complete outdoor installation still needs suitable cable entry, sealing, power design and protection for the connected door hardware.
- Who should choose the Hikvision DS-K1T344MBWX-QRE1?
Choose the DS-K1T344MBWX-QRE1 when a single-door access point needs fast face recognition together with M1 card, PIN and QR authentication, a 4.5-inch touchscreen, PoE, Wi-Fi, Bluetooth and IP65 protection. When planning the terminal through Security Wholesalers, confirm the electric lock type, door-contact wiring, exit-button requirements and preferred network connection so the full access-control system is matched correctly.
Additional Information
Hikvision DS-K1T344MBWX-QRE1_Datasheet
