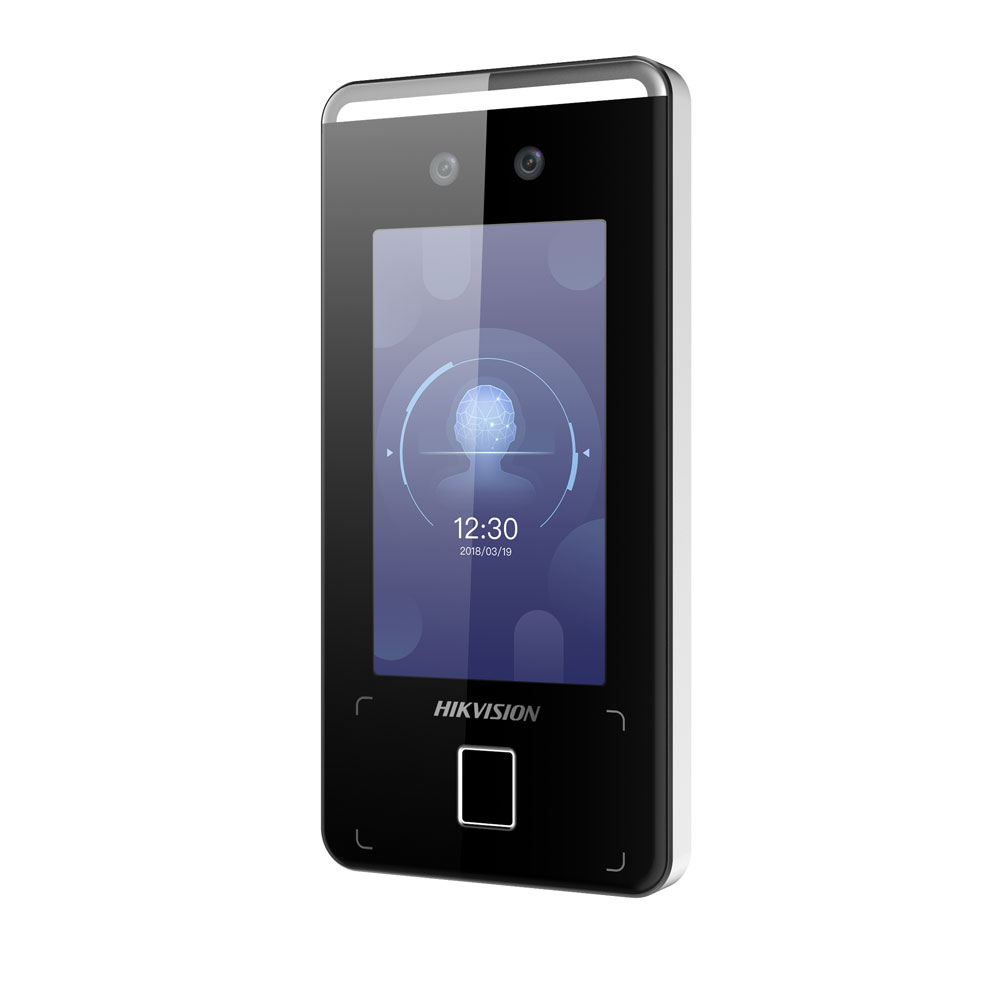

Hikvision DS-K1T341AM 4.3″ Facial Recognition Touch Screen, 2MP, Mifare, 1,500 Faces, No Fingerprint

Hikvision’s DS-K1T341 series is capable of connecting to an access control system via Wiegand to achive a touchless environment for sites such as hospitals, schools or campuses.

This device also supports medium user capacity that can act as a standalone door station as well as being able to call Hikvision’s indoor room station intercom range.

User manual

DS-K1T341AM-Face-Recognition-Terminal_Datasheet

DS-K1T341A Series Face Recognition Terminal_Quick Start Guide

$440.00 $510.00 inc GST +3 Year Warranty & Support

Features

  • 4.3″ touch screen
  • Built in Mifare CSN reader
  • 1x relay output
  • Wiegand output
  • 2x 2MP camera
  • RTSP video stream
  • Two-way video and audio to iVMS or indoor room station
  • 1,500 face capacity
  • 1,500 card capacity
  • 150,000 event capacity
  • Facial recognition accuracy rate: >99 percent
  • Facial recognition response time: <0.2 seconds
  • Facial recognition distance: 0.3-3m

Specifications

  • Screen resolution: 430 x 800
  • Power input: 12V DC, 2A
  • Outputs: 1x relay and Wiegand
  • Wiegand: 26 or 34-bit
  • Power consumption: Max 24W
  • Weather rating: IP65
  • Field of view: 108 degrees H, 59 degrees V
  • Video stream: 1080p at 30fps, 720p at 30fps
  • Video resolution: 1920 x 1080p, 720p
  • Sub stream resolution: 704 x 576p
  • Codec: H.264
  • Network: 10/100/1000 Mbps self-adaptive Ethernet

SKU: DS-K1T341AM Categories: ,
System Parameters
Card Reading Frequency: Mifare Card (DS-K1T105M/M-C): 13.56MHz
Valid Card/ Swiping Record: 100,000 Cards and 300,000 Swiping Card Records
Operation System: Linux
Storage: 256M Storage
Card Reading Mode: Supports Mifare card reading, including card No. reading & writing function (DS-K1T105M/M-C)
Built-in Micro SD Card: Max.32G
Camera: 2MP
Processor: ≥1GHz, 32 Bit High-performance Processor


Device Interfaces
Accessible Card Reader: Card Reader
Communication Mode: TCP/IP, Wi-Fi, RS-485, and Wigand 26/34 (under the card reader mode only)
Output Interface: Lock Relay × 1, Alarm Relay × 1
Transmission Rate: TCP/IP, WIFI: 10/100Mbps Self-adaptive,
RS-485: 19200 bps-N-8-1
Input Interface: Tamper Alarm × 1, Exit Button × 1, Door Sensor × 1, Alarm Input × 2


General
LCD Screen: 320×240 LCD-TFT Display Screen
Working Current: 500mA ( without Locks)
Key Board: Keyboard (Back light)
Power Supply: 12VDC
Audio: Loudspeaker
LED Indicator: Power/Status
Certification: CE, FCC
Working Humidity: 10% to 90% (Non-Condensing)
Working Temperature : -20°C to +65°C (-4°F to +149°F)
Dimensions (L×W×H): 122mm × 82mm × 23mm (4.8” × 3.2” × 0.9″)
Weight: 280g (9.88lb)
