Product Overview

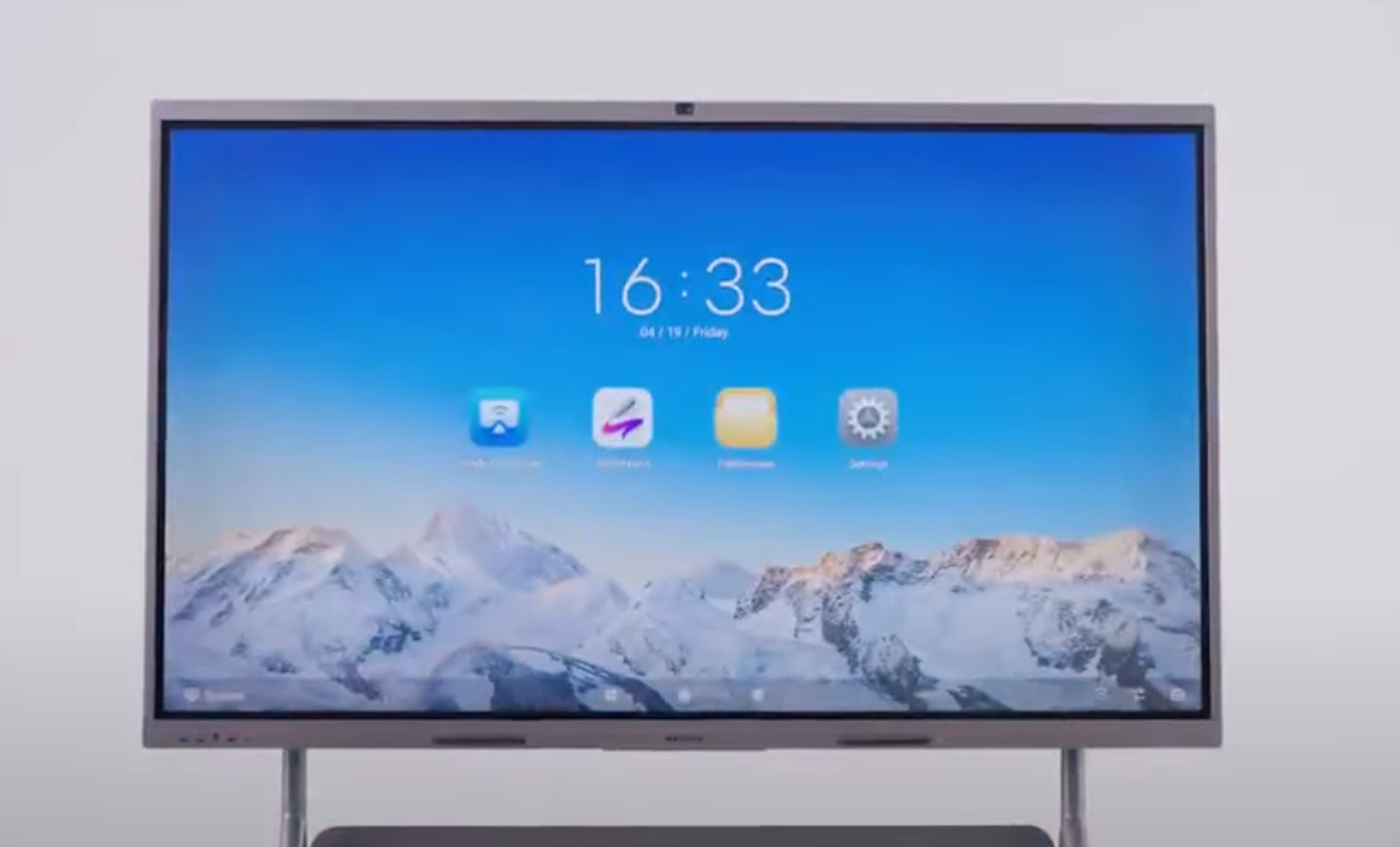

Built for conference rooms, training centres, and education environments that demand a high-performance collaborative display, the Hikvision DS-D5C86RB/B is an 86-inch 4K interactive flat panel with a fully integrated camera and microphone array. Featuring a UHD 4K resolution of 3840 x 2160 across a DLED-backlit panel, it delivers 400 cd/m² brightness and a 5000:1 contrast ratio with 10-bit colour depth covering over 1 billion colours. The infrared touch screen supports up to 50-point simultaneous multi-touch with a response time of 2 ms or less, making it suitable for active annotation, whiteboarding, and live collaboration. It runs Android 13.0 natively and supports an optional Windows OPS module, allowing video conferencing software and productivity applications to run side by side. A built-in network switch chip removes the need for an external switch, simplifying installation in boardrooms and classrooms alike. Note that this product carries a 6-8 week lead time.
Key Capabilities
UHD 4K Display with 10-Bit Colour
The 3840 x 2160 DLED panel renders over 1 billion colours at 10-bit depth, covering 72% of the NTSC colour gamut. At 400 cd/m² and a 5000:1 contrast ratio, content remains sharp and readable in well-lit boardrooms or classrooms without washing out.
50-Point Infrared Multi-Touch
Infrared touch detection supports up to 50 simultaneous touch points with a response time of 2 ms or less. Multiple participants can write, annotate, or manipulate content at the same time, making it practical for group workshops, lessons, and live data review sessions.
Dual OS: Android 13 and Optional Windows
Android 13.0 runs natively on the panel, while an optional OPS module adds a full Windows environment. Video conferencing platforms and productivity applications are recommended to run under Windows, giving installers and IT teams flexibility to configure the panel for the environment it is deployed in.
Integrated 4K Camera with 48 MP Photo Capture
The built-in camera captures video up to 4K resolution and supports 48 MP still images with a wide field of view and minimal distortion. This removes the need for a separate webcam in conference room deployments and keeps the installation clean and cable-free at the screen itself.
8-Array Microphone with 12 m Pickup Range
The omni-directional 8-array microphone captures audio from up to 12 metres with built-in echo reduction and smart noise cancellation. This supports clear voice pickup across large meeting rooms and training spaces without requiring a separate speakerphone or external audio device on the table.
Built-In Network Switch, Wi-Fi, Bluetooth 5.1 and NFC
An integrated network switch chip eliminates the need for a separate switch at the installation point. Dual-band Wi-Fi (2.4 GHz and 5 GHz), Bluetooth 5.1, and NFC for Android screen mirroring provide flexible wireless connectivity for participants without requiring cables to the display.
Best For
- Corporate Boardrooms: The integrated 4K camera, 8-array microphone with 12 m pickup range, and dual OS support make this panel a self-contained video conferencing solution without additional peripherals.
- Training Centres and Classrooms: 50-point multi-touch allows multiple participants to interact simultaneously, and the 86-inch format provides a large shared canvas for presentations and exercises.
- Flexible AV Environments Needing Dual OS: Sites that need Android for signage or apps and Windows for full desktop software can switch between both systems on the same panel using the optional OPS module.
- Installations Where Cabling Simplicity Matters: The built-in network switch chip removes one device from the rack or wall, and dual-band Wi-Fi means participant devices can connect wirelessly without running additional data cabling to the display.
- Prolonged-Use Environments: Blue light protection and intelligent temperature control make the DS-D5C86RB/B appropriate for classrooms and offices where the panel runs for extended periods throughout the day.
Why Choose the DS-D5C86RB/B
The DS-D5C86RB/B brings together hardware that would otherwise require separate procurement: an 86-inch 4K panel, a 4K video camera, a noise-cancelling 8-array microphone with 12 m range, a built-in network switch, and dual operating system support. Cheaper interactive displays in this size class typically require an external webcam, a dedicated speakerphone, and an additional network switch to achieve similar functionality – each adding cost, cabling, and points of failure. The EDLA certification confirms the Android 13 environment meets Google’s enterprise standards for app compatibility and security. The 10-bit colour depth and 5000:1 contrast ratio also position this panel above standard commercial displays often used in collaboration settings. Available through Security Wholesalers, the DS-D5C86RB/B is suited to buyers specifying a complete, low-clutter interactive solution for a single installation point. Note the 6-8 week lead time when planning project timelines.
Buyer Decision Tips
Windows OPS Module: The DS-D5C86RB/B runs Android 13 natively but the Windows operating system requires the optional OPS module, which is not included by default. If video conferencing platforms such as Teams or Zoom running under Windows are a core requirement, confirm the OPS module is included in your order before purchase. The panel is described as supporting this configuration, but buyers should verify OPS availability with their supplier at the time of order.
Installation and Room Sizing: At 1960.5 mm wide, 1173.7 mm tall, and 65.13 kg, the DS-D5C86RB/B requires a suitably rated wall mount or floor stand and at least 2 people for safe installation. Confirm your mounting solution’s load rating before delivery, and factor in clearance for ventilation given the panel’s intelligent temperature control relies on adequate airflow around the unit.
Key Features & Technical Specifications
| Model |
DS-D5C86RB/B |
| Screen Size |
86 inches |
| Display Resolution |
3840 x 2160 (UHD 4K) |
| Backlight Type |
DLED |
| Brightness |
400 cd/m² |
| Contrast Ratio |
5000:1 |
| Colour Depth |
10-bit (1 billion+ colours) |
| Colour Gamut |
72% NTSC |
| Touch Technology |
Infrared |
| Multi-Touch Points |
Up to 50 simultaneous points |
| Touch Response Time |
2 ms or less |
| Operating System |
Android 13.0; optional Windows via OPS module |
| Built-In Camera |
8 MP video (4K), 48 MP photo, wide field of view |
| Microphone |
8-array omni-directional, echo reduction, smart noise cancellation, up to 12 m pickup |
| Wireless Connectivity |
Wi-Fi 2.4 GHz and 5 GHz, Bluetooth 5.1, NFC (Android screen mirroring) |
| Video and Display Inputs |
HDMI, VGA, DisplayPort, USB |
| Built-In Network Switch |
Yes – integrated chip, eliminates external switch |
| Certification |
EDLA (Enterprise Device Licensing Agreement) |
| Dimensions (W x H x D) |
1960.5 mm x 1173.7 mm x 82.5 mm |
| Net Weight |
65.13 kg |
| Power Supply |
100-240 VAC, 50/60 Hz |
| Operating Temperature |
0°C to 40°C |
| Operating Humidity |
10% to 90% RH |
Ideal Use Cases
Corporate Boardrooms
The integrated 4K camera and 8-array microphone with 12 m pickup range support video conferencing from a single fixed installation point, removing the need for a separate webcam, USB speakerphone, or conference bar on the table.
Classrooms and Lecture Theatres
50-point multi-touch and the 86-inch display surface allow teachers and students to interact with the same content simultaneously. Blue light protection and intelligent temperature control support all-day use in continuous learning environments.
Training Rooms and Workshop Spaces
The dual OS capability allows trainers to run Android-based content delivery alongside Windows productivity and presentation tools on the same panel, switching between environments without changing devices or disconnecting peripherals.
Huddle Rooms and Collaboration Zones
NFC screen mirroring for Android devices and dual-band Wi-Fi allow participants to share content from their own phones or laptops without requiring HDMI cables. The built-in network switch chip also reduces the cabling footprint in compact room setups.
Government and Enterprise Meeting Facilities
EDLA certification confirms the Android 13 environment meets Google’s enterprise standards for app compatibility and security policy enforcement, making the DS-D5C86RB/B suitable for managed device environments with strict IT governance requirements.
Choosing the Right Model
- Choose this model if: You need an all-in-one 86-inch interactive display with a built-in 4K camera, 8-array microphone capable of capturing audio across 12 metres, dual OS support, and an integrated network switch in a single unit – particularly for boardrooms, classrooms, or training rooms where reducing peripheral count is a priority.
- Choose a different model if: You need a smaller screen format for a tight installation space, require an outdoor or high-ambient-light rated display, or need Windows out of the box without the additional OPS module. A standard commercial display with a separately sourced conferencing bar may also suit environments where the camera and microphone specifications need to be independently specified or upgraded over time.
FAQs
- Does the DS-D5C86RB/B come with Windows installed?
No. The panel runs Android 13.0 natively. Windows requires the optional OPS module, which is an add-on and not included in the standard configuration. If your deployment depends on running Windows-based software such as Microsoft Teams, Zoom, or office productivity suites under Windows, confirm the OPS module is included in your order before purchasing.
- How far away can the microphone pick up voices clearly?
The built-in 8-array omni-directional microphone is rated to capture audio from up to 12 metres. It incorporates echo reduction and smart noise cancellation, which helps maintain clear audio in reflective room environments. This range is sufficient for most conference rooms and training spaces without the need for an additional table microphone or conferencing bar.
- What does EDLA certification mean for this panel?
EDLA stands for Enterprise Device Licensing Agreement and is a Google certification that confirms the Android implementation on the DS-D5C86RB/B meets enterprise-grade standards for security, app compatibility, and management. It means IT administrators can enrol the panel in Android Enterprise management and apply device policies in the same way as other certified enterprise Android devices.
- Can multiple people write on the screen at once?
Yes. The infrared touch system supports up to 50 simultaneous touch points with a response time of 2 ms or less. In practice this means multiple users can annotate, draw, or interact with content on different parts of the screen at the same time, which is useful in collaborative workshop or classroom settings.
- What connectivity does the panel offer for participant devices?
The DS-D5C86RB/B supports HDMI, VGA, DisplayPort, and USB wired connections, as well as dual-band Wi-Fi (2.4 GHz and 5 GHz), Bluetooth 5.1, and NFC for screen mirroring from Android phones. The built-in network switch chip also means the panel itself can serve as a network connection point without a separate switch being installed nearby.
- Is this panel suitable for permanent wall mounting?
Yes, but installation requires careful planning. The unit measures 1960.5 mm wide by 1173.7 mm tall and weighs 65.13 kg net. A suitably rated wall mount or floor stand is essential, and at least 2 people are needed to safely lift and position the panel. Adequate ventilation clearance around the unit is also important given the intelligent temperature control system. This product is part of the Security Wholesalers range and carries a 6-8 week lead time, so plan the installation schedule accordingly.
- Does the built-in camera support 4K video for conferencing?
Yes. The integrated camera supports video capture up to 4K resolution at 8 MP and also supports 48 MP for still photo capture. It includes a wide field of view with minimal distortion, which is practical for framing a meeting table or classroom without requiring a motorised pan or tilt mechanism. The camera is fixed in position as part of the all-in-one panel design.
