Product Overview

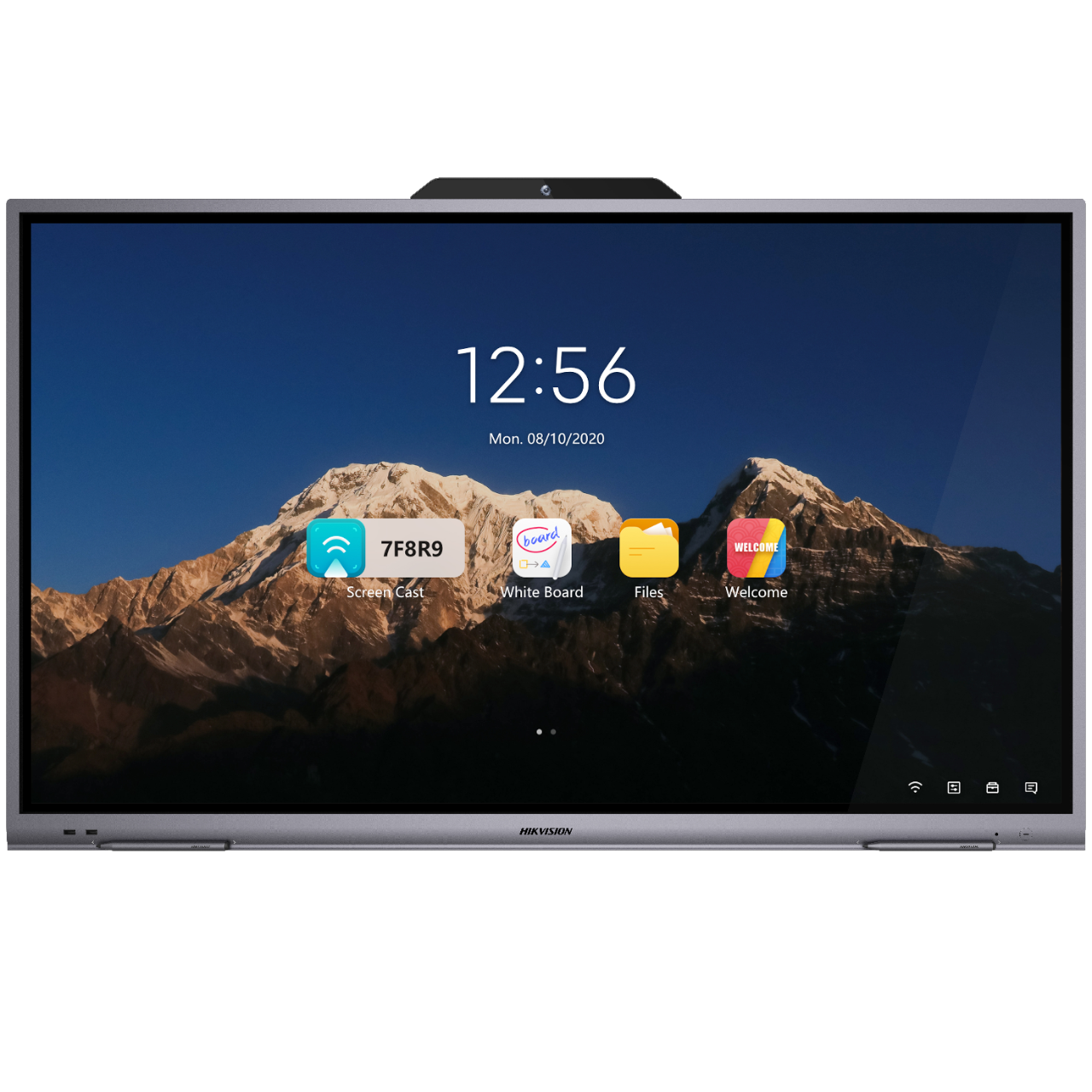

Built for boardrooms, training facilities, and collaborative workspaces, the DS-D5B65RB/B is a 65-inch 4K interactive flat panel display that combines a high-resolution touch screen with a built-in 8MP camera and 6-microphone array. Featuring a 3840 x 2160 resolution at 60Hz on a DLED-backlit panel with 10-bit colour depth and a 1200:1 contrast ratio, the display renders presentation content and video feeds with strong visual clarity. Equipped with an infrared 20-point multi-touch surface, 1mm touch precision, and a response time under 10ms, it supports simultaneous annotations from multiple users without lag. The integrated 6-microphone array captures voice at up to 8 metres with echo reduction and smart noise-cancellation, making it well suited to active video conferencing sessions. It also includes wireless screen mirroring, QR code and email-based annotation sharing, and a built-in Android 8.0 system with 32GB of onboard storage. Ideal for meeting rooms and corporate training environments where a single integrated unit replaces multiple separate AV components.
Key Capabilities
4K Interactive Display
The 65-inch DLED panel outputs 3840 x 2160 at 60Hz with 10-bit colour depth, a 1200:1 contrast ratio, and anti-glare tempered glass. Content presented on-screen remains sharp and legible from seats across a mid-sized meeting room, with 178-degree viewing angles in both directions.
20-Point Multi-Touch Annotation
The infrared touch surface supports 20 simultaneous touch points with 1mm precision and a response time under 10ms. Multiple participants can annotate, draw, or interact at once, and the built-in whiteboard application saves annotations instantly across any open interface.
8MP Built-In Camera
The integrated 8MP camera captures up to 4K resolution with a 100-degree diagonal field of view and less than 1% distortion. It supports smart switching between the Android system and an OPS module, making it a practical option for video conferencing without an external webcam.
6-Microphone Array
An omni-directional 6-array microphone layout picks up voices at up to 8 metres with echo reduction and smart noise-cancellation built in. The 32KHz sampling rate at 16-bit depth ensures voice capture is clean enough for remote participants in video conferencing sessions.
Wireless Screen Mirroring and Sharing
Laptop, desktop, smartphone, and tablet screens can be mirrored wirelessly without cables. The split-screen function supports half and quarter divisions, allowing side-by-side content comparison. Annotations can be shared instantly via QR code or email so participants keep a record without manual note-taking.
Built-In Android System and Connectivity
Running Android 8.0 with a 4-core processor, 3GB RAM, and 32GB storage, the display operates as a standalone unit without a connected PC. It includes 2 HDMI inputs, 2 RJ45 ports, 5 USB ports, Bluetooth 5.0, and RS-232 control, covering most boardroom integration requirements.
Best For
- Corporate Boardrooms: The 65-inch 4K panel, 8MP camera, and 6-mic array replace separate display, webcam, and speakerphone hardware in a single wall-mounted unit.
- Training and Education Rooms: 20-point multi-touch and built-in annotation tools let trainers and participants interact with content simultaneously on a shared screen.
- Hybrid Meeting Environments: Wireless screen mirroring and split-screen functionality support mixed on-site and remote participation without requiring additional casting hardware.
- Presentation Suites: QR code and email annotation sharing, combined with 32GB onboard storage and a built-in Android system, allow presenters to run and store sessions independently of a separate computer.
Why Choose the DS-D5B65RB/B
The DS-D5B65RB/B consolidates what typically requires multiple separate products into one integrated panel. The 8MP 4K camera with a 100-degree diagonal field of view and the omni-directional 6-microphone array with 8-metre voice capture are both built into the frame, removing the need for standalone conferencing peripherals. The 20-point infrared touch surface with 1mm precision and under-10ms response time is a step above standard interactive displays that limit simultaneous touches or introduce noticeable input lag. Optical bonding support, anti-glare tempered glass, and a 178-degree viewing angle make the panel usable in a range of lighting conditions and room orientations. With Bluetooth 5.0, dual HDMI inputs, dual RJ45 ports, and five USB ports, it integrates into existing AV setups without significant additional infrastructure. Available through Security Wholesalers, the DS-D5B65RB/B is suited to organisations that need a boardroom-ready, all-in-one interactive display with a genuine conferencing specification.
Buyer Tip: Note that this product carries a 6 to 8 week lead time. If the installation has a fixed commissioning date, factor this into procurement planning early. The display runs Android 8.0 and includes a 100 Mbps NIC, so confirm that any video conferencing software you intend to use is compatible with Android 8.0 before ordering, particularly if your organisation uses proprietary meeting room platforms.
Buyer Tip: The DS-D5B65RB/B is designed for indoor use within a 0 to 40 degrees Celsius operating range and 10 to 90% relative humidity. It is not rated for outdoor or semi-outdoor environments. At 40.36kg net weight, wall-mount installation will require a certified bracket and appropriate wall structure. Confirm your mounting surface load rating before installation.
Key Features & Technical Specifications
| Model |
DS-D5B65RB/B |
| Screen Size |
65-inch LED backlight (DLED) |
| Resolution |
3840 x 2160 @ 60Hz |
| Brightness |
350 cd/m² |
| Colour Depth |
10-bit |
| Contrast Ratio |
1200:1 (Typ.) |
| Viewing Angle |
178° (H) / 178° (V) |
| Touch Type |
Infrared, 20-point multi-touch |
| Touch Precision |
±1mm (90% or more of touch area) |
| Touch Response Time |
Less than 10ms |
| Built-In Camera |
8MP, up to 4K, 100° diagonal FOV, distortion less than 1% |
| Microphone Array |
6-array omni-directional, 8m voice distance, echo reduction, noise-cancellation |
| Loudspeaker |
2 x 16W built-in |
| Operating System |
Android 8.0 |
| Processor / Memory / Storage |
4-core A73 x2 + A53 x2 at 1.5GHz, 3GB RAM, 32GB storage |
| Connectivity |
HDMI IN x2, HDMI OUT x1, RJ45 x2 (100 Mbps), USB x5, RS-232 x1, LINE IN/OUT, Bluetooth 5.0 |
| Power Consumption |
250W maximum, 0.5W standby |
| Operating Temperature |
0°C to 40°C |
| Dimensions (W x H x D) |
1507 x 930 x 86mm |
| Net Weight |
40.36kg |
Ideal Use Cases
Corporate Boardrooms
The integrated 8MP 4K camera, 6-mic array, and 32W loudspeaker system provide a self-contained video conferencing setup that removes the need for a separate codec, camera, or conference phone on the boardroom table.
Training and Workshop Rooms
20-point multi-touch support means trainers and participants can annotate content at the same time. The built-in whiteboard application saves session content instantly, so training materials are preserved without a separate capture device.
Hybrid and Remote Collaboration
Wireless screen mirroring from laptops, phones, and tablets, combined with QR code and email annotation sharing, supports meeting formats where participants join from different locations without requiring additional casting hardware.
Presentation and Briefing Suites
The Android 8.0 system with 32GB onboard storage and dual HDMI inputs lets presenters run from the display directly or connect external sources, with split-screen capability for side-by-side content comparison during briefings.
Education and Lecture Theatres
The 8-metre microphone pickup range and 178-degree viewing angle mean the display remains audible and visible across a classroom or lecture environment, while multi-touch annotation supports interactive teaching without a separate interactive whiteboard.
Choosing the Right Model
- Choose this model if: Your meeting room or training space requires a single integrated unit with a 4K display, built-in 8MP camera, 6-microphone array, and 20-point touch in a 65-inch form factor, and your video conferencing workflow is compatible with Android 8.0.
- Choose a different model if: You need a smaller panel for a compact huddle room where a 65-inch screen would overcrowd the space, or if your organisation requires a more current Android version for platform compatibility with enterprise meeting room software.
- Choose a different model if: You need outdoor or semi-outdoor display capability, as this panel is rated for indoor use only within a 0 to 40 degrees Celsius range and carries no weather or dust ingress rating.
FAQs
- Does the DS-D5B65RB/B support video conferencing out of the box?
The display includes a built-in 8MP 4K camera with a 100-degree diagonal field of view and a 6-microphone array with echo reduction and noise-cancellation, which are the hardware components required for video conferencing. Whether it works out of the box depends on your conferencing platform being compatible with Android 8.0, which is the operating system the unit runs on. Confirm software compatibility before purchase.
- How many people can the microphone array pick up in a room?
The 6-array omni-directional microphone is rated for a voice pickup distance of 8 metres. In a standard mid-sized meeting room, this typically covers participants seated around a conference table without requiring additional microphone hardware. The built-in echo reduction and smart noise-cancellation functions help maintain audio quality when participants move around the room.
- Can multiple participants annotate the screen at the same time?
Yes. The infrared touch surface supports 20 simultaneous touch points, which means up to 20 separate inputs can be registered at the same time. The built-in whiteboard application is designed to display different annotation inputs concurrently, making it practical for group workshops or collaborative review sessions where more than one person is marking up content.
- What is the lead time for the DS-D5B65RB/B?
This product carries a 6 to 8 week lead time. It is not a stocked off-the-shelf item, so orders need to be placed well ahead of any planned installation date. Factor this into your project timeline if the display is part of a room fit-out or scheduled upgrade. Security Wholesalers can advise on current availability and estimated despatch windows at the time of enquiry.
- Does the display require a connected PC to operate?
No. The DS-D5B65RB/B includes a built-in Android 8.0 system with a 4-core processor, 3GB of RAM, and 32GB of onboard storage. It can run the built-in whiteboard application, annotation tools, and compatible Android apps without a connected PC. External devices can be connected via the dual HDMI inputs or USB ports when needed.
- What devices can mirror their screen to the display wirelessly?
The DS-D5B65RB/B supports wireless screen mirroring from laptops, desktop PCs, mobile phones, and tablets. The split-screen function allows content from multiple sources to be displayed side by side, split either in half or by quarter. This is useful for comparison presentations or when multiple source inputs need to be viewed simultaneously.
- What mounting and installation considerations apply to a 65-inch display at this weight?
The DS-D5B65RB/B has a net weight of 40.36kg and dimensions of 1507 x 930 x 86mm. Wall mounting requires a bracket rated to support the panel weight and a wall structure capable of carrying the load at the fixing points. The display should be installed by a qualified AV or electrical contractor. It operates on 100 to 240VAC at 50/60Hz, which is compatible with standard Australian power. The operating environment must be maintained between 0 and 40 degrees Celsius.
