Product Overview

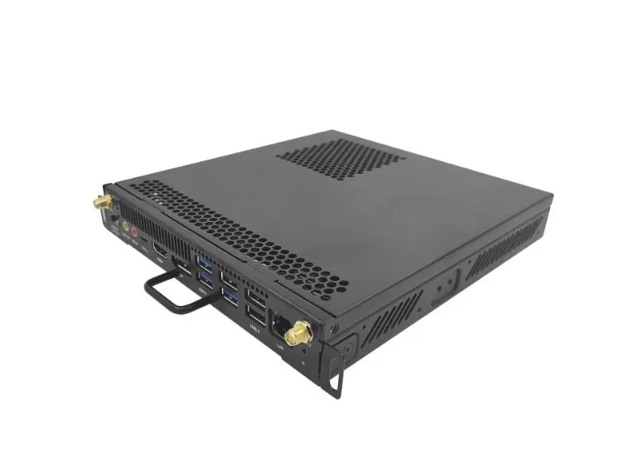

Built for integration with compatible Hikvision interactive flat panels, the DS-D5AC9C5-8S2 is an OPS (Open Pluggable Specification) computing module that transforms a display into a self-contained workstation without the need for an external desktop or mini PC. Featuring an Intel Core i5 9400H processor running at 2.5GHz with Intel UHD Graphics 630, the module supports H.265 decoding and 4K resolution output, making it suited to presentation-heavy and display-intensive environments. Equipped with 8GB of memory, a 256GB M.2 NVMe system drive for fast start-up, and dual-channel memory support, it delivers responsive everyday performance. It also integrates Wi-Fi 802.11 a/b/g/n/ac, Bluetooth 4.2, and a broad range of interface ports including USB 3.0, USB 2.0, HDMI, DisplayPort, and Type-C. This makes it well suited to meeting rooms, control rooms, classrooms, and corporate presentation environments where a tidy, cable-reduced installation is preferred.
Key Capabilities
Intel Core i5 9400H Processing
The i5 9400H running at 2.5GHz on the Intel Coffeelake architecture provides the computing headroom needed for smooth 4K content playback, video conferencing, and multi-application environments without a separate PC unit cluttering the installation.
4K Output with Intel UHD Graphics 630
Intel UHD Graphics 630 handles H.265 decoding and drives 4K resolution, ensuring content displayed on the connected flat panel is rendered with full detail. HDMI and DisplayPort outputs provide flexibility in how the signal is routed.
M.2 NVMe Fast Start-Up Storage
The 256GB M.2 NVMe system drive significantly reduces boot times compared to traditional SATA drives, keeping the display ready for use quickly in time-sensitive meeting or classroom environments. The drive format also keeps the module compact.
Comprehensive Port Selection
With 3 USB 3.0 ports, 3 USB 2.0 ports, 1 HDMI output, 1 DisplayPort output, and 1 Type-C port, the module accommodates peripherals, external storage, and display connections without requiring a hub or breakout adapter at the installation point.
Wi-Fi and Bluetooth Connectivity
Integrated Wi-Fi IEEE 802.11 a/b/g/n/ac with dual antenna support and Bluetooth 4.2 allow wireless network access and peripheral pairing without requiring additional adapters, keeping the installation clean and reducing cable clutter around the display.
Best For
- Meeting Room Displays: The i5 9400H processor and 4K-capable graphics handle video conferencing, screen sharing, and presentation software from within the flat panel itself, removing the need for a separate PC at the meeting room table.
- Classroom and Training Environments: Fast M.2 NVMe start-up and Wi-Fi 802.11ac connectivity allow the interactive display to be ready for use quickly, supporting lesson delivery and content streaming without wired network dependency.
- Control Room and Monitoring Stations: H.265 decoding support and 4K output make the module suited to environments where high-resolution content from security or operational systems needs to be rendered directly through the panel.
Why Choose the DS-D5AC9C5-8S2
The DS-D5AC9C5-8S2 stands apart from generic OPS modules through its combination of Intel Core i5 9400H processing, Intel UHD Graphics 630 with confirmed H.265 and 4K support, and a full-featured interface layout that includes USB 3.0, USB 2.0, Type-C, HDMI, and DisplayPort in a single 180 x 195 x 30mm form factor weighing approximately 1.24kg. A basic OPS unit with a Celeron or Atom-class processor would struggle with 4K content rendering or multi-application use, while this module handles both comfortably. The M.2 NVMe drive ensures snappy boot performance, and the dual-antenna Wi-Fi with Bluetooth 4.2 means wireless peripherals and network connectivity are ready out of the box. Available at Security Wholesalers, this module is a practical upgrade path for organisations looking to maximise the value of their existing Hikvision interactive flat panel infrastructure.
Buyer Tip: Before purchasing, confirm that your existing Hikvision interactive flat panel includes an OPS expansion slot and that the slot accepts the standard OPS form factor. Not all Hikvision display models include an OPS bay, and the DS-D5AC9C5-8S2 requires the slot to be present and accessible. Check your panel’s model specifications or contact your supplier to verify compatibility before ordering.
Buyer Decision Tips
Buyer Tip: Before purchasing, confirm that your existing Hikvision interactive flat panel includes an OPS expansion slot and that the slot accepts the standard OPS form factor. Not all Hikvision display models include an OPS bay, and the DS-D5AC9C5-8S2 requires the slot to be present and accessible. Check your panel’s model specifications or contact your supplier to verify compatibility before ordering.
Key Features & Technical Specifications
| Processor |
Intel Core i5 9400H |
| CPU Clock Speed |
2.5GHz |
| Platform Architecture |
Intel Coffeelake |
| PCH |
Intel Z370 |
| Graphics |
Intel UHD Graphics 630 |
| Video Support |
H.265 decoding, 4K resolution |
| Memory |
8GB, dual channel |
| Storage |
256GB M.2 NVMe |
| Network Interface |
RJ45 x1, 10/100/1000M |
| Wi-Fi |
IEEE 802.11 a/b/g/n/ac, dual antenna |
| Bluetooth |
Bluetooth 4.2 |
| USB Ports |
3x USB 3.0, 3x USB 2.0, 1x Type-C |
| Video Output |
HDMI x1, DisplayPort x1 |
| Cooling |
Single brass heatsink and single fan |
| Input Voltage |
12V-19V DC |
| Max Power Consumption |
60W |
| Standby Consumption |
0.5W |
| Working Temperature |
0°C to 40°C |
| Working Humidity |
10%-90% |
| Dimensions (W x H x D) |
180 x 195 x 30mm |
| Net Weight |
Approximately 1.24kg |
| Colour |
Black |
Ideal Use Cases
Corporate Meeting Rooms
The i5 9400H processor and Wi-Fi 802.11ac connectivity allow the interactive flat panel to operate as a standalone meeting room PC, handling video calls, screen sharing, and presentation software without a separate computer on the table.
Classrooms and Training Spaces
Fast M.2 NVMe boot times and Bluetooth 4.2 peripheral pairing make this module practical in educational environments where the display needs to be ready quickly and support wireless keyboards, mice, or audio devices.
Control Rooms and Monitoring Stations
H.265 decoding support and 4K-capable Intel UHD Graphics 630 allow the module to render high-resolution operational or security content directly through the panel, reducing the need for a dedicated display PC at each station.
Retail and Hospitality Digital Signage
The 256GB onboard storage and 4K output make the DS-D5AC9C5-8S2 suitable for driving high-resolution digital signage content locally from within the display, removing dependence on an external media player or network stream.
Choosing the Right Model
- Choose this model if: You need to convert a compatible Hikvision interactive flat panel into a self-contained computing workstation with 4K output, H.265 support, fast NVMe storage, and full wireless connectivity including Wi-Fi 802.11ac and Bluetooth 4.2, without adding an external PC.
- Choose a different model if: Your Hikvision flat panel does not have an OPS expansion slot, as the DS-D5AC9C5-8S2 cannot be used as a standalone unit and requires panel-level hardware support to function.
- Choose a different model if: Your environment requires dedicated discrete graphics or substantial additional RAM beyond 8GB for GPU-accelerated workloads, as the integrated Intel UHD Graphics 630 is designed for general display and content tasks rather than graphics-intensive computation.
FAQs
- What is an OPS module and how does it connect to a Hikvision interactive flat panel?
An OPS (Open Pluggable Specification) module is a compact self-contained PC that slides into a standardised slot built into compatible interactive flat panels. Once inserted, it draws power from the display and integrates directly with it, so the panel operates as a complete computing station without needing a separate PC connected by cable.
- Is the DS-D5AC9C5-8S2 compatible with all Hikvision interactive flat panels?
No. The module is only compatible with Hikvision interactive flat panels that include an OPS expansion slot. Not every panel in the Hikvision range includes this slot. You should verify your specific panel model supports OPS module insertion before purchasing the DS-D5AC9C5-8S2.
- What operating system does the DS-D5AC9C5-8S2 run?
The confirmed product data does not specify a pre-installed operating system. The module ships with a 256GB M.2 NVMe drive. Buyers should confirm OS requirements directly with their supplier or refer to the Hikvision product documentation for their specific panel model.
- Does the module support 4K display output?
Yes. The DS-D5AC9C5-8S2 includes Intel UHD Graphics 630 with confirmed support for H.265 decoding and 4K resolution output. Video signals can be routed through the onboard HDMI or DisplayPort interface, making it suitable for 4K panel environments.
- Can I connect wireless peripherals such as a keyboard or mouse to this module?
Yes. The module includes Bluetooth 4.2 for wireless peripheral pairing alongside Wi-Fi 802.11 a/b/g/n/ac for network connectivity. For wired peripherals, 3 USB 3.0 ports and 3 USB 2.0 ports are available, along with 1 Type-C port, providing a comprehensive range of connection options. The DS-D5AC9C5-8S2 is available through Security Wholesalers for organisations looking to expand their interactive display capabilities.
