Product Overview

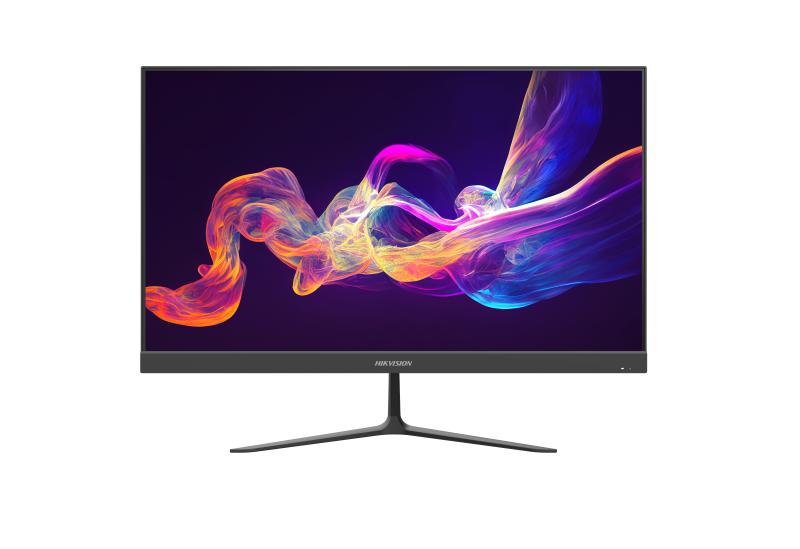

Built for operators who need a stable, purpose-built display at the security desk, the DS-D5024F2-BV2S is a 23.8-inch Full HD surveillance monitor designed for 24/7 continuous operation. Unlike consumer screens rated for intermittent use, this monitor is engineered to run uninterrupted when connected to NVRs, DVRs, and security workstations without the brightness fade or image degradation that general-purpose displays develop over extended hours. Featuring a VA panel with E-LED backlight, it delivers a contrast ratio of approximately 4000:1 alongside wide 178-degree viewing angles, so footage remains legible from multiple positions at a shared monitoring station. Equipped with both HDMI and VGA inputs, it connects directly to virtually any recorder or PC. The BV2S variant includes a built-in speaker fed by an audio input, allowing operators to monitor audio from connected recorders without a separate speaker. It is well suited to control rooms, security desks, concierge positions, and multi-monitor surveillance walls where long-hour display reliability is the priority.
Key Capabilities
24/7 Continuous Operation
This monitor is rated for round-the-clock use, making it a practical choice for control rooms and security desks that cannot afford display downtime. Consumer screens are not engineered for this duty cycle and will degrade under sustained operation.
VA Panel with High Contrast
The VA panel with E-LED backlight produces an approximate contrast ratio of 4000:1, which helps operators distinguish detail in dark or shadowed areas of a CCTV feed without straining during long monitoring shifts.
178-Degree Wide Viewing Angle
At 178 degrees both horizontally and vertically, multiple operators can view the screen simultaneously from different positions without colour shift or contrast loss, which is particularly useful at shared security desks or multi-person control rooms.
Up to 100 Hz Refresh Rate
With a refresh rate of up to 100 Hz and a 7 ms response time, the display handles motion from live CCTV feeds more smoothly than standard 60 Hz monitors, reducing blur when operators are reviewing fast-moving footage.
Dual Inputs and Built-In Speaker
HDMI and VGA inputs cover connection to modern NVRs as well as older DVRs and workstations. The BV2S variant adds an audio input with a built-in speaker, so audio from the recorder plays directly through the monitor without requiring additional hardware at the desk.
Best For
- Control Room Monitoring: Rated for 24/7 continuous operation, this monitor sustains stable brightness and image quality across extended shifts where a consumer display would degrade.
- Multi-Monitor Security Walls: The slim bezel profile and VESA mount compatibility make it straightforward to integrate into side-by-side display configurations without excessive gaps between screens.
- NVR and DVR Monitoring Stations: Dual HDMI and VGA inputs cover connection to virtually any Hikvision, HiLook, Dahua, or Uniview recorder, reducing compatibility concerns during installation.
- Reception and Concierge Desks: The 178-degree viewing angle allows multiple staff members to view live footage simultaneously from different standing or seated positions without loss of image quality.
Why Choose the DS-D5024F2-BV2S
The DS-D5024F2-BV2S is a surveillance-specific display rather than a repurposed consumer screen, and that distinction matters in operational environments. Its VA panel with a 4000:1 contrast ratio is better suited to rendering dark CCTV footage than typical IPS consumer monitors used at similar price points. The BV2S designation specifically confirms the inclusion of a built-in speaker fed by an audio input, which is not present in all variants of this series. The up-to-100 Hz refresh rate reduces motion blur on live feeds, the 7 ms response time keeps playback sharp, and the 12 V DC power supply with approximately 24 W consumption makes it an efficient choice for installations with multiple displays running simultaneously. VESA mount compatibility allows wall bracket or monitor arm installation. Available at Security Wholesalers, the DS-D5024F2-BV2S is a practical pick for integrators setting up professional monitoring stations that demand reliable, long-hour display performance.
Buyer Decision Tips
Buyer Tip: If your installation requires audio monitoring at the desk, confirm you are purchasing the BV2S variant specifically. The built-in speaker requires an audio signal from the recorder via the audio input port. Check that your NVR or DVR has an audio output before relying on this feature. If the recorder does not carry audio output, the speaker will have no signal to play regardless of the monitor’s capability.
Key Features & Technical Specifications
| Screen Size |
23.8 inches |
| Resolution |
1920 x 1080 (Full HD) |
| Panel Type |
VA with E-LED backlight |
| Brightness |
Approx. 250 cd/m2 |
| Contrast Ratio |
Approx. 4000:1 |
| Viewing Angle |
178 degrees (H) / 178 degrees (V) |
| Response Time |
Approx. 7 ms |
| Refresh Rate |
60 Hz typical, up to 100 Hz |
| Colour Depth |
16.7 million colours |
| Video Inputs |
HDMI x1, VGA x1 |
| Audio |
Audio input with built-in speaker |
| Mounting |
VESA mount compatible |
| Power Supply |
12 V DC |
| Power Consumption |
Approx. 24 W |
| Operating Mode |
24/7 continuous operation |
Ideal Use Cases
CCTV Control Rooms
The 24/7 continuous operation rating means the DS-D5024F2-BV2S can remain active at all times without the image degradation or backlight wear associated with consumer displays used in the same environment.
NVR and DVR Monitoring Desks
Dual HDMI and VGA inputs allow direct connection to a wide range of recorders. The 1920 x 1080 resolution displays multi-channel grid layouts from most NVRs without upscaling or downscaling artefacts.
Multi-Screen Surveillance Walls
The slim bezel design and VESA mount compatibility make it practical to mount multiple DS-D5024F2-BV2S units side by side on a wall bracket or monitor arm array, reducing visual gaps between screens in a tiled display setup.
Reception and Concierge Positions
The 178-degree horizontal and vertical viewing angles ensure that staff approaching the desk from different angles can still read live camera feeds clearly, avoiding the colour shift that narrower-angle panels produce when viewed off-axis.
Retail and Commercial Security Desks
The built-in speaker with audio input support allows operators at a retail security desk to receive audio from a connected recorder, consolidating the monitoring setup without needing a separate speaker unit on the desk.
Choosing the Right Model
- Choose this model if: You need a 24/7-rated Full HD display for a control room or security desk, require both HDMI and VGA connectivity, and want built-in speaker support from an audio input without adding extra hardware.
- Choose a different model if: Your installation requires a larger screen size, 4K resolution for high-density multi-channel layouts, or a touchscreen interface for VMS navigation. A larger-format professional surveillance monitor would be more appropriate for those use cases.
FAQs
- Is the DS-D5024F2-BV2S actually rated for 24/7 use, or is that just marketing language?
It is confirmed as a 24/7 continuous operation display, which means it is engineered with components and thermal management suited to uninterrupted runtime. A standard consumer monitor is typically rated for 8 to 12 hours of daily use and will experience accelerated backlight wear and image retention if left running around the clock in a control room.
- What does the BV2S suffix mean, and does every version of this monitor have a speaker?
The BV2S designation specifically indicates this variant includes a built-in speaker connected via an audio input port. Not all display variants in this series include this feature. If audio monitoring at the desk is a requirement, confirm the BV2S model number before ordering.
- Which recorders are compatible with this monitor?
Any NVR, DVR, or PC workstation with an HDMI or VGA output is compatible. This includes Hikvision, HiLook, Dahua, Uniview, and third-party recorders. The monitor does not require brand-specific pairing and will display any signal that falls within its 1920 x 1080 Full HD input range.
- Can I wall mount this monitor, and does it require a specific bracket?
Yes. The DS-D5024F2-BV2S is VESA mount compatible, which means it works with any standard VESA wall bracket or monitor arm. The VESA pattern dimensions should be verified against the bracket specifications before purchase. A desktop stand is also included in the box for desk-based installations.
- Why is the VA panel relevant for CCTV monitoring compared to an IPS panel?
VA panels produce a higher native contrast ratio, which is approximately 4000:1 on this monitor, making dark areas of a CCTV image easier to distinguish during extended viewing. IPS panels typically offer better colour accuracy but lower contrast. For surveillance footage where shadow detail and long-hour viewing comfort matter more than colour grading, VA is generally the more practical panel type.
- Where can I purchase the DS-D5024F2-BV2S and is it stocked in Australia?
The DS-D5024F2-BV2S is part of the Security Wholesalers range and is available for supply through their platform. It is a professional-grade display intended for security integrators, installers, and commercial end users setting up dedicated monitoring environments. Check current stock availability and pricing directly through the site.
Additional Information
No additional downloads available for this product.
