Product Overview

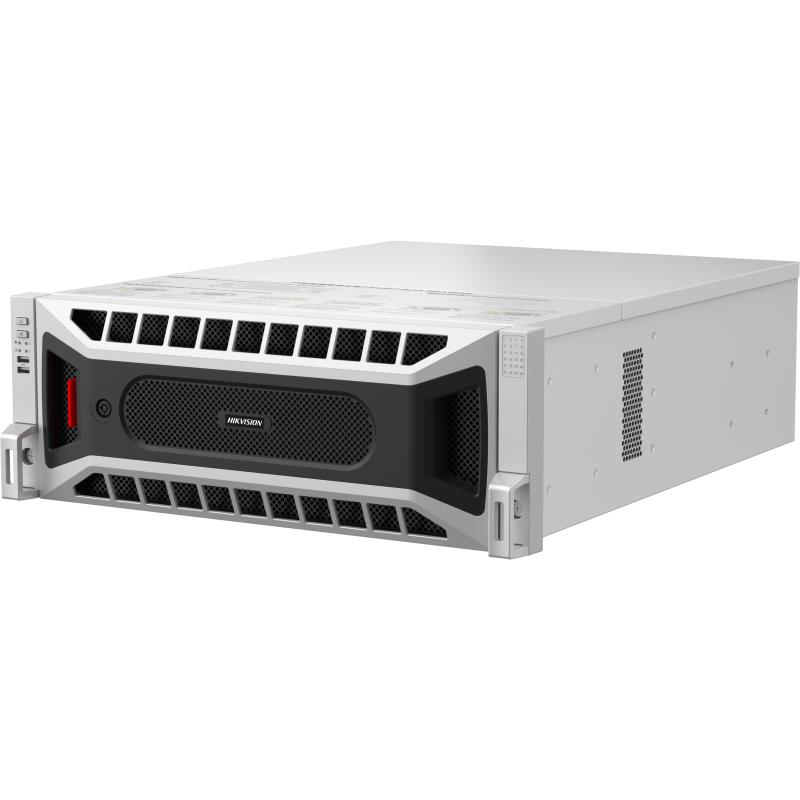

Large-scale deployments that demand both channel depth and analytical intelligence will find a purpose-built solution in the Hikvision DS-96256NXI-S24R, a flagship Ultra Series NVR engineered for mission-critical environments. Supporting up to 256 IP cameras at resolutions reaching 32MP, this recorder handles the volume and fidelity requirements of airports, transport terminals, government facilities, and smart city command centres. Equipped with AcuSense AI analytics, the DS-96256NXI-S24R delivers facial recognition across 64 face libraries storing up to 300,000 images, smart perimeter protection, video structuralization, and AcuSearch for rapid retrieval. Its 24 SATA bays support up to 480TB of internal storage, with RAID 0, 1, 5, 6, 10, and N+M hot spare protecting against data loss. A true 8K HDMI output feeds high-resolution video walls or control room displays, while 4 x 2.5Gbps Ethernet ports and dual redundant power supplies ensure continuous, high-throughput operation at enterprise scale.
Key Capabilities
256-Channel IP Camera Support
Accepts up to 256 simultaneous IP camera streams at resolutions up to 32MP, making this recorder one of the highest-capacity options available for large campus, transport, or government deployments where a single centralised recorder is required.
AcuSense AI Analytics
Facial recognition with 64 libraries and up to 300,000 stored face images, combined with perimeter protection, video structuralization, and AcuSearch, allows operators to move from reactive viewing to active detection and fast forensic retrieval across hundreds of camera feeds.
8K HDMI Video Output
HDMI 3 on the DS-96256NXI-S24R outputs at true 8K resolution, making it suitable for multi-screen video walls and high-definition control room displays where operators need to monitor dozens of camera feeds simultaneously without sacrificing image clarity.
24-Bay Storage with RAID Protection
With 24 SATA interfaces supporting up to 20TB per drive, the system reaches 480TB of total internal storage. RAID 0, 1, 5, 6, 10, and N+M hot spare configurations provide layered redundancy so footage is protected even if multiple drives fail simultaneously.
Dual Redundant Power Supplies
Two independent power supplies provide failover protection so the recorder continues operating if one PSU develops a fault. This is essential in environments where recording cannot be interrupted, such as government data centres, emergency services, or 24-hour transport hubs.
4 x 2.5Gbps Ethernet Ports
Quad 2.5 Gbps network interfaces handle the 1280 Mbps incoming bandwidth demand generated by 256 simultaneous high-resolution streams, with 1024 Mbps outgoing bandwidth available for live monitoring, remote access, and integration with external VMS platforms.
Best For
- Government and Defence Facilities: The combination of 256-channel capacity, facial recognition with 300,000-image libraries, and RAID-protected storage addresses the scale and security standards required in government and defence surveillance infrastructure.
- Transport Terminals and Airports: High foot-traffic environments with large numbers of cameras benefit from AcuSearch for fast retrieval and AcuSense perimeter protection, reducing the workload on security staff monitoring extensive camera networks.
- Smart City Command Centres: The 8K HDMI output and multiple display outputs allow operators to drive large-format video walls from a single recorder, consolidating city-wide camera feeds into one centralised monitoring point.
- University Campuses and Hospital Networks: Distributed facilities with dozens of buildings require a recorder that can unify a large camera estate under one platform while providing AI-assisted event detection to prioritise operator response.
- Industrial Parks and Data Centres: Environments where continuous recording and storage redundancy cannot be compromised will benefit from the dual redundant PSU, RAID N+M hot spare, and 480TB internal capacity.
Why Choose the DS-96256NXI-S24R
The DS-96256NXI-S24R sits at the top of the Hikvision NVR range for a reason. Very few recorders combine 256-channel capacity with AI-driven facial recognition, video structuralization, and AcuSearch in a single unit that also delivers true 8K output and 480TB of internal RAID-protected storage. A lower-channel or entry-level NVR would require multiple units, external storage arrays, and separate AI processing hardware to replicate what this recorder provides natively. The dual redundant power supplies and support for RAID N+M hot spare go beyond what most commercial-grade recorders offer, addressing the uptime and data integrity demands of critical infrastructure. For integrators and end users looking for this level of capability in the Australian market, the DS-96256NXI-S24R is available at Security Wholesalers with full datasheet documentation.
Buyer Decision Tips
Storage Planning: The DS-96256NXI-S24R supports up to 20TB per drive across 24 bays, but the RAID configuration you choose will affect usable capacity. RAID 5 sacrifices one drive for parity, RAID 6 sacrifices two, and RAID 10 halves total capacity in exchange for mirroring. Calculate your retention period, camera count, and recording resolution before committing to a RAID mode, and factor in whether you need N+M hot spare slots reserved for automatic failover. Consulting with your integrator before drive selection will prevent under-specifying storage for long-retention or high-resolution deployments.
Network Infrastructure Requirements: With an incoming bandwidth of 1280 Mbps, this recorder demands a properly segmented and managed network. The 4 x 2.5Gbps ports should be bonded or distributed across network switches rated for that throughput. Deploying 256 cameras at higher resolutions without adequate switch capacity or QoS configuration will result in dropped frames and stream instability. Ensure your network infrastructure is designed and sized for the full channel load before installation.
Key Features & Technical Specifications
| Model |
DS-96256NXI-S24R |
| Max IP Channels |
256 |
| Max Camera Resolution |
32MP |
| Max Decoding Capacity |
32 x 1080p simultaneous |
| Incoming Bandwidth |
1280 Mbps |
| Outgoing Bandwidth |
1024 Mbps |
| Video Compression |
H.265+, H.265, H.264+, H.264 |
| HDMI Output Resolution |
Up to 8K (HDMI 3); multiple HDMI outputs |
| HDD Bays |
24 x SATA interfaces |
| Max Storage Per Drive |
20TB |
| Total Internal Storage Capacity |
Up to 480TB |
| RAID Support |
RAID 0, 1, 5, 6, 10 and N+M hot spare |
| AI Analytics |
Facial recognition (64 libraries, 300,000 images), perimeter protection, video structuralization, AcuSearch |
| IP Speaker Support |
Up to 8 IP speakers |
| Network Interfaces |
4 x 2.5 Gbps Ethernet |
| USB Ports |
2 x USB 2.0 (front), 4 x USB 3.0 (rear) |
| Power Supply |
Dual redundant power supplies |
| Dimensions (W x D x H) |
447mm x 572mm x 173mm |
| Weight (without HDD) |
Up to 19kg |
| Protocol Support |
ONVIF and standard protocols |
Ideal Use Cases
Airport and Transport Terminals
Terminals with hundreds of cameras spread across terminals, gates, and car parks can consolidate onto a single DS-96256NXI-S24R. Facial recognition across 64 libraries and AcuSearch enable security teams to locate a person of interest across the full camera network within seconds.
Government and Defence Sites
The RAID N+M hot spare configuration and dual redundant power supplies meet the data integrity and uptime standards required for government and defence surveillance, where recording gaps or storage failures carry serious consequences.
Smart City Command Centres
Operators monitoring city-wide camera networks benefit from the 8K HDMI output, which drives high-resolution video walls displaying dozens of feeds at once, and from video structuralization that automatically categorises events for faster operator response.
University Campuses
A large university with cameras across lecture theatres, car parks, libraries, and residential buildings can unify its entire estate under one recorder. AcuSense perimeter protection can be configured to alert security to after-hours intrusions without requiring constant manual monitoring.
Hospitals and Health Networks
Multi-building hospital campuses with coverage across car parks, wards, and public areas require a recorder capable of sustaining continuous recording at scale. The 480TB storage capacity and RAID protection ensure long-retention archives are maintained without interruption.
Industrial Parks and Data Centres
Facilities where perimeter security and access monitoring are critical around the clock rely on the DS-96256NXI-S24R’s dual PSU failover and RAID storage to keep recording running regardless of individual component faults, supporting the uninterrupted surveillance demands of high-value sites.
Choosing the Right Model
- Choose this model if: Your deployment requires 256 IP camera channels, enterprise RAID storage with up to 480TB capacity, AI-powered facial recognition and perimeter analytics, true 8K display output, and the hardware redundancy of dual power supplies in a single recording unit.
- Choose a different model if: Your camera count is under 64 channels or your site does not need onboard facial recognition or video structuralization. A mid-range NVR with fewer bays and a lower channel count will reduce both cost and physical rack space without sacrificing the features needed for smaller deployments.
- Consider your rack space carefully: At 447mm x 572mm x 173mm and up to 19kg without drives, this unit is designed for a properly provisioned server room or control room rack. It is not suitable for a wall-mount enclosure or a compact equipment cabinet.
FAQs
- How many cameras can the DS-96256NXI-S24R support at once?
The DS-96256NXI-S24R supports up to 256 simultaneous IP camera connections at resolutions reaching 32MP per camera. The system’s 1280 Mbps incoming bandwidth is sized to handle this load, provided the network infrastructure supplying those streams is also rated accordingly.
- What RAID configurations does this NVR support?
The recorder supports RAID 0, 1, 5, 6, and 10, as well as N+M hot spare. N+M hot spare allows you to designate spare drives that automatically take over if an active drive fails, meaning the array can rebuild without manual intervention. The appropriate RAID level depends on your balance of usable capacity, redundancy, and rebuild speed requirements.
- What is the maximum storage capacity and how is it calculated?
With 24 SATA bays and a maximum of 20TB per drive, the total raw internal capacity reaches 480TB. Usable capacity will be lower depending on your RAID configuration. RAID 5 loses one drive to parity, RAID 6 loses two, and RAID 10 uses half the raw capacity for mirroring. Factor in your chosen RAID mode when calculating how much usable storage is available for your retention requirements.
- Does the DS-96256NXI-S24R support facial recognition, and how large are the face libraries?
Yes, facial recognition is a confirmed AcuSense feature on this model. It supports up to 64 facial libraries with a combined capacity of 300,000 face images. This enables large-scale deployments such as airports or government campuses to maintain separate watchlists for different zones or access categories while running matching across all connected cameras.
- What resolution does the HDMI output support and how many outputs are there?
The DS-96256NXI-S24R has multiple HDMI outputs. HDMI 3 delivers true 8K resolution, which is suited to large-format video walls or control room displays that need to present multiple camera feeds in high detail simultaneously. Other HDMI outputs support flexible display configurations for secondary monitors or operator workstations.
- What network connectivity does this NVR provide?
The unit has 4 x 2.5 Gbps Ethernet ports, providing sufficient bandwidth for 256-channel high-resolution ingestion at up to 1280 Mbps incoming. These ports can be distributed across separate network switches or configured for link aggregation depending on your network architecture and switch capabilities.
- Is the DS-96256NXI-S24R compatible with third-party IP cameras?
The recorder supports ONVIF and standard protocols, which allows integration with ONVIF-compliant cameras from third-party manufacturers. However, AcuSense AI features including facial recognition, video structuralization, and AcuSearch are dependent on cameras that support these analytics. Full feature availability is confirmed when using compatible Hikvision cameras. Security Wholesalers can assist with confirming camera compatibility for your specific project.
- What are the physical installation requirements for this unit?
The DS-96256NXI-S24R measures 447mm x 572mm x 173mm and weighs up to 19kg without hard drives installed. It is designed for rack mounting in a server room or dedicated control room enclosure. The unit requires adequate rack depth, appropriate power provisioning for its dual redundant supplies, and sufficient cooling airflow given the thermal output of 24 spinning hard drives under continuous recording load.
