Product Overview

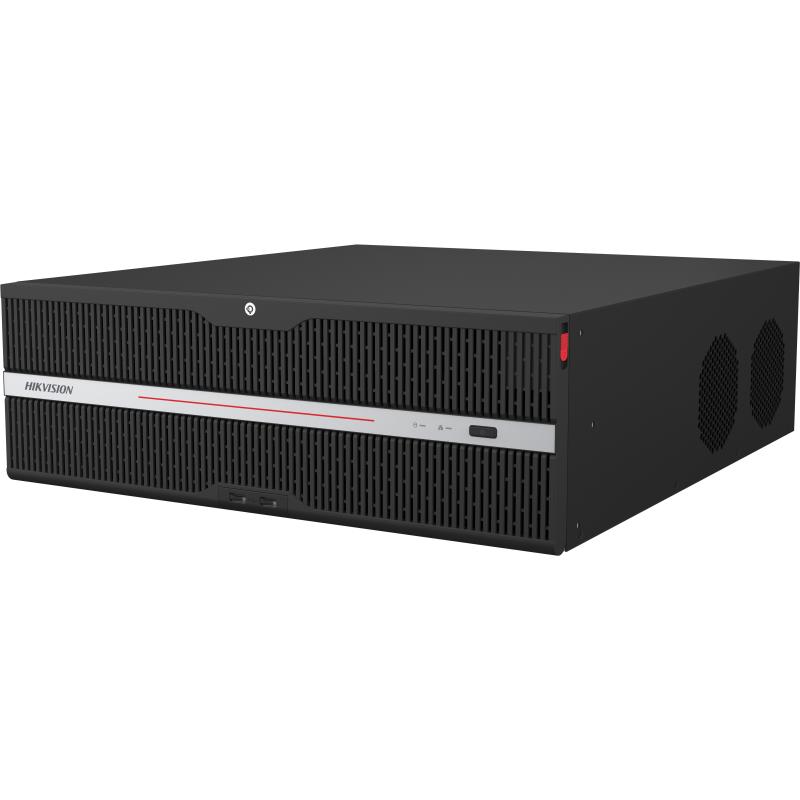

Large-scale surveillance projects across campuses, municipal networks, or critical infrastructure call for a recorder that can scale without compromise. The DS-96128NXI-S16R is a 3U rackmount NVR from Hikvision’s Ultra S-Series, built to support up to 128 IP cameras at resolutions up to 32 MP and deliver video output up to 8K via its dedicated HDMI3 port. Featuring 16 SATA bays with support for RAID 0, 1, 5, 6, and 10 including N+M hot spare configurations, it is engineered for environments where storage integrity and continuous uptime are non-negotiable. It also integrates on-board AI analytics including facial recognition, perimeter protection, and video structuralization, with AcuSearch support for fast content-based retrieval when cameras supply the required analytics data. Redundant power supply support and a wide operating temperature range further suit it to server room and data centre rack deployments where reliability is the primary design requirement.
Key Capabilities
128-Channel IP Camera Support
Connects up to 128 IP cameras at resolutions up to 32 MP, with incoming bandwidth of 1280 Mbps (640 Mbps in RAID mode). Suited to large multi-building or multi-zone deployments that would exceed the capacity of standard enterprise recorders.
8K Video Output
HDMI3 outputs up to 8K resolution, while HDMI1 and HDMI2 support up to 4K. This enables high-resolution monitoring walls or operator stations to display multiple streams at full detail without downscaling to a lower common output.
RAID Storage with N+M Hot Spare
Supports RAID 0, 1, 5, 6, and 10 across 16 SATA bays, each accepting drives up to 20 TB for up to 320 TB raw capacity. N+M hot spare means designated standby drives replace failed units automatically, reducing the risk of data loss in mission-critical environments.
On-Board and Camera-Side AI Analytics
Runs facial recognition, perimeter protection, and video structuralization directly on the NVR. When paired with compatible cameras, it also supports AcuSearch, ANPR, people counting, and motion detection 2.0, enabling fast event-based search without manual scrubbing.
Redundant Power Supply
Optional redundant power supply support allows the unit to remain operational if one power path fails. Combined with RAID data protection, this addresses the two most common failure points in enterprise surveillance infrastructure.
High-Density Face Library
Stores up to 64 separate face libraries containing up to 300,000 face images in total (within 10 GB). This supports large-scale access monitoring, visitor differentiation, and watchlist matching across campuses, gated communities, or public facilities.
Best For
- University and Corporate Campuses: The 128-channel capacity and facial recognition support centralised control across multiple buildings, car parks, and entry points from a single 3U rackmount unit.
- Critical Infrastructure Facilities: RAID storage with N+M hot spare and redundant power supply make it appropriate for power stations, water treatment plants, and telecom facilities where recording continuity cannot be interrupted.
- City and Municipal Surveillance Networks: AcuSearch and perimeter protection analytics allow operators to rapidly retrieve relevant footage and detect intrusion events across distributed public-area camera deployments.
- Large Retail and Mixed-Use Complexes: People counting, video structuralization, and loitering detection (via compatible cameras) allow security teams to monitor multiple floors and zones with filtered, event-driven alerts rather than constant manual review.
- Gated Residential Estates: The face library capacity of up to 300,000 images supports resident recognition and unknown visitor flagging across high-density residential environments with many entry and common-area cameras.
Why Choose the DS-96128NXI-S16R
The DS-96128NXI-S16R occupies the upper tier of Hikvision’s NVR range for good reason. Where a mid-range 32 or 64-channel recorder handles everyday commercial deployments, this unit is built for environments where channel density, storage redundancy, and analytics depth all need to operate at scale simultaneously. The combination of 16 SATA bays with RAID 6 and N+M hot spare support, a 300,000-image face library, 8K HDMI output, and on-board facial recognition creates a recorder that functions as the intelligence layer of an entire surveillance network, not just a storage device. The 4-port network interface with speeds up to 2500 Mbps ensures the bandwidth headroom to handle 128 high-resolution streams without bottlenecking. Available through Security Wholesalers, the DS-96128NXI-S16R is suited to system integrators and enterprise security teams specifying recorders for projects where a smaller unit would require compromise on channel count, redundancy, or analytics capability.
Buyer Decision Tips
Buyer Tip 1 – RAID Mode and Bandwidth Trade-Off: Enabling RAID reduces the available incoming bandwidth from 1280 Mbps to 640 Mbps and outgoing bandwidth from 1024 Mbps to 512 Mbps. For deployments using many high-resolution cameras simultaneously, plan your camera count and stream bitrates carefully to confirm you remain within the RAID-mode bandwidth ceiling before specifying the full 128-channel load.
Buyer Tip 2 – AI Analytics Require Compatible Cameras: On-board analytics including facial recognition and perimeter protection run directly on the DS-96128NXI-S16R. However, camera-side features such as AcuSearch, ANPR, and people counting depend on the connected cameras supporting those functions. Confirm AI compatibility at the camera level during system design to avoid discovering analytics gaps after installation.
Key Features & Technical Specifications
| IP Camera Channels |
Up to 128 channels, up to 32 MP per camera |
| Video Compression |
H.265+, H.265, H.264+, H.264 |
| Incoming Bandwidth |
1280 Mbps (standard); 640 Mbps (RAID mode) |
| Outgoing Bandwidth |
1024 Mbps (standard); 512 Mbps (RAID mode) |
| Video Outputs |
HDMI1 and HDMI2: up to 4K; HDMI3: up to 8K; HDMI4: 1080p; VGA: 1080p |
| Decoding Capability |
2 ch @ 32 MP, 4 ch @ 16 MP, 8 ch @ 8 MP, 16 ch @ 4 MP, 32 ch @ 2 MP |
| Synchronous Playback |
16 channels |
| On-NVR Analytics |
Facial recognition, perimeter protection, video structuralization |
| Camera-Side Analytics Supported |
Face recognition, perimeter protection, video structuralization, AcuSearch, motion detection 2.0, ANPR, people counting, VCA |
| Face Library |
Up to 64 libraries; up to 300,000 face images (max 10 GB total) |
| Storage Bays and RAID |
16 SATA slots; RAID 0, 1, 5, 6, 10; N+M hot spare; up to 20 TB per drive |
| Network Interfaces |
4 x RJ-45 (10/100/1000/2500 Mbps) |
| Remote Connections |
Up to 256 simultaneous remote connections |
| I/O and Interfaces |
1 x eSATA, RS-232, RS-485, 2 x USB 2.0 (front), 4 x USB 3.0 (rear), 32 alarm inputs, 16 alarm outputs, audio I/O |
| Power Supply |
100-240 VAC; redundant power option; max 100 W (without HDDs) |
| Operating Temperature |
-10 degrees C to 55 degrees C; humidity 10-90% non-condensing |
| Dimensions and Weight |
442 x 497 x 146 mm; max 12 kg (without HDDs) |
| Certifications |
CE, CB, IC, RCM, UKCA, RoHS, WEEE |
Ideal Use Cases
University and Corporate Campuses
128-channel capacity and facial recognition support centralised monitoring across lecture halls, parking structures, entrances, and perimeter zones. The face library can store up to 300,000 images for staff, student, and visitor differentiation across a single recorder.
Critical Infrastructure Sites
Power stations, water facilities, and substations benefit from the RAID 5 or RAID 6 configuration with N+M hot spare, ensuring recorded footage survives drive failure events. Redundant power support further protects against single-point hardware failures in always-on environments.
City and Public Space Surveillance
AcuSearch and perimeter protection analytics allow operators to rapidly locate intrusion events or track subjects across a large camera network. Support for 256 simultaneous remote connections suits multi-operator control room environments managing public transport hubs, streets, and squares.
Large Retail and Shopping Complexes
People counting and video structuralization (via compatible cameras) give loss prevention and operations teams filtered event data rather than raw footage to review. The 8K HDMI output supports high-resolution video walls displaying multiple camera feeds at a centralised security desk.
Gated Residential Estates
Up to 64 separate face libraries enable distinct watchlists for residents, approved contractors, and flagged individuals. ANPR support via connected cameras extends access monitoring to vehicle plates at estate entrances, covering both pedestrian and vehicle access points from a single recorder.
Choosing the Right Model
- Choose this model if: Your project requires 65 or more IP camera channels, enterprise-grade RAID storage with hot spare support, on-board facial recognition across a large face library, or a deployment where recording uptime cannot be interrupted by a single hardware failure.
- Choose a different model if: Your camera count is under 32 channels. A mid-tier NVR will provide sufficient channel capacity, storage flexibility, and basic AI analytics at a lower cost and with simpler infrastructure requirements. The DS-96128NXI-S16R’s 3U rackmount form factor also requires a proper equipment rack and server room environment, making it unsuitable for small-office or retail back-of-house installations.
- Consider the bandwidth impact before finalising: Enabling RAID halves the available bandwidth. If you plan to run 128 channels of 4 MP or higher streams with RAID active, verify your total stream bitrate against the 640 Mbps incoming RAID-mode limit during system design.
FAQs
- How many hard drives can the DS-96128NXI-S16R hold, and what is the maximum storage capacity?
The unit has 16 SATA bays, each supporting drives up to 20 TB, giving a maximum raw capacity of 320 TB before RAID overhead. Usable capacity will vary depending on the RAID mode selected. RAID 6 for example reserves the equivalent of 2 drives for parity.
- What does N+M hot spare mean in the context of this NVR?
N+M hot spare allows a designated number of drives (M) to remain idle in standby. If any of the active drives (N) fail, the hot spare automatically takes over without requiring manual intervention. This minimises downtime and protects data continuity in environments where the recorder cannot be taken offline for maintenance.
- Does this NVR work with non-Hikvision IP cameras?
Yes, it supports ONVIF-compliant cameras (Profile S and T) as well as cameras using standard protocols including RTSP. However, advanced AI analytics features such as AcuSearch, facial recognition, and ANPR require cameras that support those specific functions. Generic ONVIF cameras will record and display video but will not pass AI metadata to the NVR.
- What is AcuSearch and what camera support does it need?
AcuSearch is a content-based video search feature that indexes motion and object events, allowing operators to search recordings by attributes such as object type, direction, or appearance rather than manually scrubbing through footage. To use AcuSearch, the connected cameras must support the AcuSearch function and send indexed event data to the NVR.
- Where is the DS-96128NXI-S16R physically installed and what infrastructure does it require?
This is a 3U rackmount unit measuring 442 x 497 x 146 mm and weighing up to 12 kg without drives. It is designed to be installed in a standard 19-inch equipment rack in a server room, data centre, or dedicated security rack enclosure. It is not suited to wall mounting, shelf placement, or small-office environments without proper rack infrastructure.
- How many simultaneous remote users can connect to this NVR?
The DS-96128NXI-S16R supports up to 256 simultaneous remote connections, making it appropriate for multi-operator control room environments or distributed security teams across multiple sites accessing footage concurrently.
- Does the redundant power supply come included?
The product data indicates the unit supports a redundant power supply option. Confirm with your supplier at the time of purchase whether dual power supply modules are included or need to be ordered separately to achieve full redundancy. Security Wholesalers can advise on the exact configuration available for this model.
- Is this NVR suitable for a deployment with fewer than 32 cameras?
It will function with fewer cameras, but the DS-96128NXI-S16R is designed for high channel-count enterprise deployments. For projects under 32 channels, the 3U chassis, RAID infrastructure requirements, and associated cost are likely disproportionate to the project scope. A mid-tier NVR with fewer bays and channels will handle smaller deployments more cost-effectively and with less operational complexity.
