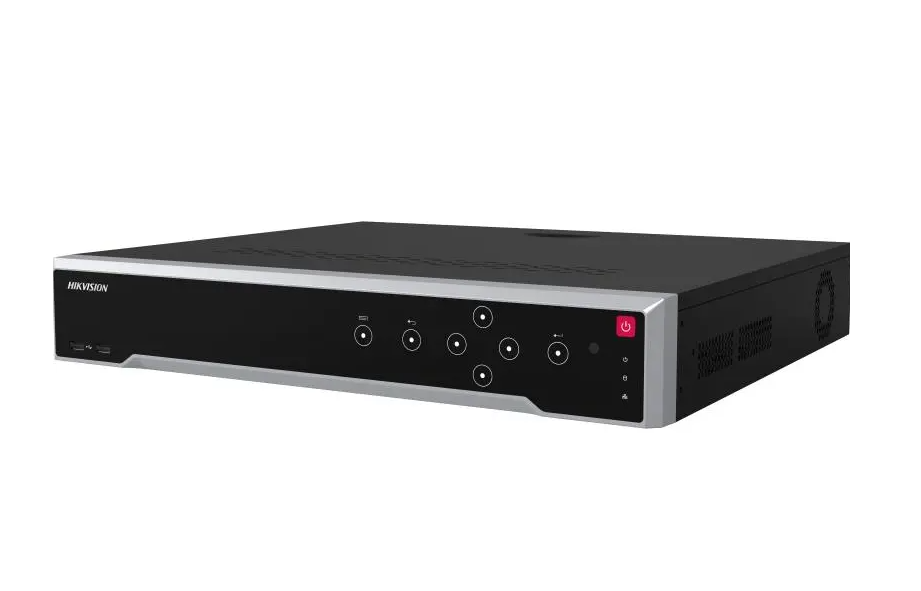

Hikvision DS-7732NI-M4/16P 32ch M-Series 16 PoE NVR, 320Mbps, 8K, 4 Bay, 1.5RU 6TB


Hikvision’s DS-7732NI-M4/16P is a 3TB, 32-channel network video recorder with 32 embedded plug and play PoE ports. Part of Hikvision’s M Series NVR range, it supports the H.264+ intelligent compression standard which aims to reduce bandwidth and storage requirements by up to 50%. This NVR combines features such as audio and video decoding technology which ultimately contribute to the M Series range running smoother than previous generations. Also featuring 32 PoE network interfaces for easy plug and play setup and capable of 8K ultra-HD video output via HDMI and 1080P via VGA, this NVR supports up to 12MP resolution recording.

This reliable, high-performance unit is flexible and best suited for medium-large sized commercial installations where a complete HD surveillance experience is required.

Datasheet-of-DS-7732NI-M4_16P_V4.63.010_20230705

$1,533.60 $1,917.00 inc GST +3 Year Warranty & Support

  • Video And Audio
  • IP Video Input

    32-ch

    Up to 32 MP resolution

    *: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.

  • Incoming Bandwidth320 Mbps
  • Outgoing Bandwidth400 Mbps
  • HDMI 1 Output8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • HDMI 2 Output4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • VGA Output1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • Video Output ModeHDMI1/VGA simultaneous output, HDMI2/VGA independent output
  • CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
  • Audio Output1-ch, RCA (Linear, 1 KΩ)
  • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
  • Decoding
  • Decoding FormatH.265+/H.265/H.264+/H.264
  • Recording Resolution

    32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF

    *: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.

  • Synchronous Playback16-ch
  • Decoding Capability2-ch@32 MP (30 fps)+2-ch@8MP(30fps)/10-ch@8 MP (30 fps)/20-ch@4 MP (30 fps)/40-ch@1080p (30 fps)
  • Dual-Stream RecordingSupport
  • Stream TypeVideo, Video & Audio
  • Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2
  • Network
  • Remote Connection128
  • Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
  • Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
  • PoE
  • Interface16, RJ-45 10/100 Mbps self-adaptive Ethernet interface
  • Power≤ 200 W
  • StandardIEEE 802.3 af/at
  • RAID
  • RAID TypeN/A
  • Auxiliary Interface
  • ESATA1 eSATA interface
  • SATA4 SATA interfaces
  • CapacityUp to 16 TB capacity for each HDD
  • Serial Interface2 RS-485 (half-duplex), 1 RS-232
  • Alarm In/Out16/9
  • USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
  • Ctrl 12V

    Controllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered.

    *: The Ctrl 12V power is controlled by alarm output 9.

  • DC 12V12 VDC, 1 A power output
  • General
  • Power Supply100 to 240 VAC, 50 to 60 Hz
  • Consumption≤ 15 W (without HDD and PoE off)
  • Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
  • Working Humidity10% to 90%
  • Chassis19-inch rack-mounted 1.5U chassis
  • Dimension (W × D × H)445 × 400 × 75 mm ( 17.5″× 15.7″ × 3.0″)
  • Weight≤ 5 kg (without HDD, 11 lb.)
  • Certification
  • FCCPart 15 Subpart B, ANSI C63.4-2014
  • CE

    EN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:201

    9, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020

ImageNamePriceBuy
3TB HDD - Surveillance HDD for DVRs & NVRs$170.00 $209.00 inc GST +3 Year Warranty & Support
Hikvision DS-3E1105P-EI 4 Port Smart POE Switch$80.00 inc GST +3 Year Warranty & Support
6TB HDD - Purple Surveillance Hard Drive for DVRs & NVR$300.00 $418.00 inc GST +3 Year Warranty & Support
8TB HDD - Purple Surveillance Hard Drive for DVRs & NVR$430.00 $616.00 inc GST +3 Year Warranty & Support
Hikvision DS-3E0310HP-E 8 Port Fast Ethernet Unmanaged POE Switch$204.00 $260.00 inc GST +3 Year Warranty & Support
Hikvision DS-3E1318P-E 16 Port Web Managed PoE Switch, 16x100M, 2x1000M Combo Port, 802.3 af at, 230W$530.00 inc GST +3 Year Warranty & Support

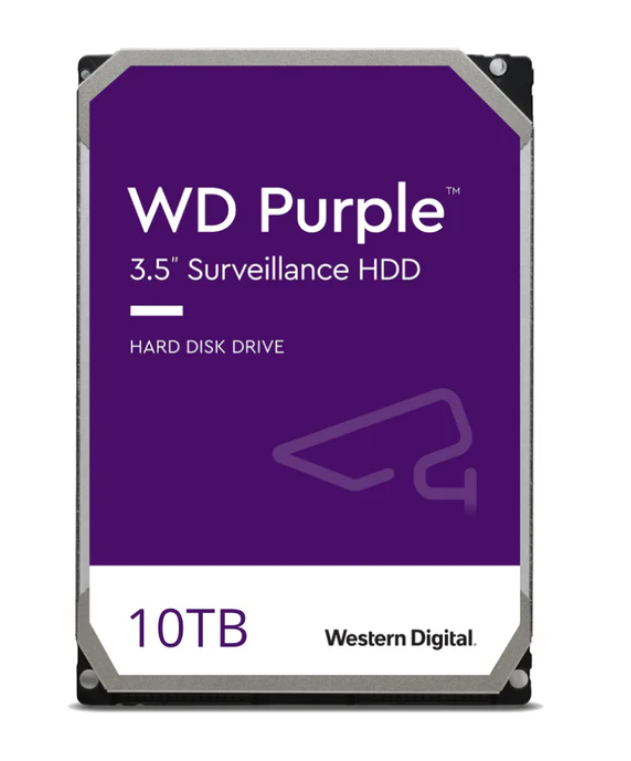

10TB HDD - Purple Surveillance Hard Drive for DVRs & NVR$620.00 $792.00 inc GST +3 Year Warranty & Support
