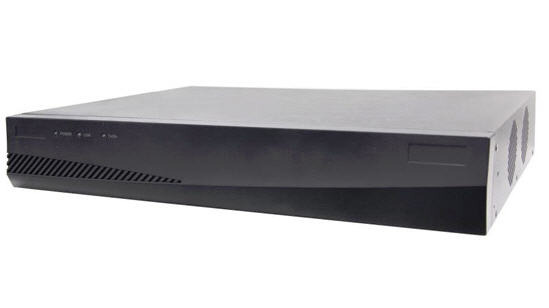

HikVision DS-6404HDI-T Decoder 4CH HDMI, VGA & BNC Output (Copy)
HikVision DS-6404HDI-T Decoder 4CH HDMI, VGA & BNC Output (Copy) - Image 2
HikVision DS-6404HDI-T Decoder 4CH HDMI, VGA & BNC Output (Copy) - Image 3
, ,

HikVision DS-6404HDI-T Decoder 4CH HDMI, VGA & BNC Output (Copy)

Developed on the foundation of TI DaVinci platform, DS-6401HDI is a multi-purpose video/audio decoder which is capable of allowing the coded images from DVR/DVS or other encoding devices to be decoded and displayed on the TV wall after transmission via IP network. Specially designed for the allocation and management of the video surveillance system, DS-6401HDI supports multiple network transmission protocols, and it applies the code downloaded in FLASH, ensuring high stability and reliability of system performance.

$1,925.00 inc GST +3 Year Warranty & Support

Features:

  • H.264 and MPEG4 video stream supported
  • Up to 5 Megapixels resolution decoding
  • HDMI and VGA output at up to 1920
  • 1080P resolution
  • SADP(IP Finder),UDP, RTP and NTP protocols
  • Video display on TV wall
  • Active and passive decoding modes
  • 32 users with multi-user level management



Specifications:

Video/Audio output
VGA output 4-ch
1920×1080@60 / 50HZ, 1600×1200@60Hz, 1280×1024@60Hz, 1280×720@50
/60Hz, 1024×768@60Hz
HDMI output 4-ch
1920×1080@60 / 50HZ, 1600×1200@60Hz, 1280×1024@60Hz, 1280×720@50
/60Hz, 1024×768@60Hz
CVBS output 2-ch
Audio output 4-ch, DB15 connector
Audio/Video Decoding
IP video input 4-ch at 5MP
Decoding Capability 8-ch at 1080P
16-ch at 720P
32-ch at 4CIF resolution
Multi-division Display 1 / 4 / 9 / 16
Audio compression G.722 / G.711A / G.711U / MPEG2-L2 / ACC
Two-way audio input 2-ch, 3.5mm connector (2.0 Vp-p, 1 kΩ)
in
External interface
Network Interface 1; 10 / 100 / 1000Mbps self-adaptive Ethernet interface
Serial Interface 1 RS-232 (DB9), 1 RS-485
Alarm In

4
Alarm Out

4
General
Power Supply 100 ~ 240 VAC
Power Consumption Max. 70W
Working -10 °C ~ +55 °C
temperature
Working Humidity 10% ~ 90%
Chassis 19-inch rack-mounted 1.5U
chassis
Dimensions (W × D × 440×340×70mm
H)
Weight(without 5.2 kg
HDD)



Categories: , ,

Links and Downloads

DS-6404HDI-T Brochure
