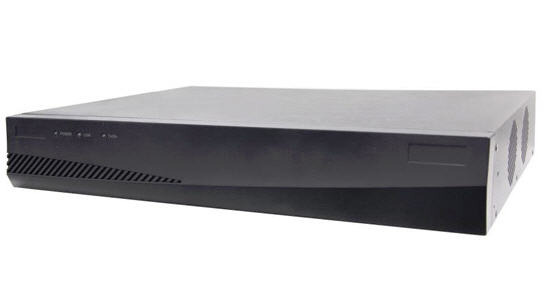

HikVision DS-6316DI-T Decoder 16CH BNC Output
Based on the TI DM648 platform, DS-6316D is a multi-purpose video/audio decoder capable of allowing the coded images from HIK DVR/DVS or other encoding devices to be decoded and displayed on the TV wall after transmission via IP network. Specially designed for the allocation and management of the video surveillance system, DS-6316D supports multiple network transmission protocols, and it applies the code downloaded in FLASH, ensuring high stability and reliability of system performance. DS-6316D Video/Audio Decoder adopts highly integrated TI DM648 processing chip which provides powerful decoding capability.
$2,697.00 inc GST +3 Year Warranty & Support
Features:
- Hikvision H.264, standard H.264, MPEG2 and MPEG4 video stream supported
- Up to 16-ch 720P/32-ch 4CIF video stream decode
- VGA output at up to 1920×1080P resolution
- Up to 4-ch VGA and 16-ch CVBS output
- SADP(IP Finder),UDP, RTP and NTP protocols
- Video display on TV wall
- 32 users with multi-user level management
Specifications:
| Video/Audio output | ||
| Audio output: | | | 4-ch, RCA connector 16-ch, DB15 connector×2 |
| CVBS Output: | | | 16-ch |
| VGA Output: | | | 4-ch VGA output, resolution: 1920×1080@60/50Hz, 1600×1200@60Hz, 1280×1024@60Hz, 1280×720@50/60Hz, 1024×768@60Hz |
| Video Decoding Standard: | | | H.264/MPEG4/MPEG2/Private |
| Video Decoding Channels: | | | 16-ch at 720P/32-ch at 4CIF/64-ch at CIF resolution |
| Multi-division Display Mode: | | | 1/4/9/16 |
| Audio Decoding Standard: | | | G.722/G.711A/G.711U/MPEG2-L2/ACC |
| Two-way audio: | | | 1 line in, 3.5mm connector (2.0 Vp-p, 1 kΩ) 1 line out, 3.5mm connector (2.0 Vp-p, 1 kΩ) |
| External interface | ||
| Network interface: | | | 1 RJ45 10/100/1000Mbps self-adaptive UTP Ethernet interface |
| Serial interface: | | | 1 RS-485, 1 RS-232 |
| Alarm in: | | | 4 |
| Alarm out: | | | 4 |
| General | ||
| Power supply: | | | 100~240VAC |
| Consumption: | | | ≤50W |
| Working temperature: | | | -10°C~+55°C(14°F~131°F) |
| Working humidity: | | | 10%~90% |
| Dimension(W×D×H): | | | 440(W)× 340(D)× 70mm(H) |
| Weight(without HDD): | | | ≤5.2 kg |
