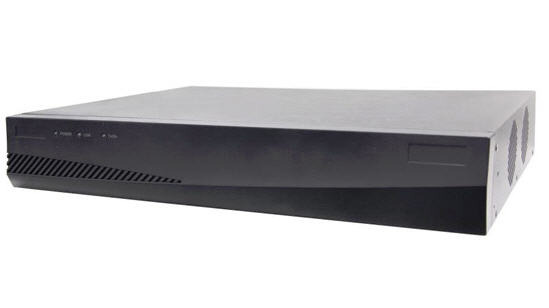

Hikvision DS-6308DI-T Decoder 8ch BNC Output
Hikvision DS-6308DI-T Decoder 8ch BNC Output - Image 2
Hikvision DS-6308DI-T Decoder 8ch BNC Output - Image 3
, ,

Hikvision DS-6308DI-T Decoder 8ch BNC Output

$2,222.00 inc GST +3 Year Warranty & Support

Features:

  • Support variable bit rate and frame rate
  • High performance hardware decoding
  • Compatible with standard H.264, MPEG4 and Hikvision DVR/DVS/Network Cameras
  • Up to 720p resolution decoding
  • VGA and composite output simultaneously
  • Support variable bit rate and frame rate
  • Support dynamic and cycle decoding
  • Support DHCP and DDNS

Specifications:

Video/Audio input
Two-way audio input 1-ch, BNC (2.0 Vp-p, 1 kΩ)
Video/Audio output
VGA output 4-ch
Resolution:1280×1024 /60 Hz, 1280×720 /60 Hz,1024×768 /60 Hz
Video output 8-ch
BNC (1.0 Vp-p, 75 Ω)
Decoding resolution 720P / 4CIF / DCIF / 2CIF / CIF / QCIF
Frame rate 720P: 25 fps (P) / 30 fps (N)
Audio output 8-ch, BNC (Linear, 600 Ω)
Stream type Video, Video & Audio
External interface
Network interface 1, RJ45 10M / 100M self-adaptive Ethernet interface
Serial interface 1 RS-232 interface (for parameters configuration, maintenance , transparent channel); 1 RS-485
interface (for PTZ control)
Alarm in

8
Alarm out

8
General 12 VDC
Power supply ≤ 40 W
Consumption 10 °C ~ +55 °C
Working temperature 10% ~ 90%
Working humidity 440 x 44.5 x 320 mm
Dimensions (W × D × H) ≤ 5 kg
Weight(without HDD)
SKU: DS-6308DI-T Categories: , ,

Links and Downloads

IC-DS-6308DI-T
