Product Overview

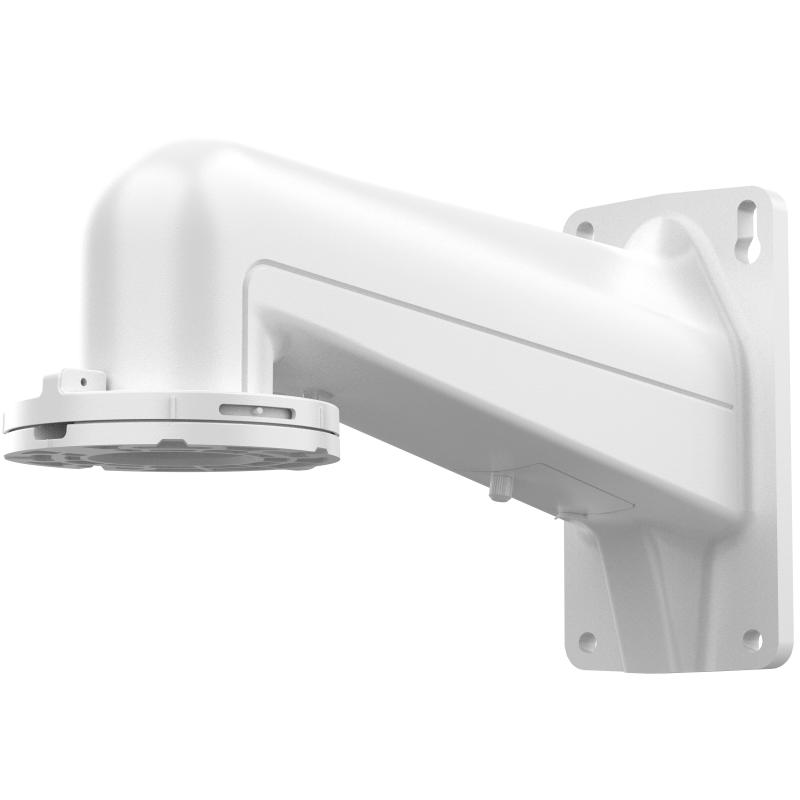

Built for wall-mounted PTZ camera installations in both indoor and outdoor settings, the DS-4603ZJ-WAAC is a heavy-duty aluminium alloy arm bracket finished in Hikvision white. Measuring 180 mm high by 97 mm deep with a 329 mm extension, it provides a stable, extended mounting platform that positions a PTZ head away from the wall surface for unobstructed pan and tilt movement. Fabricated from aluminium alloy, the bracket resists the weight stress and vibration typical of continuous PTZ operation, while the neutral white finish integrates cleanly into commercial facades, building exteriors, and interior structural walls. It is well suited to situations where a surface-flush mount is not practical and the camera requires clearance to rotate freely. The bracket weighs approximately 1.39 kg, making it manageable for single-installer mounting without additional lifting equipment.
Key Capabilities
Aluminium Alloy Construction
The bracket body is fabricated from aluminium alloy, providing a strong yet lightweight structure that handles the dynamic load of a panning and tilting camera head without flex or fatigue over extended periods of use.
329 mm Wall Extension Arm
The 329 mm extension arm projects the PTZ camera head clear of the mounting surface, allowing full pan and tilt rotation without the camera body contacting the wall. This is critical for PTZ cameras that sweep wide horizontal arcs in coverage-intensive deployments.
Indoor and Outdoor Suitability
Confirmed suitable for exterior mounting environments, the DS-4603ZJ-WAAC can be installed on building facades, external walls, and internal structural surfaces, giving installers flexibility across a range of project types without requiring a separate indoor bracket variant.
Hikvision White Finish
Finished in Hikvision’s standard white, the bracket visually matches Hikvision PTZ camera housings directly, resulting in a cohesive professional appearance on light-coloured walls and commercial building exteriors where mismatched components look out of place.
Best For
- External Building Wall Mounting: The aluminium alloy arm and confirmed outdoor suitability make it a practical choice for mounting PTZ cameras on rendered, brick, or cladded exterior walls where a flush mount is not appropriate.
- PTZ Cameras Requiring Clearance: The 329 mm extension arm ensures the camera head has the physical clearance needed for full pan and tilt rotation, which surface-mount plates cannot provide.
- Matched Hikvision Installations: The Hikvision white finish pairs directly with standard Hikvision PTZ camera housings, keeping the overall installation visually consistent without custom painting or colour mismatches.
Why Choose the DS-4603ZJ-WAAC
The DS-4603ZJ-WAAC is a purpose-designed wall arm for PTZ camera installations where standard flat-plate mounts would restrict camera movement or look visually out of place. Its 329 mm aluminium alloy arm provides genuine clearance for pan and tilt rotation, which is a practical requirement that generic mounting arms often fail to accommodate at the correct projection depth. The aluminium alloy body keeps the bracket weight to approximately 1.39 kg while still delivering the structural rigidity needed for outdoor wall mounting in exposed conditions. The Hikvision white finish is matched to Hikvision camera housings, so the completed installation presents as a unified system rather than a collection of mismatched components. Available at Security Wholesalers, the DS-4603ZJ-WAAC is stocked as part of the broader Hikvision peripherals range, making it straightforward to source alongside compatible PTZ cameras and accessories in a single order.
Buyer Decision Tips
Buyer Tip: Before ordering, confirm the mounting hole pattern and base plate dimensions of your specific PTZ camera head against the DS-4603ZJ-WAAC’s mounting interface. PTZ cameras vary in base size and bolt pattern, and selecting the wrong bracket arm can require additional adaptor plates or a return. If your PTZ camera is a heavier commercial-grade unit, verify the supported load rating against the camera’s specified weight before installation.
Key Features & Technical Specifications
| Model |
DS-4603ZJ-WAAC |
| Product Type |
Wall mount arm bracket for PTZ cameras |
| Material |
Aluminium alloy |
| Colour / Finish |
Hikvision White |
| Overall Dimensions (H x D x Extension) |
180 mm x 97 mm x 329 mm |
| Bracket Weight |
Approximately 1.39 kg |
| Installation Environment |
Indoor and outdoor |
| Compatible Camera Type |
PTZ cameras |
| Mounting Surface |
Wall (vertical surface) |
| Brand |
Hikvision |
Ideal Use Cases
Commercial Building Exteriors
The outdoor-rated aluminium alloy arm is suited to mounting PTZ cameras on brick, render, or metal-clad commercial building facades where a sturdy wall projection is needed to clear gutters, soffits, or other surface obstructions.
Car Parks and Open Yards
Wall-mounted PTZ cameras covering large open areas such as car parks or industrial yards benefit from the 329 mm extension arm, which positions the camera away from perimeter walls and gives the pan and tilt mechanism unobstructed sweep across the monitored zone.
Internal Structural Walls
In large indoor spaces such as warehouses or sports halls, the bracket can be installed on internal structural walls to mount a PTZ camera at height, with the arm projection keeping the camera head clear of the wall for full rotational coverage.
Matched Hikvision PTZ Deployments
When completing a full Hikvision PTZ installation, the white aluminium finish pairs directly with Hikvision camera housings, producing a tidy professional result on light-coloured walls without the need for paint matching or additional covers.
Choosing the Right Model
- Choose this model if: You are mounting a PTZ camera on a vertical wall surface indoors or outdoors and need a 329 mm extension arm in Hikvision white to match standard Hikvision PTZ housings.
- Choose a different model if: Your installation calls for pole mounting, corner mounting, or ceiling pendant mounting rather than a direct wall arm configuration. Separate bracket types are available for those applications and will provide a more secure and aligned result than adapting a wall arm bracket.
FAQs
- What type of cameras is the DS-4603ZJ-WAAC designed for?
The DS-4603ZJ-WAAC is specifically designed as a wall mount arm for PTZ cameras. It provides the arm extension needed to project a PTZ head away from the wall surface so the pan and tilt mechanism can rotate freely without the camera body contacting the mounting surface behind it.
- Can the DS-4603ZJ-WAAC be used outdoors?
Yes. The product data confirms it is suitable for both indoor and outdoor installation environments. The aluminium alloy body is appropriate for mounting on external building walls, and the bracket can be used on exposed facades without requiring a weatherproof enclosure over the bracket itself.
- What are the exact dimensions of the bracket?
The DS-4603ZJ-WAAC measures 180 mm in height, 97 mm in depth, and provides a 329 mm wall extension arm. These dimensions determine how far the camera head will be projected from the wall and should be checked against the physical clearance available at the intended mounting location before installation.
- How heavy is the bracket?
The bracket weighs approximately 1.39 kg. This figure relates to the bracket itself. Installers should confirm the load specifications against the weight of the specific PTZ camera head being mounted to ensure the bracket is rated for the combined assembly at the intended installation point.
- Where can I purchase the DS-4603ZJ-WAAC?
The DS-4603ZJ-WAAC is part of the Security Wholesalers range of Hikvision mounts and brackets. It can be ordered alongside compatible Hikvision PTZ cameras and other peripherals, allowing installers to consolidate sourcing for a complete installation in a single order.
Additional Information
No additional downloads available for this product.
