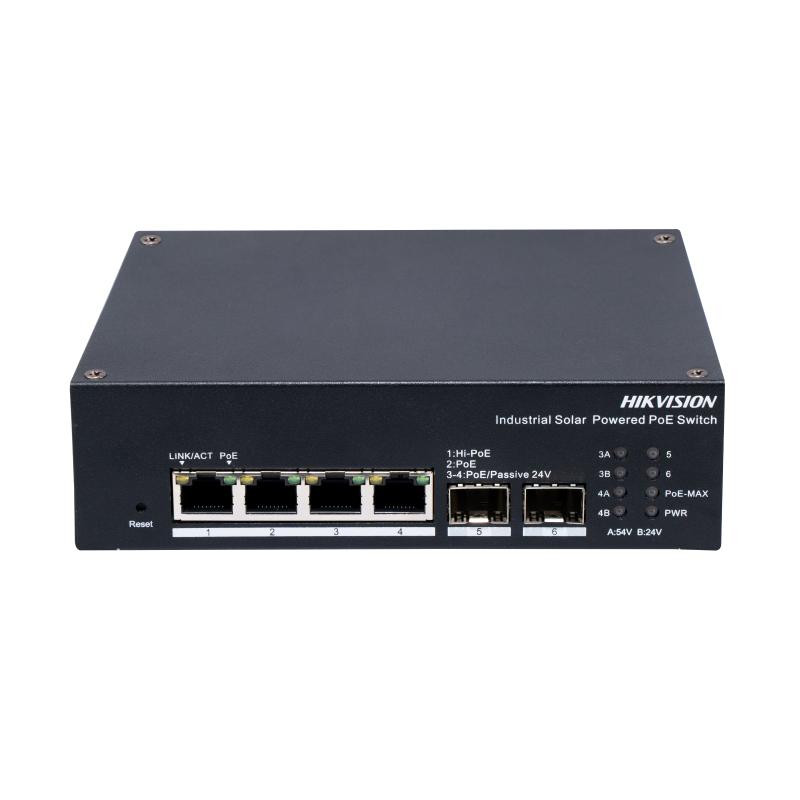

Hikvision DS-3T1506HP-EI-UPS 4-Port Gigabit Solar/PoE Smart Managed Industrial Switch – Hi-PoE, 2× SFP, -40 °C~75 °C

The Hikvision DS-3T1506HP-EI-UPS is a robust industrial-grade switch built to deliver stable PoE power and network connectivity in harsh or remote environments. Supporting solar input, Hi-PoE, fiber uplinks and advanced management features, this switch is perfect for heavy-duty CCTV systems, wireless bridging, outdoor enclosures and sites where reliability is critical.

---

Key Features

4 × Gigabit PoE Ports + 2 × SFP Uplinks

• Four Gigabit Ethernet ports for PoE cameras or devices

• Two Gigabit SFP uplink slots for fibre backbone runs

High PoE Output (Hi-PoE up to 90W)

• Port 1 supports up to 90W Hi-PoE

• Ports 2–4 support up to 30W

• Suitable for PTZ cameras, IR-hungry cameras, wireless radios and high-powered devices

Solar and Battery Ready

• Accepts 12–24V DC input for direct solar/battery systems

• Also supports 54V DC for conventional installations

• Ideal for farms, paddock cameras, sheds and remote sites

Industrial Durability

• Operating temperature: –40°C to 75°C

• 6kV surge protection

• Rugged metal enclosure, IP30 rated (must be installed inside a weather-protected housing)

Smart Managed Features

• VLAN, port isolation and QoS

• Loop prevention protocols (STP, RSTP, ERPS)

• PoE watchdog that automatically reboots unresponsive cameras

• Long-range PoE mode up to approximately 300 m under suitable cable conditions

Compact Mountable Design

• Can be DIN-rail mounted, wall-mounted or placed inside outdoor power enclosures

• Lightweight and suitable for pole-mounted solar cabinets or compact NVR boxes

---

Ideal Use Cases

• Solar-powered farm or rural CCTV

• Driveway, gate or paddock camera installations

• Industrial or warehouse camera networks

• Outdoor wireless bridge networks requiring PoE power

• Remote sites with limited or variable power availability

• Installations needing fibre backbone due to long cable runs

---

Installer Notes

• Use Port 1 for the most power-hungry device (e.g. PTZ with IR).

• Ensure the enclosure provides weather protection, as the switch itself is IP30.

• For solar use, match panel, battery and regulator to the switch’s voltage range (12–24V DC).

• SFP uplinks are recommended when connecting distant buildings or overcoming electrical noise.

• Enable PoE watchdog for critical cameras to reduce site visits.
