Product Overview

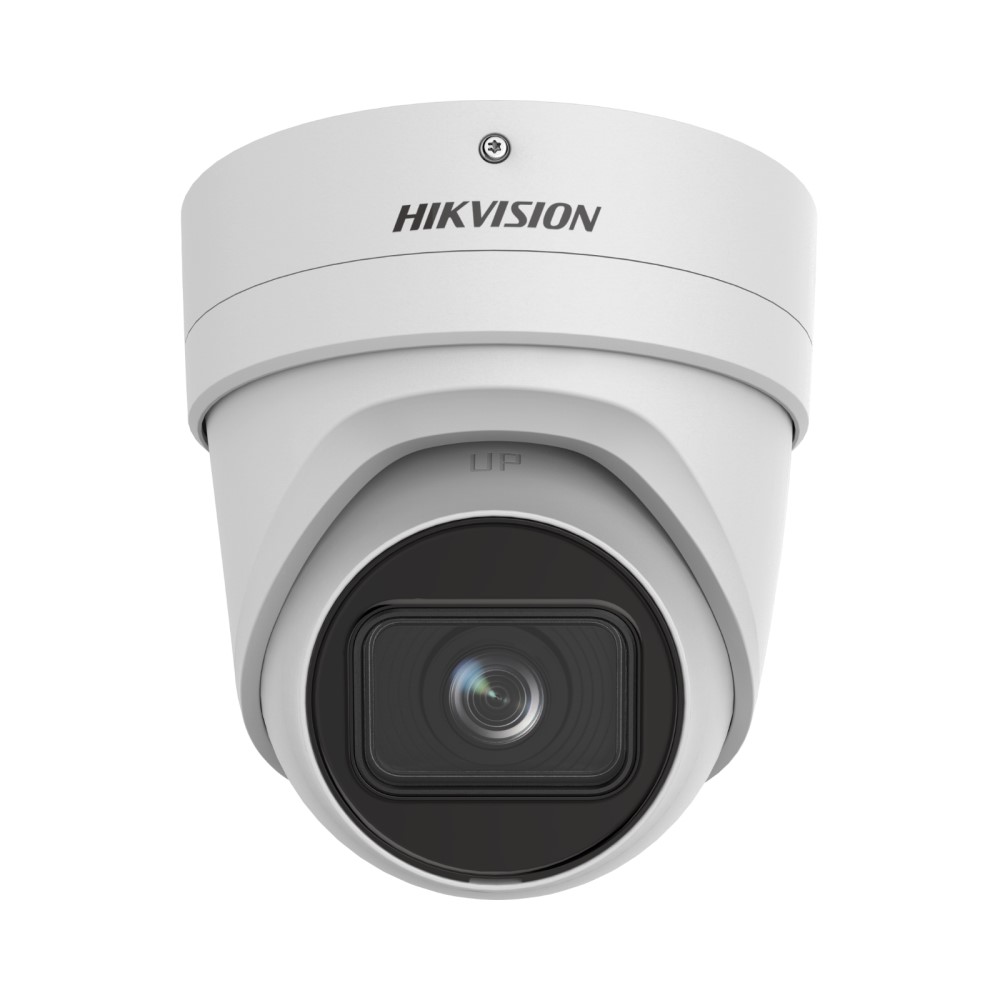

Combining a motorised varifocal lens with AcuSense Gen2 AI classification, the DS-2CD2H66G2T-IZS is a 6MP outdoor turret camera engineered for flexible perimeter and entry-point coverage. Built into a compact turret housing suited to eave, soffit, and wall mounting, it delivers a 2.8-12mm zoom range that can be adjusted remotely without physically repositioning the camera head. Featuring AcuSense Gen2 deep learning, it accurately distinguishes people and vehicles from animals, foliage, and other moving objects, cutting nuisance motion alerts by up to 95%. Built with Hikvision’s DarkFighter technology, the camera maintains usable image detail in very low ambient light conditions. It also includes IP67 weatherproofing and IK10 vandal resistance, making it suited to exposed mounting positions. This makes it well suited to commercial shopfronts, car parks, driveways, and perimeter fence lines where both framing flexibility and intelligent event filtering are priorities.
Key Capabilities
6MP Resolution
At 6 megapixels, this camera captures noticeably more detail than a standard 4MP or 2MP unit. That extra resolution is valuable when you need to read vehicle plates, identify faces at entry points, or crop into footage without losing usable detail.
2.8-12mm Motorised Varifocal Lens
The motorised zoom lens allows installers to frame a scene precisely from the NVR interface rather than adjusting the lens manually at the camera. This saves time on installations and makes retrofits far more practical, especially at height or in hard-to-reach positions.
AcuSense Gen2 AI Classification
AcuSense Gen2 uses a deep learning algorithm to classify motion events as either a person or a vehicle. This filters out triggered alerts from animals, tree movement, and lighting changes, reducing false motion alarms by up to 95% and making recorded event logs genuinely searchable.
DarkFighter Low-Light Technology
Hikvision’s DarkFighter sensor design is built to retain colour and contrast in low ambient light. Combined with the 40m IR illuminators, this camera is suited to monitoring after-hours access points, poorly lit parking areas, and rear yard approaches where lighting infrastructure is limited.
IP67 Weatherproofing and IK10 Vandal Resistance
IP67 sealing protects the camera against dust ingress and temporary water immersion, suitable for exposed eave and outdoor wall positions. The IK10 rating means the housing withstands significant physical impact, which matters on accessible mounting points at ground or lower-storey level.
Line Crossing and Perimeter Detection
Beyond standard motion detection, AcuSense Gen2 supports configurable line crossing and intrusion zone alerts tied specifically to people or vehicles. This allows installers to define virtual boundaries across driveways, gates, or yard perimeters and trigger alerts only on relevant targets.
Best For
- Perimeter Monitoring with AI Filtering: AcuSense Gen2 restricts alerts to confirmed human or vehicle targets, so sites with environmental movement sources such as trees, wind-driven debris, or animals do not generate constant nuisance notifications.
- Installations Requiring Precise Framing: The 2.8-12mm motorised varifocal lens lets the installer or system operator zoom and focus the scene remotely, reducing the need to return to the camera physically after the initial mount.
- After-Hours and Low-Light Environments: DarkFighter technology combined with 40m IR range makes this camera functional across poorly lit car parks, loading areas, and after-hours access points without relying on external lighting infrastructure.
- Exposed Outdoor Mounting Positions: IP67 sealing and IK10 impact resistance allow the camera to be mounted on open eaves, boundary walls, or gate posts where it is exposed to weather and may be within reach of unauthorised contact.
Why Choose the DS-2CD2H66G2T-IZS
The DS-2CD2H66G2T-IZS sits above entry-level fixed-lens turrets in two meaningful ways: the motorised 2.8-12mm varifocal lens removes the guesswork from installation framing, and AcuSense Gen2 classification means the motion detection is tied to actual human or vehicle events rather than general scene changes. A basic fixed-lens 6MP turret at the same resolution cannot offer remote zoom adjustment, and a turret without AcuSense will generate far more irrelevant motion events across a busy perimeter. The IK10 vandal-rated housing and IP67 rating also mean this unit is appropriate for exposed mounting positions rather than only sheltered indoor applications. For installers and site owners wanting a turret camera that balances flexible coverage framing with genuinely filtered event logging, the DS-2CD2H66G2T-IZS is available at Security Wholesalers alongside compatible Hikvision NVRs and PoE switching.
Buyer Decision Tips
Motorised Varifocal vs Fixed Lens: The 2.8-12mm motorised varifocal lens is best suited to situations where the exact field of view is uncertain before installation, or where the same camera position may need to cover different areas over time. If your mounting position and viewing angle are already confirmed and fixed, a fixed-lens turret at 2.8mm or 4mm may be a more cost-effective fit. The motorised version earns its place when framing flexibility or remote zoom adjustment will save time across a multi-camera installation.
AcuSense Requires a Compatible Recorder: AcuSense Gen2 event classification, searchable alarm events, and line crossing detection tied to person or vehicle targets only function fully when paired with a Hikvision NVR or XVR that supports AcuSense. Running this camera on a generic third-party recorder will still deliver video, but the AI filtering and smart search features will not be available. Check your recorder’s compatibility before purchase if AcuSense functionality is a core requirement of the installation.
Key Features & Technical Specifications
| Model | DS-2CD2H66G2T-IZS |
| Resolution | 6MP |
| Lens Type | Motorised varifocal |
| Focal Length | 2.8-12mm |
| IR Range | Up to 40m |
| Housing Type | Outdoor turret |
| Weatherproof Rating | IP67 |
| Vandal Resistance | IK10 |
| AI / Smart Detection | AcuSense Gen2 – human and vehicle classification |
| Smart Events | Line crossing detection, perimeter intrusion detection |
| Low-Light Technology | DarkFighter |
| False Alarm Reduction | Up to 95% reduction in false motion alarms via AcuSense |
| Searchable Event Logs | AcuSense alarm activations are searchable by event type in compatible NVRs |
| Compatible Systems | Hikvision AcuSense-compatible NVRs and XVRs |
Ideal Use Cases
Commercial Shopfronts and Entry Points
The 6MP resolution and motorised zoom allow the camera to cover a wide shopfront approach at lower zoom or concentrate on a specific doorway or entry at higher zoom. AcuSense filters out ambient movement so alerts reflect actual foot traffic events.
Car Parks and Vehicle Access Lanes
AcuSense Gen2 classifies vehicle movement specifically, enabling lane monitoring, access gate coverage, and after-hours vehicle intrusion alerts without false positives from other movement sources. The 40m IR range covers most car park rows from a single mounting point.
Driveways and Residential Gate Areas
Mounted at eave or post height, the turret housing allows the camera ball joint to be aimed along a driveway approach. The motorised lens can then frame the zone precisely without repositioning the mount, and DarkFighter handles the low ambient light conditions typical of residential night-time approaches.
Perimeter Fence Lines and Yard Boundaries
Line crossing detection tied to person or vehicle classification means the camera can generate boundary alerts only when a human or vehicle actually crosses a configured virtual line, rather than every time wind moves foliage or animals pass through the scene.
Multi-Camera Commercial Installations
AcuSense alarm events are searchable by classification type within compatible Hikvision NVRs, which significantly reduces review time during incident investigations across a multi-camera site. Installers benefit from the motorised lens when commissioning several cameras from the recorder interface rather than returning to each camera individually.
Choosing the Right Model
- Choose this model if: You need a 6MP outdoor turret with a motorised zoom lens for precise remote framing, and AcuSense Gen2 AI filtering to limit motion alerts to confirmed human or vehicle events across a perimeter or entry-point installation.
- Choose a different model if: Your mounting position is fixed with a known field of view and the installation does not require remote zoom adjustment. A fixed-lens turret in the same 6MP or AcuSense range will deliver equivalent image quality and AI filtering at a lower cost per camera.
- Choose a different model if: You require full-colour night-time footage rather than IR black-and-white imaging. A colour night-vision turret with white-light illuminators would suit that requirement, whereas this model relies on infrared IR for low-light imaging.
FAQs
- What does AcuSense Gen2 actually do on this camera?
AcuSense Gen2 uses a deep learning algorithm embedded in the camera to analyse motion events and classify them as either a person or a vehicle. Events that do not match those categories, such as animals, blowing trees, or rain, are filtered out. The result is that recorded alarm events in a compatible Hikvision NVR are tagged by type, making searches for specific incidents much faster than reviewing continuous footage manually. - Does the motorised lens on the DS-2CD2H66G2T-IZS mean it is a PTZ camera?
No. The motorised varifocal lens allows remote zoom and focus adjustment during installation commissioning, but the camera does not pan, tilt, or track movement automatically. Once the zoom level and focus are set from the NVR, the camera remains fixed at that framing. It is not a PTZ unit and does not offer continuous auto-tracking or pan/tilt control. - What is the maximum IR range, and is it sufficient for a standard driveway or car park row?
The IR range is rated at up to 40m. That is adequate for most residential driveways, standard parking bay rows, and medium-length approaches. For longer stretches such as extended access roads or large industrial yards, additional cameras or supplementary lighting may be needed to maintain coverage quality at the far end of the IR range. - Is this camera suitable for direct outdoor exposure, such as an open eave or gate post?
Yes. The IP67 rating means the camera is protected against dust ingress and temporary water immersion, so it handles rain and outdoor humidity without issue. The IK10 vandal resistance rating means the housing can withstand significant physical impact. Both ratings make it appropriate for exposed mounting positions accessible from ground level. - Does AcuSense Gen2 work on any NVR, or does it require a specific Hikvision recorder?
AcuSense Gen2 classification, smart event alerts, and the searchable event log functions require a Hikvision NVR or XVR that supports AcuSense. On a non-compatible recorder, the camera will still stream and record 6MP video, but the person and vehicle classification features and the associated event search functions will not operate. Check your recorder’s compatibility with AcuSense Gen2 before finalising your system design. Security Wholesalers stocks compatible Hikvision NVRs that work with this camera’s full feature set. - Can the line crossing and intrusion detection zones be configured to trigger only on people, not vehicles?
Yes. AcuSense Gen2 allows the detection target type to be set per zone or per rule. An installer can configure a pedestrian entry zone to alert only on person classification, while a vehicle gate zone alerts only on vehicle classification. This level of targeting significantly improves the relevance of triggered alerts across mixed-use sites. - How is the DS-2CD2H66G2T-IZS powered?
The camera supports PoE (Power over Ethernet), meaning a single Cat5e or Cat6 cable carries both data and power from a compatible PoE switch or NVR with built-in PoE ports. No separate power cable or local power outlet is required at the camera mounting point, which simplifies installation routing and reduces cabling cost.
