Product Overview

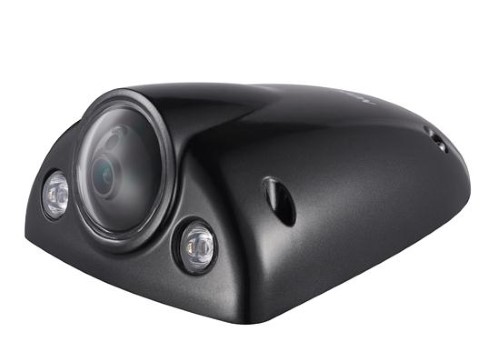

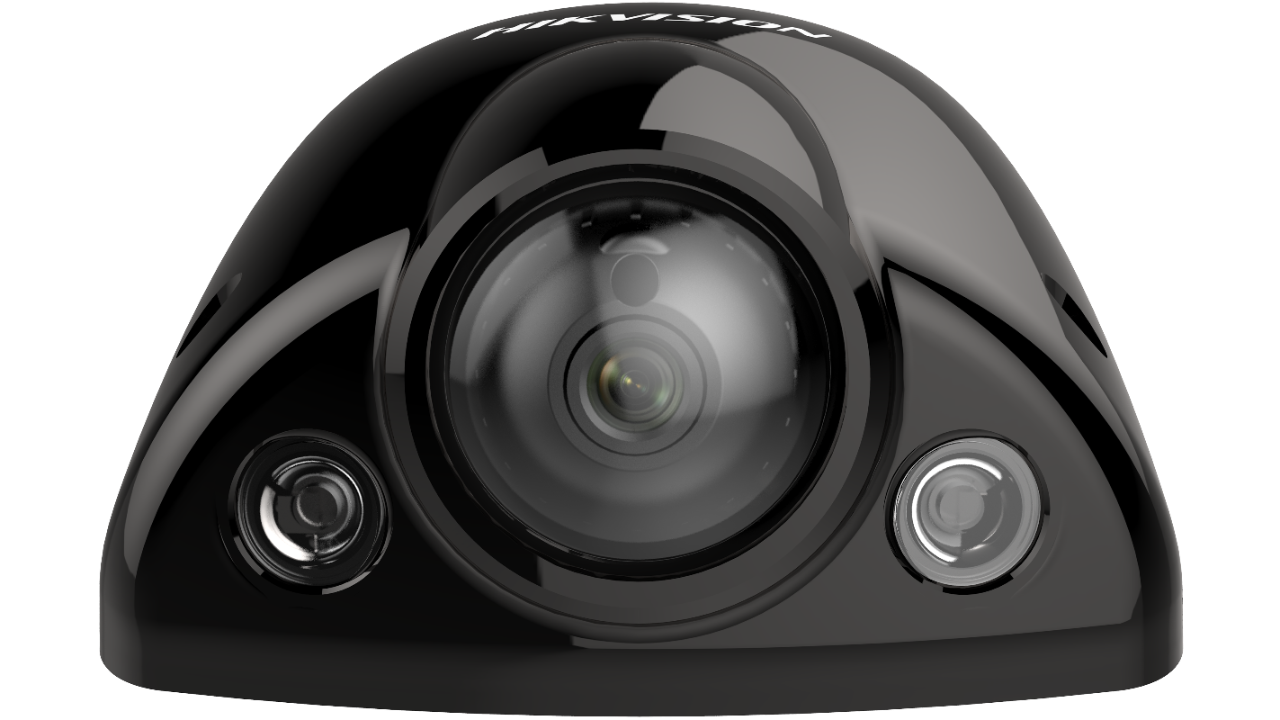

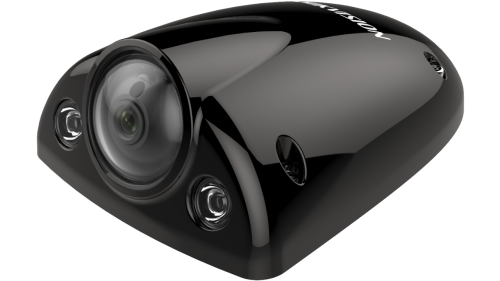

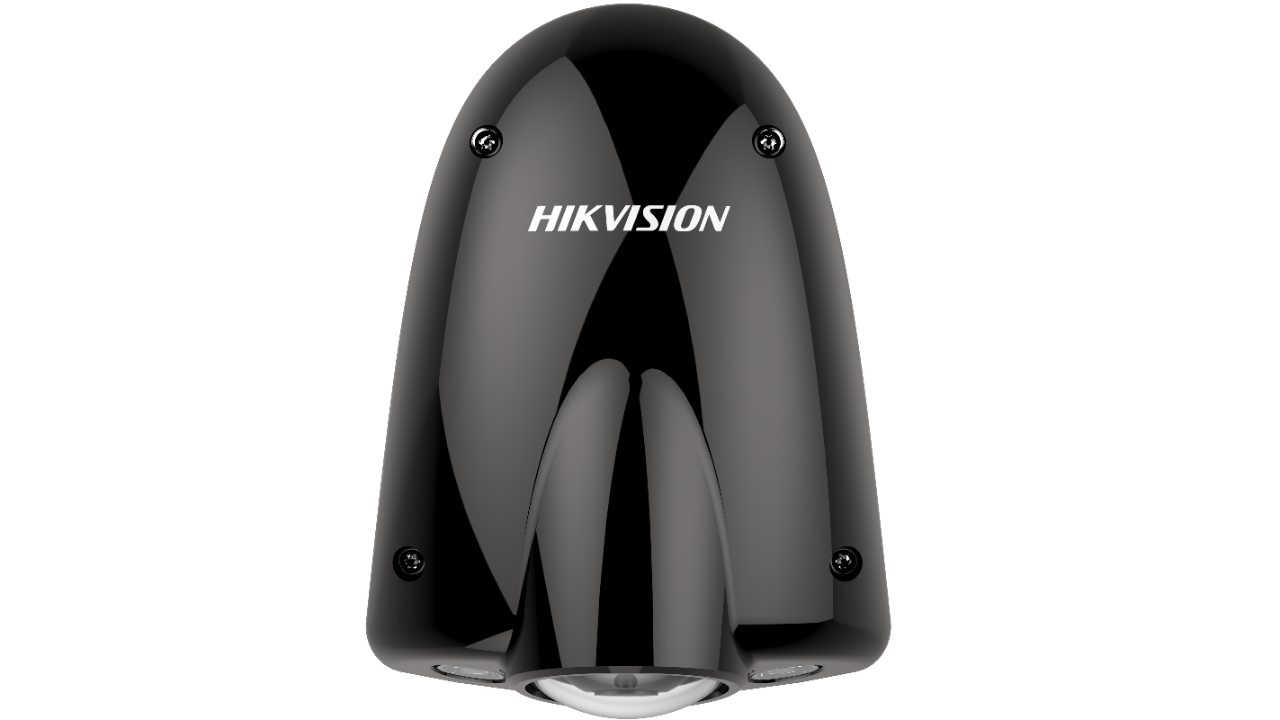

Built for vehicle-mounted and mobile transport installations, the DS-2XM6522G1 is a 2MP mini dome network camera rated IP68, IP69K and IK10, making it one of the most ruggedised options in the Hikvision mobile camera range. Featuring a 1/2.8″ progressive scan CMOS sensor and 120 dB true WDR, it handles the extreme backlight shifts common in transit environments, including tunnels, bus bays and rail platforms. A built-in IR array reaches up to 30 m with a minimum illumination of 0.01 Lux at F1.2, and a built-in heater allows operation from -40 degrees C to 75 degrees C. H.265+ compression keeps bandwidth and storage requirements manageable, and an onboard Micro TF slot supports up to 256 GB of local recording. Available in 2.8 mm, 4 mm or 6 mm fixed lens configurations, the DS-2XM6522G1 suits fleet operators and transit integrators requiring a certified, wash-down-resistant camera. Note that this product carries a lead time of 6-8 weeks.
Key Capabilities
IP68, IP69K and IK10 Protection
The metal housing withstands full submersion, high-pressure water jets and physical impact. This combination is mandatory for exterior vehicle body mounting and vehicle wash facilities where lighter-rated cameras would fail quickly.
120 dB True WDR
Genuine 120 dB wide dynamic range recovers detail in both bright sunlight and deep shadow simultaneously, addressing the harsh backlight conditions common at bus doors, station entrances and tunnel exits.
Built-in Heater for Extreme Temperatures
An integrated heater keeps the camera operational from -40 degrees C, which is critical for outdoor transit applications in cold climates where standard IP cameras would fail to power on or produce usable images.
Multiple Power and Connector Variants
Available with PoE RJ45, M12 PoE, DC coaxial or Molex connectors to match different vehicle harness and mobile recording unit configurations. The M12 aviation plug option provides a secure, vibration-resistant connection in transport installations.
H.265+ Compression with Local Storage
H.265+ reduces bitrate and storage consumption compared to older codecs, which matters when recording to an onboard Micro TF card (up to 256 GB) or a mobile NVR with limited write capacity.
Smart Event Detection
Beyond basic motion detection and tamper alerts, the camera supports line crossing, intrusion detection, unattended baggage and object removal detection, which are relevant for passenger compartment and platform monitoring scenarios.
Best For
- Bus and Coach Fleets: The IP69K wash-down rating, IK10 impact resistance and M12 connector option make this camera well suited to exterior mounting on buses and coaches subject to pressure washing between runs.
- Rail and Light Rail Rolling Stock: Selected variants meet EN50155 and related automotive and rail standards, making the DS-2XM6522G1 appropriate for operators with formal rolling stock compliance requirements.
- Fleet Vehicles in Cold Climates: The built-in heater and -40 degrees C operating minimum allow deployment in refrigerated transport, mining site vehicles and other environments that would disable standard network cameras.
- Industrial Vehicle Monitoring: The metal housing, wide operating temperature range and multiple power variants suit forklifts, heavy plant and construction vehicles where the connector type and vibration resistance matter as much as image quality.
Why Choose the DS-2XM6522G1
Most network cameras marketed for outdoor use carry IP66 or IP67 ratings, which are adequate for fixed building-mounted installations but fall short in vehicle environments that involve high-pressure wash cycles. The DS-2XM6522G1 adds IP69K to its IP68 and IK10 ratings, covering the specific pressure and temperature demands of transit fleet maintenance. The built-in heater extends the usable operating range to -40 degrees C, a specification that eliminates the need for external heating enclosures in cold-climate deployments. The 120 dB true WDR sensor handles the backlight extremes common at vehicle doors and tunnel approaches without requiring manual exposure adjustments. Three fixed lens options, 2.8 mm, 4 mm and 6 mm, allow the integrator to match field of view to the interior or exterior mounting position. The camera is available through Security Wholesalers with full datasheet documentation, though buyers should plan for the 6-8 week lead time when scheduling installations.
Buyer Decision Tips
Connector Variant Selection: The DS-2XM6522G1 is available in multiple power and interface configurations including PoE RJ45, M12 PoE, DC coaxial and Molex. Confirm the connector type required by your mobile NVR or vehicle harness before ordering, as swapping connector variants after delivery adds cost and delay given the 6-8 week lead time. The -ID suffix models use PoE RJ45, while -IDM models use the M12 aviation plug. Verify the exact model code against your wiring plan at the time of purchase.
No Audio Interface: The DS-2XM6522G1 has no audio input, audio output or RS-485 interface. If passenger announcement integration, onboard intercom connectivity or PTZ control via RS-485 is required for your transit project, this model cannot support those functions and a different camera should be specified for those positions.
Key Features & Technical Specifications
| Resolution |
2MP, 1920 x 1080 (1080p) |
| Image Sensor |
1/2.8″ progressive scan CMOS |
| Lens Options |
2.8 mm (F1.6), 4 mm (F1.6), 6 mm (F1.6) |
| Horizontal Field of View |
105 degrees (2.8 mm), 87 degrees (4 mm), 53 degrees (6 mm) |
| Minimum Illumination |
0.01 Lux at F1.2 (AGC ON); 0 Lux with IR |
| IR Range |
Up to 30 m; IR wavelength 850 nm |
| Wide Dynamic Range |
120 dB true WDR |
| Video Compression |
H.265+, H.265, H.264+, H.264 |
| Max Frame Rate |
25/30 fps at 1080p |
| Max Bit Rate |
12 Mbps (main stream) |
| Local Storage |
Built-in Micro TF card slot, up to 256 GB |
| Power Options |
PoE 802.3af (RJ45 or M12); DC 9-36 V (select variants); Molex (select variants) |
| Max Power Consumption |
10 W |
| Protection Rating |
IP68, IP69K, IK10 |
| Housing Material |
Metal |
| Operating Temperature |
-40 degrees C to 75 degrees C (with built-in heater) |
| Protocols |
TCP/IP, HTTP(S), RTSP, ONVIF Profile S/G/T, HIKSDK, ISAPI |
| Dimensions |
Approx. 163.7 x 122.6 x 65.1 mm |
| Weight |
Approx. 905 g |
| Standards Compliance |
EN50155 (select variants); ONVIF Profile S, G, T |
Ideal Use Cases
Public Transit Buses
The IP69K and IK10 ratings protect the camera during daily pressure washing of the vehicle exterior, while 120 dB WDR handles the bright-to-dark transitions at bus doors during boarding and alighting.
Rail Rolling Stock
Select DS-2XM6522G1 variants meet EN50155 requirements, making them suitable for certified installations on trains and light rail vehicles where regulatory compliance is part of the project specification.
Refrigerated and Cold-Climate Fleet Vehicles
The built-in heater enables reliable operation from -40 degrees C, making the DS-2XM6522G1 a workable choice for refrigerated transport or vehicles operating in cold-region mining and resources environments.
Heavy Plant and Construction Vehicles
The metal IK10-rated housing and broad DC power input range (9-36 V on select variants) suit installation on forklifts, excavators and other heavy plant where voltage fluctuations and vibration are common operating conditions.
Vehicle Wash and High-Pressure Environments
IP69K certification means the camera withstands high-pressure, high-temperature water jets, allowing it to remain mounted during automated vehicle wash cycles without requiring removal or waterproof covers.
Choosing the Right Model
- Choose this model if: Your installation is on a vehicle, mobile platform or wash-down environment requiring IP69K, IK10 and a wide operating temperature range, and your project can accommodate the 6-8 week lead time.
- Choose this model if: Your mobile NVR or vehicle harness uses an M12 aviation connector, as the -IDM variants are specifically built with that interface rather than a standard RJ45 plug.
- Choose a different model if: Your project requires audio recording, onboard microphone functionality or RS-485 PTZ control, as the DS-2XM6522G1 has no audio or RS-485 interface confirmed in its specification.
- Choose a different model if: You need immediate stock availability for a time-critical installation. A fixed IP dome camera with IP66 or IP67 rating may be available from local stock if vehicle-specific ratings and EN50155 compliance are not required for your site.
FAQs
- What is the difference between IP68 and IP69K, and why does the DS-2XM6522G1 carry both?
IP68 covers continuous submersion at depth, while IP69K covers resistance to high-pressure and high-temperature water jets directed at close range and various angles. A vehicle camera mounted on a bus or truck exterior may encounter both standing water ingress risk and pressure wash cycles, so both ratings together provide more complete protection than either rating alone.
- What does the built-in heater do and when is it needed?
The integrated heater activates automatically in cold conditions to keep the sensor and electronics within operating range, allowing the camera to function at temperatures as low as -40 degrees C. Without it, standard network cameras may fail to initialise or produce usable images in cold-climate fleet deployments, refrigerated transport applications or high-altitude outdoor installations.
- Which connector variant should I order for a bus or coach installation?
The -IDM model codes use an M12 aviation plug, which is the connector type most commonly used in vehicle harness systems for transit applications. The -ID codes use a standard PoE RJ45 connector. Confirm which connector your mobile NVR or onboard power distribution unit accepts before placing an order, as the 6-8 week lead time makes late changes to the connector type costly.
- Does the DS-2XM6522G1 have audio?
No. The DS-2XM6522G1 has no audio input, audio output or RS-485 interface. It cannot record audio, connect to an intercom system or control a PTZ camera via RS-485. If audio capture is required for your vehicle installation, a different camera model with a confirmed built-in microphone must be specified for that position.
- Which lens should I choose for interior vehicle cabin monitoring versus exterior approaches?
The 2.8 mm lens provides a 105 degree horizontal field of view and is better suited to wide interior cabin coverage from a ceiling-mounted position. The 4 mm lens at 87 degrees is a practical middle option for side or entrance door positions. The 6 mm lens at 53 degrees is more appropriate for a forward or rear external view where a narrower, longer field of view is needed to read detail at distance.
- Is the DS-2XM6522G1 compliant with EN50155 for rail applications?
Selected variants of the DS-2XM6522G1 meet EN50155 and related automotive and rail standards. Not every model code in the range carries this certification, so integrators working on certified rail rolling stock projects should confirm the specific variant’s compliance documentation before specifying it. The datasheets available through Security Wholesalers include regulatory and approval listings for reference.
- How much local storage can the DS-2XM6522G1 support without a network recorder?
The built-in Micro TF card slot supports cards up to 256 GB. Using H.265+ compression, this provides meaningful standalone recording capacity for shorter route vehicles or as a backup recording layer alongside a mobile NVR. Event-based recording triggered by motion detection or intrusion detection will extend the effective recording window compared to continuous recording at full resolution.
