Product Overview

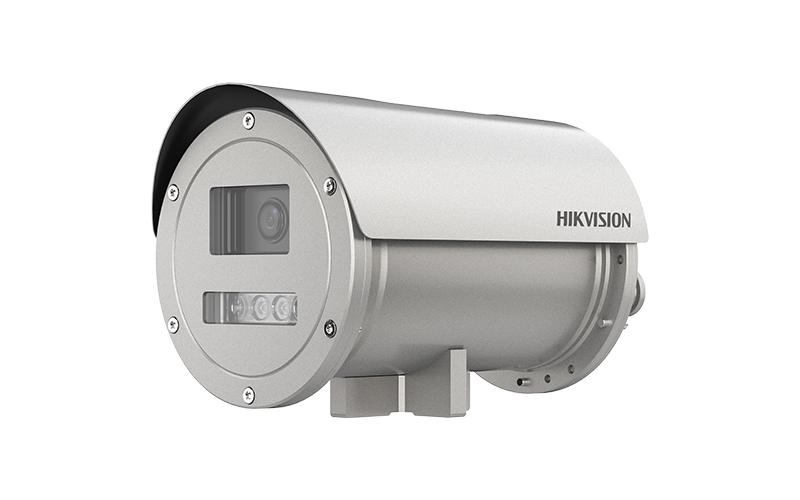

Built for gas and dust hazardous environments where standard cameras cannot be deployed, the DS-2XE6885G0-IZHS is an 8 MP explosion-proof motorised varifocal bullet camera engineered to operate safely in the most demanding industrial conditions. Featuring a 316L stainless steel enclosure and IP68-rated sealing, it is designed to withstand corrosive atmospheres, outdoor exposure, and the risk of ignition from electrical sparks. Equipped with a motorised varifocal lens available in 2.8-12 mm or 8-32 mm options, installers can frame coverage precisely without physical lens adjustment on site. Incorporating Hikvision’s DarkFighter technology, it maintains usable image quality in low-light industrial settings. It also includes on-board microSD storage of up to 256 GB for edge recording, and a wide-range AC 100-240 V power input to simplify deployment across global electrical infrastructure. This makes it well suited to refineries, chemical processing plants, offshore platforms, mining sites, and other classified hazardous-area installations requiring internationally certified camera surveillance.
Key Capabilities
Explosion-Proof Certification
Certified to ATEX, IECEx, UL Zone, cUL Zone, and UL/cUL Division standards, including Class I Zone 1 and Class I Division 2 classifications. This allows the camera to be legally and safely deployed in locations where flammable gases, vapours, or combustible dust are present.
316L Stainless Steel Enclosure
The housing is constructed from grade 316L stainless steel, chosen specifically for its resistance to corrosion from industrial chemicals, salt spray, and harsh cleaning agents. This protects the internal components in environments where standard aluminium or plastic housings would degrade rapidly.
8 MP DarkFighter Imaging
The 8 MP sensor combined with Hikvision’s DarkFighter technology delivers high-resolution footage in low ambient light conditions typical of industrial night-time operations, plant interiors, and poorly lit outdoor processing areas, reducing the need for supplemental lighting in certified zones.
Motorised Varifocal Lens
Two lens options, 2.8-12 mm and 8-32 mm, allow installers to dial in the exact field of view required for each camera position. Remote or on-unit zoom and focus adjustment avoids the need to re-enter a hazardous zone for lens tuning after initial installation.
On-Board Edge Storage
With support for microSD cards up to 256 GB, the DS-2XE6885G0-IZHS can record locally at the camera. This is particularly valuable in remote industrial installations where network connectivity is limited or as a backup in the event of NVR or network failure.
Wide-Range AC Power Input
The AC 100-240 V power input eliminates the need for a separate voltage adapter and simplifies wiring into existing industrial electrical infrastructure. This approach is considered safer for hazardous-area installations compared to DC adapter-based power solutions.
Best For
- Hazardous Gas Zones: ATEX, IECEx, and UL Zone 1 certifications make this camera compliant for use in areas classified as potentially explosive due to flammable gas or vapour.
- Corrosive Industrial Environments: The 316L stainless steel housing resists chemical attack and salt corrosion in settings such as chemical plants, offshore platforms, and coastal industrial facilities.
- Long-Range or Adjustable Coverage: The 8-32 mm varifocal option suits sites requiring coverage of long approaches, perimeter fence lines, or access roads from a fixed mounting position at distance.
- Remote Sites with Limited Network Infrastructure: The 256 GB on-board microSD storage capability allows continuous edge recording where NVR connectivity is intermittent or unreliable.
Why Choose the DS-2XE6885G0-IZHS
The DS-2XE6885G0-IZHS occupies a narrow but critical category: a fully certified explosion-proof bullet camera that delivers 8 MP resolution with DarkFighter low-light performance. A standard industrial IP66 or IP67 camera, however rugged, cannot legally or safely be deployed in Zone 1 or Division 2 classified hazardous areas. This model carries the full suite of international certifications, including ATEX, IECEx, UL Zone, cUL Zone, and UL/cUL Division ratings, meaning it meets the compliance requirements demanded by occupational health and safety regulations in Australian and international industrial environments. The 316L stainless steel body and IP68 rating go beyond surface-level protection, addressing the corrosion and immersion risks specific to refineries, offshore installations, and chemical processing facilities. Available through Security Wholesalers, the DS-2XE6885G0-IZHS is a purpose-engineered solution for installers and end users who cannot compromise on certification. Note that lead times for this model are typically 5-12 weeks due to its specialist manufacture.
Buyer Decision Tips
Confirm Your Hazardous Area Classification First: Before specifying the DS-2XE6885G0-IZHS, obtain the hazardous area classification for each camera location from your site’s electrical area classification drawing. Zone 1 (gas present intermittently) and Division 2 (gas present only in abnormal conditions) have different certification requirements. This model is certified for both, but the documentation you provide to your safety auditor must match the zone classification on record for each install point.
Lens Selection and Mounting Distance: Choose the 2.8-12 mm lens for wide coverage at closer mounting distances, such as doorways, entry points, or confined processing areas. Choose the 8-32 mm lens for longer standoff distances along perimeter fence lines, loading roads, or across open plant floors where the camera must be mounted high or far from the subject. The motorised varifocal design allows post-installation adjustment without re-entering the hazardous zone.
Key Features & Technical Specifications
| Model |
DS-2XE6885G0-IZHS |
| Resolution |
8 MP |
| Lens Type |
Motorised varifocal |
| Lens Options |
2.8-12 mm or 8-32 mm |
| Camera Type |
EXIR motorised varifocal bullet, explosion-proof |
| Enclosure Material |
316L stainless steel |
| Weather Rating |
IP68 |
| Explosion-Proof Certifications |
ATEX, IECEx |
| UL Zone Rating |
Class I, Zone 1, AEx db IIC T6; Zone 21, AEx tb IIIC T80°C |
| cUL Zone Rating |
Ex db IIC T6 Gb X; Ex tb IIIC T80°C Db X |
| UL/cUL Division Rating |
Class I, Division 2, Groups A, B, C and D, T6; Class II, Division 2, Groups F and G, T80°C |
| Video Compression |
H.265+, H.265, H.264+, H.264 |
| On-Board Storage |
microSD, up to 256 GB |
| Power Input |
AC 100-240 V wide range |
| Low-Light Technology |
DarkFighter |
| Typical Lead Time |
5-12 weeks (specialist product, made to order) |
Ideal Use Cases
Oil Refineries and Petrochemical Plants
Zone 1 gas hazard certification makes the DS-2XE6885G0-IZHS directly applicable to process areas, pump stations, and loading gantries at refineries where flammable hydrocarbon vapours may be present during normal operations.
Offshore and Marine Platforms
The combination of 316L stainless steel construction, IP68 sealing, and explosion-proof certification addresses the twin challenges of saltwater corrosion and explosive atmosphere compliance found on offshore oil and gas installations.
Chemical Processing and Storage Facilities
Chemical plants handling volatile solvents, acids, or reactive gases require cameras that can operate inside or adjacent to classified zones. The ATEX and IECEx certifications confirm this model meets those requirements without the need for separate protective housing.
Mining and Tunnelling Sites
UL/cUL Division 2 classification for Class II dust groups F and G makes this camera suitable for coal handling and processing environments where combustible dust presents an ignition risk, particularly in enclosed conveyor or transfer areas.
Remote Industrial Perimeter Monitoring
The 8-32 mm motorised varifocal lens paired with 8 MP DarkFighter imaging allows the camera to cover long perimeter approaches or access roads from a single fixed position, reducing the number of camera points needed across sprawling remote industrial sites.
Choosing the Right Model
- Choose this model if: Your site has areas formally classified as Zone 1, Division 2, or combustible dust Zone 21, and you require a surveillance camera that holds internationally recognised explosion-proof certification including ATEX and IECEx, along with an 8 MP sensor and motorised varifocal lens for flexible coverage.
- Choose a different model if: Your installation location is not a formally classified hazardous area. Standard industrial IP67/IP68-rated bullet cameras will deliver equivalent or greater image performance at significantly lower cost and without the 5-12 week lead time associated with certified explosion-proof units.
- Choose a different model if: Your application requires PTZ functionality, panoramic coverage, or active deterrence features such as strobe and audio. Explosion-proof certified cameras are purpose-built for compliance in hazardous zones and are not available in the same feature variety as standard commercial surveillance cameras.
FAQs
- What does explosion-proof mean in the context of this camera?
An explosion-proof camera does not mean the camera itself is blast-resistant. It means the enclosure is designed and certified to contain any internal ignition and prevent it from igniting a surrounding flammable atmosphere. The DS-2XE6885G0-IZHS achieves this through its sealed 316L stainless steel housing and has been tested and certified to ATEX, IECEx, and UL/cUL standards for this purpose.
- What hazardous area zones is the DS-2XE6885G0-IZHS certified for?
This model is certified for UL Zone 1 (Class I, AEx db IIC T6) for gas hazards, Zone 21 (AEx tb IIIC T80°C) for combustible dust hazards, and UL/cUL Division 2 for Class I groups A, B, C, D and Class II groups F and G. It also carries cUL Zone certification under Ex db IIC T6 Gb X and Ex tb IIIC T80°C Db X.
- Why does this camera use AC power rather than PoE?
The camera accepts AC 100-240 V wide-range power input. In hazardous area installations, routing AC power from a certified intrinsically safe or explosion-proof isolator is a common and compliant approach. The wide voltage range simplifies deployment across different site electrical standards. Always ensure power isolation and cable entry glands meet the hazardous area certification requirements for the zone in question.
- Can this camera be installed outdoors in direct rain or submerged conditions?
Yes. The DS-2XE6885G0-IZHS is rated IP68, which means it is sealed against continuous immersion in water beyond 1 metre. This makes it suitable for outdoor industrial locations subject to heavy rain, wash-down, or temporary flooding, in addition to its explosion-proof credentials.
- What lens options are available and how do I choose between them?
Two motorised varifocal lens options are available: 2.8-12 mm for wider fields of view at shorter mounting distances, and 8-32 mm for narrower, longer-range coverage. The motorised design allows the installer to adjust zoom and focus remotely or at the unit after installation, which is particularly useful when re-entering a classified zone to manually adjust a fixed lens is not practical or permitted.
- Does the DS-2XE6885G0-IZHS support local recording without an NVR?
Yes. The camera supports microSD cards up to 256 GB for on-board edge recording. This is useful for remote or isolated hazardous-area installations where continuous network connectivity to a central NVR cannot be guaranteed, providing a local recording fallback that can be reviewed or retrieved independently.
- What is the typical lead time and how do I order this model?
The DS-2XE6885G0-IZHS is a specialist made-to-order product with a typical lead time of 5-12 weeks. Given this timeline, early inclusion in project procurement schedules is strongly recommended. This model is part of the Security Wholesalers range and should be confirmed with the sales team prior to project commitment to verify current availability and delivery estimates.
