Product Overview

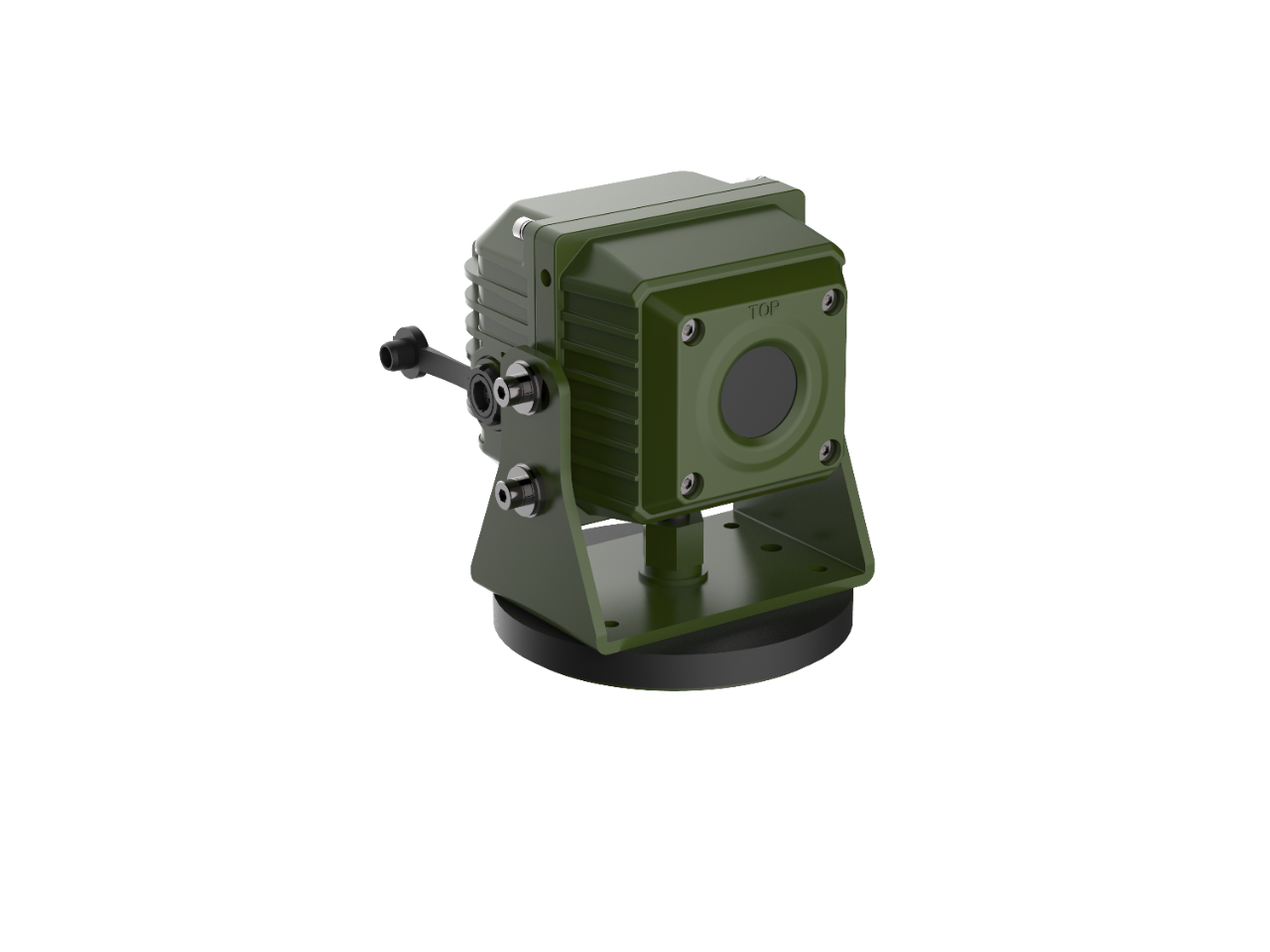

Built for vehicle-mounted thermal detection in low-visibility and night-time driving conditions, the DS-2TV03-10ZI Thermal Driving Assistance System from Hikvision is designed to extend a driver’s effective detection range well beyond what standard headlights allow. Equipped with a high-sensitivity 384 x 288 thermal sensor delivering a NETD of less than 40 mK, this unit detects heat signatures from pedestrians, animals, and obstacles before they enter the visible field of view. Featuring shutterless sensor technology, it eliminates the brief image interruption caused by traditional shutter-based calibration cycles, keeping the display feed continuous during operation. Built with Adaptive AGC, DDE, and 3D DNR image processing, the DS-2TV03-10ZI presents a clear, contrast-enhanced thermal image on its 800 x 480 LCD display. It also includes intelligent de-icing, a replaceable IR window, and IP67 weather protection, making it well suited to demanding outdoor vehicle environments including emergency response, mining, heavy transport, and rural road operations. Please note this is a non-stocked item with a lead time of 4-7 weeks.
Key Capabilities
384 x 288 Thermal Sensor
The high-resolution thermal sensor captures detailed heat signatures across the scene, providing enough pixel density to distinguish pedestrians, livestock, and road hazards at distance in complete darkness or through dust, fog, and smoke.
NETD Less Than 40 mK Sensitivity
A NETD value below 40 mK at 25 degrees Celsius means the sensor resolves very small temperature differences between a target and its surroundings. This level of thermal sensitivity enables earlier detection of objects that would otherwise blend into a low-contrast background.
Shutterless Technology
Unlike conventional thermal cameras that briefly interrupt the image during shutter-based flat-field correction, this shutterless design maintains a continuous, uninterrupted display feed. For vehicle applications where split-second awareness matters, this eliminates the momentary blackout at the worst possible time.
Advanced Thermal Image Processing
Adaptive AGC automatically adjusts gain across scenes with varying thermal contrast, while DDE enhances edge detail and 3D DNR reduces sensor noise. Together, these processing stages produce a stable, readable image on the display regardless of ambient temperature conditions.
800 x 480 LCD Display with De-icing
The included 800 x 480 resolution LCD display presents the thermal image directly to the driver in-cabin. Intelligent de-icing keeps the display functional in freezing operating environments, and the replaceable IR window allows field servicing without replacing the full unit.
Best For
- Night Driving on Rural or Unlit Roads: The thermal sensor detects pedestrians, livestock, and wildlife ahead of the vehicle in conditions where headlights provide limited advance warning, giving the driver additional reaction time.
- Heavy Transport and Mining Vehicles: Large vehicles operating in remote or industrial environments benefit from the IP67-rated housing and intelligent de-icing, which keep the system operational across harsh temperature ranges and wet or dusty conditions.
- Emergency Response and Hazard Operations: Ambulances, fire appliances, and incident response vehicles operating in smoke, dust, or reduced visibility gain thermal situational awareness that visible-light cameras cannot provide in the same conditions.
- Cold Climate Fleet Operations: The combination of intelligent de-icing and a replaceable IR window makes the DS-2TV03-10ZI practical for fleets operating in cold regions where standard camera systems freeze, fog, or require frequent servicing.
Why Choose the DS-2TV03-10ZI
The DS-2TV03-10ZI addresses a specific operational gap that standard dashcams, reversing cameras, and even high-sensitivity colour cameras cannot fill: detecting heat-emitting hazards in complete darkness or degraded visibility before they are illuminated by headlights. The shutterless design is a meaningful differentiator over standard thermal cameras in vehicle applications, removing the shutter blackout that can occur at precisely the moment a hazard appears. The NETD performance of less than 40 mK means the sensor resolves subtle temperature differences that lower-grade thermal sensors would miss, producing earlier and more reliable detection. Backed by IP67 weather sealing and intelligent de-icing, this is a system built to remain operational across the demanding duty cycles of commercial, emergency, and industrial fleets. Available at Security Wholesalers, the DS-2TV03-10ZI is supplied as a non-stocked item with a 4-7 week lead time, so early ordering is recommended for project planning.
Buyer Tip – Lead Time Planning: The DS-2TV03-10ZI is not a stocked item. Orders carry a 4-7 week lead time, which is standard for specialist thermal vehicle systems. If you are fitting this to a fleet or integrating it into a vehicle build-out, factor the lead time into your project schedule before placing the order to avoid installation delays.
Buyer Tip – Shutterless vs Standard Thermal: If your application involves a moving vehicle rather than a fixed perimeter installation, shutterless thermal technology is strongly preferable. Standard thermal cameras perform a brief shutter-based calibration that blanks the display for a fraction of a second. In a stationary surveillance context this is acceptable; in a moving vehicle, it represents a gap in hazard awareness. The DS-2TV03-10ZI’s shutterless design keeps the display feed uninterrupted throughout operation.

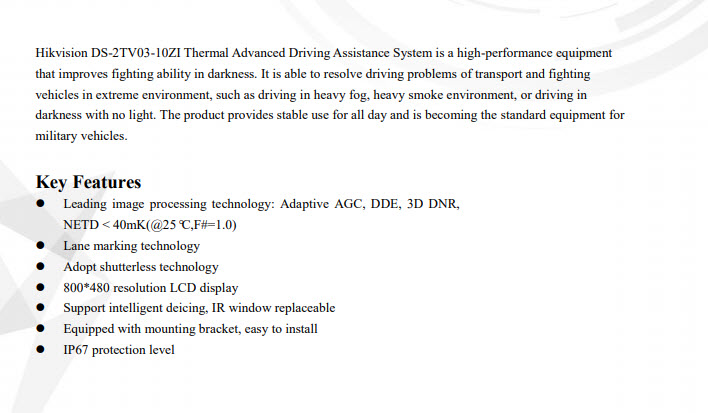

Key Features & Technical Specifications
| Model |
DS-2TV03-10ZI |
| Thermal Sensor Resolution |
384 x 288 |
| NETD (Thermal Sensitivity) |
Less than 40 mK (@25 degrees C, F#=1.0) |
| Shutter Type |
Shutterless |
| Thermal Image Processing |
Adaptive AGC, DDE, 3D DNR |
| Display Resolution |
800 x 480 LCD |
| De-icing |
Intelligent de-icing |
| IR Window |
Replaceable |
| Weather Protection |
IP67 |
| Mounting |
Mounting bracket included |
| Application |
Thermal driving assistance, vehicle-mounted |
| Stock Status |
Non-stocked – lead time 4-7 weeks |
Ideal Use Cases
Rural and Highway Night Operations
The 384 x 288 thermal sensor with sub-40 mK NETD sensitivity detects livestock and pedestrians on unlit rural roads before headlights reach them, giving drivers meaningful additional reaction distance during night runs.
Mining and Heavy Industry Sites
Large haul trucks and site vehicles operating in dusty, smoky, or low-light environments benefit from thermal imaging that cuts through airborne particulates. IP67 sealing ensures the unit withstands the washdowns and harsh conditions typical on mine sites.
Emergency Services Fleet Vehicles
Ambulances and fire appliances responding through smoke, rain, or at night gain thermal situational awareness that complements their existing lighting. The continuous shutterless display feed ensures no gap in visibility at the moment a hazard is encountered.
Cold Climate and Alpine Fleet Operations
The intelligent de-icing feature keeps the system operational when temperatures drop to a point where standard camera lenses and displays fail. The replaceable IR window also means field servicing can be carried out without replacing the full unit assembly.
Choosing the Right Model
- Choose this model if: You need an in-vehicle thermal detection system for night driving or low-visibility conditions, require continuous uninterrupted display output via shutterless technology, and need a unit rated to IP67 with integrated de-icing for demanding operational environments.
- Choose a different model if: Your application is a fixed perimeter thermal camera for building or site security rather than a moving vehicle – fixed-mount thermal cameras are better suited to that use case and are available in configurations optimised for stationary detection coverage rather than forward-facing driving assistance.
- Consider the lead time carefully: This unit carries a 4-7 week lead time as a non-stocked item. If your vehicle fitment has a firm deadline, confirm availability before committing to a project schedule that depends on prompt delivery.
FAQs
- What does the DS-2TV03-10ZI actually display to the driver?
The system includes an 800 x 480 LCD display that mounts in the vehicle cabin and shows a live thermal image from the forward-facing sensor. The thermal image highlights heat-emitting objects such as people, animals, and running engines as bright areas against a cooler background, giving the driver a secondary view that complements their normal field of vision.
- What does shutterless technology mean in a vehicle context?
Standard thermal cameras use a mechanical shutter to periodically recalibrate the sensor, which causes a brief blackout on the display. In a moving vehicle travelling at highway speed, this blackout – even if only a fraction of a second – represents a gap in hazard detection. The shutterless design in the DS-2TV03-10ZI eliminates this by using an alternative calibration method that keeps the image feed continuous throughout operation.
- What does a NETD of less than 40 mK mean in practical terms?
NETD (Noise Equivalent Temperature Difference) is a measure of the smallest temperature difference the sensor can resolve against background noise. A value below 40 mK means the sensor is highly sensitive to small thermal contrasts. In practical terms, this means the system can detect a pedestrian or animal that is only slightly warmer than its surroundings, which is particularly important in warm ambient conditions where the temperature difference between a person and the environment is reduced.
- Is the DS-2TV03-10ZI suitable for cold climate or alpine vehicle operations?
Yes. The unit is equipped with intelligent de-icing to keep the display and sensor assembly operational in freezing conditions, and the IP67 weather rating protects against rain, condensation, and washdowns. The replaceable IR window means that if the window becomes damaged or fouled in the field, it can be swapped out without returning the full unit for repair.
- What is the lead time for this product and can I order it for a fleet project?
The DS-2TV03-10ZI is a non-stocked item with a lead time of 4-7 weeks from order. It is available through Security Wholesalers for fleet and project orders, but quantity requirements and timing should be discussed at the point of inquiry to ensure the lead time aligns with your installation schedule.
- Does the system require any specialist vehicle installation?
The DS-2TV03-10ZI is supplied with a mounting bracket to simplify vehicle fitment. Integration into a vehicle’s power supply and display mounting will typically require a qualified auto-electrician or vehicle fitment specialist, particularly for commercial or emergency service vehicles where electrical work must meet industry or fleet compliance standards.
