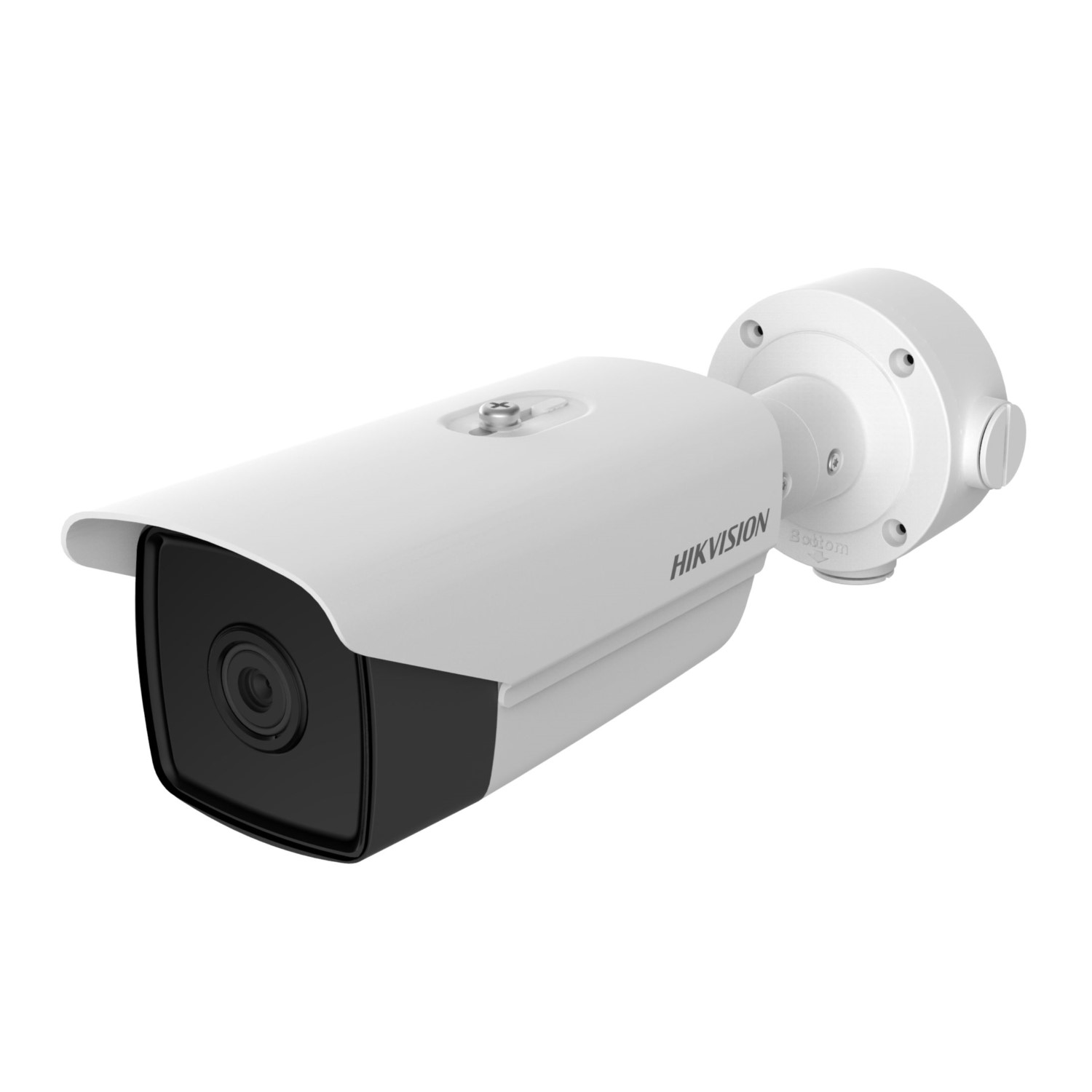

Hikvision DS-2TD2117-3V1 DeepInView Thermal Bullet Camera IP66, 160×120, 25fps 3mm
This device is not a medical device and not TGA approved.
CURRENTLY NOT IN STOCK – 4-6 WEEKS LEAD TIME
$1,711.00 inc GST +3 Year Warranty & Support
- Thermal Module
- Image Sensor Vanadium Oxide Uncooled Focal Plane Arrays
- Pixel Interval 17 μm
- Response Waveband 8 μm to 14 μm
- NETD less than 40mk (@25°C,F#=1.1)
- MRAD5.48 mrad
- Field Of View 50° × 37.2° (H × V)
- Min. Focusing Distance 0.2 m
- Aperture F 1.1
- Smart Function
- VCA(Video Content Analysis) 4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), up to 8 VCA rules.
- Temperature Measurement 3 temperature measurement rule types, 21 rules (10 points, 10 regions, and 1 line).
- Temperature Range -20 °C to 150 °C (-4 °F to 302 °F)
- Temperature Accuracy ±8 °C (14.4 °F)
- Fire Detection Dynamic fire point detection, up to 10 fire points detectable.
- Network
- Main Stream 25fps (160×120(the resolution of output image is 320×240))
- Sub Stream 25fps (160×120(the resolution of output image is 320×240))
- Third Stream 25fps (160×120(the resolution of output image is 320×240))
- Video Compression H.265/H.264/MJPEG, H.265+/H.264+ encoding with Baseline/Main/High Profile
- Audio Compression G.711u/G.711a/G.722.1/MP2L2/G.726/PCM
- Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS,NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
- Simultaneous Live View Up to 20
- User/Host Leve lUp to 32 users, 3 levels: Administrator, Operator, User
- Security MeasuresUser authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering
- Integration
- Alarm Input 2-ch inputs (0-5V DC)
- Alarm Output 2-ch relay outputs, alarm response actions configurable
- Alarm Action Preset/Patrol Scan/ Pattern Scan/SD Card Record/Relay Output/Smart capture/FTP upload/Email linkage
- Audio Input1 3.5mm Mic in/Line in interface. Line input: 2-2.4V[p-p], output impedance:1KΩ±10%
- Audio Output Linear Level; Impedance: 600Ω
- Ethernet1 RJ45 10M/100M Self-adaptive Ethernet interface
- SD Memory Card Built-in Micro SD card slot, support Micro SD/SDHC/SDXC card (up to 256G), support manual/alarm recording
- Analog Video Output1.0V [p-p]/75Ω, PAL/NTSC/BNC
- Application ProgrammingOpen-ended API, support ISAPI, HIKVISION SDK and third-party management platform
- Client iVMS-4200
- Web Browser IE9+, chrome31-chrome44, Firefox 30-Firefox51, Safari 5.02+(mac)
- General
- Menu Language English
- Power 12 VDC± 20%,PoE (802.3af, class 4)
- Power Consumption 12 VDC ± 20%: 1.7 A, max. 8W, PoE (802.3af)
- Work Temperature/Humidity -40 °C to 65 °C (-40 °F to 149 °F), 90% or less
- Protection Level IP66 Standard,TVS 6000V Lightning protection, surge protection, voltage transient protection
- Dimensions 352.4mm × 113.5mm × 113mm (13.9″ × 4.45″ × 4.45″)
- Weight Approx. 1.45kg (3.2lb)
