Product Overview

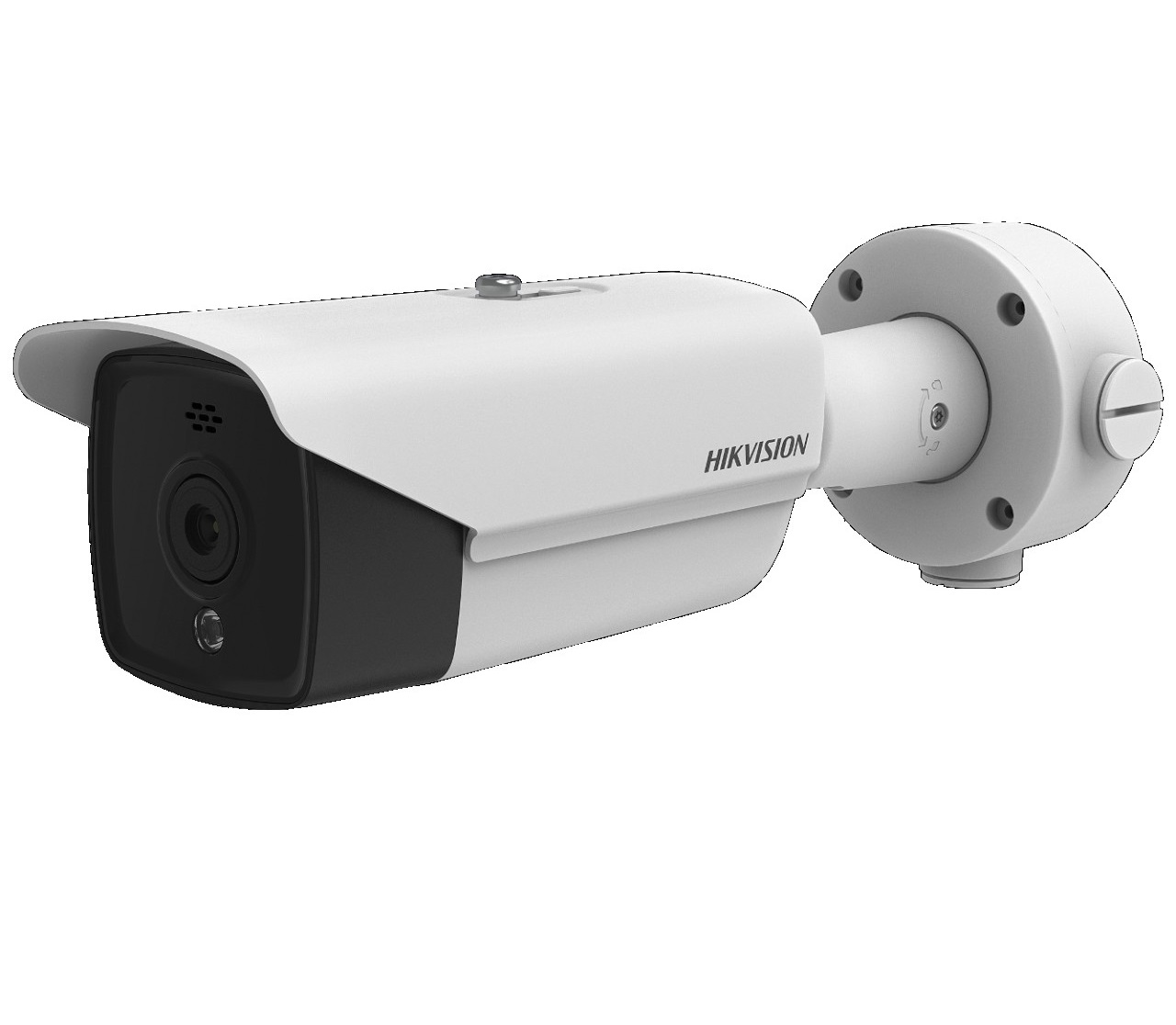

For infrastructure operators, industrial sites, and perimeter security deployments where standard visible-light cameras fall short after dark, the Hikvision DS-2TD2117-10/QA delivers thermal detection capability in a ruggedised bullet housing built for outdoor conditions. Featuring a 160×120 VOx uncooled focal plane array with a NETD of less than 40 mK, this thermal bullet camera detects human presence at up to 285 metres and vehicles at up to 875 metres, regardless of lighting conditions. Equipped with deep learning-based VCA supporting line crossing, intrusion, and region entrance and exit detection, the DS-2TD2117-10/QA also integrates active fire point detection covering objects as far as 588 metres away, along with smoking detection and temperature anomaly alerting across a range of -20°C to +150°C. It also includes a built-in bi-spectrum design with an optical channel outputting up to 2688×1520 at 25fps, complementing the thermal image with visual detail. IP66 rated with TVS 6000V lightning protection and an operating range of -40°C to 65°C, this model is suited to factories, utilities, open perimeters, and remote infrastructure sites.
Key Capabilities
Long-Range Thermal Detection
The 160×120 thermal array detects human-sized targets at up to 285 metres and vehicles at up to 875 metres, making this camera effective across open yards, fence lines, and wide industrial perimeters where visible-light cameras cannot operate reliably in darkness or smoke.
Active Fire and Smoke Detection
The camera identifies dynamic fire points at up to 588 metres for a 2×2 metre object and supports smoking detection, enabling early-stage fire pre-warning. Up to 10 simultaneous fire points can be monitored, with alarm outputs and FTP or email notification configured to trigger automatically.
Deep Learning VCA Behaviour Analysis
Deep learning algorithms support up to 8 VCA rules across 4 types: line crossing, intrusion, region entrance, and region exit. VCA is effective for humans at 70 metres and vehicles at 210 metres, reducing nuisance triggers from environmental movement such as vegetation or animals.
Temperature Measurement and Anomaly Alerting
Supports 21 temperature measurement rules across points, areas, and line types, with a measurement range of -20°C to +150°C and accuracy of plus or minus 8°C. Temperature anomaly alarms can be configured to trigger recording, relay outputs, or FTP uploads when thresholds are exceeded at a facility.
Bi-Spectrum Optical Channel
Alongside the thermal stream, the DS-2TD2117-10/QA outputs an optical video channel at up to 2688×1520 at 25fps. This dual-channel design allows operators to confirm thermal detections with visible-light imagery, which is particularly useful during incident review or when identifying the source of a fire detection alert.
Industrial-Grade Environmental Protection
Rated IP66 against dust and water ingress and built to operate from -40°C to 65°C, the camera also carries TVS 6000V lightning protection, surge protection, and voltage transient protection. These ratings make it suitable for exposed rooftop, fence-line, or remote site installations where environmental extremes are routine.
Best For
- Perimeter Intrusion Detection: Deep learning VCA with effective human detection at 70 metres and vehicle detection at 210 metres supports reliable boundary monitoring across factory perimeters, utility sites, and construction yards without reliance on lighting infrastructure.
- Early-Stage Fire Pre-Warning: Fire point detection at up to 588 metres and integrated smoking detection make this camera suited to high-risk outdoor environments such as fuel storage areas, timber yards, and open industrial sites requiring early fire alerting.
- Remote and Harsh-Environment Installations: IP66 protection, TVS 6000V lightning resistance, and an operating temperature range of -40°C to 65°C allow deployment on exposed mast, fence-line, or rooftop positions where conventional cameras would not survive long-term.
- Infrastructure and Utility Monitoring: Temperature measurement across 21 configurable rules allows the camera to track thermal anomalies across electrical switchgear, transformers, pipelines, or storage vessels in real time, with configurable alarm thresholds per monitored zone.
Why Choose the DS-2TD2117-10/QA
The DS-2TD2117-10/QA is a specialist deployment camera that combines three distinct detection disciplines in a single outdoor bullet housing: perimeter VCA, fire point detection, and temperature anomaly monitoring. A standard IP camera can do none of these reliably at night or in smoke-affected conditions. Where a conventional bullet camera stops working the moment lighting conditions drop, the DS-2TD2117-10/QA’s thermal array continues to detect human targets at 285 metres and vehicles at 875 metres. The addition of an optical channel at up to 2688×1520 means operators are not limited to thermal imagery alone. With onboard MicroSD storage up to 256GB, 2-channel alarm inputs and outputs, RS-485, and PoE 802.3af power support, the camera integrates directly into existing security infrastructure. Supplied by Security Wholesalers as part of the Hikvision DeepInView thermal range, this model replaces the DS-2TD2117-10/PA and is built for sites where fire risk, perimeter breaches, or process temperature faults carry serious operational consequences.
Buyer Tip – Thermal vs. Optical Expectations: The thermal channel on this camera outputs at 160×120 resolution. This is standard for uncooled thermal technology and is intended for detection and temperature analysis, not visual identification. Facial features and number plates will not be readable from the thermal stream. The optical channel at up to 2688×1520 provides the visual detail needed for identification. Plan your installation so the optical channel covers the recognition zone you need, while the thermal channel handles detection across the broader field.
Buyer Tip – Temperature Accuracy and Fire Detection Use: The temperature measurement accuracy is rated at plus or minus 8°C, which is typical for uncooled thermal sensors at this price point. This level of accuracy is suitable for trend monitoring and anomaly alerting, but is not appropriate for precision process temperature measurement requiring tight tolerances. Fire detection ranges are specified for a 2×2 metre object at 588 metres. Smaller heat sources will be detectable at shorter distances. Configure alarm thresholds with appropriate margins to account for ambient temperature variation in your specific site environment.
Key Features & Technical Specifications
| Image Sensor |
VOx Uncooled Focal Plane Arrays |
| Thermal Resolution |
160×120 |
| Pixel Pitch |
17 µm |
| NETD |
Less than 40 mK (@25°C, F#=1.1) |
| Focal Length |
9.7 mm |
| Field of View |
15.96° x 12° (H x V) |
| Response Waveband |
8 µm to 14 µm |
| Optical Channel Resolution |
Up to 2688×1520 at 25fps (50 Hz) / 30fps (60 Hz) |
| Detection Range – Human |
285 m (1.8×0.5 m target) |
| Detection Range – Vehicle |
875 m (4.0×1.4 m target) |
| VCA Range – Human / Vehicle |
70 m / 210 m |
| Fire Detection Range |
588 m (2×2 m object) |
| Temperature Measurement Range |
-20°C to +150°C, accuracy ±8°C |
| VCA Functions |
Line crossing, intrusion, region entrance, region exit – up to 8 rules |
| Video Compression |
H.265, H.264 (Baseline/Main/High Profile), MJPEG |
| Power |
PoE 802.3af (class 3), max 5 W; DC 12V, max 4.5 W |
| Storage |
MicroSD/SDHC/SDXC up to 256 GB |
| Alarm I/O |
2-channel alarm input, 2-channel relay output |
| Protection Rating |
IP66; TVS 6000V lightning, surge and voltage transient protection |
| Operating Temperature |
-40°C to 65°C; humidity 95% or less |
| Dimensions / Weight |
358.3 x 113.5 x 115.2 mm / approx. 1.71 kg |
| Protocols / Integration |
ONVIF (Profile S, G, T), ISAPI, SDK; iVMS-4200, Hik-Connect |
Ideal Use Cases
Factory and Industrial Perimeter Monitoring
Deep learning VCA detects intruders crossing factory boundaries at effective ranges up to 70 metres for humans and 210 metres for vehicles, triggering relay outputs or alarm notifications without reliance on site lighting at night.
Open Storage and Fuel Facilities
Fire point detection at up to 588 metres and smoking detection allow early pre-warning at fuel storage terminals, open chemical storage, or timber processing facilities where a visible-light camera would not detect a developing fire until it was already significant.
Utility Infrastructure Protection
Temperature measurement across 21 configurable zones monitors electrical switchgear, transformers, and substations for thermal anomalies. Configurable alarm thresholds tied to relay outputs allow automated alerts before equipment reaches critical failure temperature.
Remote Site and Mining Operations
With an operating temperature range of -40°C to 65°C, IP66 ingress protection, and TVS 6000V lightning protection, the DS-2TD2117-10/QA is built to operate continuously on remote mast or fence-line positions in environments with extreme temperature swings and storm exposure.
Port, Rail, and Critical Infrastructure Sites
Simultaneous thermal detection and optical imaging at up to 2688×1520 supports security operations at ports, rail yards, and critical infrastructure sites where operators need both wide-area intrusion detection and visible confirmation of events on a single camera unit.
Choosing the Right Model
- Choose this model if: You need passive thermal detection across an open perimeter, fire pre-warning at outdoor storage or industrial facilities, or temperature anomaly monitoring across infrastructure assets, and your site has limited or no external lighting for conventional camera coverage.
- Choose a different model if: Your primary requirement is readable facial or licence plate identification. The 160×120 thermal resolution is intended for detection and temperature monitoring, not identification. If your application requires evidence-quality identification from a single camera, a higher-resolution optical bullet or multi-sensor camera with IR illumination would be a better fit for the identification zone.
- Choose a different model if: Your site requires continuous pan, tilt, and zoom capability to track moving targets across a large area. This is a fixed-mount bullet camera with a 15.96° x 12° field of view. A PTZ or motorised-zoom camera would better serve sites requiring active operator-controlled target tracking.
FAQs
- What does the 160×120 thermal resolution actually mean for detection on site?
The 160×120 resolution refers to the thermal sensor’s pixel grid, not a visible image quality standard. At this resolution the camera can reliably detect a human-sized target at 285 metres and a vehicle at 875 metres. The image will not show facial detail, but it will generate a clear heat signature that triggers VCA rules at up to 70 metres for humans and 210 metres for vehicles. Think of it as a detection and analysis tool, not an identification camera.
- Can this camera detect fires in complete darkness or in heavy smoke conditions?
Yes. Because thermal imaging detects heat rather than visible light, the DS-2TD2117-10/QA operates regardless of lighting conditions and is not blocked by smoke in the way a visible-light camera is. Dynamic fire point detection supports up to 10 simultaneous fire points, with fire detection effective for a 2×2 metre object at up to 588 metres. Smoking detection is also supported as an independent alert function.
- What is the purpose of the optical channel on this camera if it is classified as a thermal camera?
The DS-2TD2117-10/QA is a bi-spectrum camera, meaning it produces both a thermal stream and a separate optical video stream. The optical channel outputs up to 2688×1520 at 25fps and is used to provide visible-light context alongside the thermal image. This allows operators to visually confirm what the thermal image detected, which is particularly useful during fire alarm events or when reviewing VCA triggers to understand what caused the alarm.
- How does the VCA intrusion detection on this camera differ from motion detection on a standard IP camera?
Standard motion detection triggers on any pixel change in the scene, including wind-blown vegetation, passing vehicle headlights, or rain. The DS-2TD2117-10/QA uses deep learning algorithms applied to the thermal image to classify detected objects based on heat signatures, reducing false triggers from non-human sources. Up to 8 VCA rules can be configured across line crossing, intrusion, and region entrance and exit detection types.
- What power options does the DS-2TD2117-10/QA support, and does it require a special PoE switch?
The camera supports PoE 802.3af class 3 at a maximum draw of 5 watts and DC 12V at a maximum of 4.5 watts. Standard 802.3af PoE switches and injectors are compatible. No high-power PoE+ switch is required. The camera also has an RS-485 interface and 2-channel alarm inputs and outputs for integration with external devices and alarm systems.
- Is onboard storage available, and how does alarm recording work on this unit?
The camera has a built-in MicroSD card slot supporting MicroSD, SDHC, and SDXC cards up to 256 GB. Recording can be triggered manually or by alarm events. Alarm actions include SD recording, relay output activation, smart capture, FTP upload, and email notification. This allows the camera to continue recording locally even if network connectivity to a central NVR is temporarily unavailable.
- Is the DS-2TD2117-10/QA available through Security Wholesalers, and does it have lead-time considerations?
The DS-2TD2117-10/QA is available through Security Wholesalers as part of the Hikvision DeepInView thermal camera range. As a specialist thermal product, it carries a lead time that should be confirmed at the time of enquiry. Plan procurement well ahead of installation dates, particularly for projects with fixed commissioning schedules. The camera replaces the earlier DS-2TD2117-10/PA model.
